2 Axle Drop Side Cargo Wall Semi Trailer
Factory direct wholesale on premium 2 axle drop side cargo wall semi trailers. Reliable 30-40 ton capacity side wall semi trailer with removable cargo gates.
Minimum order quantity: 1 unit
- Overview
- Recommended Products
Agricultural & Grain Distribution: The standard choice for hauling bulk agricultural harvests, bagged crops, animal feed, and packaged fertilizers between farms and processing centers.
Palletized Industrial Freight: Optimized for transporting fast-moving consumer goods, industrial components, electronics, and construction supplies packed on standard wooden pallets.
Loose Bulk & Construction Shuttling: Easily holds structural lumber, metal piping, scaffolding, and assorted building hardware with the drop-side gates securely upright.
Product Details

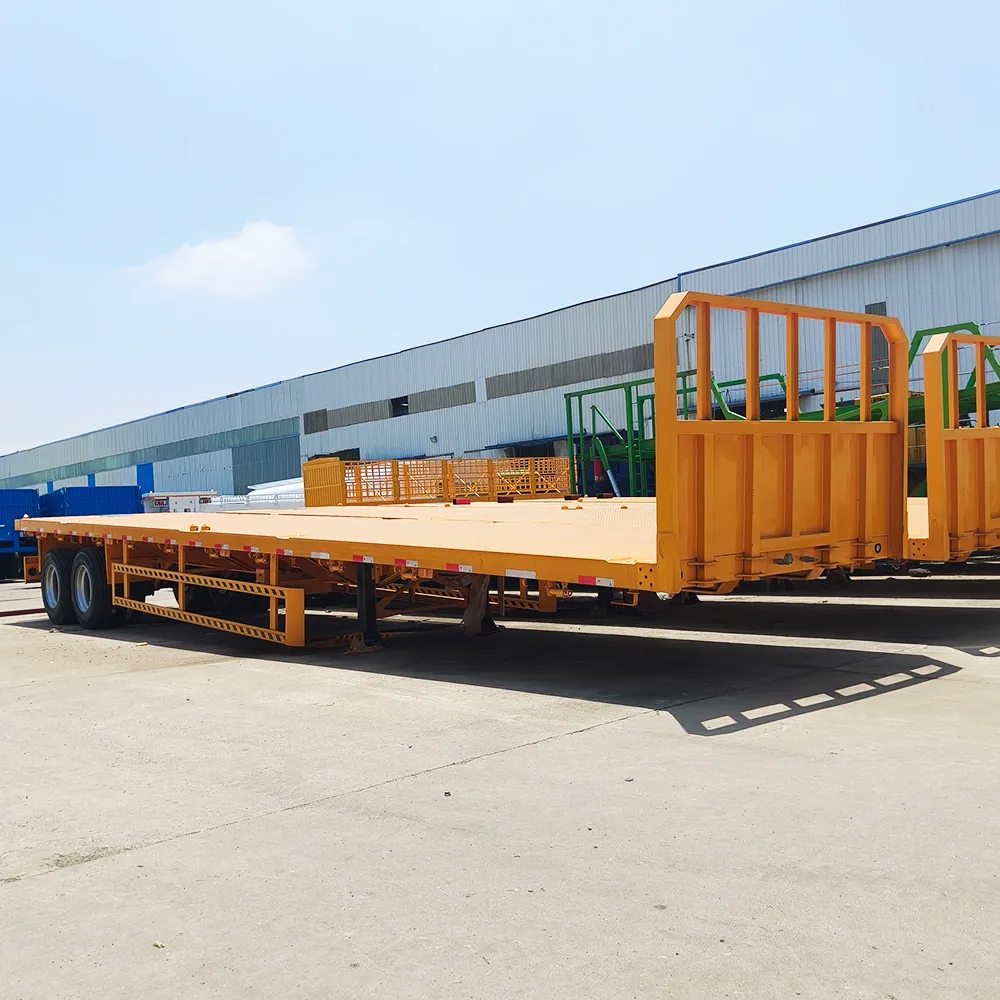

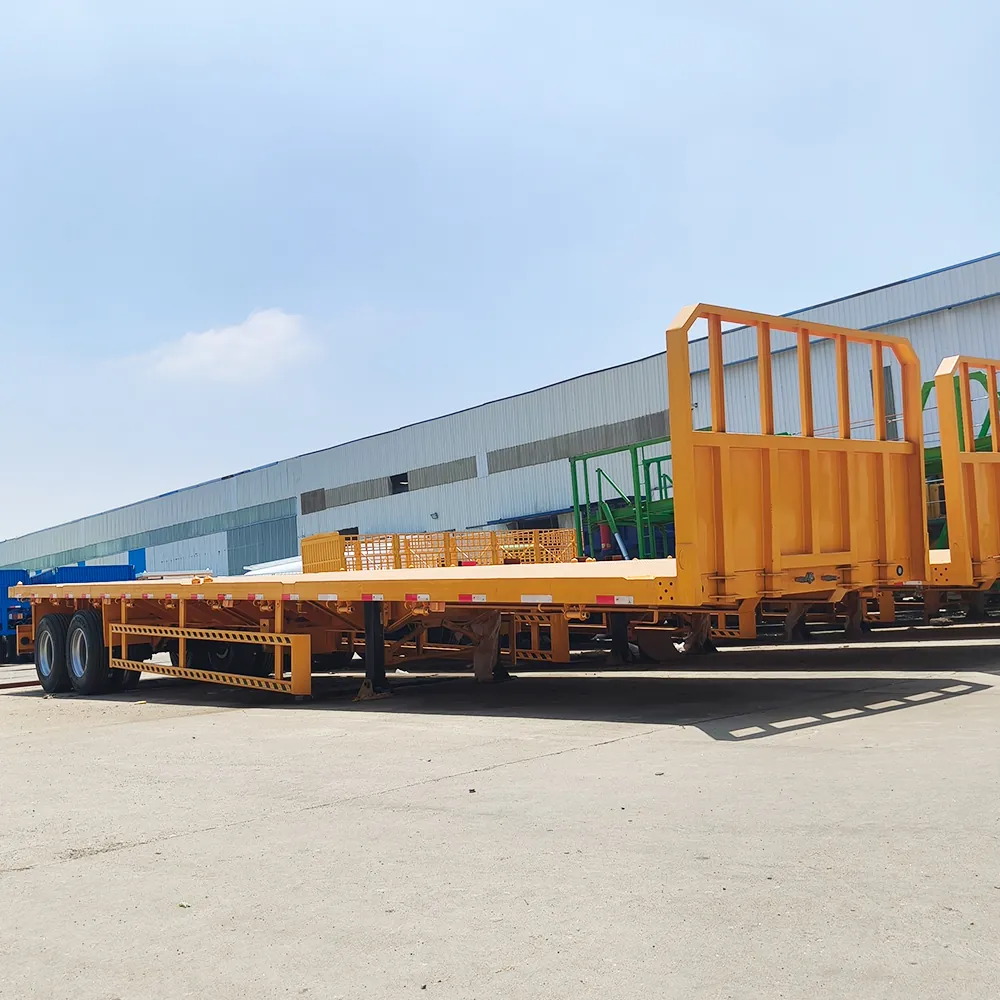

The 2 axle drop side cargo wall semi trailer is a highly flexible, multi-purpose commercial transport platform engineered to streamline regional logistics, agricultural distribution, and bulk dry cargo handling. Built with a twin-axle (2-axle) tandem-suspension framework, this lightweight yet heavy-duty cargo trailer offers the ideal balance of payload efficiency and maneuverability, delivering an engineered payload capacity of 30 to 40 tons. The hallmark of this model is its multi-hinged, removable drop-side wall panel system. These cargo walls can be opened downward or completely detached within minutes, allowing forklifts to seamlessly load palletized goods, crated machinery, or bulk agricultural commodities from either side. When the gates are securely locked in place, they form a rigid, protective cargo box that guarantees complete load containment over demanding linehaul transit networks.
Product Parameter Table
| Technical Parameter | Industrial Specification Data (High Efficiency Cargo Matrix) |
| Trailer Model Type | 2 Axle Drop Side Cargo Wall Semi Trailer / Side Wall Trailer |
| Rated Payload Capacity | 30,000 kg – 40,000 kg (30-40 Ton Optimized Transport Rating) |
| Axle Hardware Setup | 2 Axles × 13-Ton / 16-Ton High-Capacity Axles (Fuwa or BPW Brand) |
| Drop Side Wall Height | Custom 600mm / 800mm / 1000mm / 1200mm Removable Side Gates |
| Main Beam Material Matrix | High-Tensile Q345B Carbon Steel; Submerged-Arc Automated Welding |
| Overall Chassis Dimensions | Approx. 11,500mm - 12,500mm (Length) × 2,500mm (Width) × 1,550mm (Height) |
| Platform Deck Floor | 3mm Thick Anti-Slip Textured Steel Checkered Plating |
| Cargo Gate Lock Matrix | Heavy-Duty Integrated Turning Latches with Reinforced Safety Hinge Pins |
| Suspension Framework | Multi-Leaf Heavy Mechanical Steel Spring Suspension (Air Suspension Optional) |
| Kingpin Specification | 2.0 inch (50#) or 3.5 inch (90#) JOST Bolt-in Type Interchangeable Pin |
| Landing Gear Support | JOST Two-Speed Manual Operation Heavy Duty 28-Ton Capacity Legs |
| Tire Hardware Array | 8 Units + 1 Spare | 12R22.5 Tubeless Steel Wire Radial Tires |
| Safety Braking System | Dual Line Compressed Air Braking Matrix; Genuine WABCO RE6 Relay Valve |

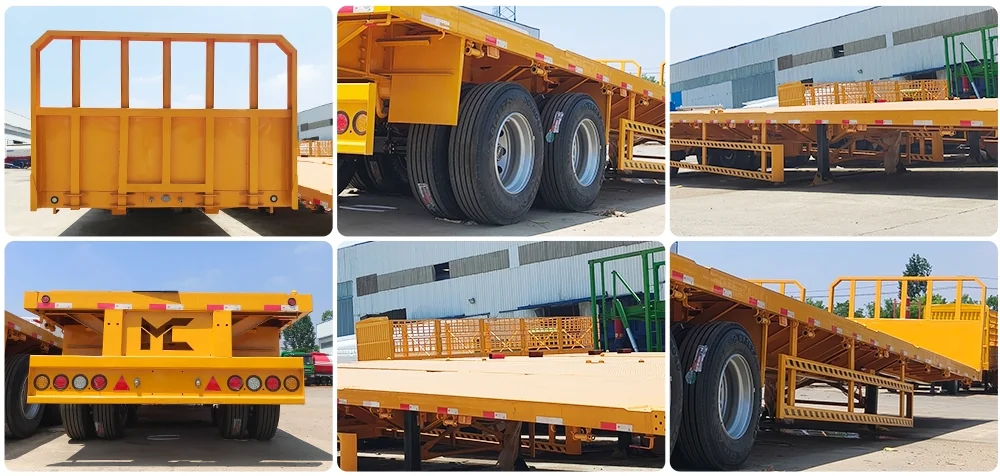

Features of 2 axle side wall trailer
🔵 Flexible Multi-Hinged Side Gates: The side walls feature an advanced modular drop-down design with reinforced, heavy-duty mechanical handles. Drivers can unlock and lower individual sections easily, enabling swift lateral forklift loading and minimizing turnaround times in crowded logistics bays.
🔵 Lightweight Yet High-Tensile Backbone: The main sub-frame chassis is fabricated from premium Q345B high-strength carbon steel, welded seamlessly under automatic submerged-arc processes. This engineering minimizes the empty tare weight of the 2-axle configuration, lowering fuel consumption while providing massive resistance against structural bending.
🔵 Anti-Slip Steel Checkered Deck: The operational cargo floor is completely lined with robust patterned checkered steel plating. This textured surface provides superior grip and friction, preventing loose pallets, bagged cement, or crated equipment from slipping during sudden highway stops.
🔵 Corrosion-Resistant Industrial Coating: The entire drop-side trailer frame undergoes industrial-grade automated shot-blasting to strip metal impurities before painting. Finished with a zinc-rich anti-corrosive primer and dual polyurethane topcoats, it offers long-lasting protection against rust, heavy rain, and extreme UV rays.
🔵 High-Capacity 2-Axle Tracking Matrix: Outfitted with dual premium 13-ton or 16-ton heavy-duty axles (Fuwa/BPW options), engineered to distribute cargo weight evenly over 8 durable radial tires. This layout reduces maintenance costs relative to 3-axle configurations while performing reliably across regional drayage routes.
Applications of side wall trailer
The 2 axle drop side cargo wall semi trailer delivers exceptional versatility across vital regional logistics sectors:
Packaging and Transportation

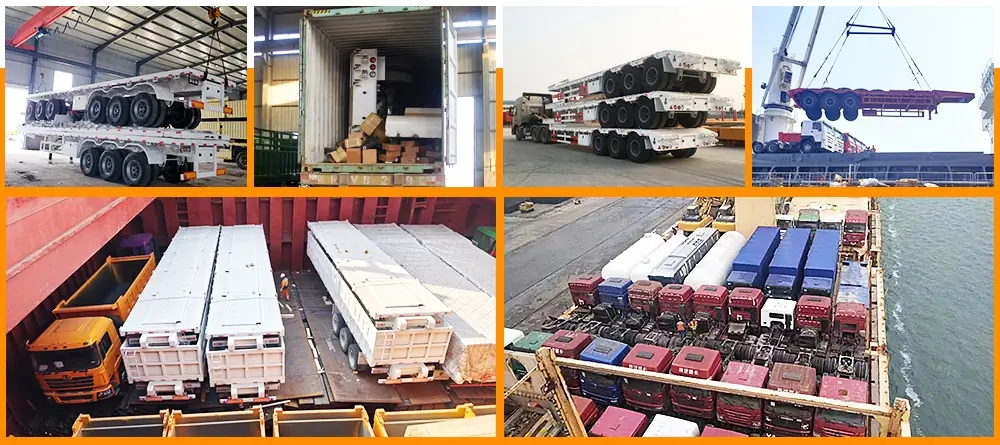

The side wall trailer is coated with anti-rust wax and professionally reinforced before shipment. We can provide roll-on/roll-off, bulk carrier, and container transport services according to customer needs. Our team will ensure safe and timely delivery of your goods to your destination port.
FAQ
Q: What is the load capacity of this trailer?
A: Depending on your working conditions and road standards, it can carry 40-60 tons of cargo.
Q: Can the sidewall height be customized?
A: Yes, we can customize the sidewall height and thickness according to your cargo requirements.
Q: Does it use mechanical suspension or air suspension?
A: Both mechanical suspension and air suspension are available.

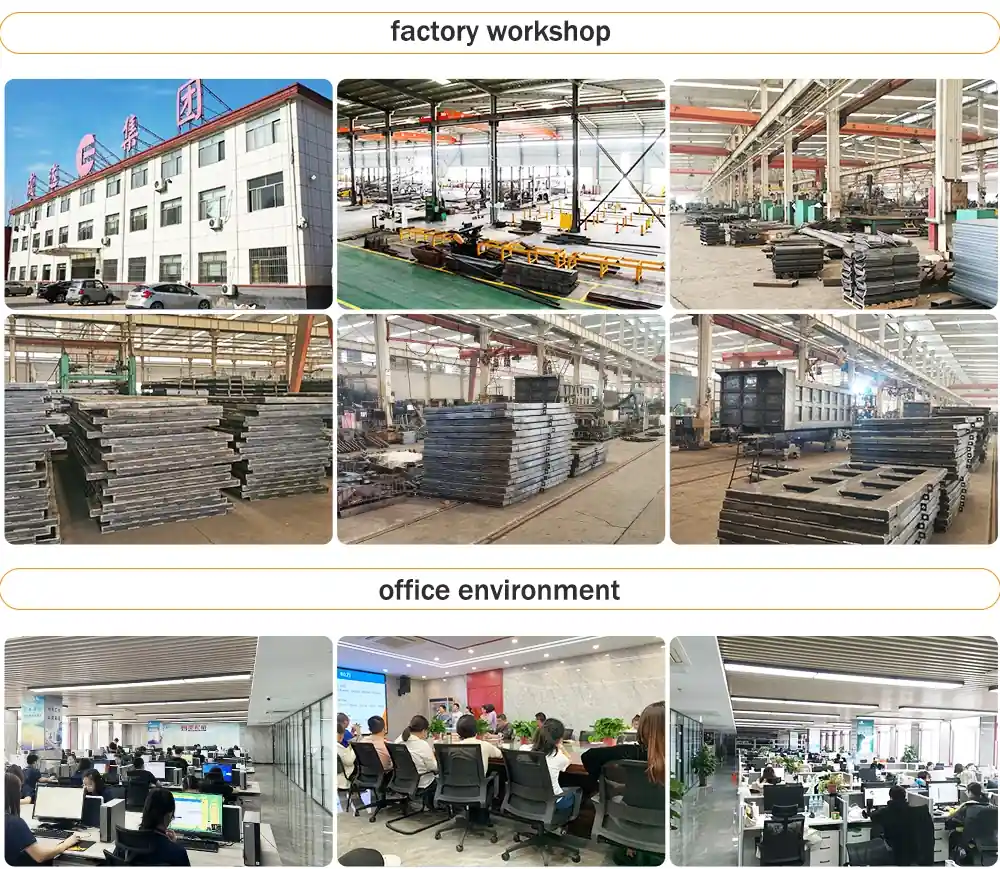

About Us
