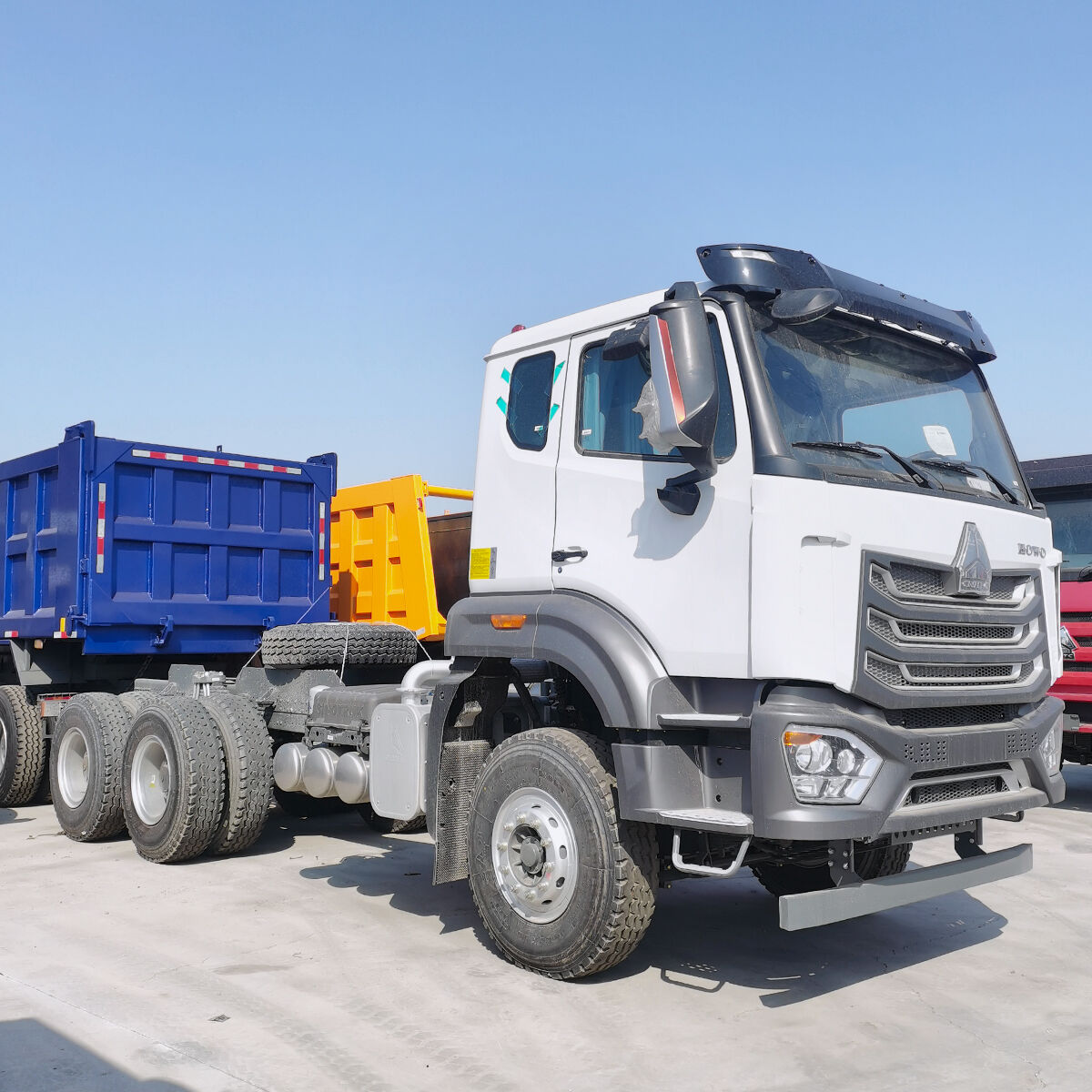

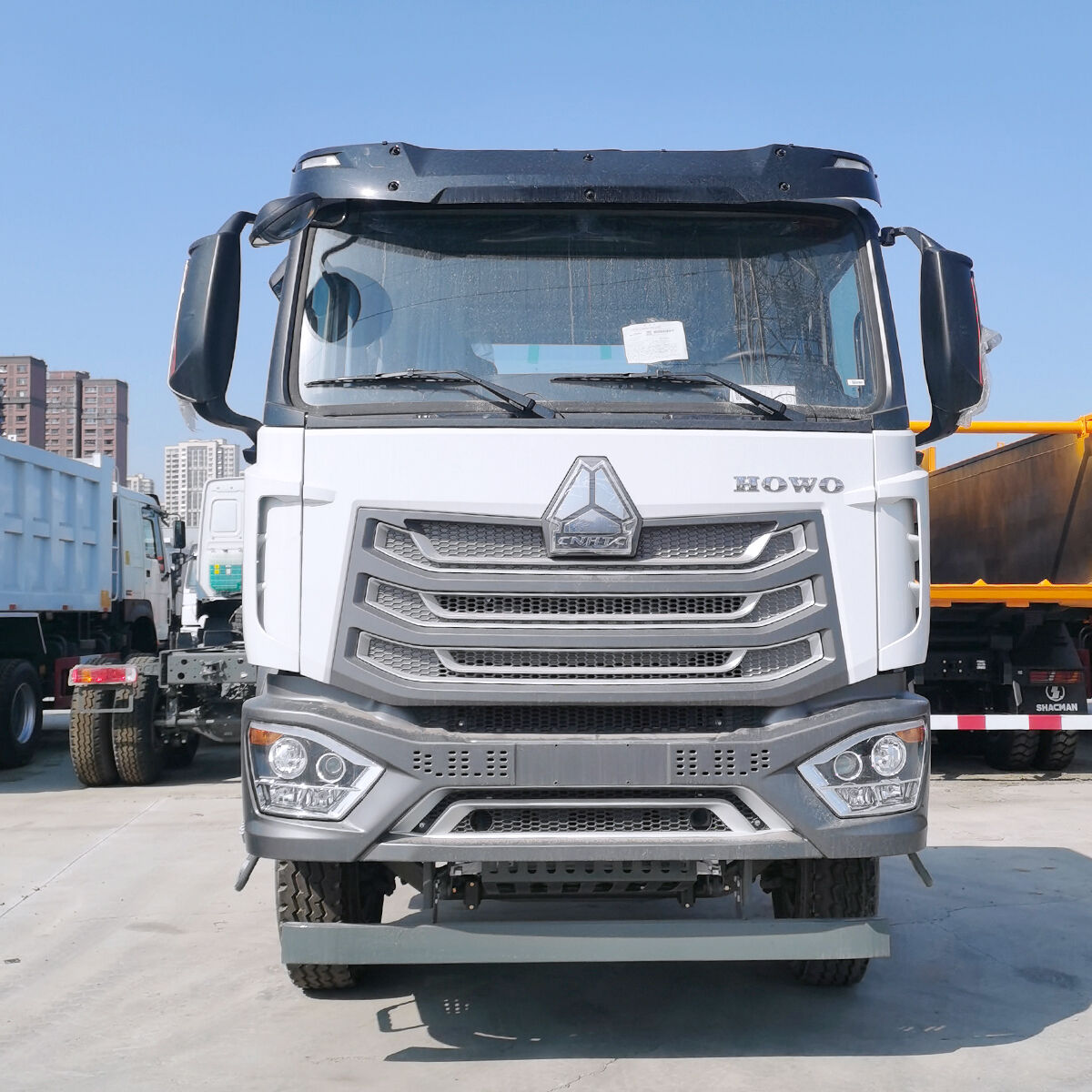

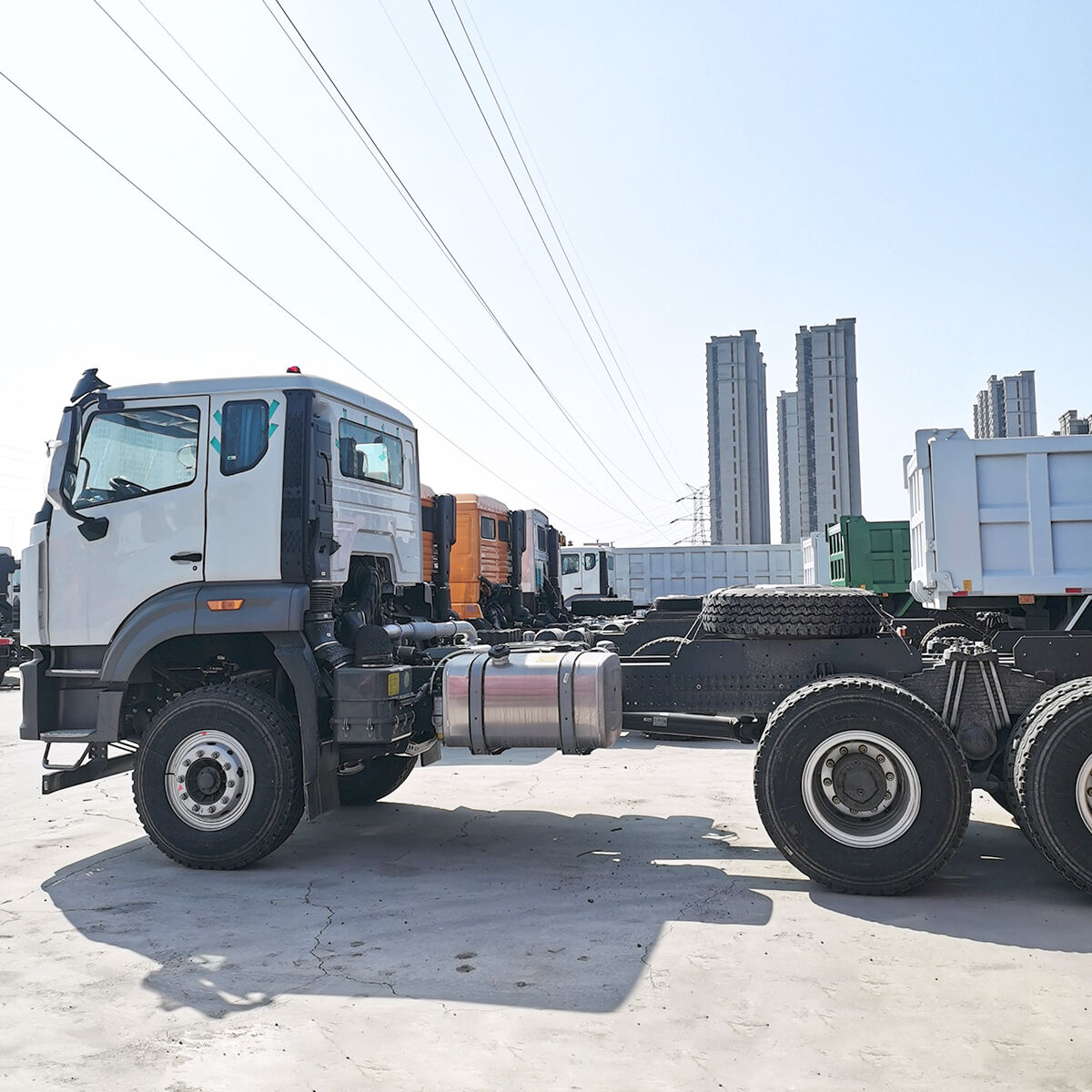

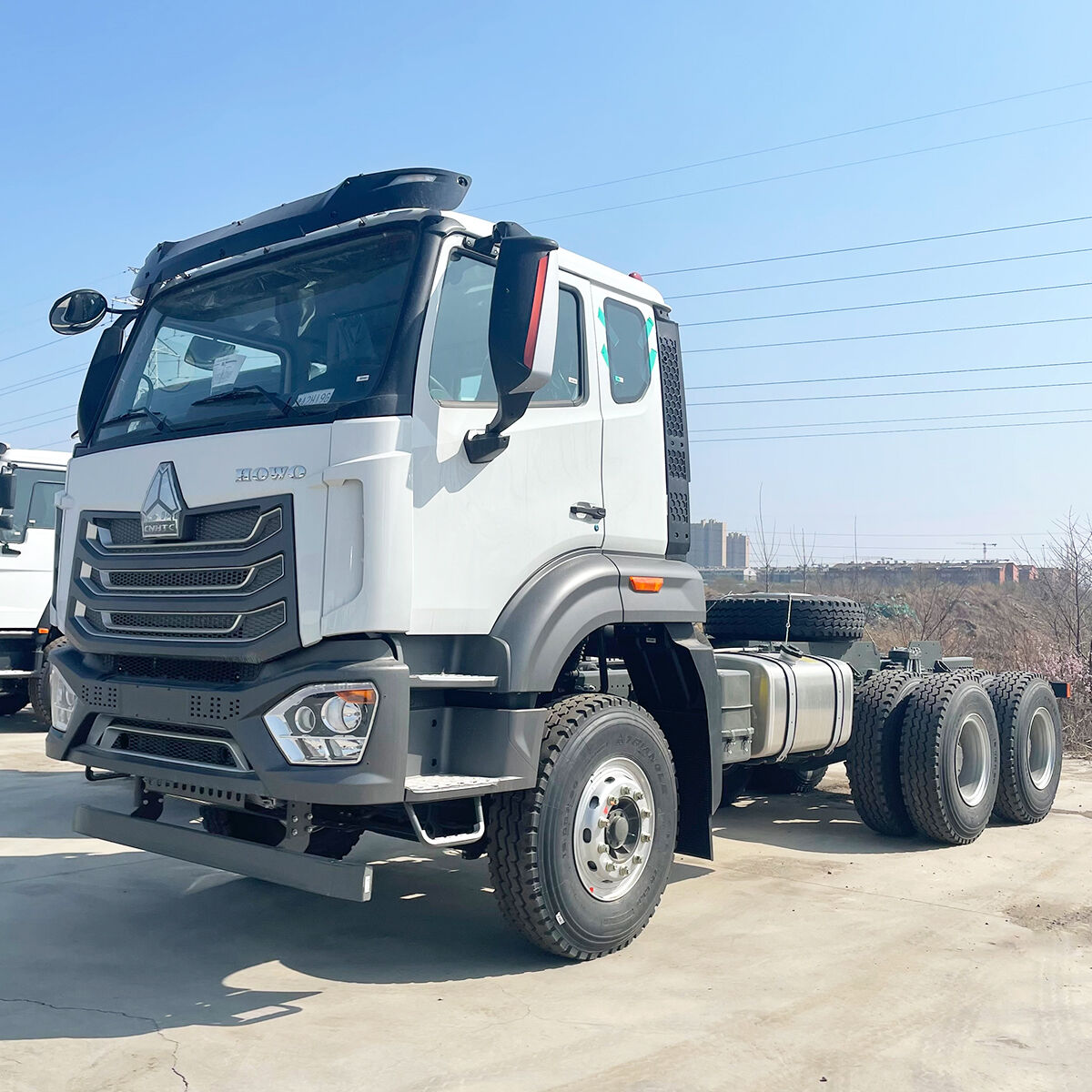

Hohan 6x4 Truck Chassis
The Hohan 6x4 truck chassis is a heavy-duty special chassis built by Sinotruk for reliable heavy-duty operations. With its stable 6x4 drive structure, strong load-bearing capacity, and mature power system, this chassis is widely used in the modification of various special vehicles, providing a durable, cost-effective platform for customers worldwide.
Minimum order quantity: 1 unit
- Overview
- Recommended Products
Product Details
The Hohan 6x4 truck chassis is a heavy-duty special chassis built by Sinotruk for reliable heavy-duty operations. With its stable 6x4 drive structure, strong load-bearing capacity, and mature power system, this chassis is widely used in the modification of various special vehicles, providing a durable, cost-effective platform for customers worldwide.
Product Parameter Table
Cabin |
Driving type 6x4, Right-hand driven |
|
HOWO 76 Standard cab, with two seats, one bed, with air condition as attached photo for ref. | ||
Vehicle Main Dimensions |
Overall dimensions (L x Wx H) mm |
11970x2496x3250 |
Installation length for bucket |
9500mm |
|
Wheel base (mm) |
5825+1350 |
|
Weight in KGS |
Tare Weight |
11800 |
Payload Capacity |
29200 |
|
Front axles loading capacity |
1x9000 |
|
Rear axles loading capacity |
2x16000 |
|
Engine |
Brand |
SINOTRUK |
Model |
WD615.47 |
|
Type |
4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
Horse Power(HP) |
371HP |
|
Emission standard |
Euro 2 |
|
Gearbox |
HW19710T, 10 forwards & 2 reverses with synchronizer |
|
Clutch |
Reinforced diaphragm clutch, diameter 430mm |
|
Steering Gear |
ZF, power steering, hydraulic steering with power assistance |
|
Fuel tank (L) |
400 |
|
Tire |
295/80R22.5 tubeless tire, 11pieces including one set spare tire |
|
Brakes |
Service brake: dual circuit compressed air brake |
|
ABS |
WITH |
|
PTO |
WITH |
|

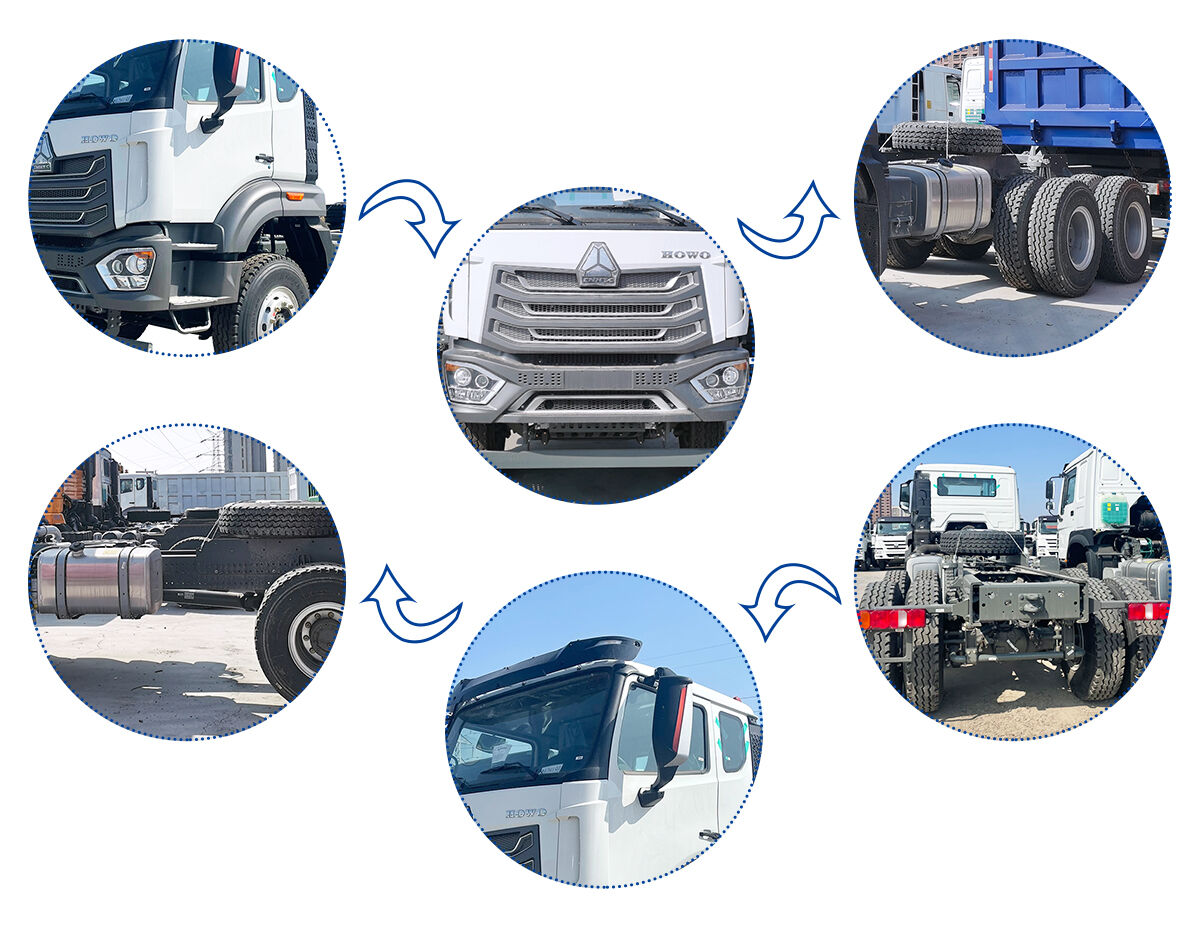

Features of Hohan 6x4 truck chassis
🔵 Classic 6x4 drive layout, powerful engine, and good off-road capability
🔵 High-strength steel frame, strong load-bearing capacity, and long service life
🔵 Powerful diesel engine, stable performance, and low fuel consumption
🔵 Reliable transmission and axle system for smooth operation
🔵 Comfortable driving space and user-friendly operating layout
🔵 Standard safety braking system and durable suspension system
🔵 Supports left-hand drive/right-hand drive and meets multiple export emission standards

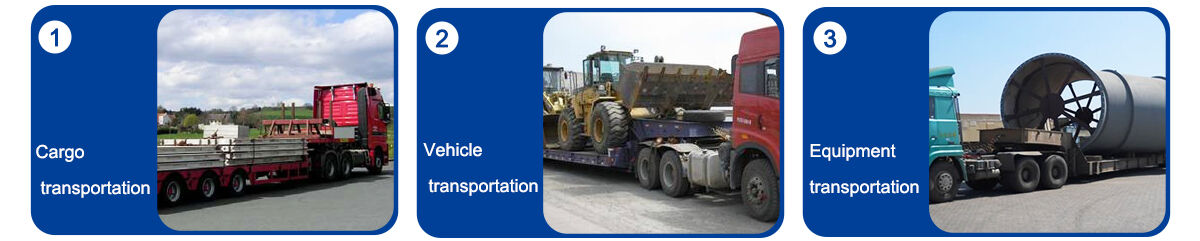

Applications of Hohan truck chassis
This Hohan 6x4 truck chassis is mainly used for modification into dump trucks, water trucks, tank trucks, vans, concrete mixer trucks, and other engineering vehicles. It is widely used in construction, mining, logistics, municipal engineering, and long-distance transportation.

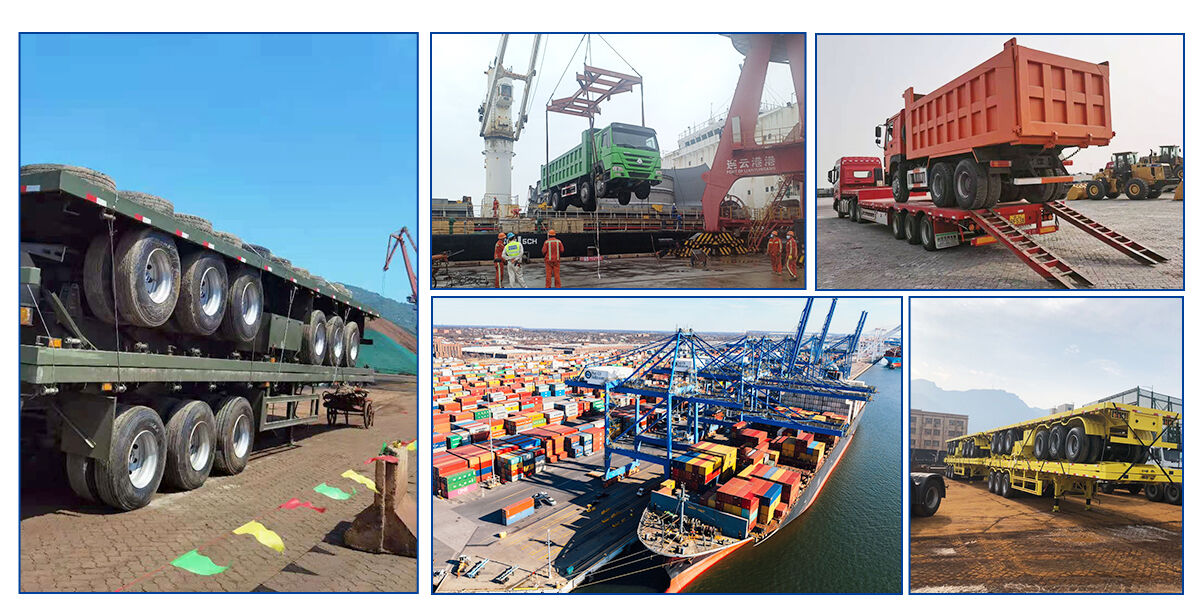

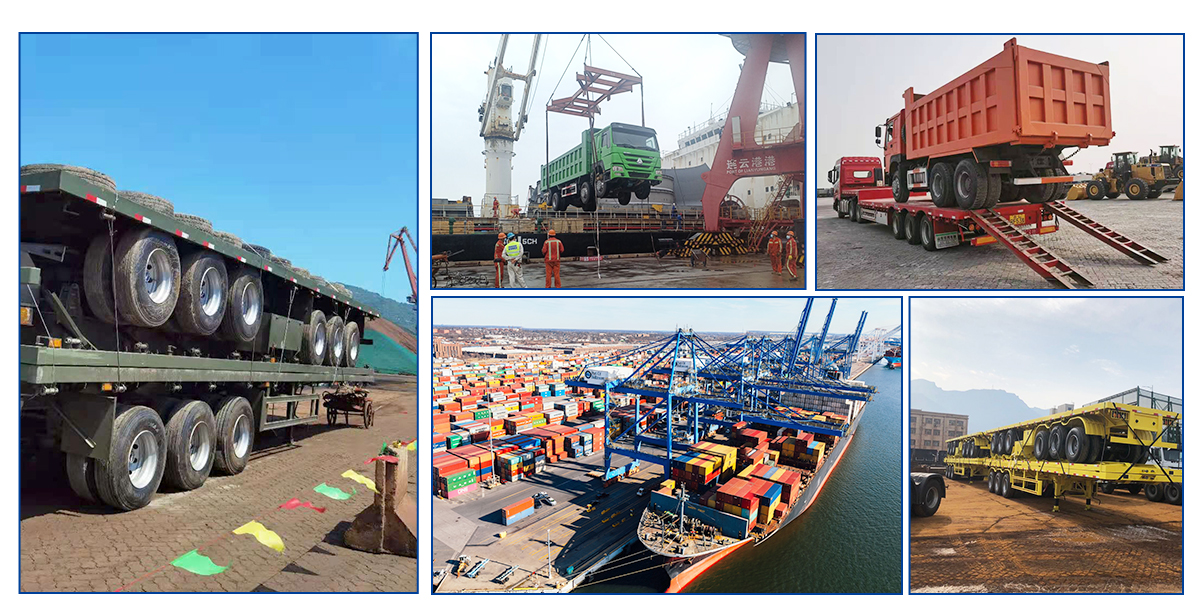

Packaging and Shipping:
The truck chassis will be waxed before shipment to prevent rust. We can arrange roll-on/roll-off, bulk carrier, or flatbed container shipping according to your quantity and requirements.
