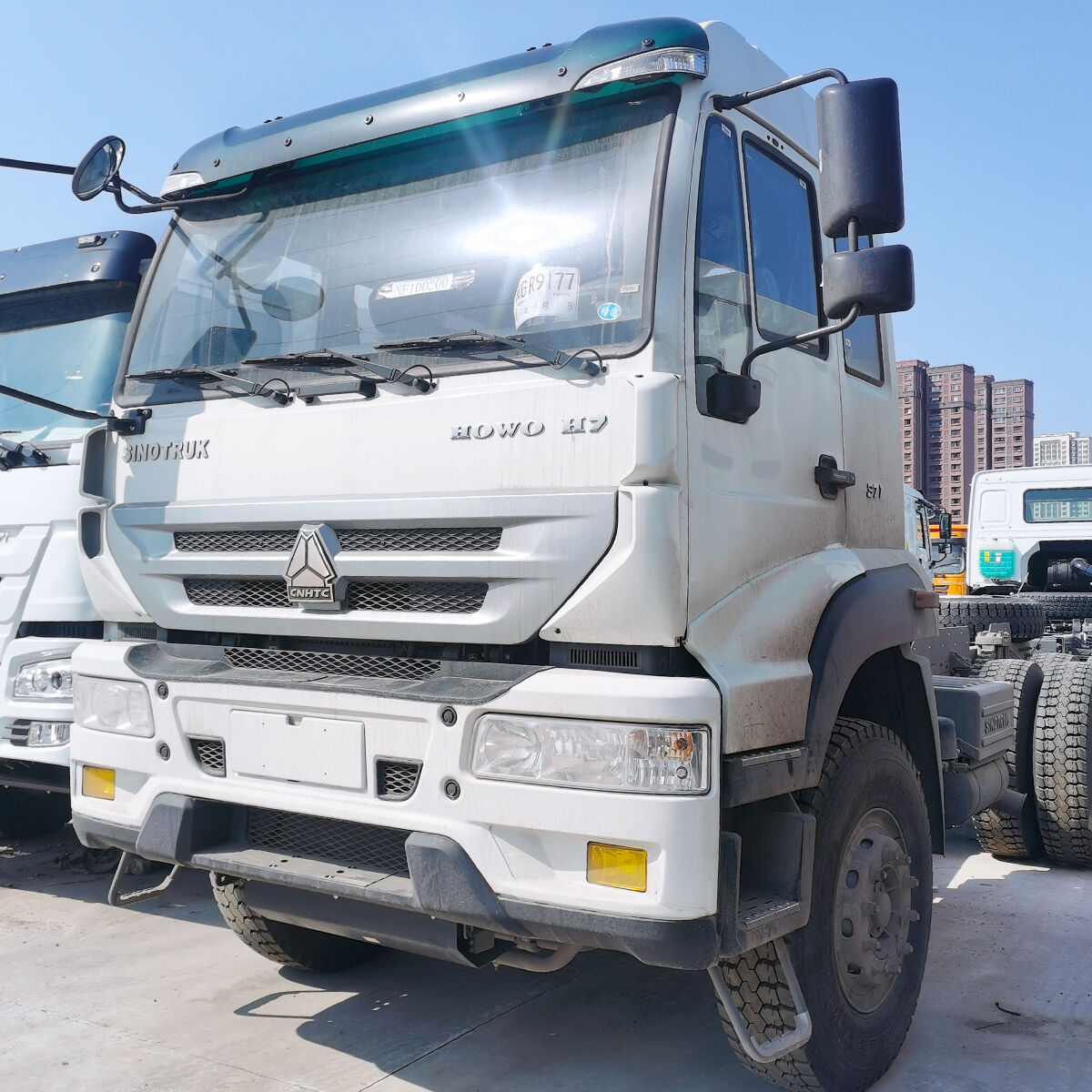

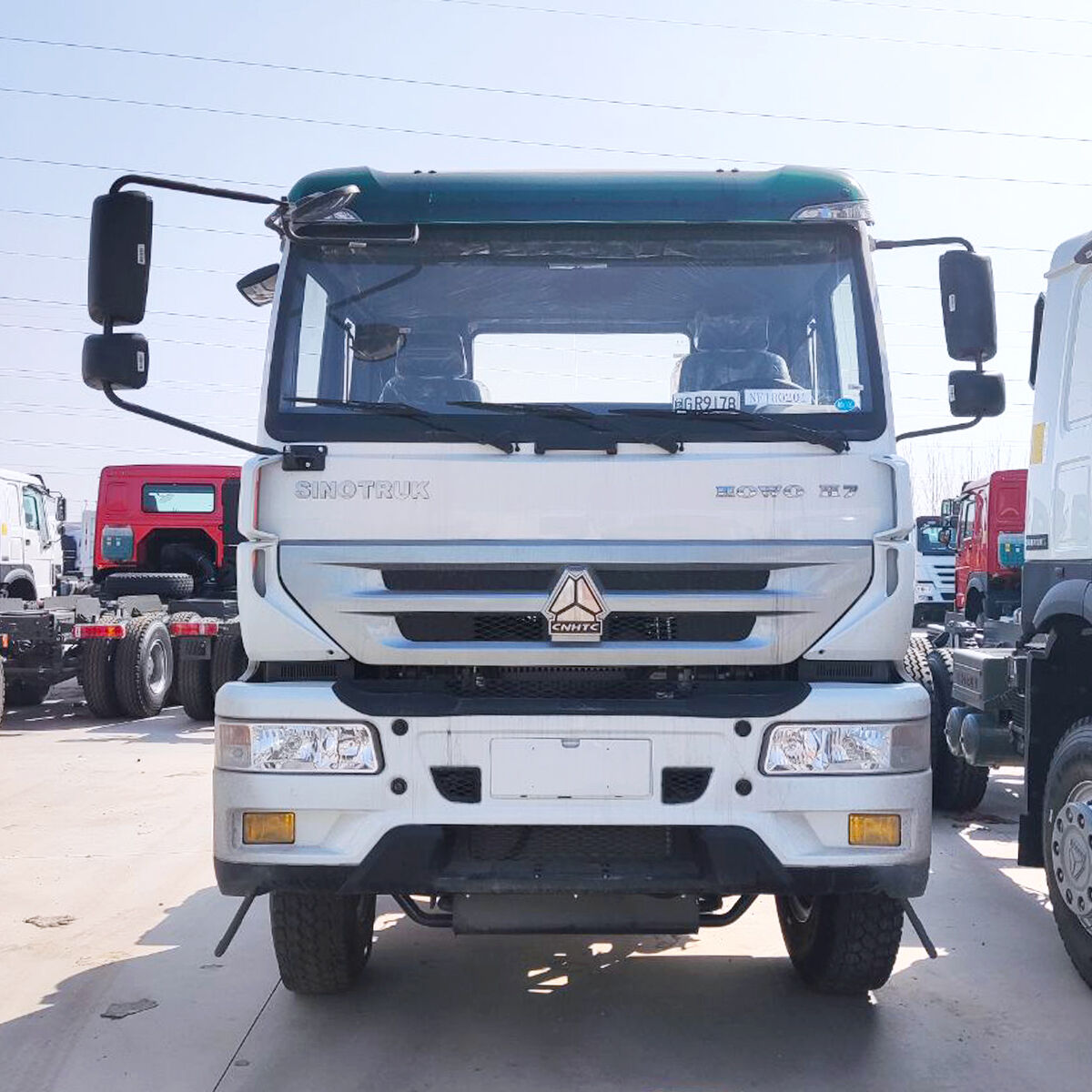

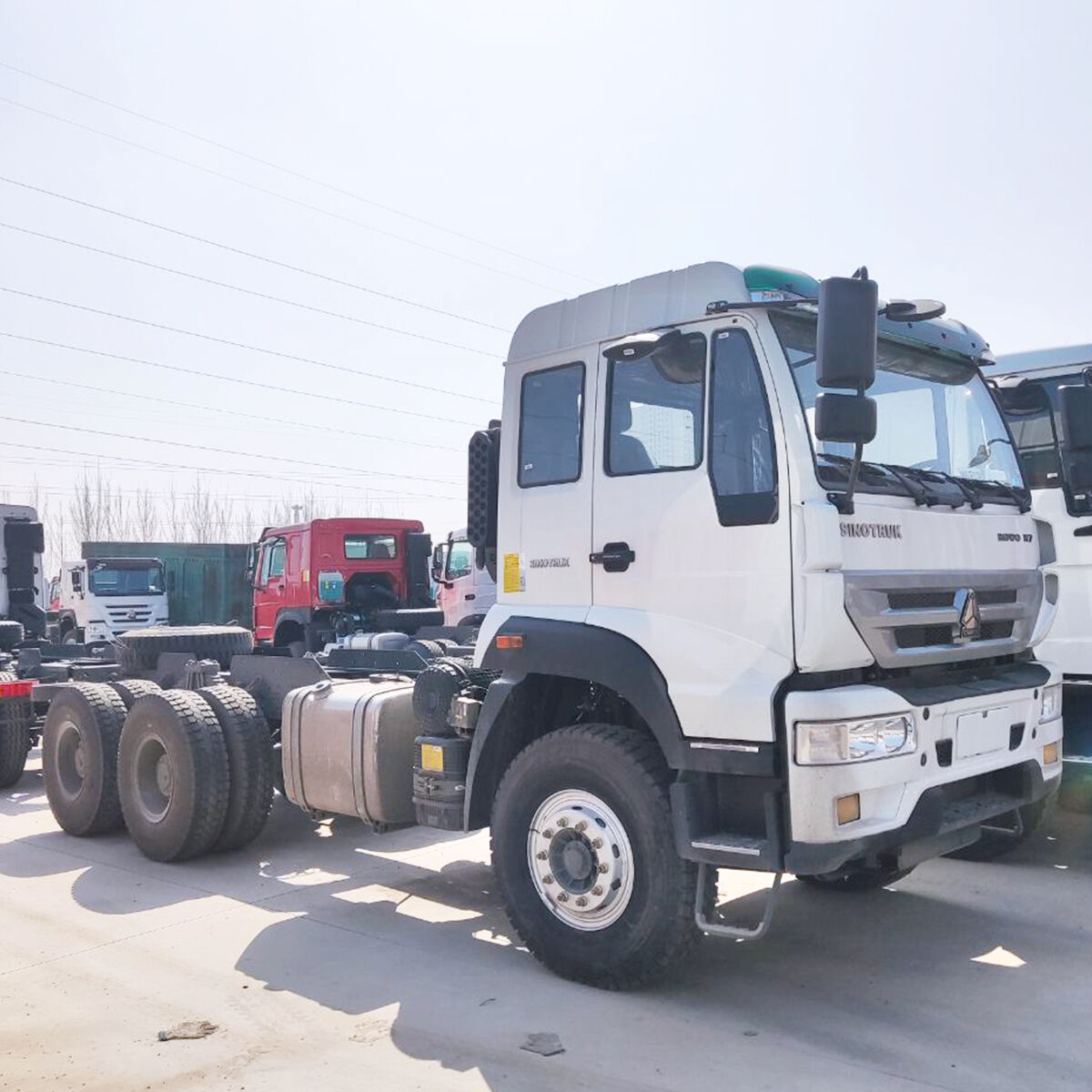

Howo H7 Truck Chassis
Howo H7 truck chassis allows customers to assemble their own truck bodies, such as dump trucks, tank trucks, and cargo boxes, to meet diverse needs.
Minimum order quantity: 1 unit
- Overview
- Recommended Products
Product Details

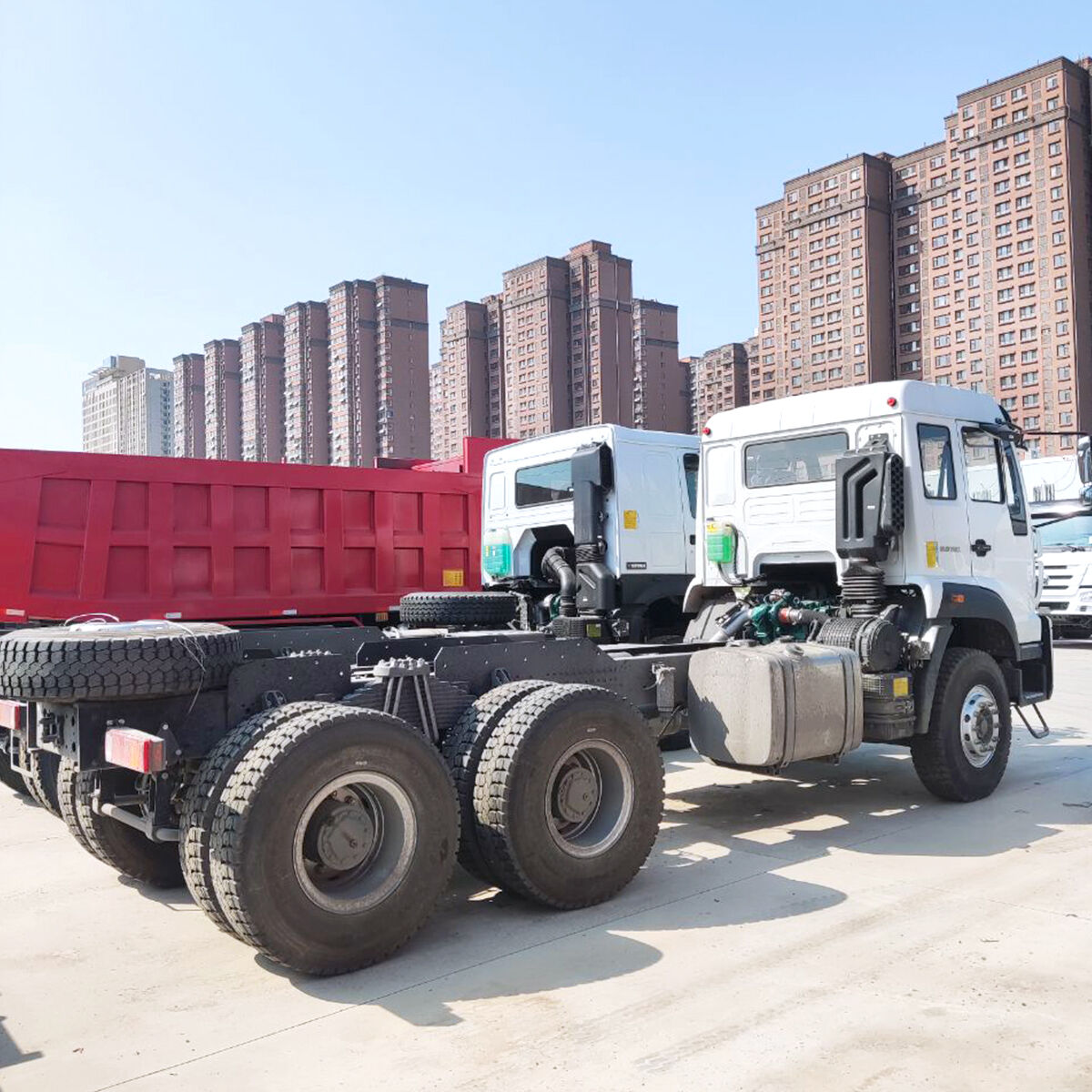

The Howo H7 truck chassis is specifically designed for conversion into various special-purpose vehicles. Howo truck chassis features stable chassis performance, high load-bearing capacity, and a mature power system, serving as a high-quality foundation for global special-purpose vehicle conversion and heavy-duty transportation.
The spacious Howo truck chassis offers the potential for diverse body designs and is key to enhancing the overall quality of the truck.
Product Parameter Table
Cabin |
Driving type 6x4, Right-hand driven |
|
HOWO 76 Standard cab, with two seats, one bed, with air condition as attached photo for ref. | ||
Vehicle Main Dimensions |
Overall dimensions (L x Wx H) mm |
11970x2496x3250 |
Installation length for bucket |
9500mm |
|
Wheel base (mm) |
5825+1350 |
|
Weight in KGS |
Tare Weight |
11800 |
Payload Capacity |
29200 |
|
Front axles loading capacity |
1x9000 |
|
Rear axles loading capacity |
2x16000 |
|
Engine |
Brand |
SINOTRUK |
Model |
WD615.47 |
|
Type |
4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
Horse Power(HP) |
371HP |
|
Emission standard |
Euro 2 |
|
Gearbox |
HW19710T, 10 forwards & 2 reverses with synchronizer |
|
Clutch |
Reinforced diaphragm clutch, diameter 430mm |
|
Steering Gear |
ZF, power steering, hydraulic steering with power assistance |
|
Fuel tank (L) |
400 |
|
Tire |
295/80R22.5 tubeless tire, 11pieces including one set spare tire |
|
Brakes |
Service brake: dual circuit compressed air brake |
|
ABS |
WITH |
|
PTO |
WITH |
|

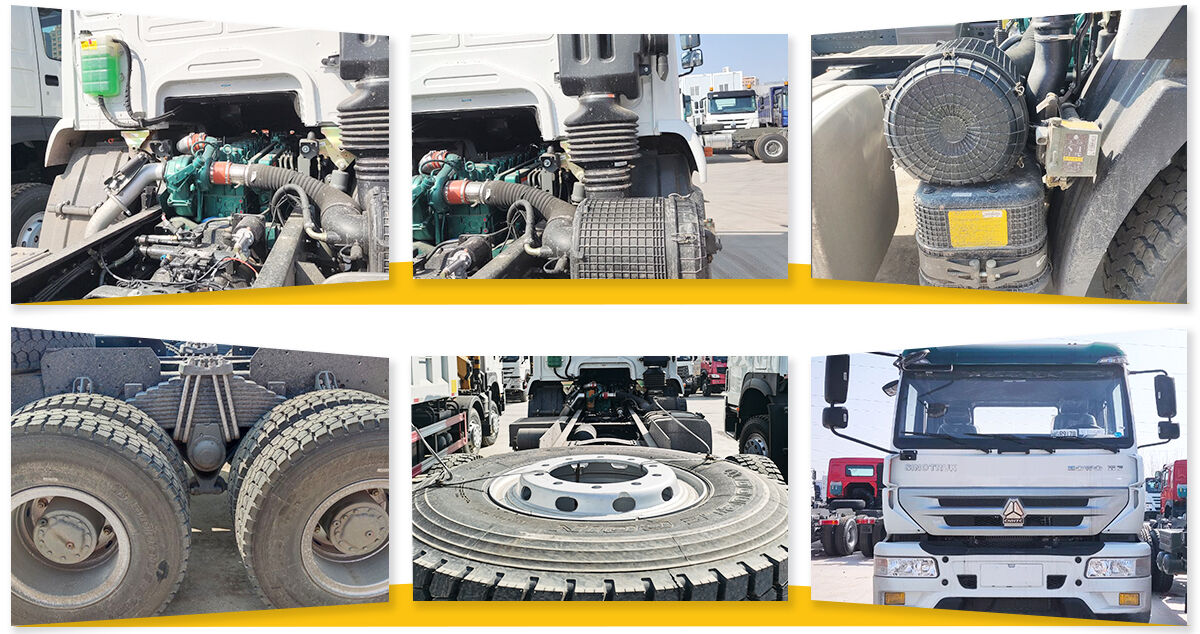

Features of the Howo H7 truck chassis
🔵 6×4 drive configuration, high-strength ladder frame, and reinforced cold-riveted crossbeams provide strong torsional and load-bearing capacity.
🔵 Equipped with Sinotruk MC series or Weichai diesel engines (330-540 hp), matched with 10-16 speed manual/automatic transmissions, offering smooth shifting and strong climbing ability.
🔵 Equipped with heavy-duty front and rear axles (7-9 tons front axle, 16-18 tons rear axle), and 3/5 or 10/12 leaf spring suspension, ensuring stable driving under complex road conditions.
🔵 Supports left-hand drive/right-hand drive, meets Euro II-Euro VI emission standards, and can meet various modification needs.
Applications
The Howo H7 truck chassis is widely used in conversions into tank trucks, water tankers, box trucks, dump trucks, refrigerated trucks, and various special-purpose engineering vehicles. It is suitable for various working conditions such as logistics transportation, urban construction, mining operations, and municipal sanitation, and has strong adaptability and modification compatibility.
Packaging and Transportation
Packaging: Unpacked; the chassis, axles, and key components are waxed to prevent rust and collisions during transportation.
Transportation: Available in roll-on/roll-off ships, bulk carriers, or flatbed containers; suitable for transporting large chassis.
