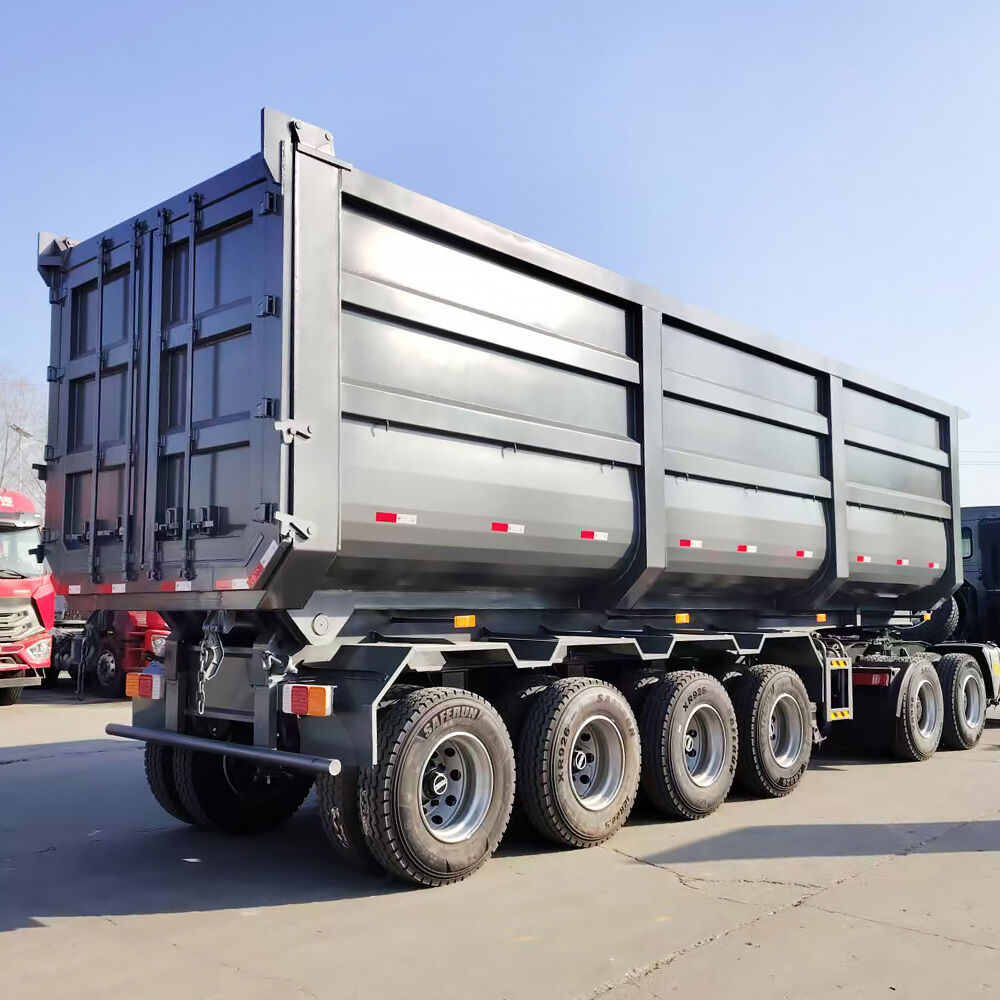

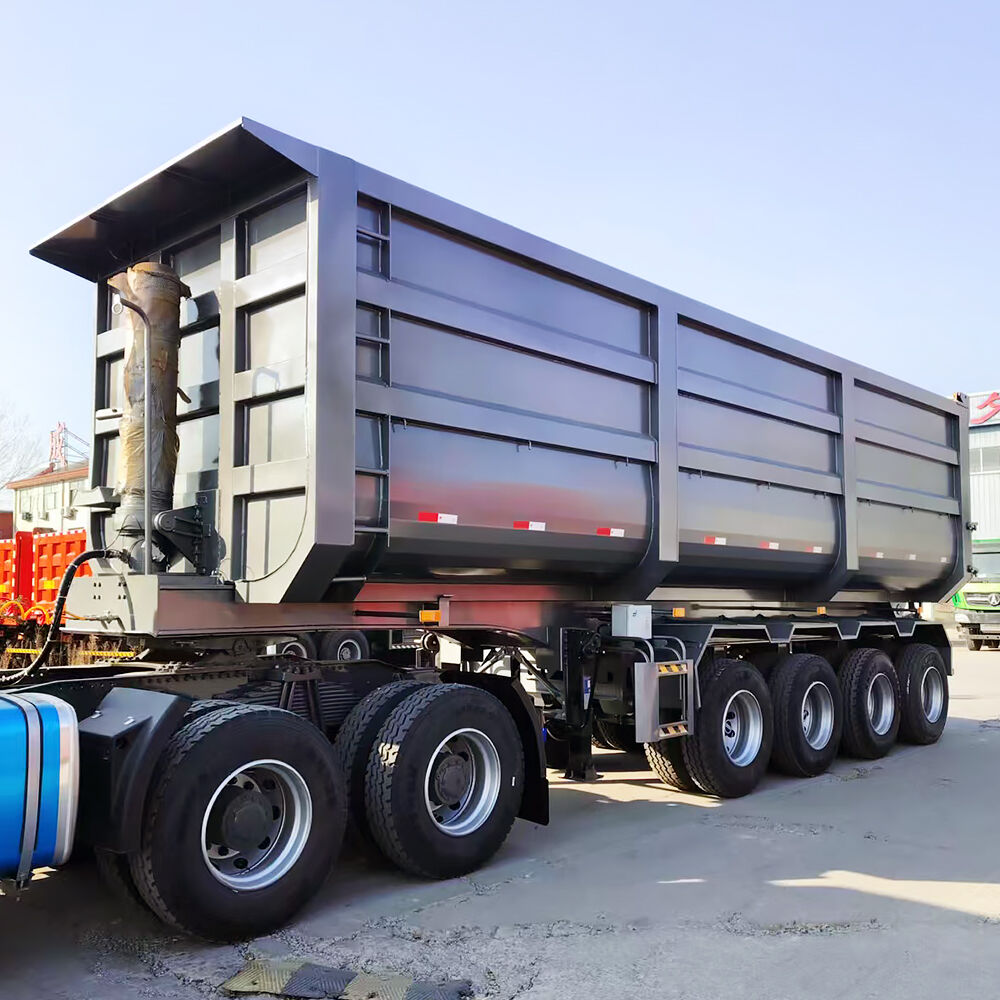

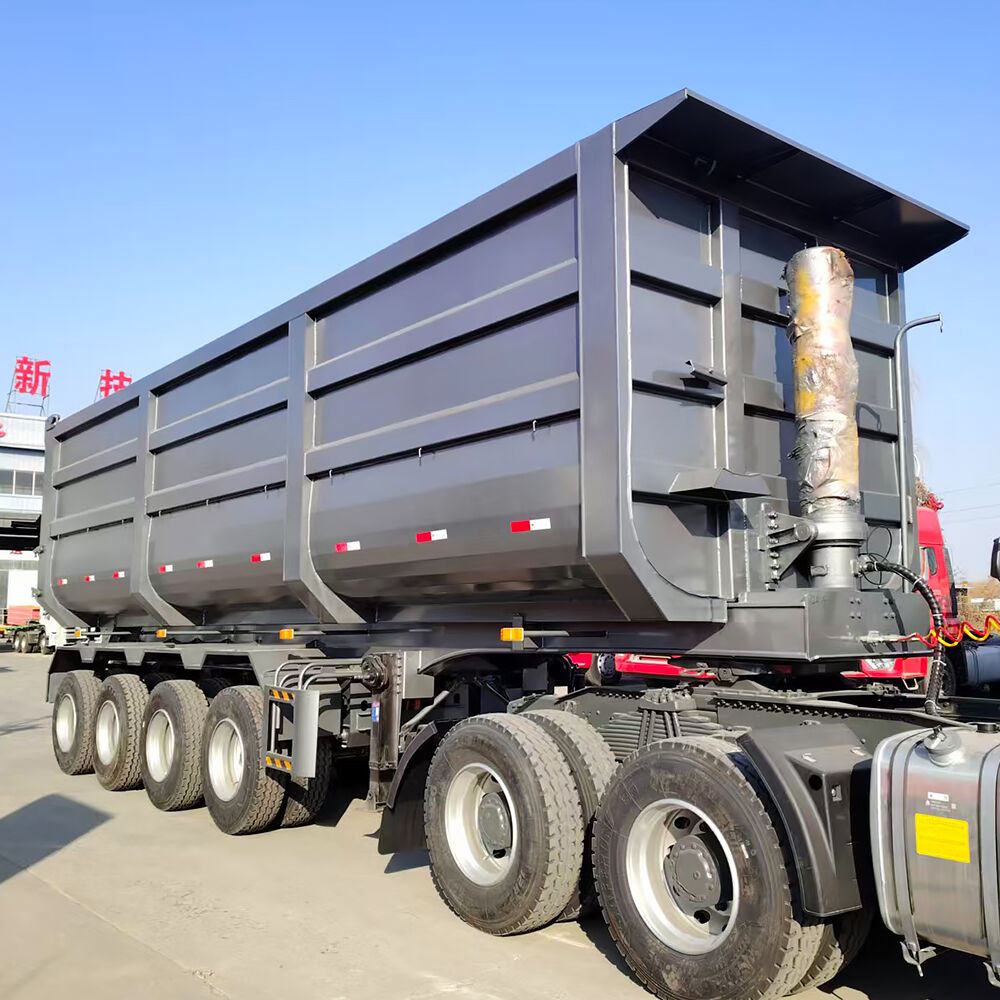

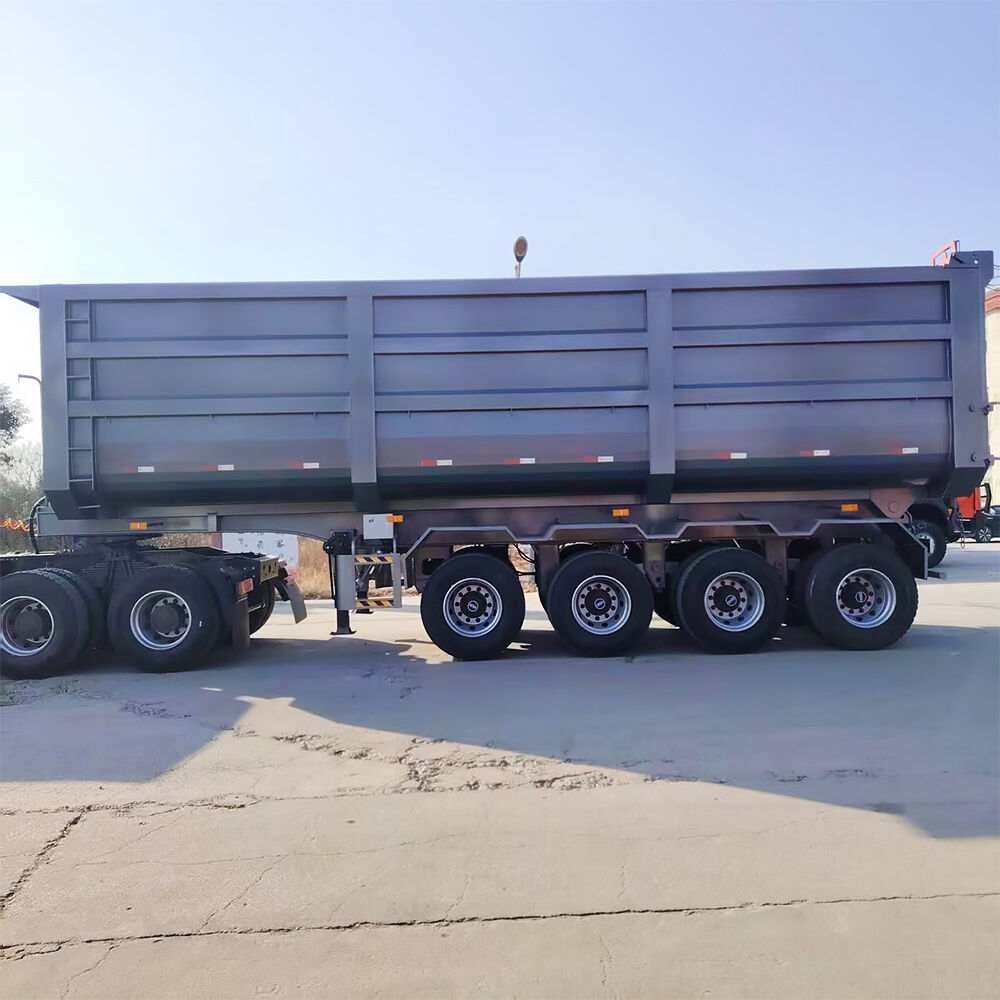

4 Axle Dump Trailer
The 4 axle tipper trailer is a heavy-duty, high-capacity end-dump semi-trailer engineered for efficient bulk material transportation.
Minimum order quantity: 1 unit
- Overview
- Recommended Products
Product Details
The 4 axle dump trailer is a heavy-duty high-capacity transport solution engineered for bulk material haulage and heavy engineering operations. Built with high-strength steel frame and robust overall structure, it features reasonable four-axle load distribution, outstanding stability and strong bearing capacity. Fitted with a reliable hydraulic tipping system, it enables smooth rear-tipping unloading with high efficiency and no material residue. Adopting wear-resistant cargo box plate and professional anti-corrosion treatment, the trailer delivers long service life and great adaptability to harsh working conditions such as mining areas, construction sites and dusty humid environments. It is widely compatible with heavy-duty truck heads, ideal for transporting sand, gravel, ore, earthwork and construction waste, offering stable performance and cost-effective operation for logistics and engineering projects.
Product Parameter Table
| Item | Details |
| Type | 4 Axle End Dump Semi-Trailer |
| Quantity | 1 Unit |
| Dimension | External: 10000×2550×3860 mm (subject to actual design) |
| Internal: 9200×2380×2200 mm | |
| Payload Capacity | 60000 kg (60 Tons) |
| Axle | 4×16 Ton Chengda Axles, Front Axle with Air Suspension & Lifting Function |
| Main Beam | Q345B Carbon Steel, Top Flange 20mm, Bottom Flange 20mm, Web 10+6mm |
| Floor Thickness | 8mm |
| Side Panel Thickness | 6mm |
| Rim | 9.0, 16 Pcs |
| Suspension | 3 Axle Mechanical Leaf Spring Suspension + Front Axle Air Suspension with Lifting |
| Leaf Spring Specification | 120×16×10 mm |
| Kingpin | Factory-Matched 2" & 3.5" Interchangeable Kingpin, including 200L Black Hydraulic Oil Tank, Oil Pump, PTO and Oil Pipes |
| Landing Gear | Standard 28T Yahua Single-Action External Landing Gear |
| Access Ladder | Mounted on the Left Side of the Vehicle |
| Tire Model & Quantity | 12R22.5, 16 Pcs, Factory-Matched |
| Tool Box | 1 Pc |
| Spare Tire Rack | 2 Pcs |
| Brake Air Chamber | 8 Large Double Air Chambers |
| Lifting System | 214 Hydraulic Cylinder |

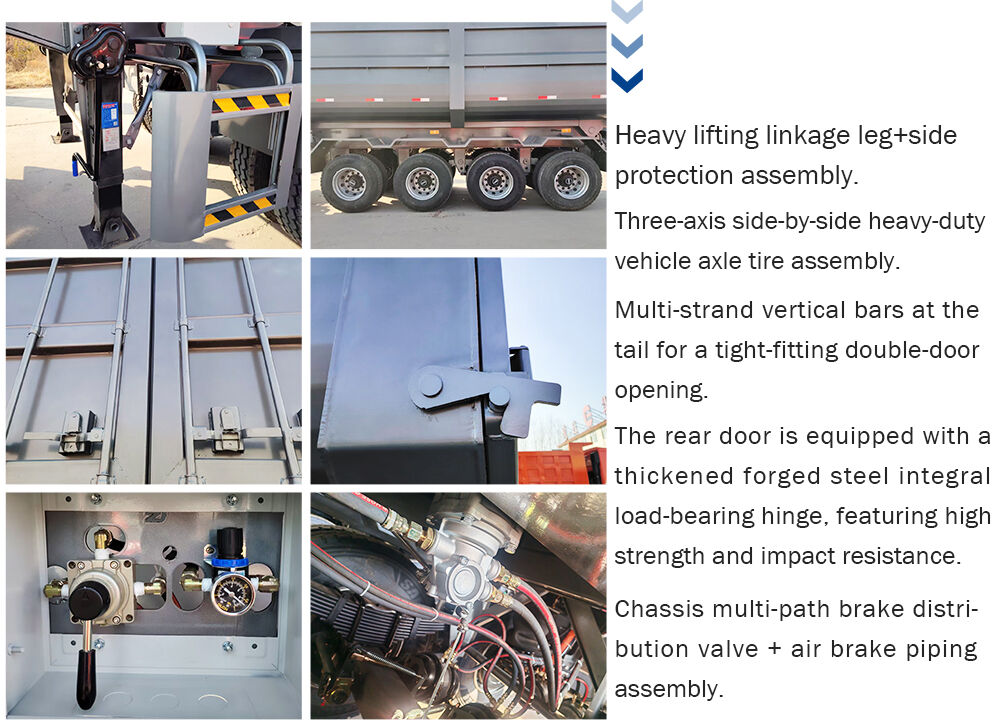

Features of 4 axle dump trailer
🔵 The vehicle frame adopts Q355B high-strength manganese steel material, featuring excellent load-bearing performance and outstanding torsion resistance, perfectly adapting to various heavy-duty working scenarios.
🔵 It is fitted with three 13-ton axles, with mainstream well-known brand options including BPW and Fuhua. The configuration delivers stable running performance and enjoys a convenient global spare parts supply.
🔵 The cargo body adopts premium wear-resistant steel plates with reinforced, thickened base plates, boasting great anti-collision and anti-abrasion capability. Its internal volume can be customized flexibly according to actual usage demands.
🔵 The vehicle is equipped with a complete safety braking solution, matched with air brake system and ABS device, effectively improving overall driving safety and operational stability.
Application of 4 axle tipper trailer
The dump trailer is suitable for transporting ore and slag in mines, transporting sand and gravel in infrastructure projects, clearing construction waste in cities, and transporting various materials for roads, bridges, and water conservancy projects. It adapts to a variety of complex road conditions and operating environments.
Packaging and Transportation：
🔵 Roll-on/Bulk Cargo Transportation
This is often the preferred method for transporting complete units. The trailer is loaded directly onto a general cargo ship. For multiple items, this is a straightforward and economical option, minimizing handling and assembly costs at the destination.
🔵 Container Transportation
As a flexible alternative, we can professionally disassemble the trailer for safe loading into standard shipping containers. This option is ideal for small orders or when your logistics chain is based at a container terminal.
