4 Axle 80-ton Lowbed Trailer

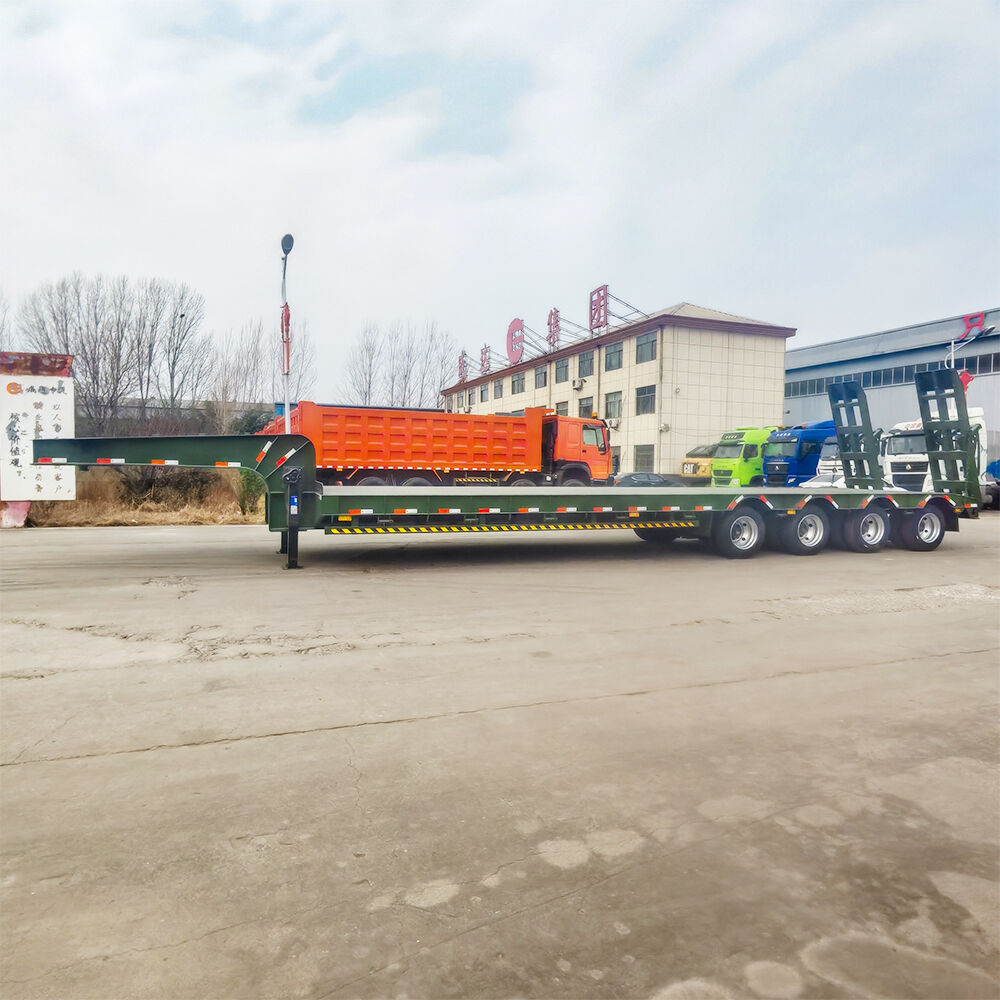

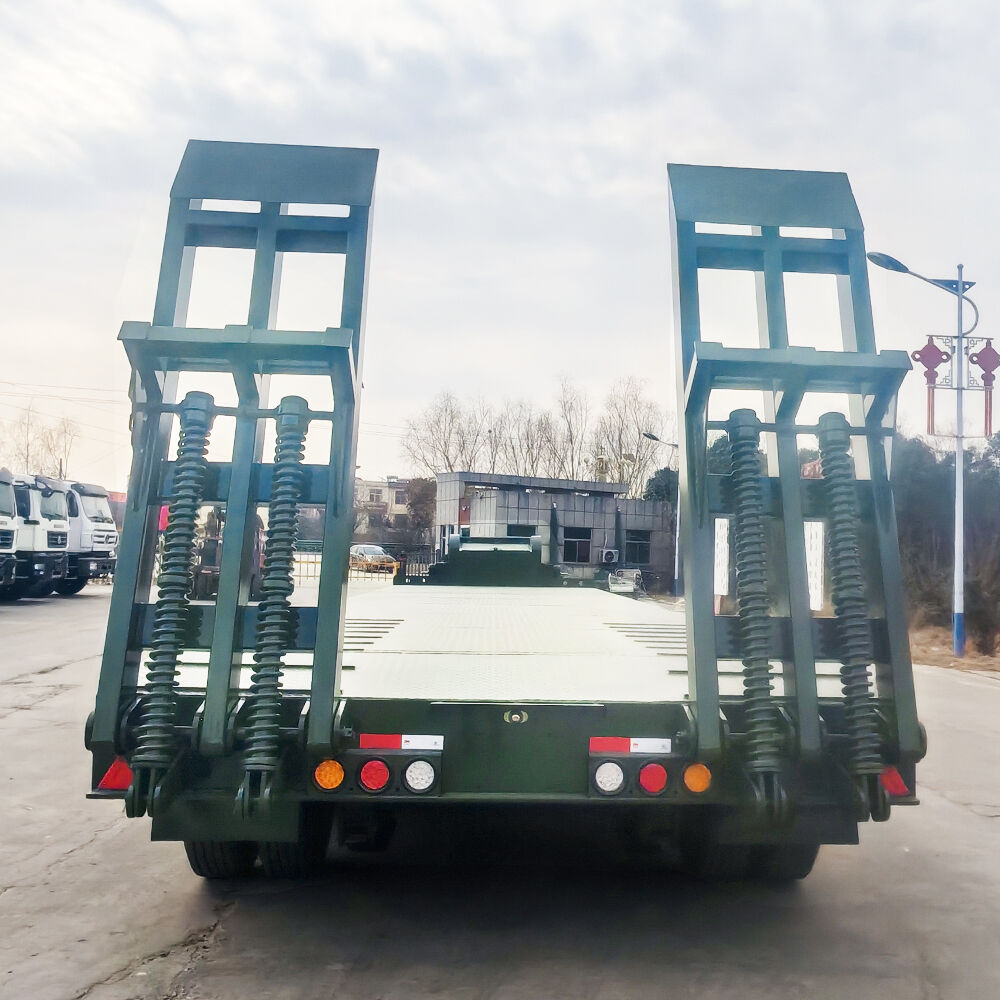

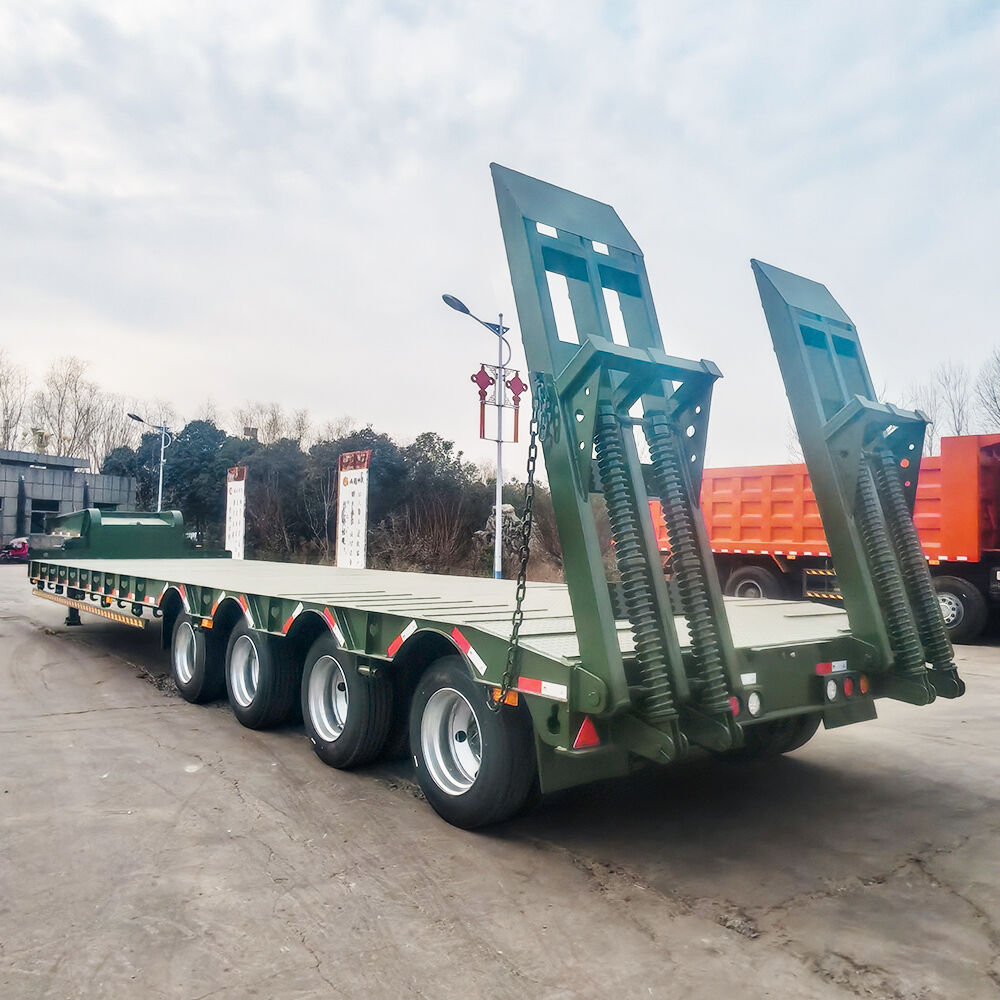

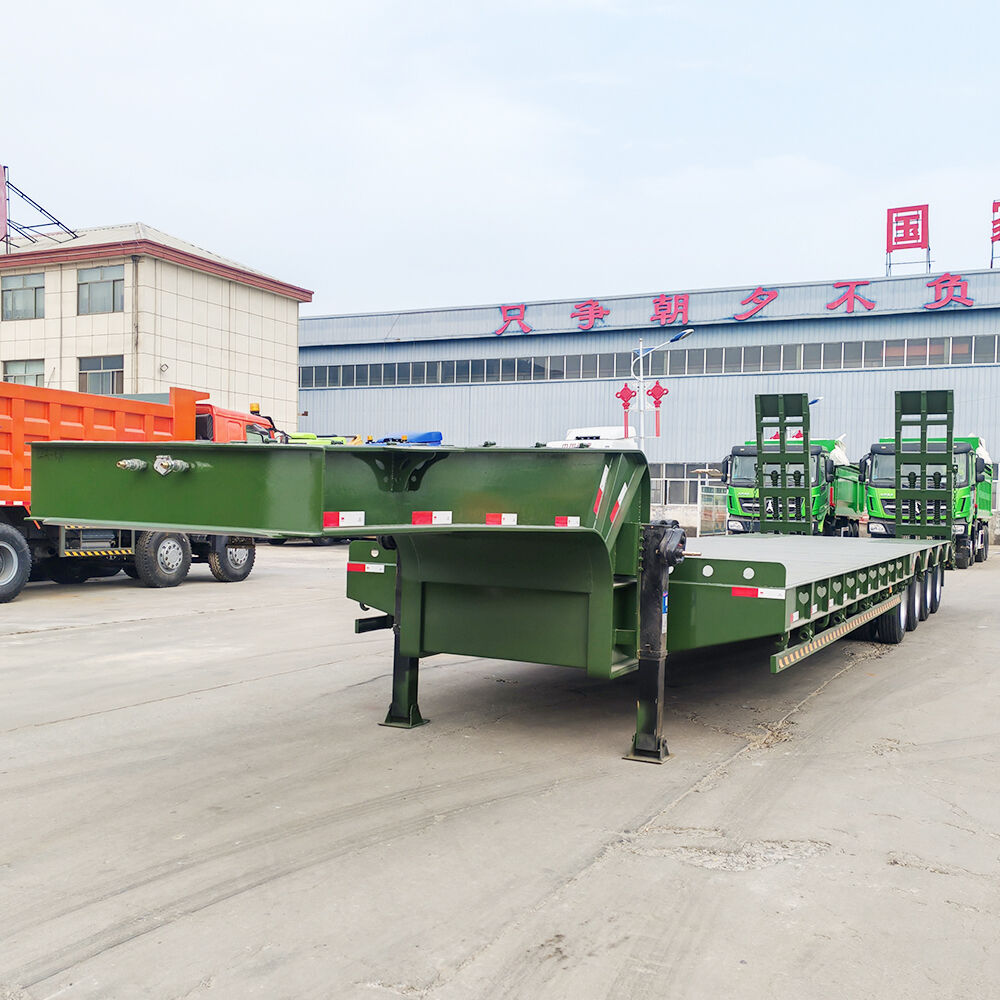

The 4 axle 80-ton lowbed trailer is a heavy-duty special transport vehicle designed for the safe and efficient transportation of large, heavy and oversized equipment.
Minimum order quantity: 1 unit
- Overview
- Recommended Products
Product Details
The 4 axle 80-ton lowbed trailer is a heavy-duty special transport vehicle designed for the safe and efficient transportation of large, heavy and oversized equipment.
With a 4-axle configuration and a maximum load capacity of 80 tons, it features a low center of gravity, stable driving performance and strong bearing capacity, which can effectively avoid tilting during transportation of heavy equipment.
The whole vehicle adopts high-strength structural materials and mature manufacturing technology, with reliable performance, long service life and strong adaptability to complex road conditions, making it an ideal choice for engineering, mining, and large-scale equipment logistics fields.
Product Parameter Table
| Item | Details |
| Type | 4 Axle 80 Ton Lowbed Semi-Trailer |
| Overall Dimension | 13000×3000×1650 mm |
| Working Platform Size | 9000×3000×1220 mm |
| Floor Thickness | 4 mm |
| Payload Capacity | 80 Tons |
| Axle | 4×13 Ton Zhengyang Axles |

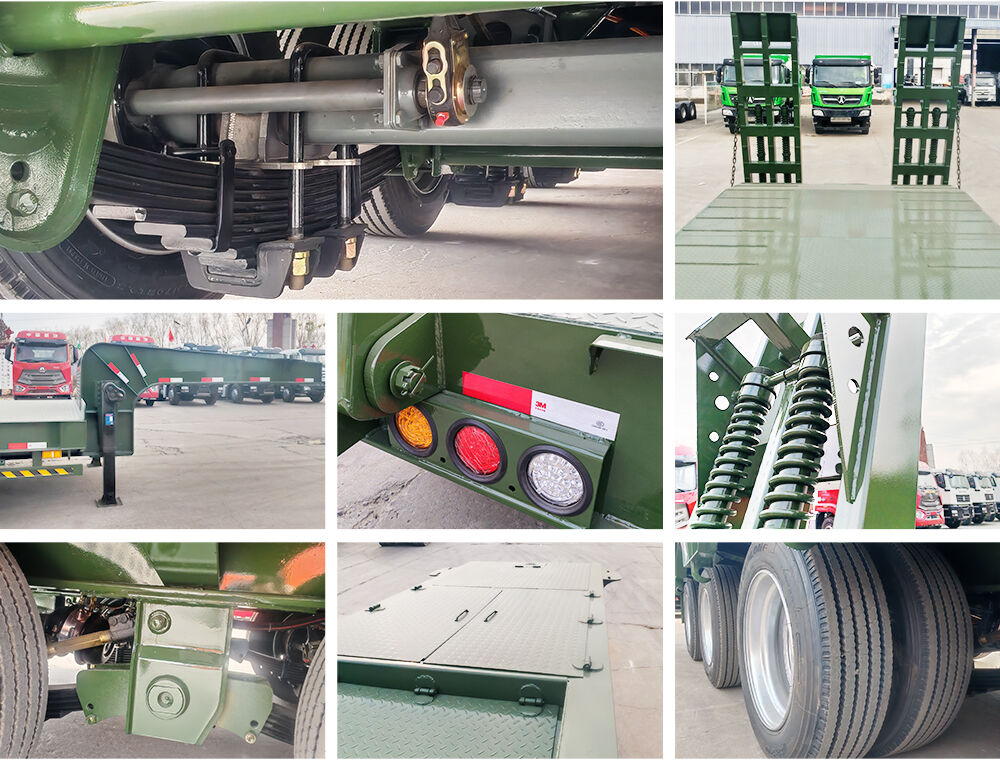

| Suspension | 4 Axle Mechanical Leaf Spring Suspension, 90(W)mm×16(Thick)mm×10 Leaves |
| Main Beam | Q345B High-Strength Steel, 18mm/20mm/12mm Thickness, 500mm Height |
| Tire | 11.00R20 Factory-Matched Tires, 16 Pcs |
| Rim | Factory-Matched Rims for Tires |
| Brake System | Dual-Line Pneumatic Brake System with SAE Hoses & Connectors |
| Air Chamber | 6 Large Double Air Chambers |
| Relay Valve | Factory-Matched Relay Valves |
| Kingpin | 50mm/90mm Interchangeable, Factory-Branded |
| Landing Gear | Factory-Matched Yahua 28t Single-Action External Landing Gear |
| Tool Box | 1 Piece, Factory Standard |
| Access Ladder | Standard Configuration |
| Spare Tire Rack | 2 Pieces |
| Bumper | Rear Bumper |
| Cargo Lashing Ring | Welded Type, 10 Pcs on Side |
| Reflective Tape | Red-White Alternating Reflective Stripes |
| Taillight & Accessories | Factory Standard Configuration |
| Electrical System | Standard Configuration |
| Color | White |
| Tractor Fifth Wheel Height | 1350 mm |

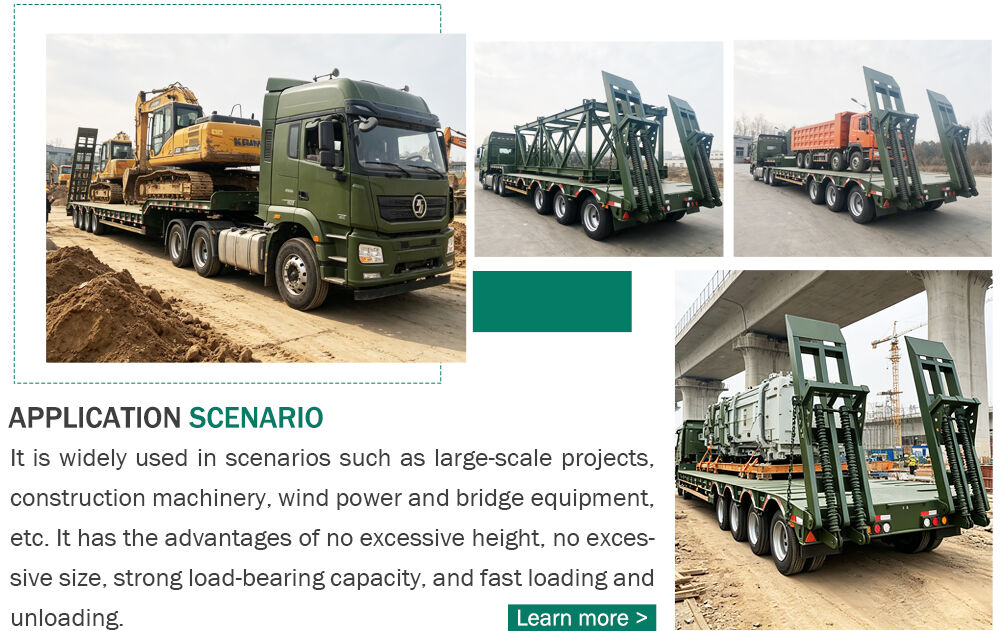

Application
4 axle 80 ton lowbed semi-trailers are suitable for short-distance relocation and long-distance transportation of construction machinery and large equipment such as excavators, loaders, road rollers, pavers, harvesters, transformers, and generator sets. The lowboy trailers are widely used in construction sites, mines, logistics parks, ports, and other scenarios, and can adapt to complex road conditions in various regions worldwide.
Packaging and Transportation
The entire vehicle undergoes rust and corrosion prevention treatment before leaving the factory, and key parts are wrapped for protection to avoid bumps and corrosion during sea transport.
Supports bulk carrier and roll-on/roll-off shipping, and can be operated according to FOB, CIF, CFR, and other terms.
FAQ
Q: Do you support customization of size, color, and logo?
A: Customization is supported. Flatbed length, width, ground clearance, color, markings, steel plate thickness, axle brand, etc., can be adjusted according to requirements to meet different markets and usage scenarios.
Q: What is the typical delivery time? Do you support small batch orders?
A: Delivery time for standard models is 15-30 days. Minimum order is 1 unit. Small batches and urgent orders can be prioritized for production to meet customers' needs for quick delivery.
Q: Can you match left-hand drive/right-hand drive? Do you support different national regulations?
A: The semi-trailer itself does not have a steering system, so it can be matched with various left-hand drive and right-hand drive tractors. Size, braking, lighting, and other configurations can be adjusted according to the regulations of the target country.
Q: Are you a factory or a trading company?
A: We are a physical manufacturer, producing and selling directly without middlemen. We conduct strict quality control from raw materials to finished products, ensuring stable quality while providing more competitive factory prices.
