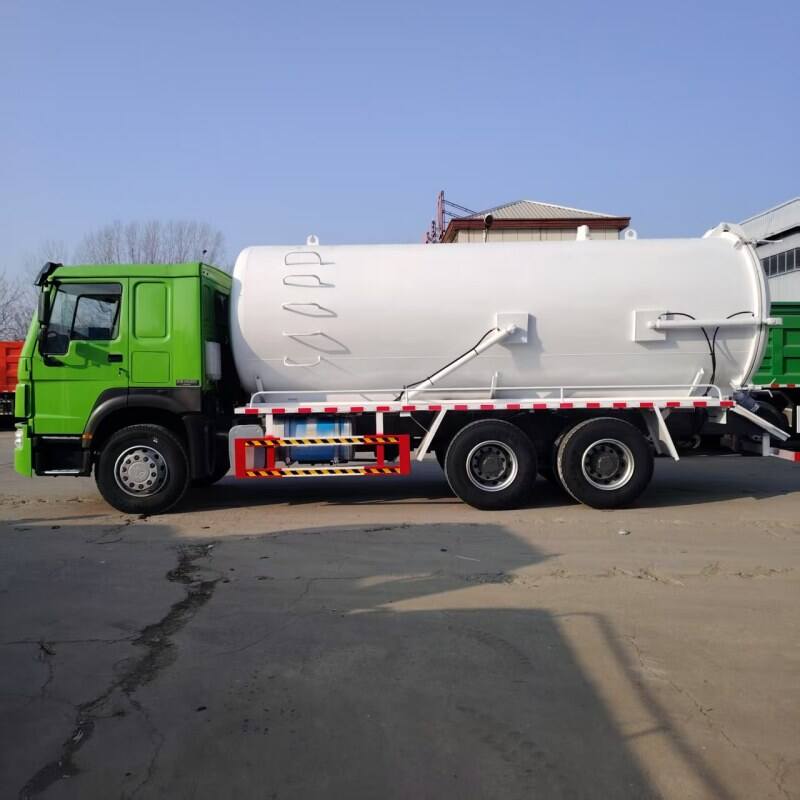

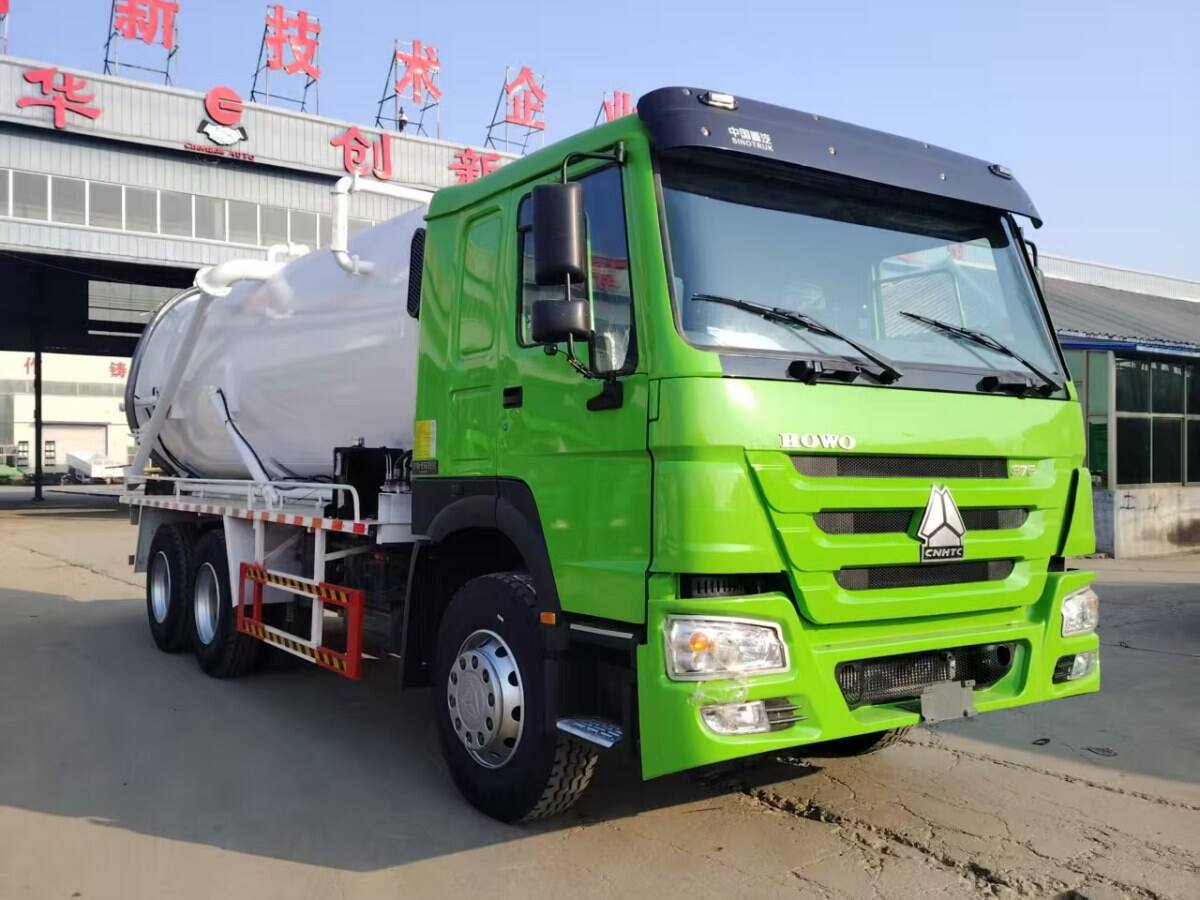

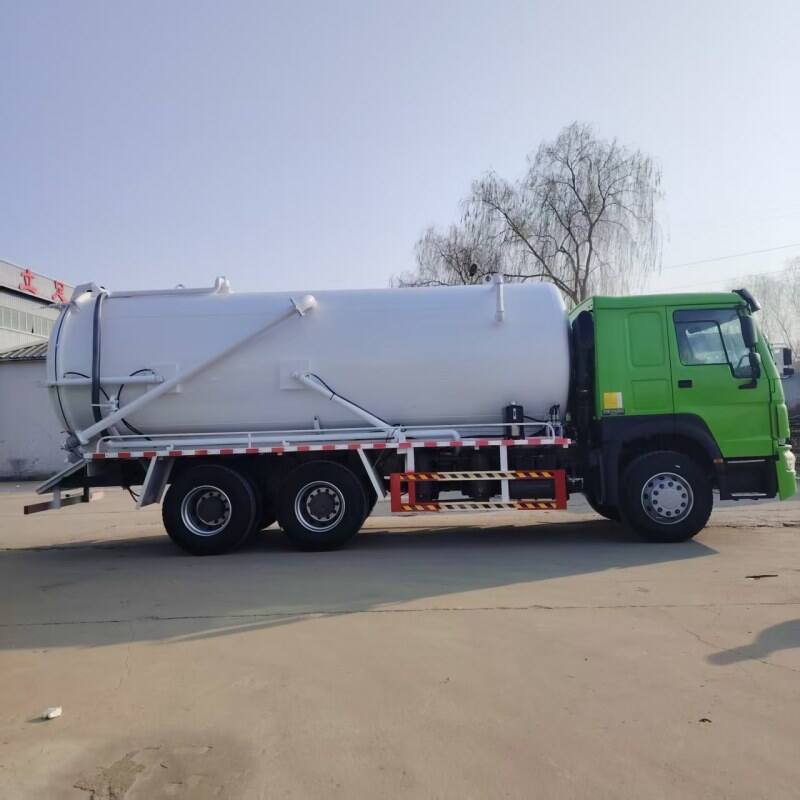

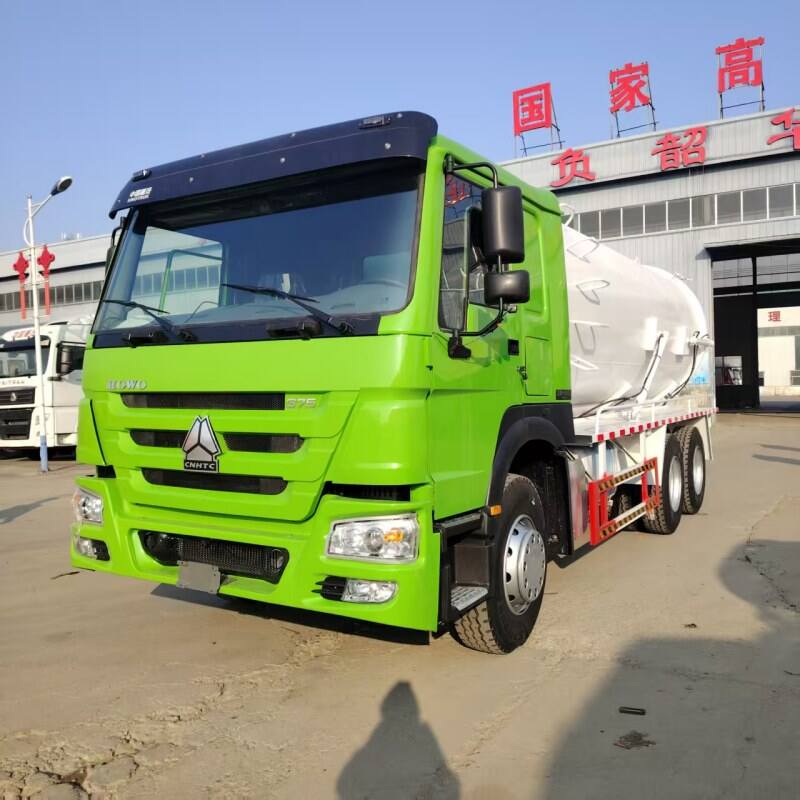

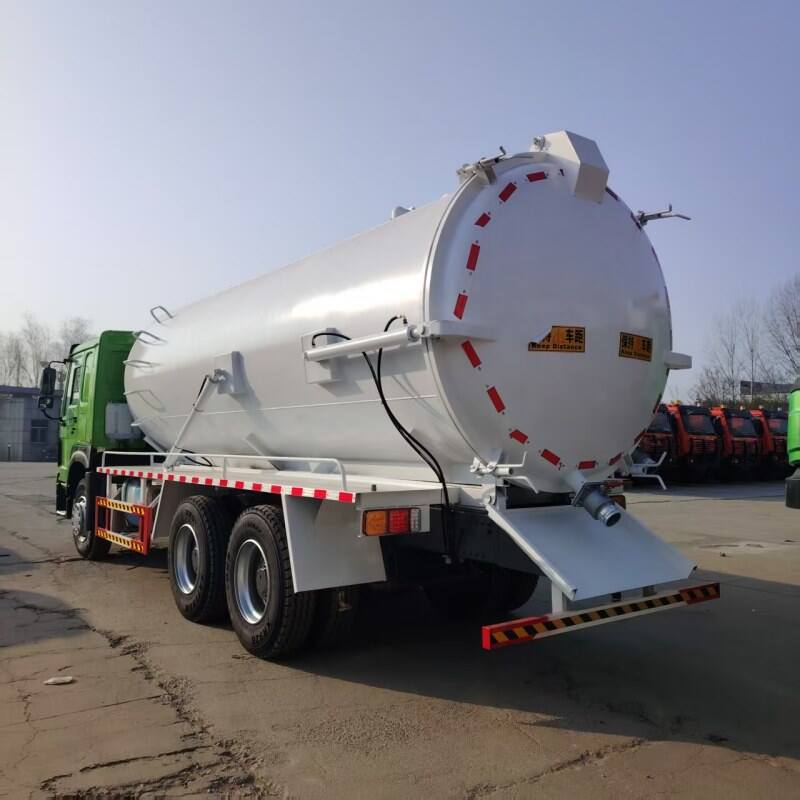

Howo Sewage Suction Truck
The Howo sewage suction truck is a professional sanitation vehicle built on a reliable Howo heavy-duty chassis.
Minimum order quantity: 1 unit
- Overview
- Recommended Products
Product Details
The Howo sewage suction truck is a professional sanitation vehicle built on a reliable Howo heavy-duty chassis. It is primarily used for suction, transportation, and discharge of sewage, sludge, feces, wastewater, and other liquid materials, and is widely used in municipal environmental protection, urban sanitation, and factory and farm waste disposal.
Product Parameter Table
Cabin |
HW76 cabin two seats and one bed, with air conditioner, 70° hydraulically tillable to the front. |
|
Vehicle Main Dimensions |
(L x W x H)mm |
9700x2500x3290 |
Wheel base (mm) |
4600+1350 |
|
Weight in KGS |
Tare Weight |
10500 |
Front axles loading capacity |
1×7000 |
|
Rear axles loading capacity |
2×16000 |
|
Engine |
Brand |
Sinotruk |
Model |
WD615.69 |
|
Type |
4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
Horse Power(HP) |
336HP |
|
Emission standard |
Euro II |
|
Gearbox |
HW19710 gear box with 10 forward and 2 reverse |
|
Steering |
ZF8098 power steering, hydraulic steering with power assistance |
|
Clutch |
Reinforced diaphragm clutch, diameter 430 mm |
|
Fuel tank |
400 L |
|
Tire |
12R22.5 tubeless radial tires ,11 pcs including 1 spare tire |
|
Tanker Body |
|
|
Total Volume（m3） |
14 CBM |
|
Tanker Body Material |
5mm steel / Q345 high tensile strength steel |
|
Pump |
Chinese brand double pump, with lifting devices |
|
Suction hose |
Rubber hose,100mm, 10M |
|
Features of Howo sewage suction truck
🔵 Utilizes a Sinotruk Howo 6x4 chassis, offering powerful performance, stable operation, and a long service life.
🔵 High-efficiency vacuum pump system provides strong suction, fast loading speed, and high working efficiency.
🔵 Tank body is made of high-strength carbon steel, offering excellent corrosion resistance and pressure resistance.
🔵 Equipped with safety valves, overflow prevention devices, and a reliable braking system to ensure operational safety.
🔵 User-friendly design, easy operation, convenient maintenance, and low failure rate.
🔵 Supports both left-hand and right-hand drive, suitable for road standards in different countries.
Applications
This Howo sewage suction truck is widely used for urban sewage cleaning, municipal pipeline dredging, community feces cleaning, factory waste disposal, water transport, farmyard manure processing, and construction site sludge treatment. It is an indispensable piece of equipment for environmental sanitation and urban public facilities.

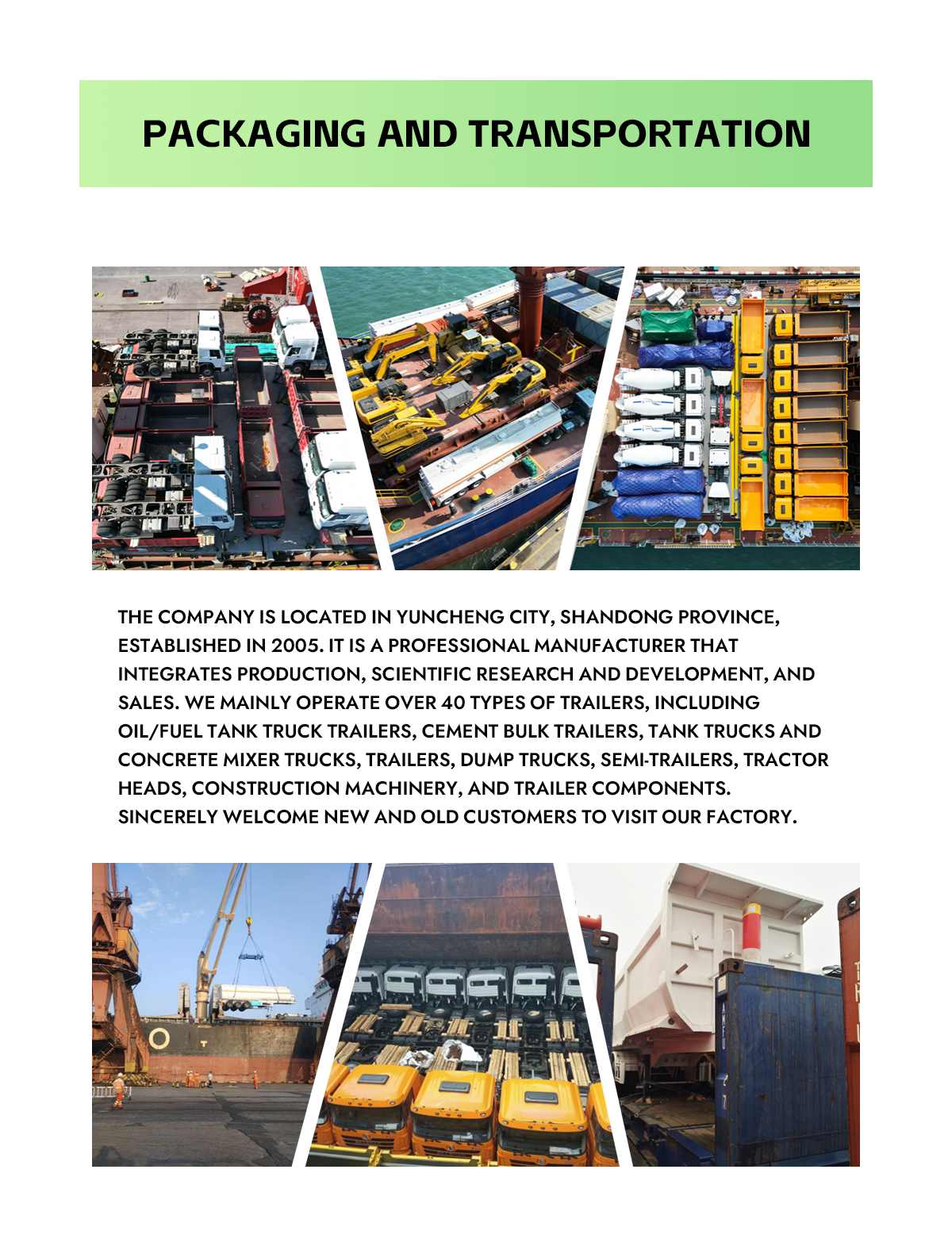

Packaging and Transportation
We support roll-on/roll-off (Ro-Ro) shipping, bulk carrier shipping, and flatbed container shipping. Our team ensures safe and timely delivery and provides complete customs clearance documentation.

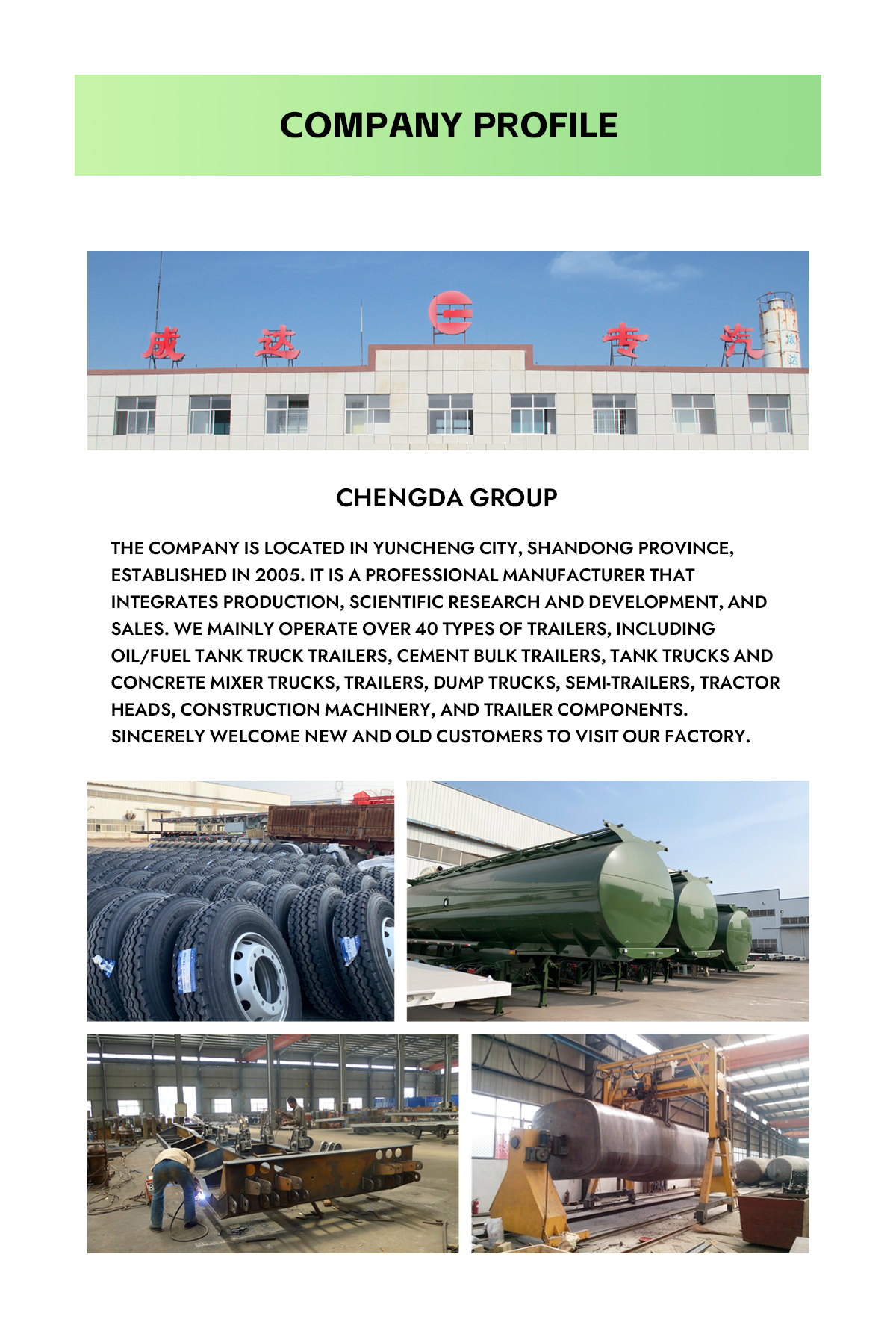

About Us
Chengda Group, established in 2005, is a qualified manufacturer of various trailers. Integrating production, R&D, and a professional sales team, we provide comprehensive services for trailers, semi-trailers, tractor units, dump trucks, construction machinery, and trailer accessories. As a leading supplier in the industry, we generate over US$50 million in export revenue and nearly RMB 600 million in revenue annually. With high-standard machinery and automated equipment, a strong R&D team, and an elite sales team, we have established long-term business partnerships with many world-renowned companies such as SINOTRUK\SHACMAN\FAW\DFAC\XUGONG Group\LIUGONG Group\SEM Group. In addition to a mature after-sales system, we can also meet the diverse needs of our customers.
