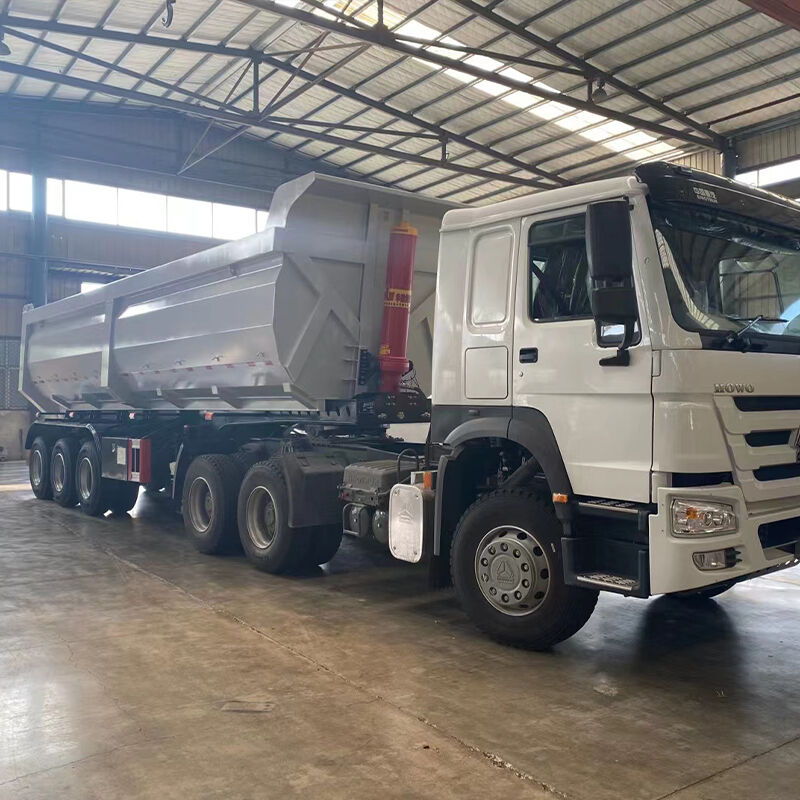

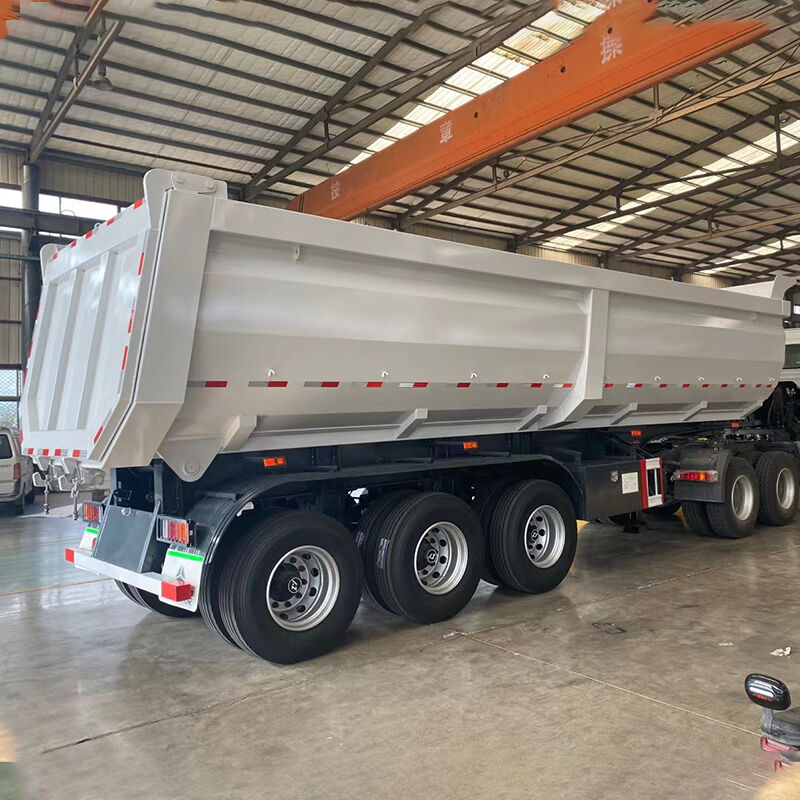

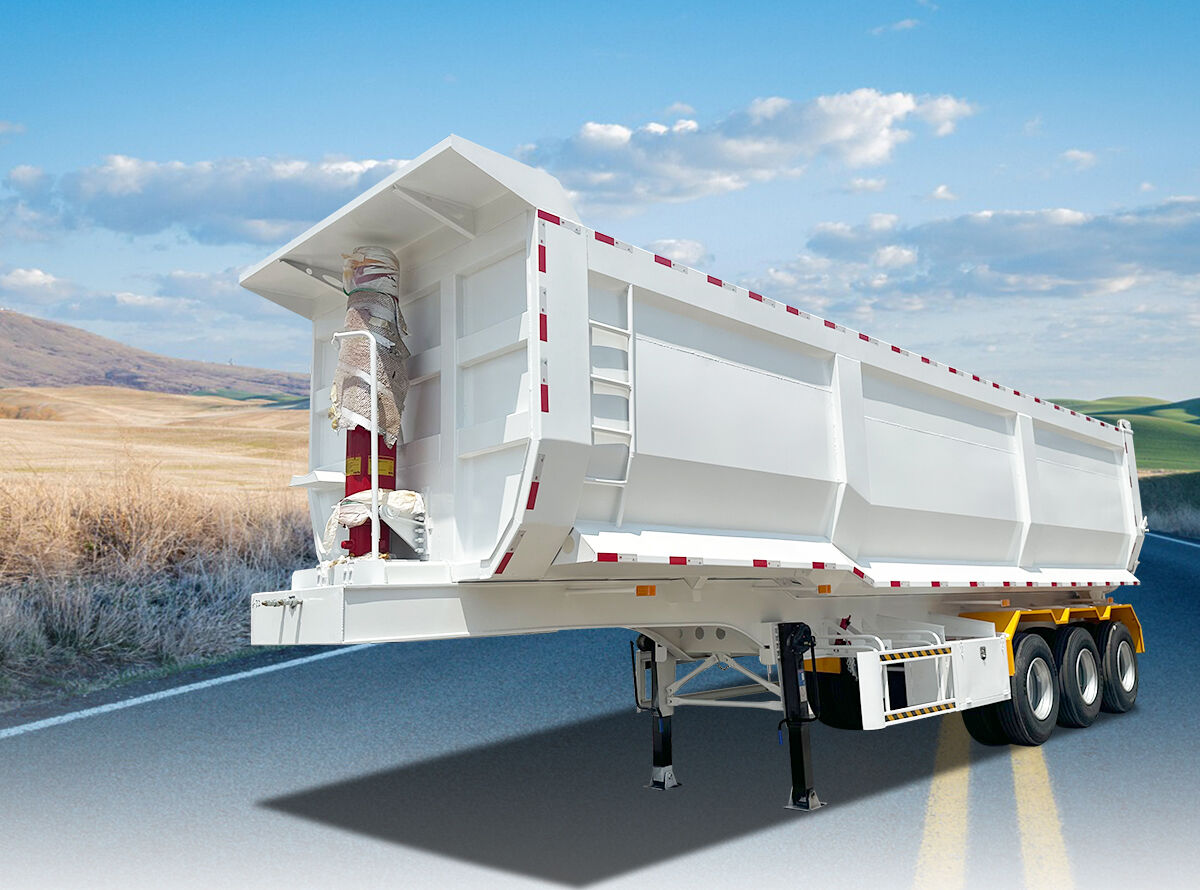

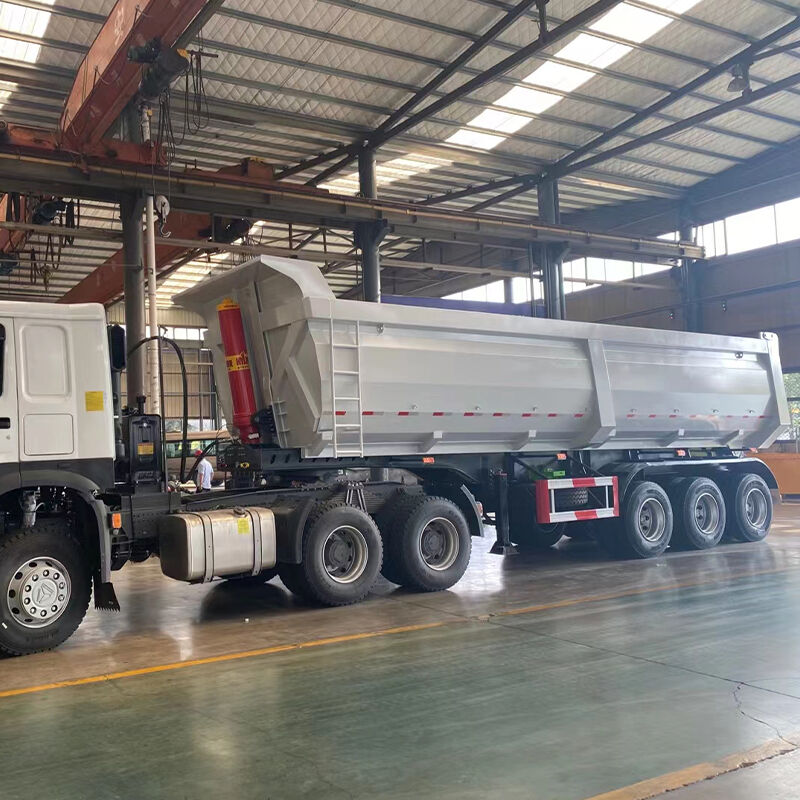

End Dump Semi Trailer
The End Dump Semi Trailer is a heavy-duty, high-efficiency semi-trailer engineered for fast, reliable unloading of bulk materials. Built with a reinforced high-strength steel frame and a robust hydraulic lifting system, it enables safe, one-way rear dumping of sand, gravel, coal, ore, construction waste and other bulk cargo, significantly improving loading/unloading efficiency.
Minimum order quantity: 1 unit
- Overview
- Recommended Products
Product Details
The End Dump Semi Trailer is a heavy-duty, high-efficiency semi-trailer engineered for fast, reliable unloading of bulk materials. Built with a reinforced high-strength steel frame and a robust hydraulic lifting system, it enables safe, one-way rear dumping of sand, gravel, coal, ore, construction waste and other bulk cargo, significantly improving loading/unloading efficiency. Equipped with multi-axle configuration, heavy-duty suspension and reliable braking system, it delivers excellent load-bearing capacity, stable driving performance and strong adaptability to complex road conditions.
Product Parameter Table
Name |
3 Axle Dump Trailer |
Dimensions |
9300*2500*3400 |
Inner Dimension |
25 Cubic Meters |
Loading capacity |
30-80 Tons |
Axle brand and number |
13T HJ 3units |
King Pin |
50# JOST |
Steel Spring |
leaf spring suspension |
Main beam |
height beam500mm,upper plate14mm,down plate16mm,middle plate8mm. |
Tyre and quantity |
12R22.5 tubeless tires, 12 pieces |
Landing gear |
JOST, double speed operation |
Thickness |
bottom:8mm, side:4mm |
Brake system |
WABCO braking system with ABS |
Electrical system |
24V Electrical system With LED Light |
Tool box |
1 sets |
Spare tire carrier |
1 Set |
Packing |
Optional for SKD loading |
Function |
Transport Sand and Stone Transport |

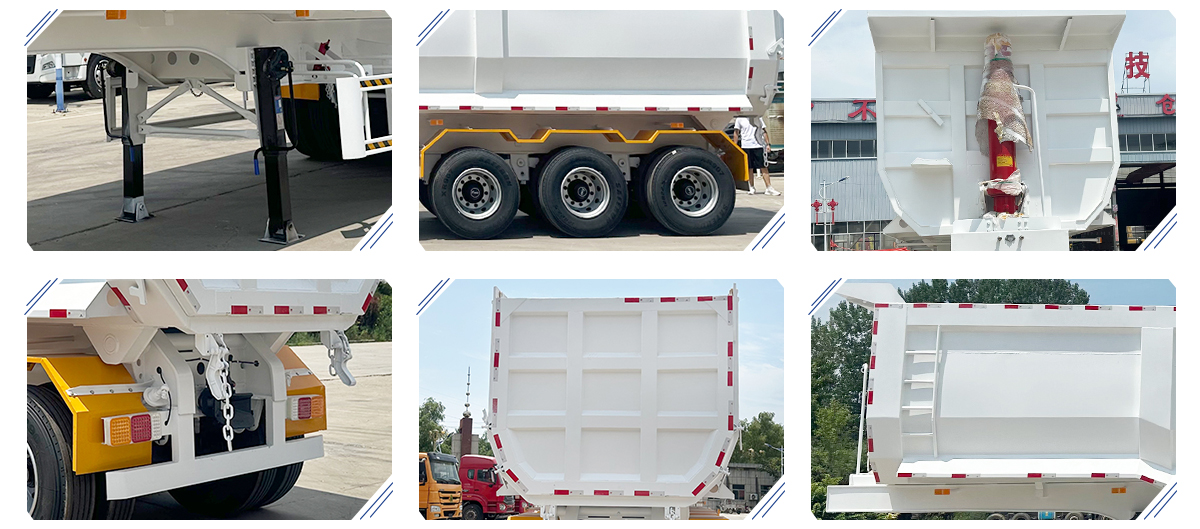

Features of end dump semi trailer
🔵 The frame is made of Q355B high-strength manganese steel, offering strong load-bearing capacity and torsional resistance, suitable for heavy-duty conditions.
🔵 Equipped with three 13-ton axles, with options for internationally recognized brands such as BPW and Fuhua, ensuring high stability and readily available spare parts.
🔵 The cargo box is made of wear-resistant steel plate with a thickened floor, providing impact and wear resistance. The volume can be customized to meet specific needs.

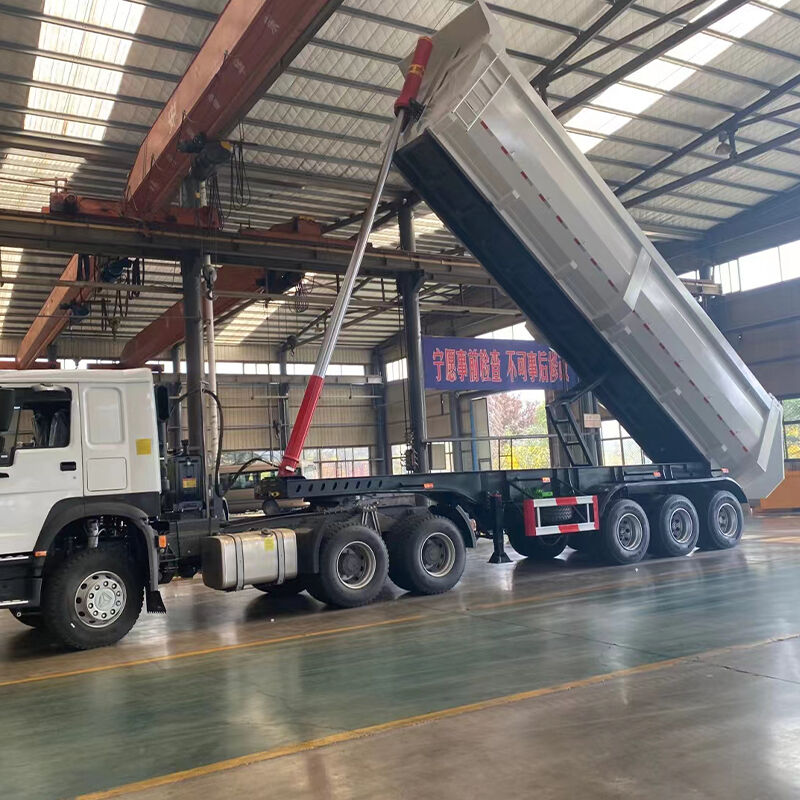

🔵 The hydraulic lifting system is stable and reliable, enabling rear-tipping unloading for clean and efficient lifting and unloading.
🔵 The braking system is safe and comprehensive, equipped with air brakes and ABS for enhanced driving and operation safety.
🔵 The entire vehicle undergoes rust and corrosion protection treatment, adapting to complex environments such as high temperatures, dust storms, and humidity.

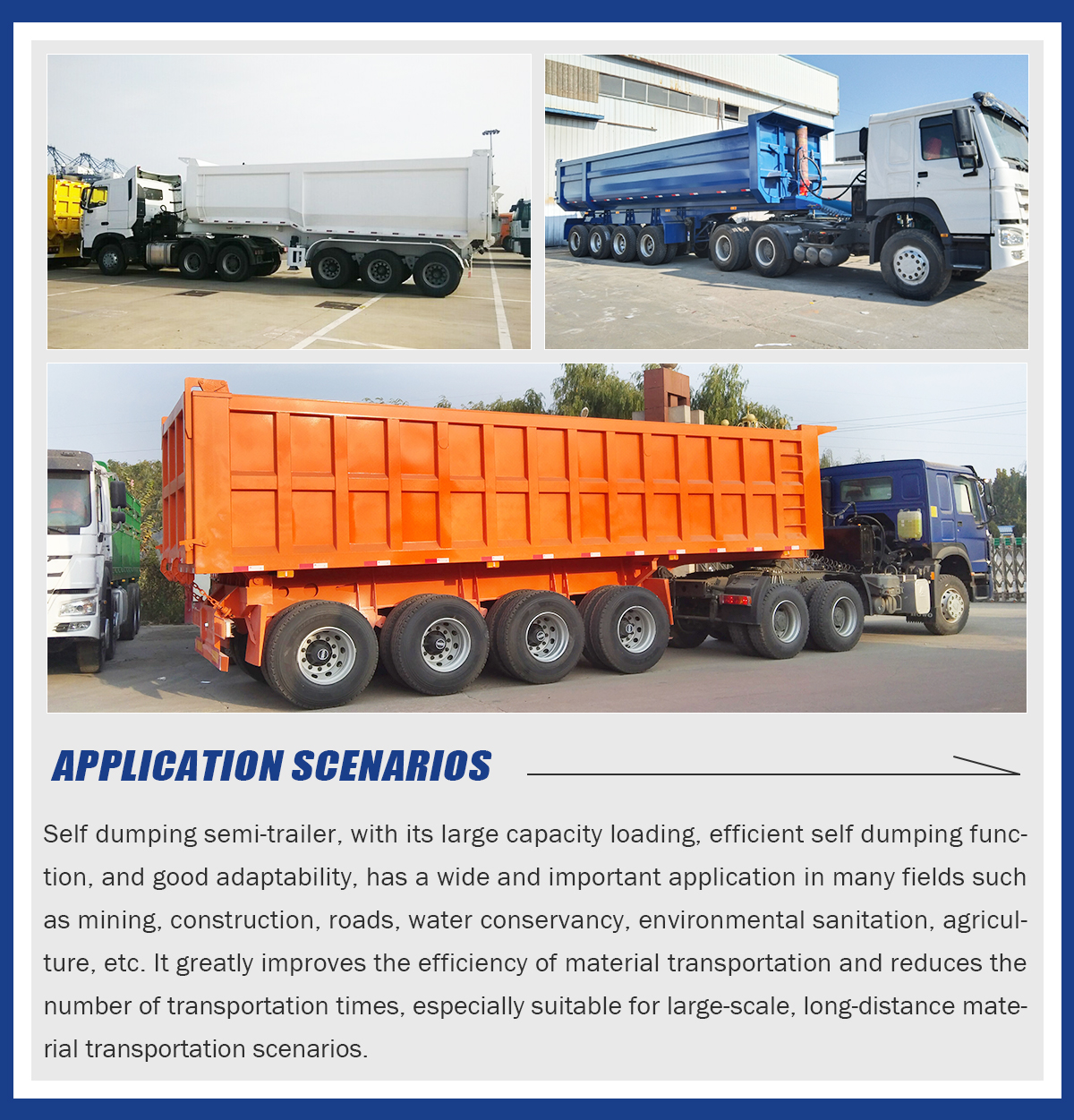

Application of end dump semi trailer
The dump trailer is suitable for transporting ore and slag in mines, transporting sand and gravel in infrastructure projects, clearing construction waste in cities, and transporting various materials for roads, bridges, and water conservancy projects. It adapts to a variety of complex road conditions and operating environments.

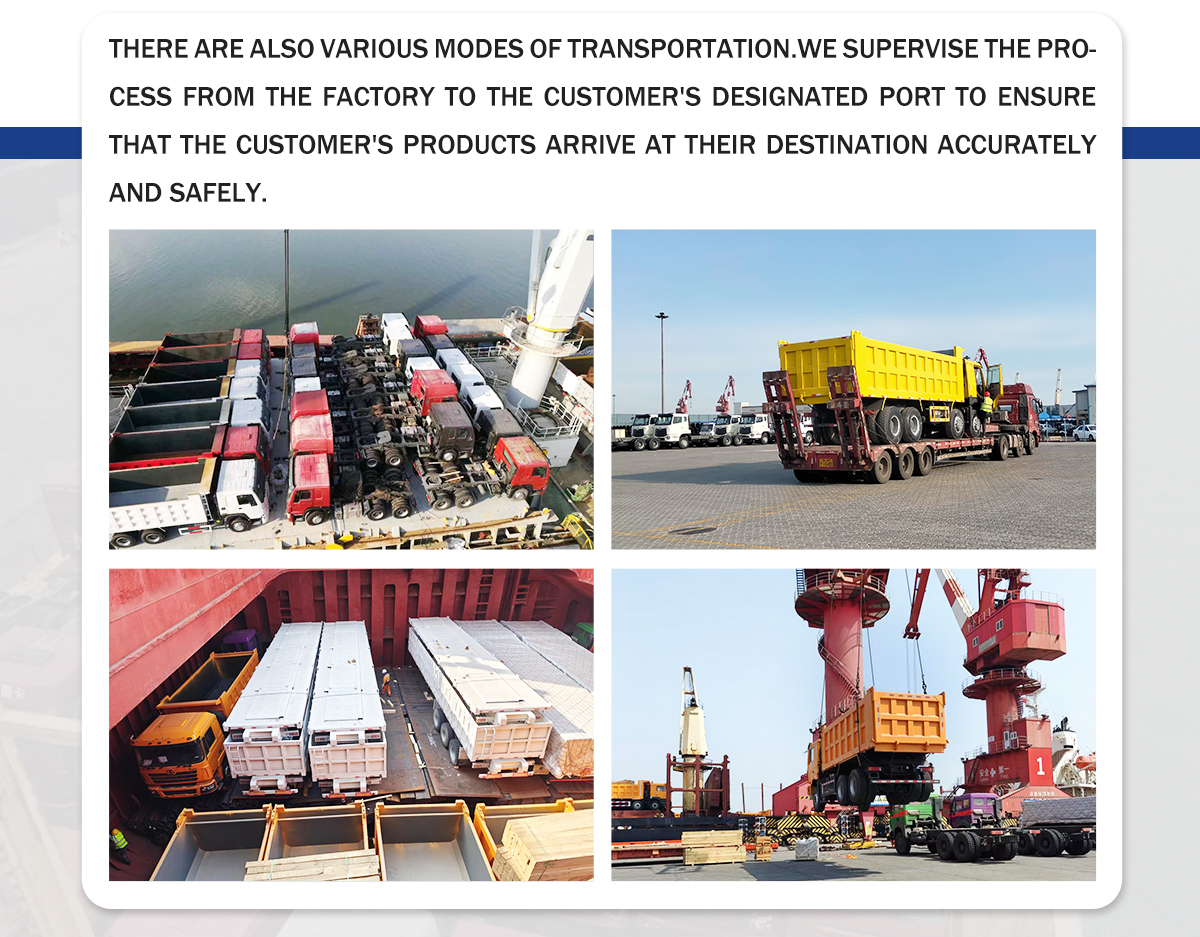

Packaging and Transportation：
🔵 Roll-on/Bulk Cargo Transportation
This is often the preferred method for transporting complete units. The trailer is loaded directly onto a general cargo ship. For multiple items, this is a straightforward and economical option, minimizing handling and assembly costs at the destination.
🔵 Container Transportation
As a flexible alternative, we can professionally disassemble the trailer for safe loading into standard shipping containers. This option is ideal for small orders or when your logistics chain is based at a container terminal.

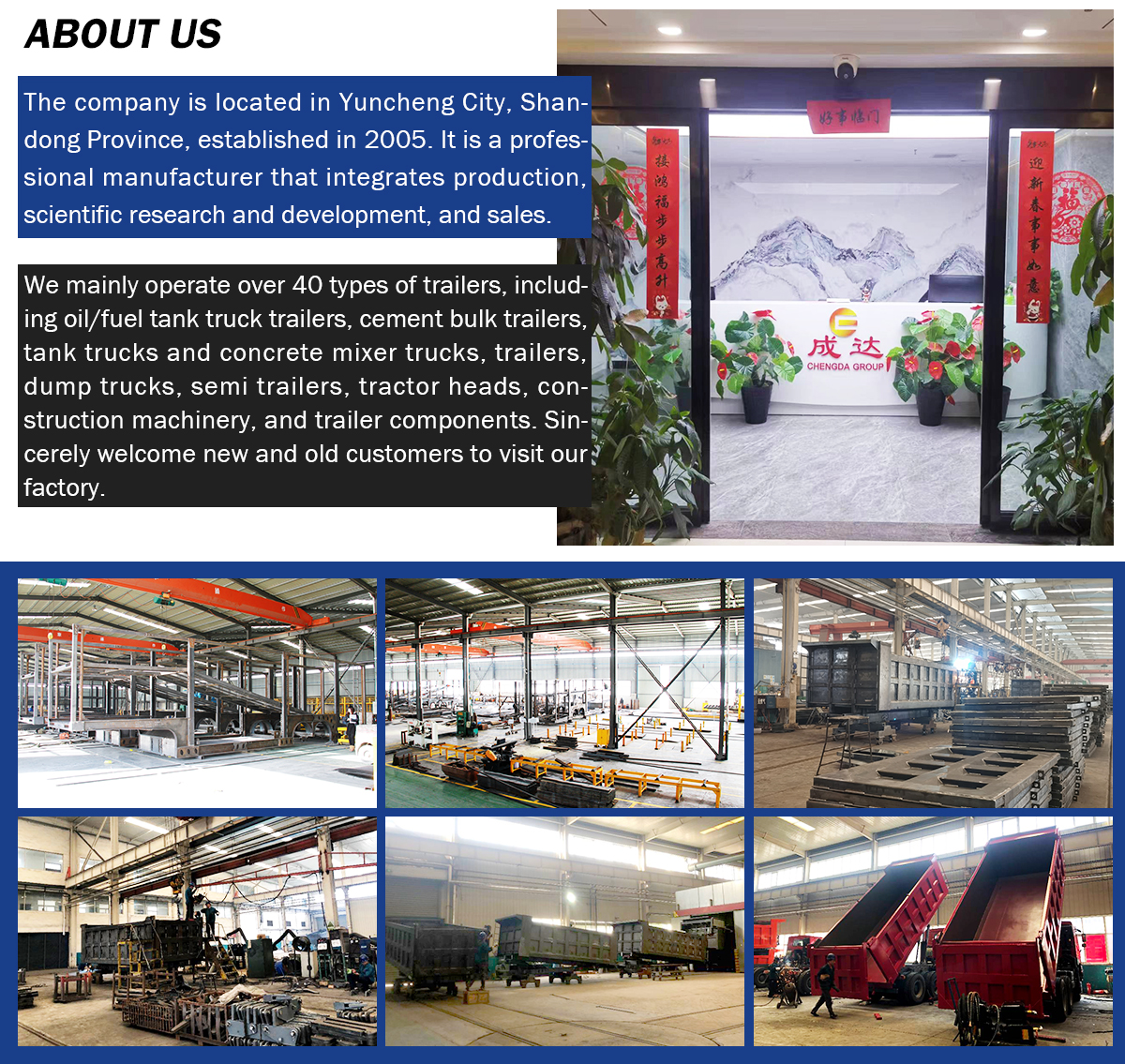

About Us
Chengda Group, established in 2005, is a professional semi-trailer manufacturer and heavy-duty truck exporter. Our products are exported to Africa, the Middle East, Southeast Asia, and Central and South America, covering dozens of countries including Zambia, Nigeria, Brazil, Chile, and Peru, and are adapted to the road conditions, climates, and regulatory requirements of various regions. With years of experience in overseas markets, we are a trusted long-term partner for clients in various regions.
