Trailer Axle
Trailer axles are heavy-duty axle assemblies specifically designed for semi-trailers, flatbed trailers, dump trailers, and multi-purpose trailers.
Minimum order quantity: 1 unit
- Overview
- Recommended Products
Product Details
Trailer axles are heavy-duty axle assemblies specifically designed for semi-trailers, flatbed trailers, dump trailers, and multi-purpose trailers. They feature stable load-bearing capacity, reliable braking performance, and a long service life, making them a core component for safe and efficient heavy-duty transportation.
Product Parameter Table
Model |
Capacity(kg) |
Track(mm) |
Axle Tube(mm) |
Brake Size |
PCD(mm) |
Total Length (mm) |
Recommended Wheel |
LHGA-F12T |
12000 |
1840 |
127 |
420*180 |
335 |
2165 |
7.5V-20 |
LHGA-F14T |
14000 |
1840 |
127 |
420*200 |
335 |
2185 |
7.5V-20 |
LHGA-F16T |
16000 |
1850 |
150 |
420*200 |
335 |
2185 |
7.5V-20 |
LHGA-F18T |
18000 |
1850 |
150 |
420*220 |
335 |
2185 |
7.5V-20 |

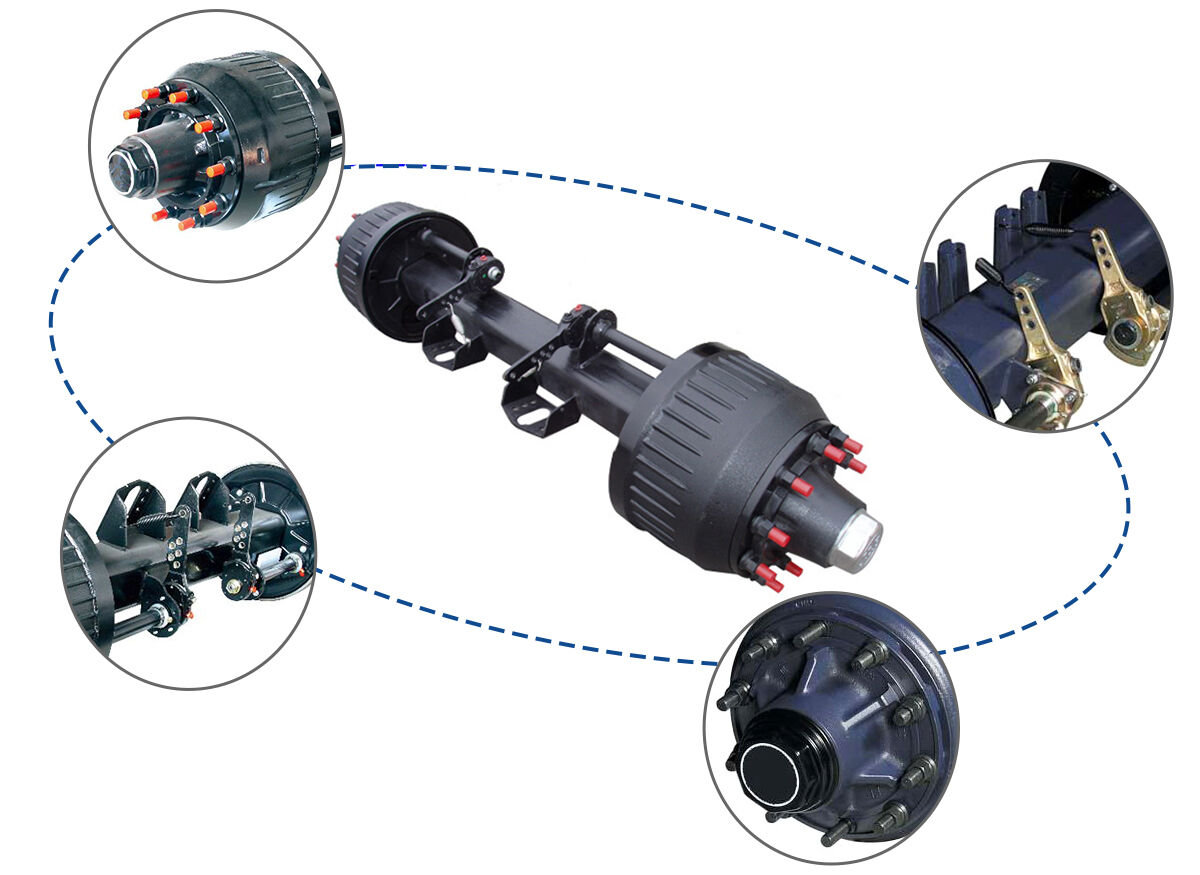

Features of trailer axle
🔵 The axle has two types: one-piece axle tube and welded tube, solid axle head, and long service life.
🔵 High-quality asbestos-free environmentally friendly friction plate, good performance, easy replacement.
🔵 The bearing is treated with high-frequency quenching, with large load capacity, high speed, and safe use.
🔵 The tire bolts are made of high-strength alloy steel. Equipped with two positioning sleeves.
Advantages
🔵 High load-bearing capacity, stable performance under heavy loads
🔵 High strength, good durability, long service life, low failure rate
🔵 Excellent braking effect, ensuring safe driving under various road conditions
🔵 Mature design, widely compatible with most trailer models
🔵 Easy maintenance, ample global spare parts supply

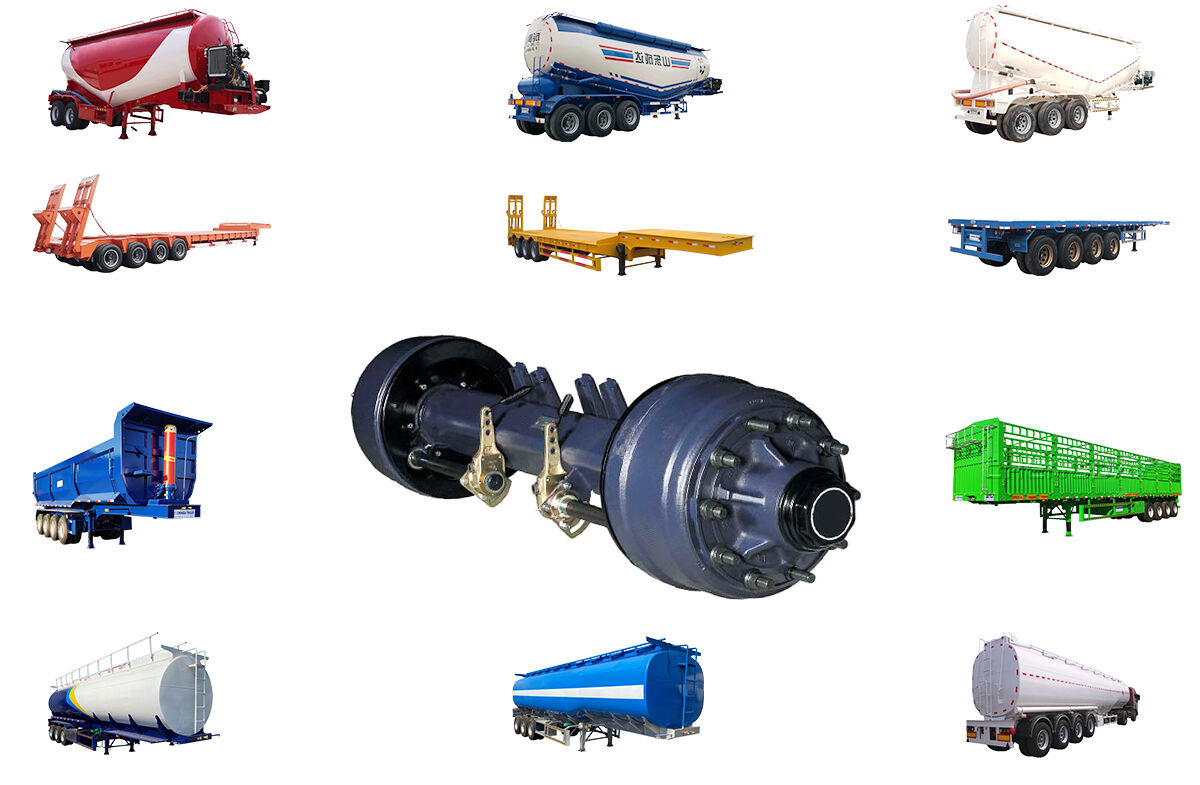

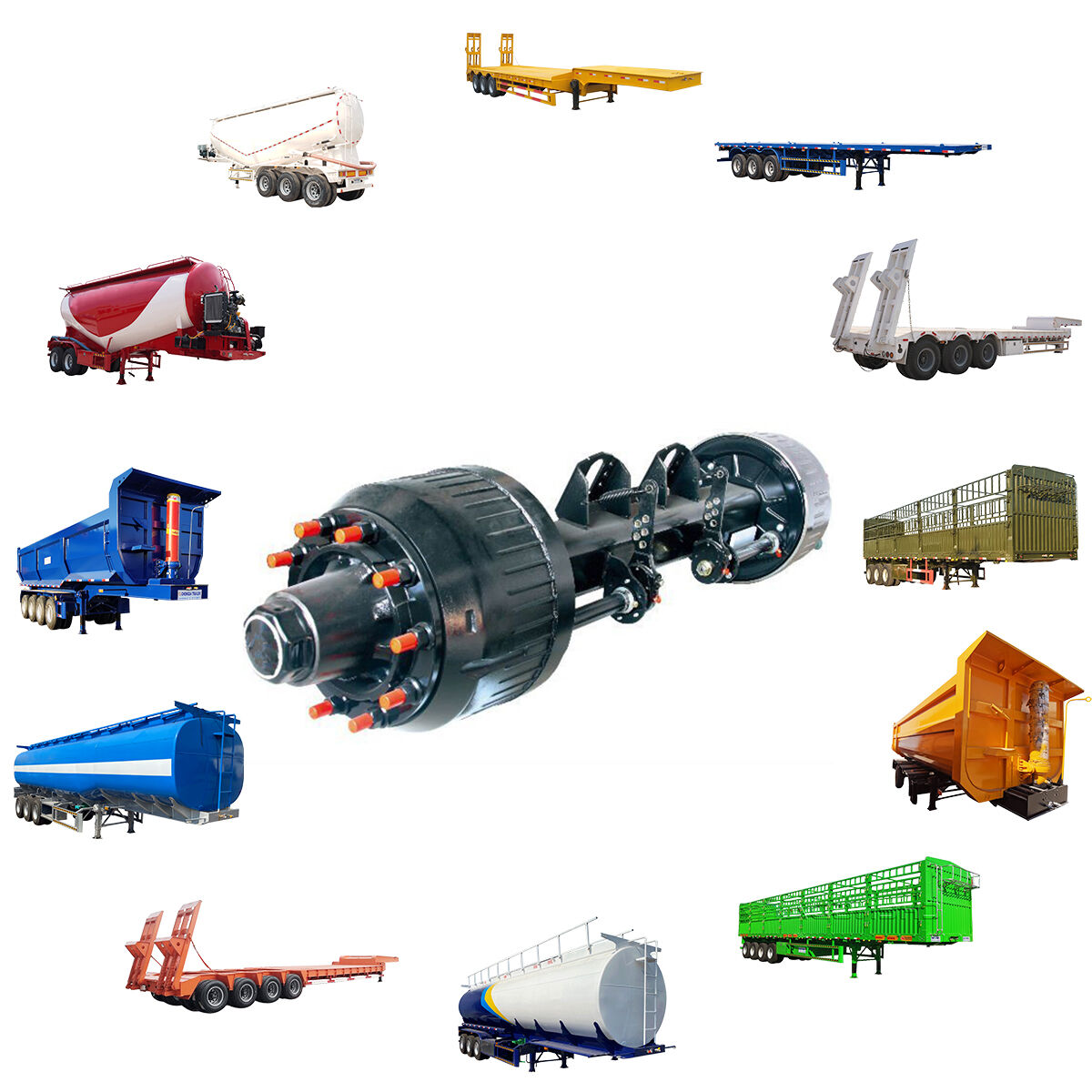

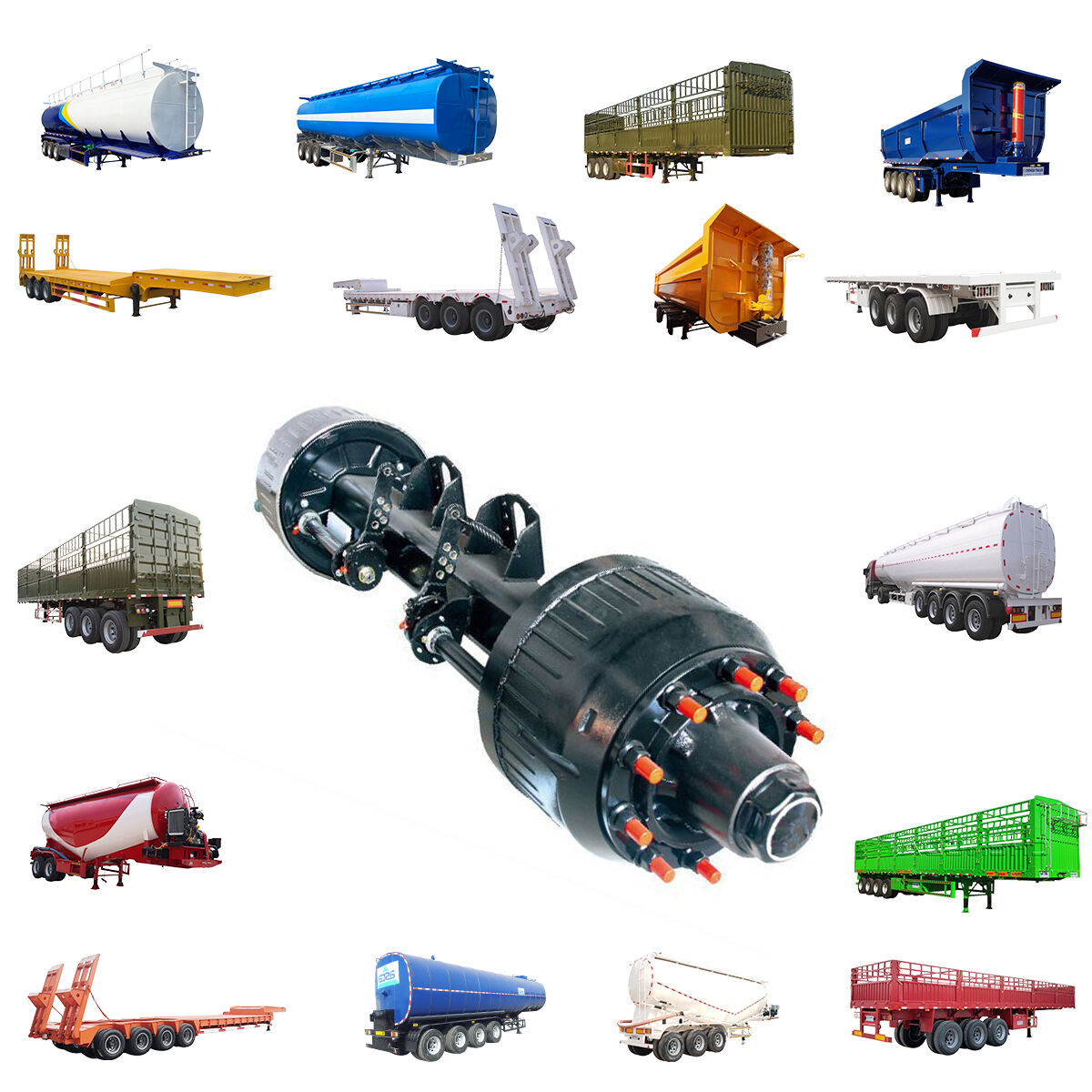

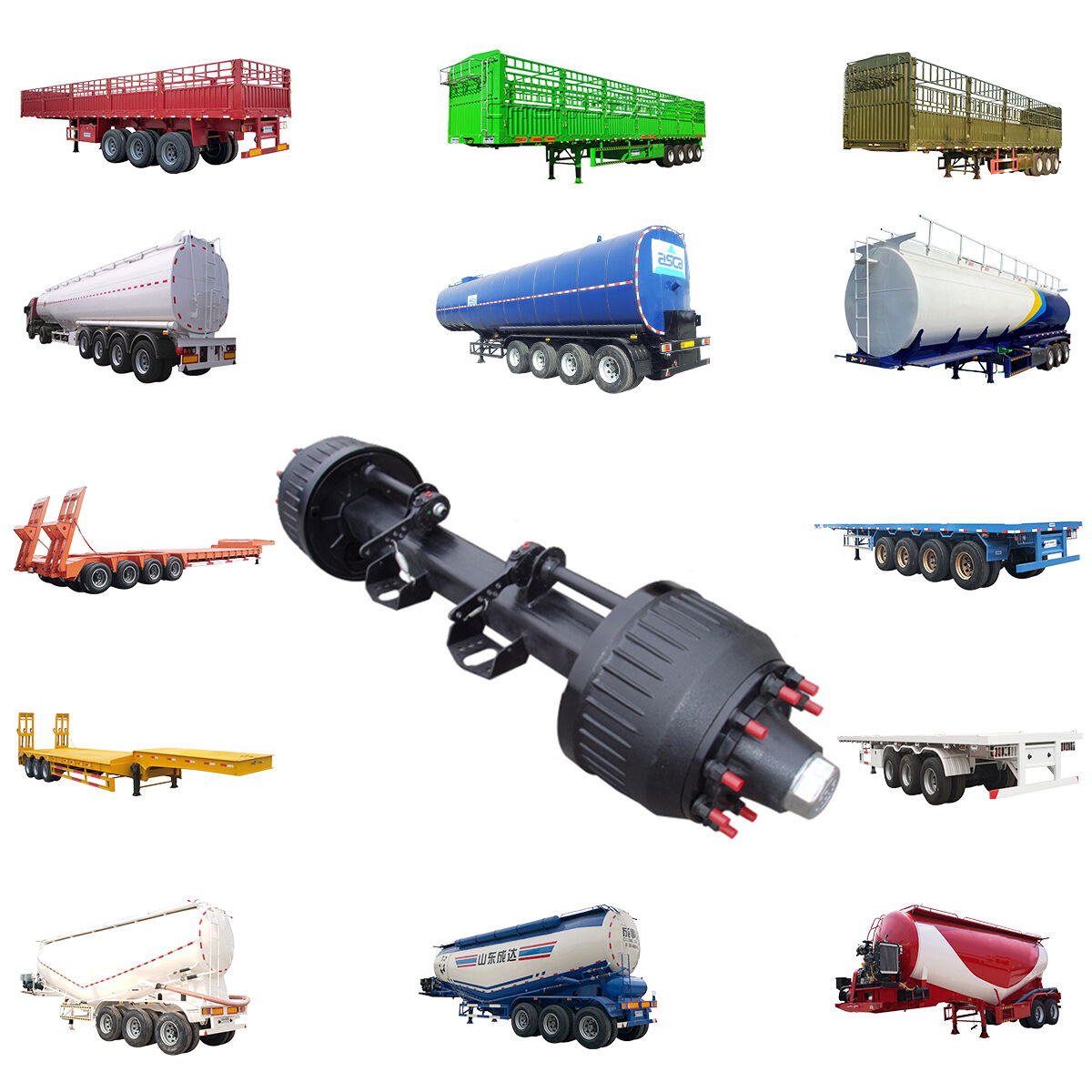

Applications

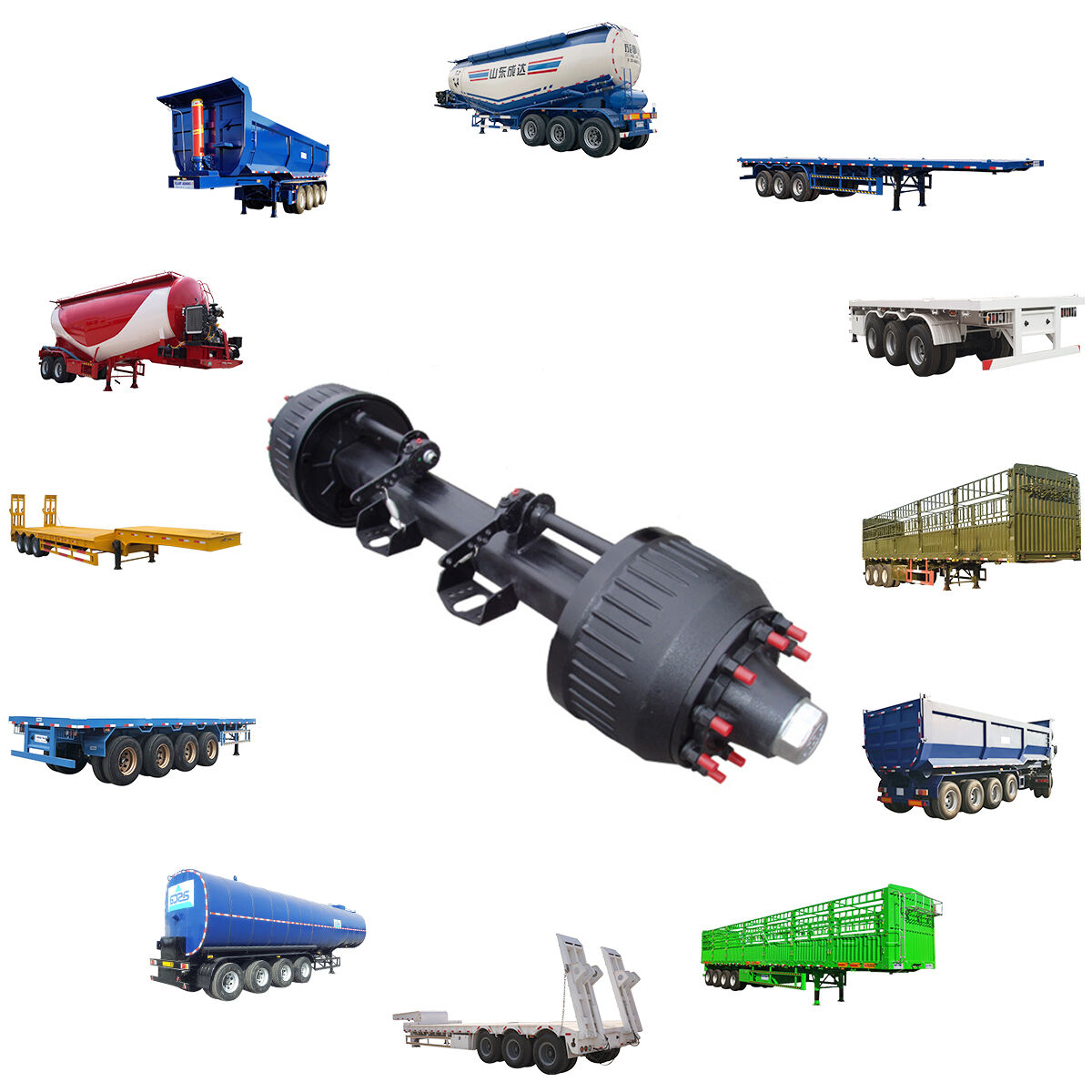

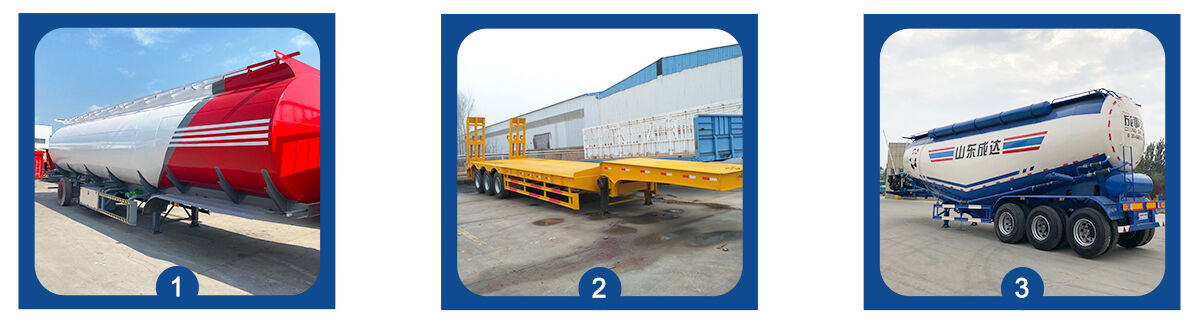

These trailer axles are widely used in flatbed trailers, container trailers, dump trailers, tank trailers, low-bed trailers, and various heavy-duty semi-trailers. Suitable for heavy-duty operations in logistics, construction, mining, and port operations.
Packaging and Transportation

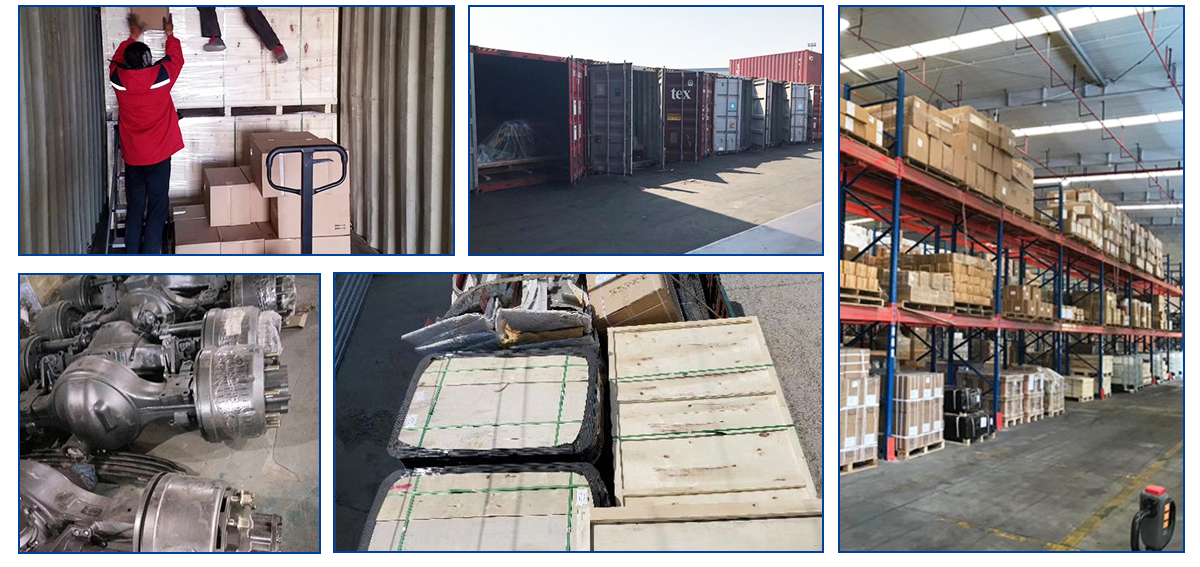

Each axle is packaged in a sturdy wooden crate or steel frame to prevent collisions and damage during transportation. We support sea freight and bulk cargo transportation, employing professional loading and securing methods to ensure safe delivery.

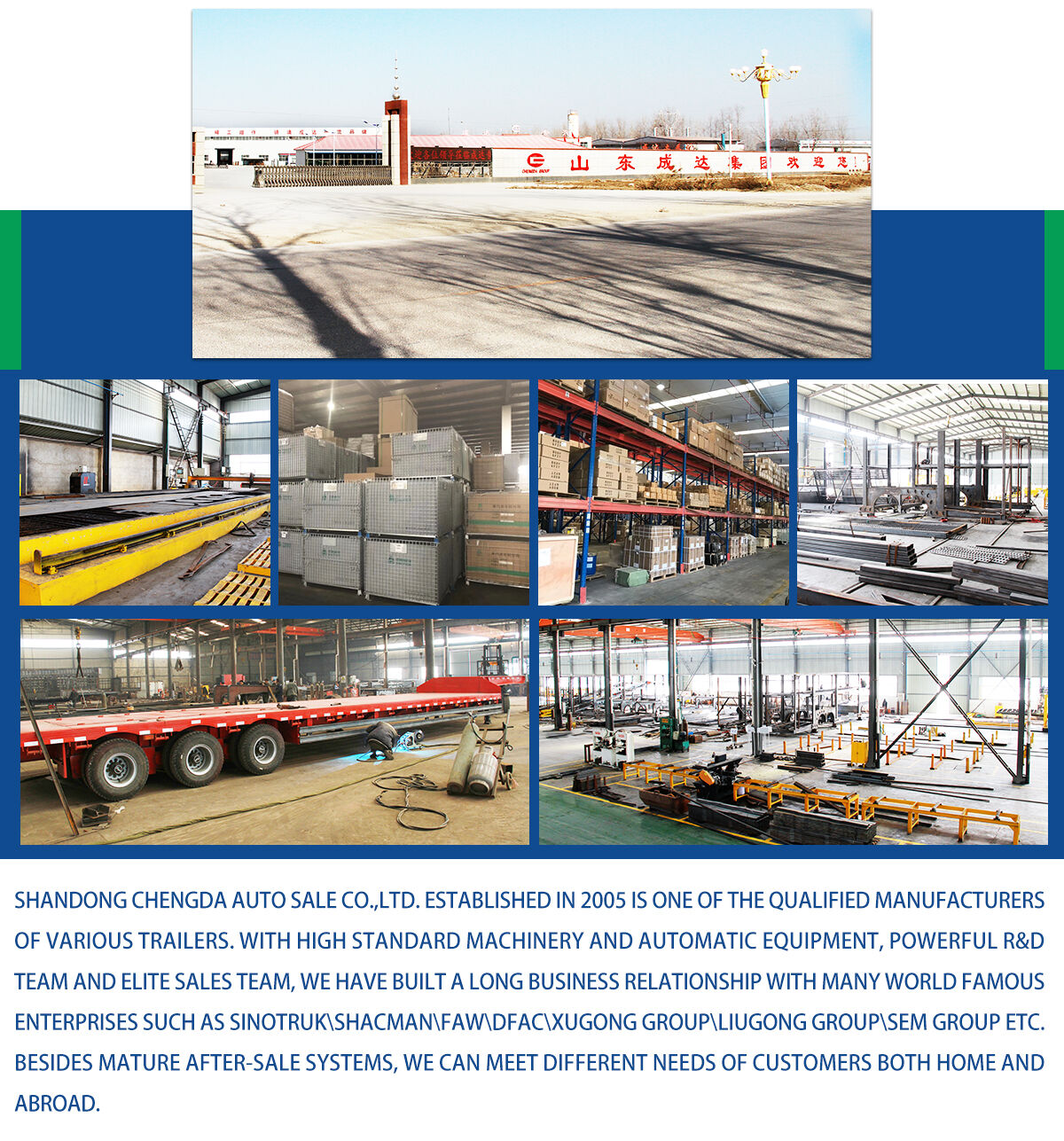

About Us
Founded in 2005, we are a professional supplier of trailer axles and accessories. With strict quality control and mature production technology, we provide durable and affordable axle products to customers worldwide. Our products are exported to Africa, the Middle East, Southeast Asia, and South America, with a stable supply and professional service guarantee.
