Sinotruk 6x4 Mining Truck
The Sinotruk 6x4 mining truck is a heavy-duty specialized vehicle independently developed by SINOTRUK for harsh mining and quarrying scenarios. Designed with a robust 6x4 drive layout, the Sinotruk 6x4 mining truck integrates a high-torque engine, reinforced chassis, and wear-resistant cargo box, delivering exceptional load-bearing capacity, powerful climbing performance, and outstanding adaptability to harsh mine conditions.
Minimum order quantity: 1 unit
- Overview
- Recommended Products
Product Details
The Sinotruk 6x4 mining truck is a heavy-duty specialized vehicle independently developed by SINOTRUK for harsh mining and quarrying scenarios. Designed with a robust 6x4 drive layout, the Sinotruk 6x4 mining truck integrates a high-torque engine, reinforced chassis, and wear-resistant cargo box, delivering exceptional load-bearing capacity, powerful climbing performance, and outstanding adaptability to harsh mine conditions.
This Sinotruk 6x4 mining truck is specially engineered for short-distance transportation of ore, coal, gravel, and other bulk mining materials, with stable operation, low failure rate, and high work efficiency. As a reliable and cost-effective mining transport solution, the Sinotruk 6x4 mining truck is widely recognized by global mining operators, becoming a mainstream choice for open-pit mines, quarries, and mining infrastructure projects in Africa, the Middle East, and Southeast Asia.
Product Parameter Table
| Item | Specification |
|---|---|
| Product Name | Sinotruk 6x4 mining truck |
| Brand | SINOTRUK |
| Drive Mode | 6x4 (3 axles, rear dual drive) |
| Engine Model | SINOTRUK WD615.69 / Weichai WP10 (336hp–420hp) |
| Emission Standard | Euro 2 / Euro 3 / Euro 5 (optional) |
| Transmission | 10-speed / 12-speed heavy-duty manual gearbox (HW19710 optional) |
| Rated Load | 30–40 tons |
| Gross Vehicle Weight | 60 tons |
| Cargo Box Size | 5400×2300×1400mm–5600×2800×1500mm (customizable) |
| Cargo Box Material | Thickened wear-resistant steel (floor 8mm, side 6mm) |
| Cargo Box Volume | 14–18m³ (customizable) |
| Front Axle | 9T HF9 heavy-duty steering axle |
| Rear Axle | 16T HC16 heavy-duty double reduction drive axle (with differential lock) |
| Frame Material | High-strength manganese steel (U-profile parallel ladder frame, 300×80×8mm section) |
| Tire Specification | 12.00R20 anti-slip mine-pattern radial tires (10 pieces + 1 spare) |
| Cab Type | HW76 sleeper cab with air conditioning, shock-absorbing seat |
| Braking System | Dual-circuit air brake + ABS + engine exhaust brake |
| Hydraulic Lifting System | High-pressure front/middle lift, full lift time 15–20 seconds |
| Wheelbase | 3750+1500mm / 3800+1350mm (optional) |
| Certification | ISO, CE, CCC, BV |

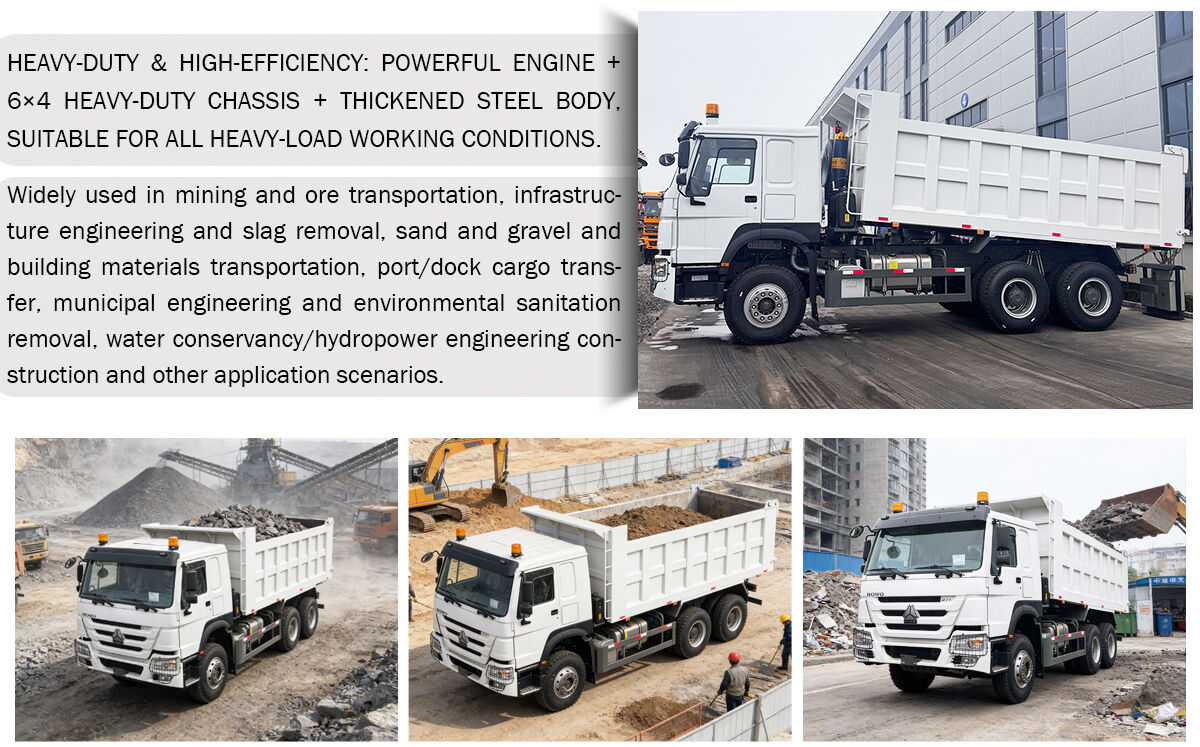

Applicable Scenarios
The Sinotruk 6x4 mining truck is specially designed for harsh mining and engineering scenarios, widely used in:
1. Open-Pit Mines: Transporting coal, manganese ore, bauxite, gold ore, nickel ore, and other bulk minerals, the Sinotruk 6x4 mining truck adapts to the rough and dusty environment of open-pit mines with excellent passability.
2. Quarries: Hauling gravel, crushed stone, and other aggregates, the Sinotruk 6x4 mining truck’s wear-resistant cargo box and powerful lifting system improve loading and unloading efficiency.
3. Mining Infrastructure: Supporting mine road construction, ore yard transfer, and overburden transportation, the Sinotruk 6x4 mining truck meets the heavy-load and high-frequency operation needs of mining projects.
4. Construction & Engineering: Transporting construction waste, sand, and gravel for large-scale infrastructure projects near mining areas, the Sinotruk 6x4 mining truck’s robust performance adapts to complex construction site conditions.
5. Global Harsh Regions: The Sinotruk 6x4 mining truck excels in high-temperature, dusty, and muddy environments in Africa, the Middle East, and Southeast Asia, providing reliable transportation support for local mining industries.
Packaging and Transportation
To better ensure the safety of your goods, we provide professional, environmentally friendly, convenient, and efficient packaging services.
Why Choose Us?
Chengda Group, established in 2005, is a semi-trailer manufacturer with formal production qualifications, integrating R&D, production, sales, and foreign trade export. The company mainly deals in various types of semi-trailers, tractor units, dump trucks, construction machinery, and trailer accessories.
Customer Visits
Chengda Group cordially invites overseas customers to visit our factory and Howo original equipment manufacturer (OEM) for on-site inspections. Customers can observe vehicle production and assembly processes, quality testing procedures, and closely examine vehicle configurations and craftsmanship. Professional technicians and the foreign trade team will accompany customers throughout the visit, providing one-on-one answers to questions regarding product configuration, customization options, pricing, and delivery times.
