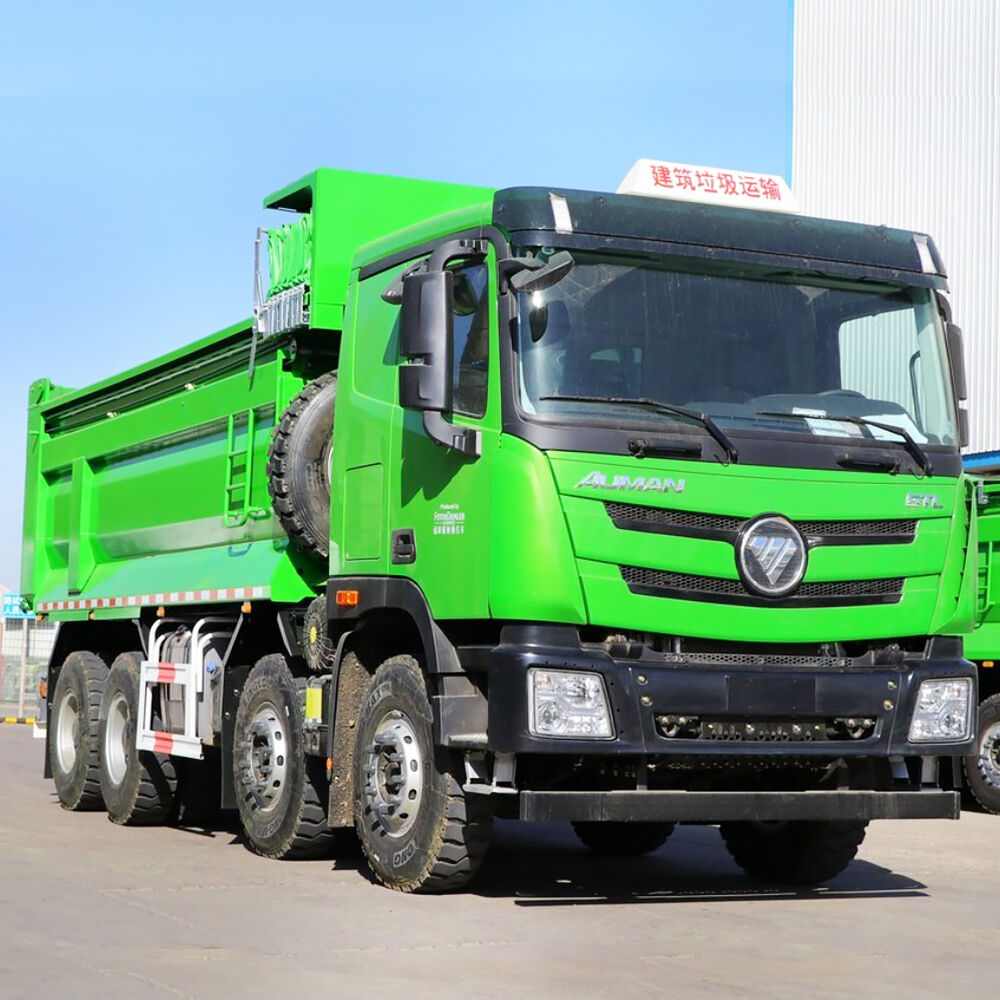

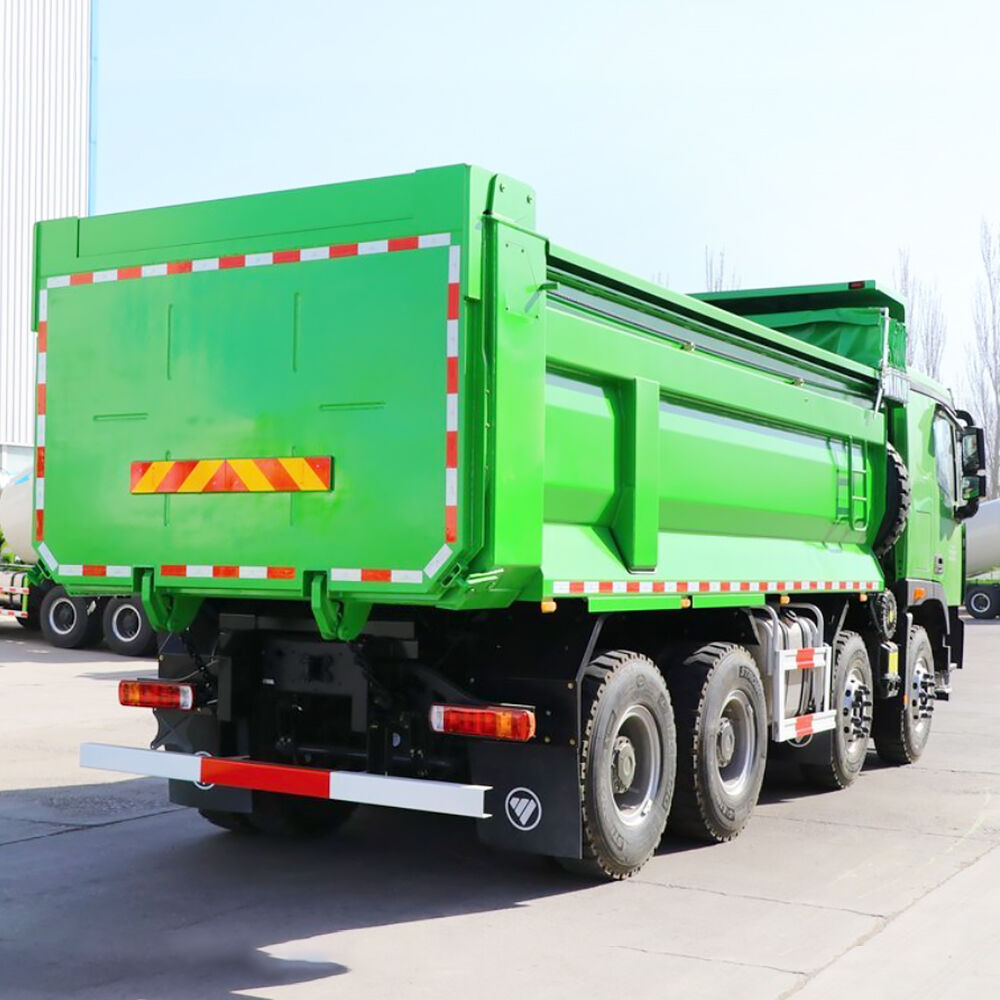

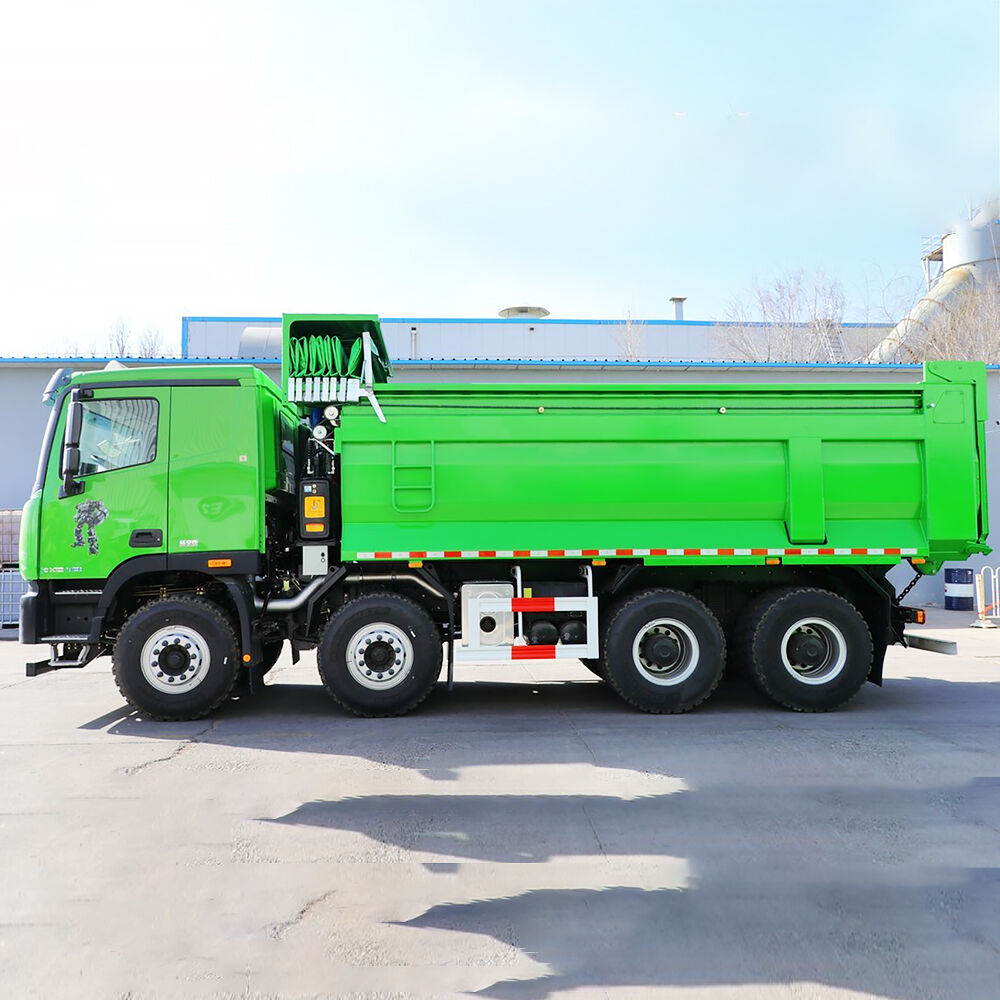

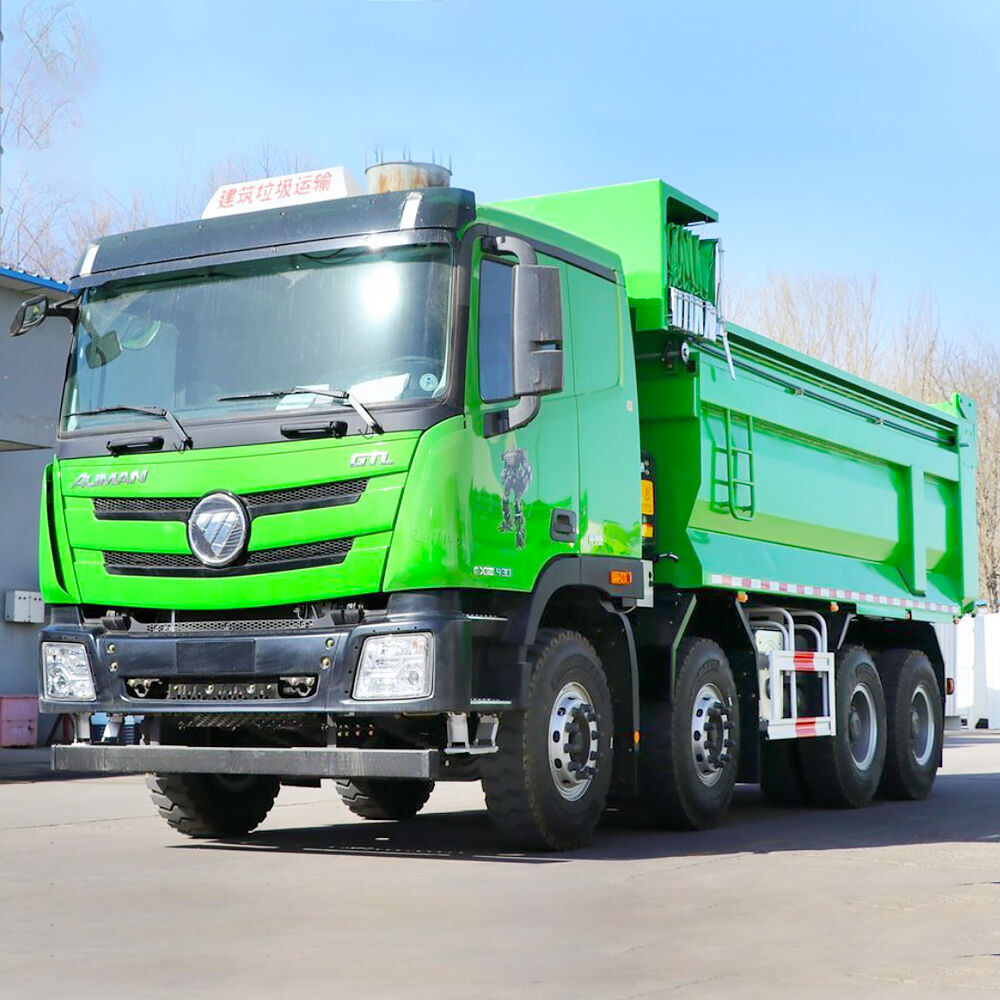

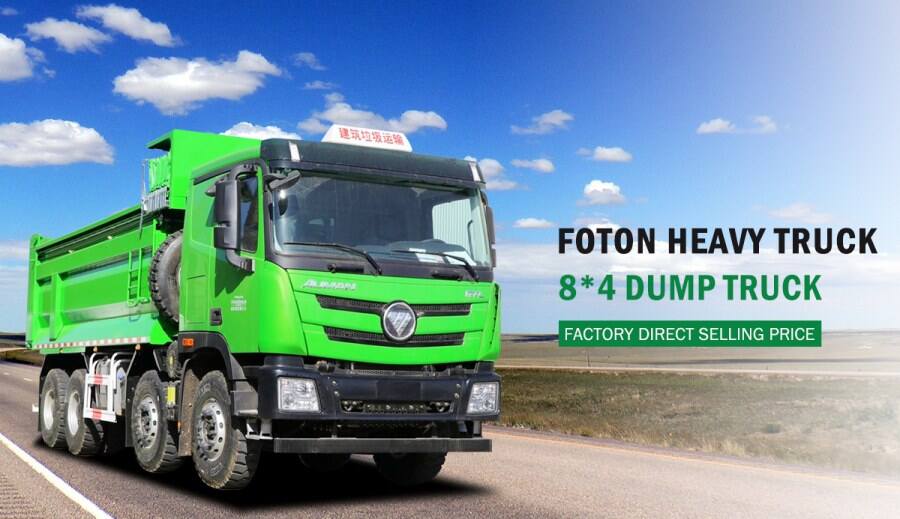

Foton Auman GTL-E 8x4 Dump Truck
Purchase brand new Foton Auman GTL-E 8x4 dump trucks with factory direct price. High-capacity 30 CBM Foton GTL tipper with reliable Cummins engine performance.
Minimum order quantity: 1 unit
- Overview
- Recommended Products
Product Details
The Foton Auman GTL-E 8x4 dump truck represents a major technological leap forward in high-efficiency, heavy-duty earthmoving and mining logistics.
Product Parameter Table
| Technical Parameter | Industrial Specification Data |
| Model Designation |
Foton Auman GTL-E 8x4 Dump Truck |
| Wheelbase Dimensions | 1,800 mm + 3,950 mm + 1,350 mm |
| Overall Structural Volume | 10,418 mm (L) × 2,490 mm (W) × 3,400 mm (H) |
| Engine Platform | Foton Cummins ISG Inline 6-Cylinder Turbo-Diesel |
| Power Output / Max Torque | 400 - 430 HP @ 1,900 RPM / 2,100 N·m |
| Transmission Box | FAST 12JSD Heavy-Duty 12-Speed Manual with Splitter Gear |
| Gross Vehicle Weight (GVW) | Up to 80,000 kg (Reinforced Mining & Infrastructure Configuration) |
| Cargo Box Capacity | 30 CBM Volume with Manual Tailgate Safety Locks |
| Tire Layout Matrix | 12.00R20 18PR High-Load Radial Tires (12+1 Spare Included) |
Features of Foton tipper truck
🔵 Optimized Foton Cummins High-Torque Engine: Driven by an 11.8-liter heavy-duty common-rail diesel engine, the GTL-E generates a flat, ultra-wide torque curve producing up to 400-430 horsepower to climb steep quarry gradients without power loss.
🔵 Advanced Fuel-Saving Powertrain Alignment: Built with smart thermal management modules and advanced electronic fan controllers, this model boosts overall intake and combustion efficiency by up to 30%, noticeably curbing fleet diesel expenditures.

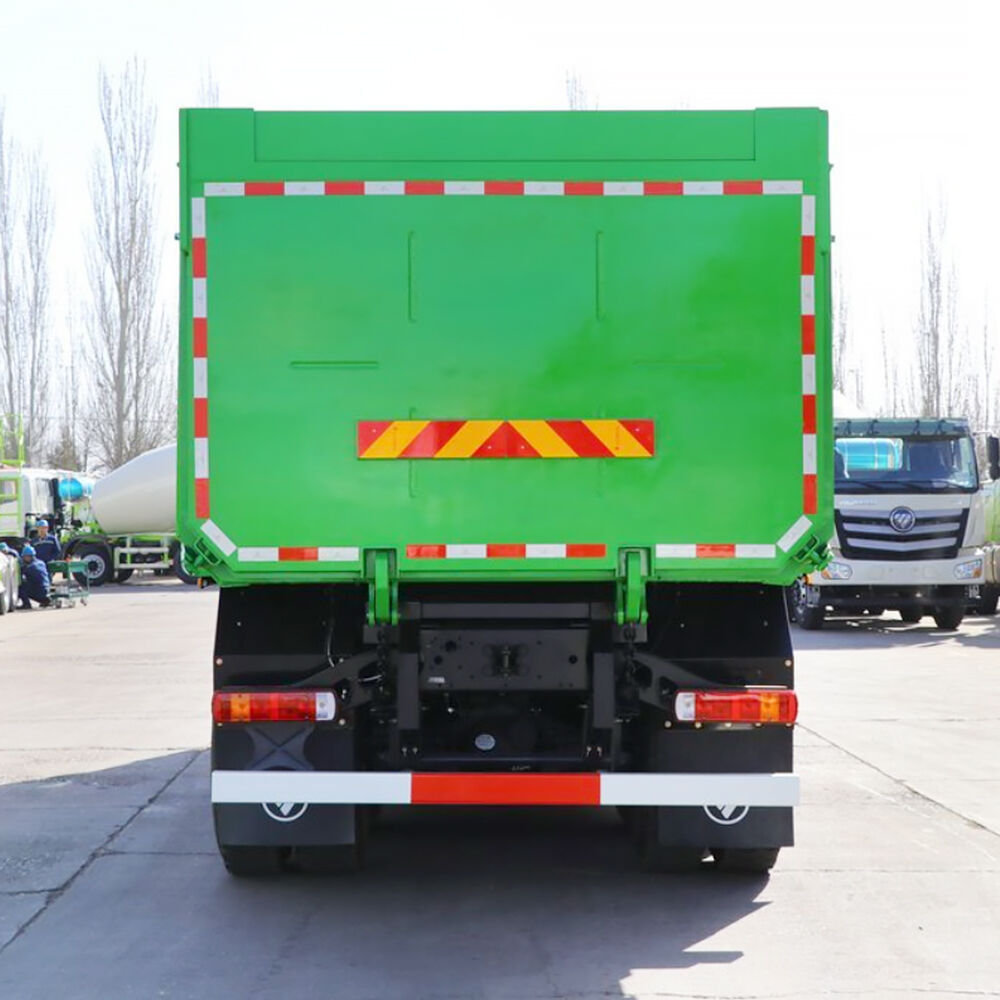

🔵 Ultra-Durable Reinforced High-Strength Tipper Box: The massive 30 CBM cargo body is constructed using high-hardness structural steel plates (8mm bottom and 6mm side profile thickness), perfectly matched with high-tonnage front-mounted HYVA hydraulic lifting cylinders.
🔵 Intelligent iBrake In-Cylinder Technology: Equipped with Foton’s proprietary in-cylinder auxiliary engine braking mechanism, the truck delivers superior stopping control on long downhill gradients, cutting down standard brake component friction wear.

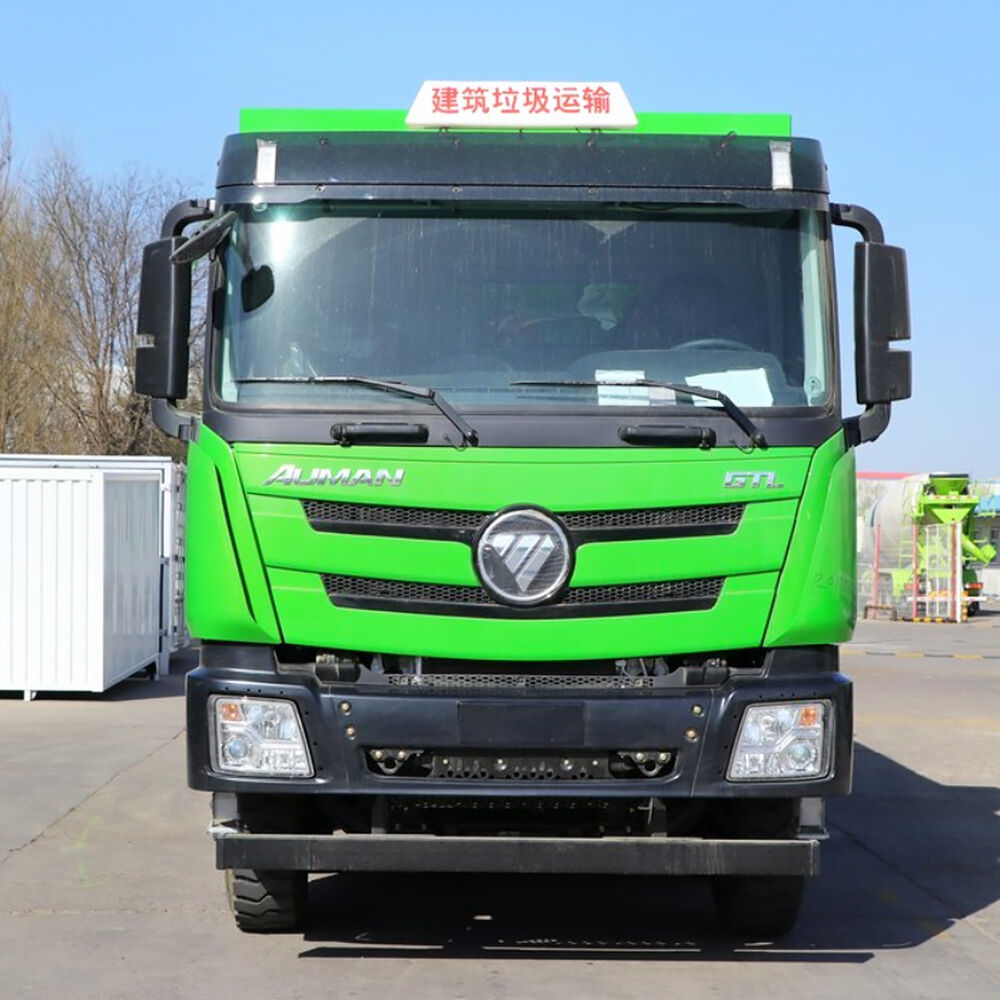

🔵 Impact-Absorbing Floating Suspension Cabin: The luxury GTL cab features an industry-leading multi-point full-floating shock suspension array and air-cushioned driver seats to drastically reduce operator fatigue on uneven terrain.
Applicable Scenarios
🔵 Ore and earthwork transportation in mines.
🔵 Sand, cement, and slag transfer at construction sites.
🔵 Urban demolition and construction waste removal.
🔵 Material transportation for road, bridge, and water conservancy projects.
🔵 Heavy-duty transportation on unpaved roads in mining areas, construction sites, and rural areas.

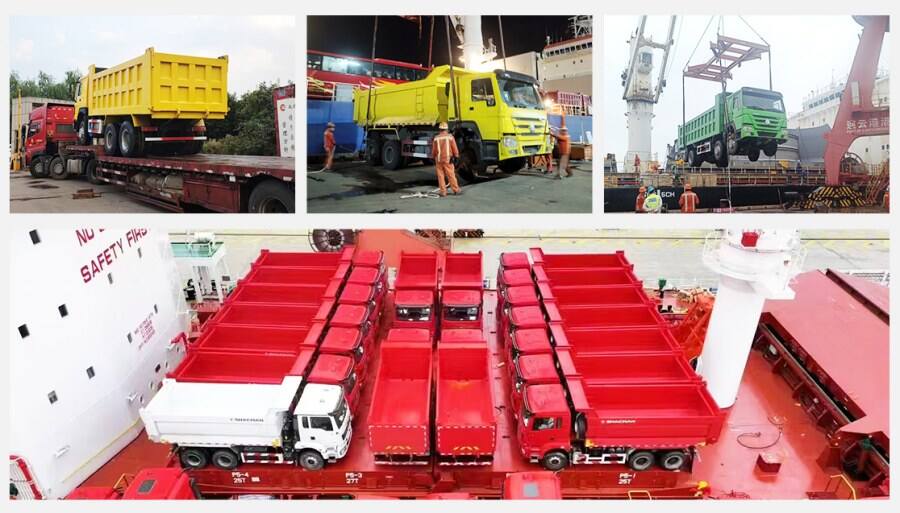

Packaging and Transportation
🔵 Waxing: The Howo tipper truck body is sprayed with wax to prevent corrosion from seawater during transportation.
🔵 Packaging: The Howo dump truck is securely fixed with steel wire to protect it during transportation.
🔵 Transportation: Reputable freight suppliers provide reliable logistics services, ensuring safe and timely transportation.
Why Choose Us?
Chengda Group, established in 2005, is a professional manufacturer of semi-trailers and exporter of heavy-duty trucks. We have long-term, in-depth partnerships with brands such as Sinotruk Howo, Shacman, Foton and Dongfeng truck corporation. Our Howo 371hp tipper trucks are sold to Africa, the Middle East, Southeast Asia, and other regions.
