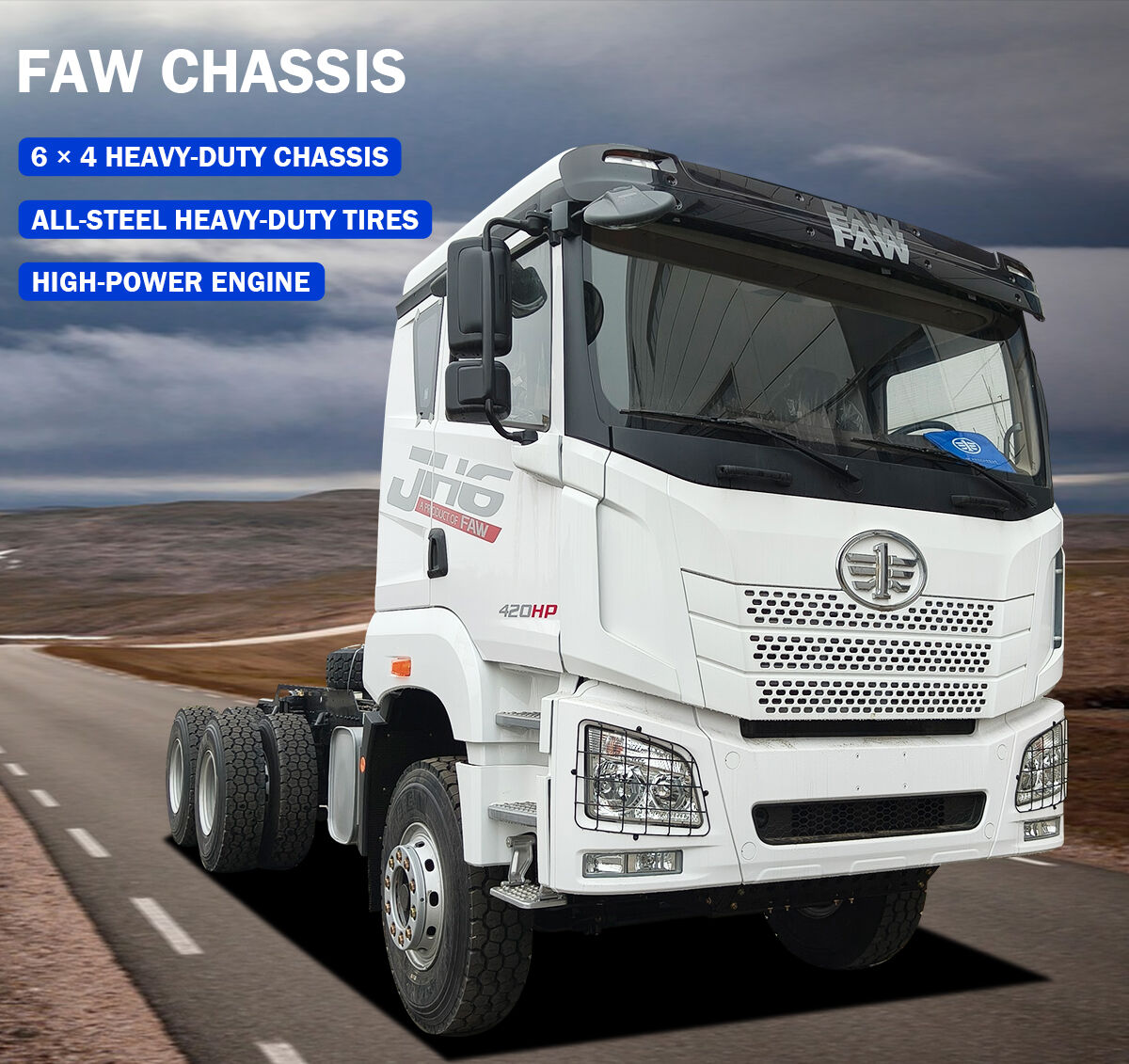

FAW Jiefang Chassis
The FAW Jiefang chassis is a core heavy-duty vehicle platform developed by FAW Jiefang, serving as a durable, versatile foundation for various commercial vehicles. This FAW Jiefang chassis integrates advanced manufacturing technology, high-strength materials, and optimized structural design, delivering exceptional reliability, stability, and adaptability. It is the base for dump trucks, cargo trucks, tractors, and special-purpose vehicles, meeting diverse transportation and engineering needs globally.
Minimum order quantity: 1 unit
- Overview
- Recommended Products
Product Details
The FAW Jiefang chassis is a core heavy-duty vehicle platform developed by FAW Jiefang, serving as a durable, versatile foundation for various commercial vehicles. This FAW Jiefang chassis integrates advanced manufacturing technology, high-strength materials and optimized structural design, delivering exceptional reliability, stability and adaptability.
It is the base for dump trucks, cargo trucks, tractors and special-purpose vehicles, meeting diverse transportation and engineering needs globally. Suitable for long-haul logistics, mining and construction, the FAW Jiefang chassis ensures consistent performance, low maintenance and long service life, making it a top choice for heavy-duty fleets.
Product Parameter Table
| Item | Specification |
|---|---|
| Product Name | FAW Jiefang chassis |
| Compatible Models | J6P, JH6, J7, Tiger 6G series |
| Drive Layout | 4x2 / 6x4 / 8x4 (customizable) |
| Frame Material | High-strength manganese steel (roll-formed) |
| Frame Width | 865mm (standard, customizable) |
| Wheelbase | 3600mm / 3800+1350mm / 5900mm (optional) |
| Front Axle | 7T–9T heavy-duty steering axle |
| Rear Axle | 16T HC16 double reduction axle (with differential lock) |
| Suspension | Front: 10-layer leaf spring; Rear: 12-layer leaf spring |
| Braking System | Dual-circuit air brake + ABS compatible |
| Corrosion Protection | Electrophoresis + high-temperature painting |
| Engine Compatibility | CA6DM2 (390–460hp) / CA6DN1 (550hp) / CA4DD3A (170hp) |
| Transmission | 10/12-speed manual / AMT (optional) |
| Chassis Weight | 6,860–10,680kg (varies by configuration) |
| Max GVW | 35–80 ton (depends on axle layout) |
| Emission Standard | Euro 2 / Euro 3 / Euro 4 / Euro 5 (optional) |
| B10 Life | Over 1 million kilometers |
| Certification | ISO/TS 16949, CE |

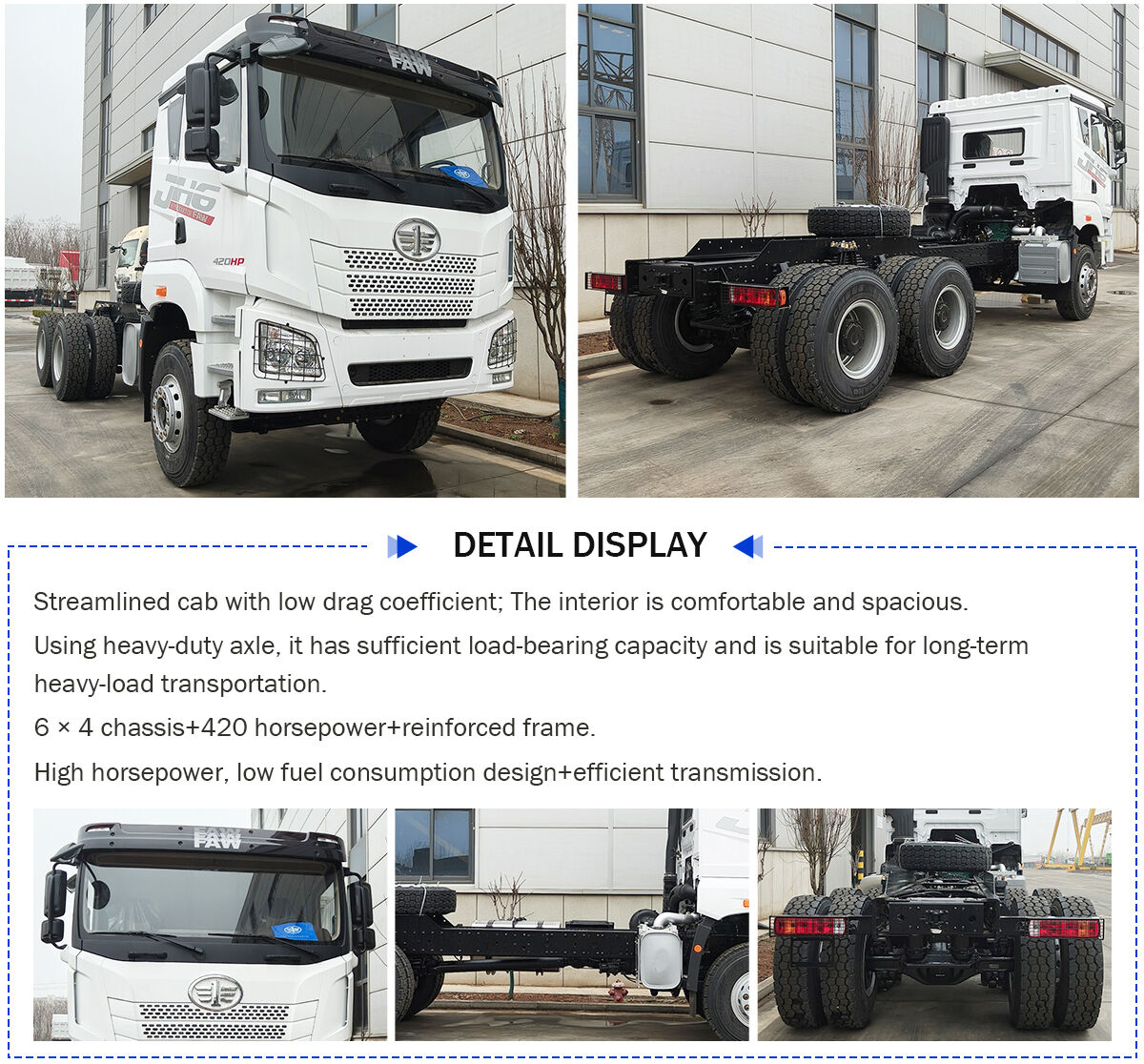

Features of the FAW Jiefang chassis
🔵 High-Strength Frame: The FAW Jiefang chassis adopts a high-strength manganese steel frame, manufactured via roll-forming and robot welding. Thickened cross-sections and reinforced stress points enhance torsion and impact resistance, enabling it to handle heavy loads and rough road conditions without deformation.
🔵 Versatile Configuration: The FAW Jiefang chassis offers flexible axle layouts (4x2, 6x4, 8x4) with heavy-duty steering and drive axles. Multi-layer leaf spring suspension balances load stability and ride comfort, with optional reinforced components for harsh environments.
🔵 Optimized Powertrain Compatibility: The FAW Jiefang chassis pairs seamlessly with FAW’s high-performance diesel engines (390–550hp) and 10/12-speed manual/AMT transmissions, ensuring efficient power transfer and fuel economy, with compatibility for hybrid/electric powertrains.
🔵 Safety & Corrosion Protection: The FAW Jiefang chassis is equipped with a dual-circuit air brake system and ABS compatibility for safe braking. Dual anti-corrosion treatment (electrophoresis + high-temperature painting) and galvanized components extend service life in harsh conditions.

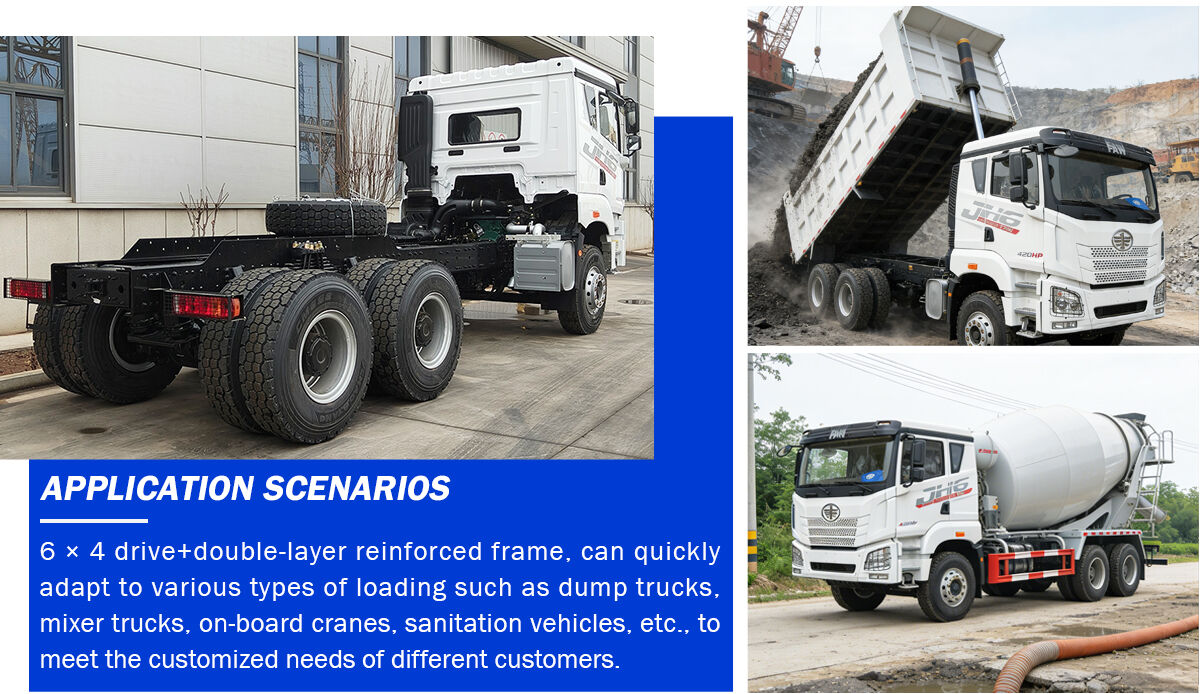

Applications
1. Mining & Quarrying: Base for heavy-duty dump trucks transporting ore and coal.
2. Long-Haul Logistics: Equipped on tractors and cargo trucks for cross-regional freight.
3. Construction: Supports concrete mixers, tippers, and crane trucks for site operations.
4. Special-Purpose Vehicles: Customized for tankers, garbage trucks, and fire trucks.
5. Global Harsh Regions: Adapts to high temperatures, dust, and muddy roads in Africa, the Middle East, and Southeast Asia.
Packaging and Transportation
Packaging: Unpacked; the chassis, axles, and key components are waxed to prevent rust and collisions during transportation.

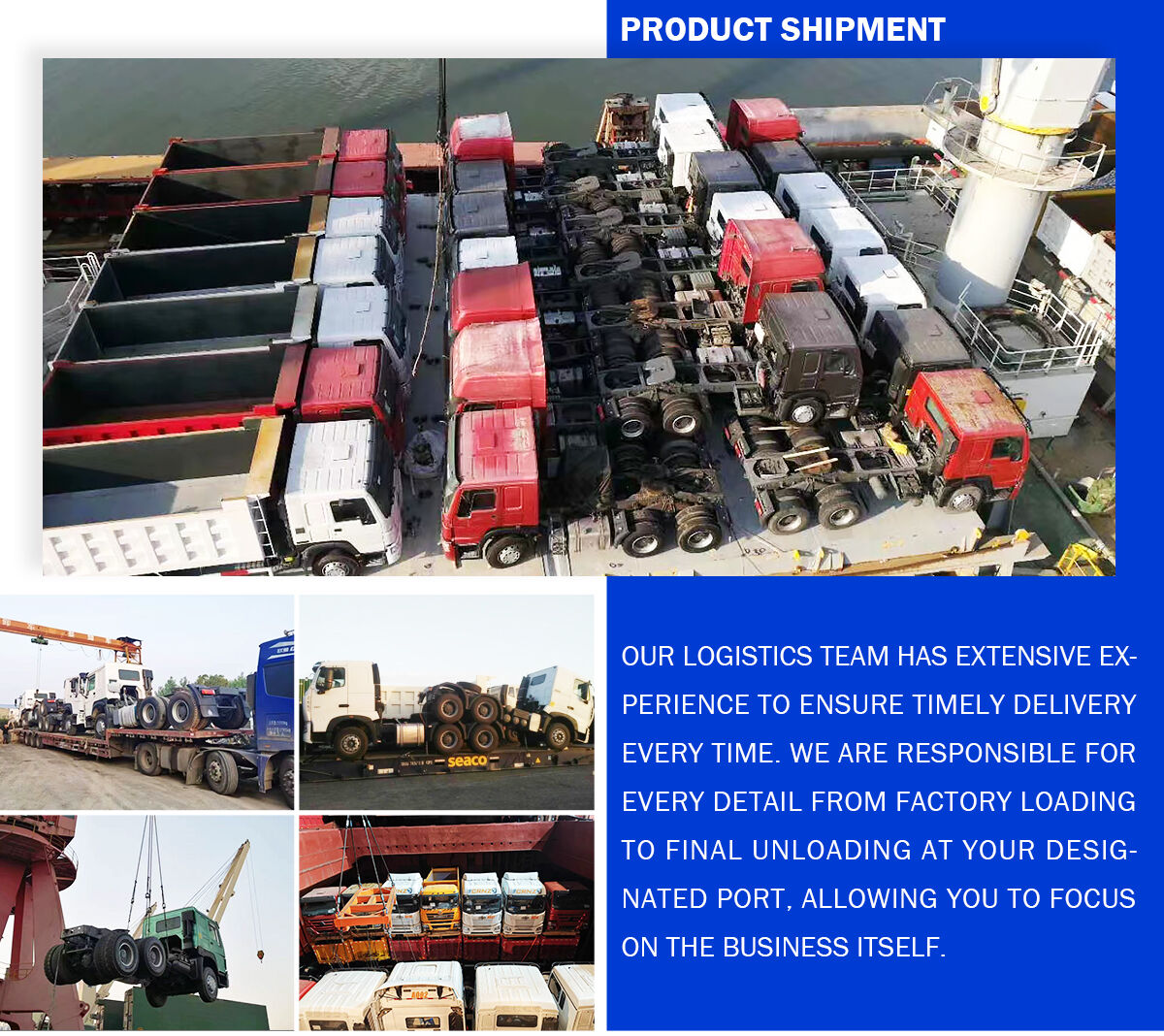

Transportation: Available in roll-on/roll-off ships, bulk carriers, or flatbed containers; suitable for transporting large chassis.
