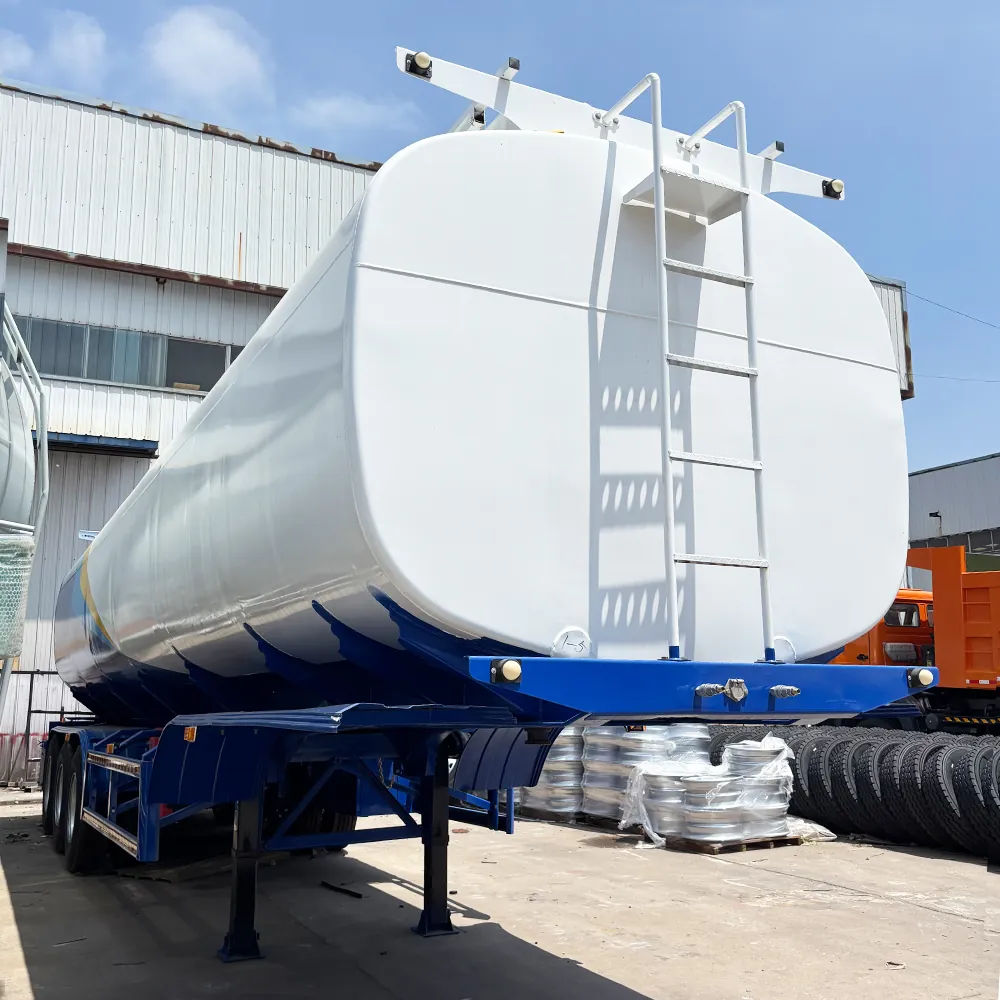

40000 Liters Oil Tanker Trailer
Factory direct wholesale on high-grade 40000 liters oil tanker trailers. Premium 40cbm fuel tanker semi-trailer for gasoline, diesel, and crude oil transport.
Minimum order quantity: 1 unit
- Overview
- Recommended Products
Product Details

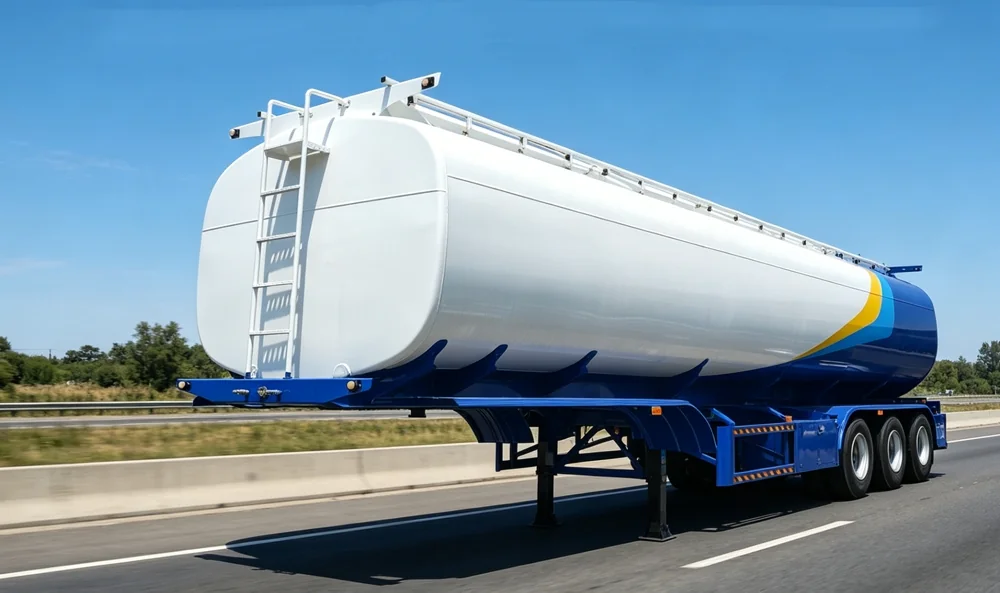

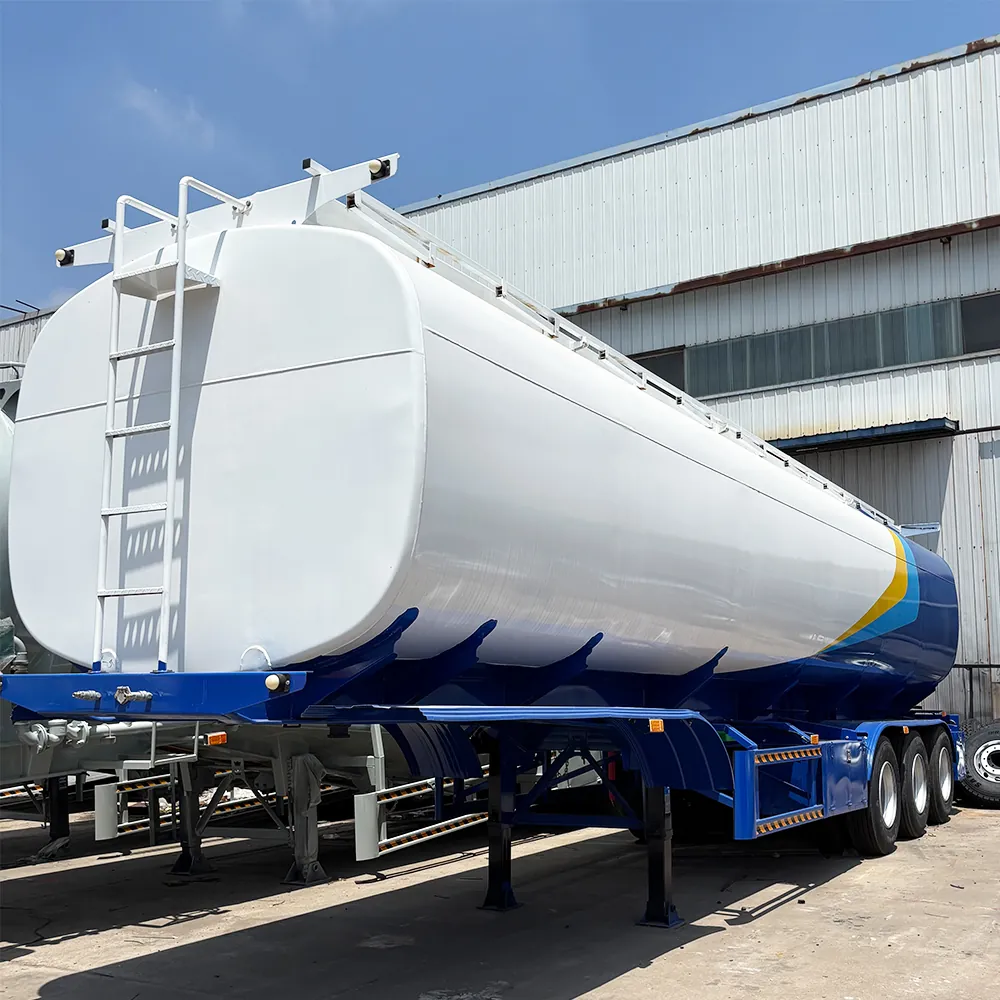

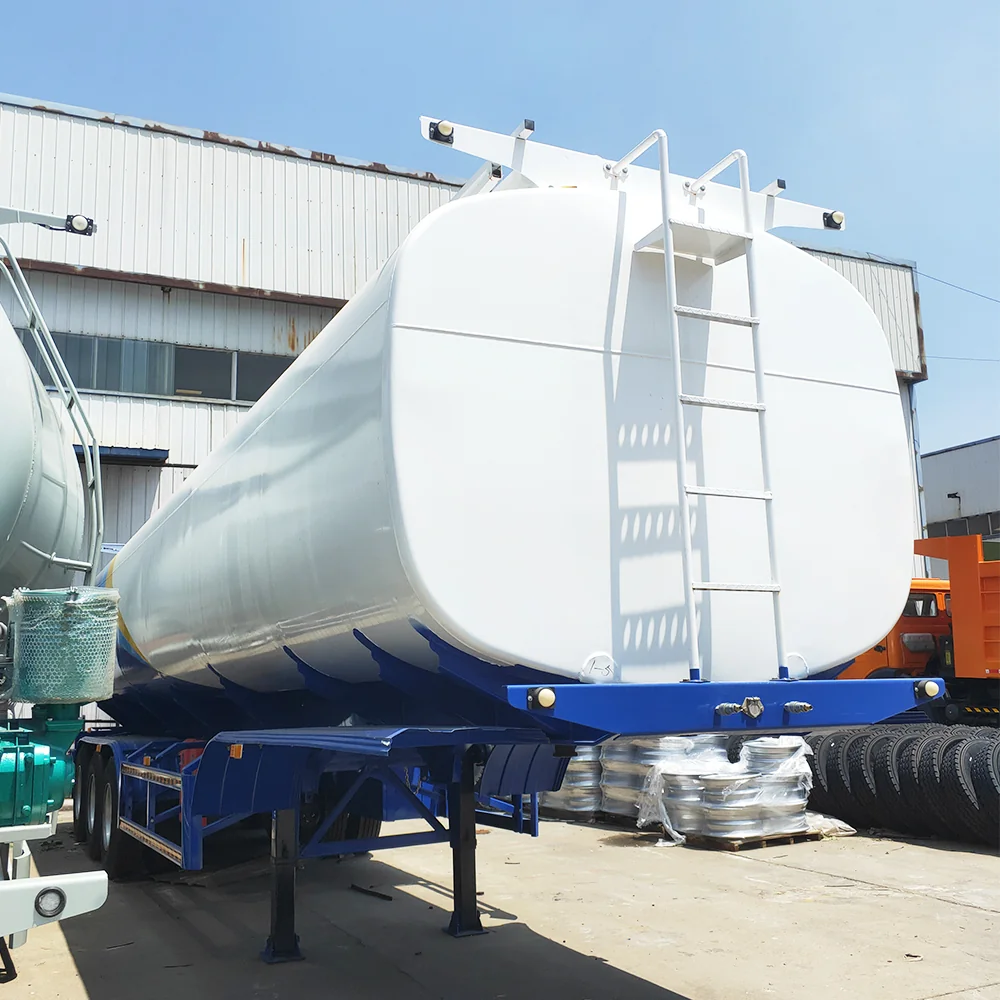

The 40000 liters oil tanker trailer (also widely categorized as a 40cbm fluid transport semi-trailer) is a highly engineered, high-capacity liquid logistics asset designed to optimize fuel distribution operations. Boasting a volumetric rating of exactly 40,000 liters, this heavy-duty tanker trailer is purpose-built to haul volatile liquid petroleum products, including premium unleaded gasoline, commercial diesel, jet fuel, and light crude oils. Constructed with internally reinforced anti-surge baffles and a low center-of-gravity tank profile, it delivers exceptional driving stability and tracking safety over long highway corridors and demanding regional road networks. For fleet operators, a 40,000-liter payload configuration represents the ultimate sweet spot, maximizing bulk cargo revenue per run while strictly adhering to international highway axle-weight limits.
Product Parameter Table
| Technical Parameter | Industrial Specification Data (High Efficiency Export Matrix) |
| Trailer Model Type | 40000 Liters Oil Tanker Trailer / Fuel Tanker Semi-Trailer |
| Total Volumetric Capacity | 40,000 Liters (40cbm / Customizable Compartment Splits) |
| Tank Shell Material | High-Yield Q235B Carbon Steel, Stainless Steel, or Aluminum Alloy |
| Tank Shell Thickness | Shell Plate: 5mm or 6mm | Dish End Plates: 6mm Heavy Duty |
| Axle Configuration | 3 Axles × 13-Ton / 16-Ton High-Capacity Axles (Fuwa or BPW Brand) |
| Compartment Setup | 1 to 5 Independent Compartments with Separate Fluid Discharge |
| Manhole Cover Assembly | 500mm Explosion-Proof Manhole Covers equipped with Breath Valves |
| Discharge Valve Array | 3-inch or 4-inch API Bottom Loading or Standard Gravity Drop Valves |
| Suspension Framework | Multi-Leaf Heavy Mechanical Steel Spring Suspension (Air Ride Optional) |
| Kingpin Specification | 2.0 inch (50#) or 3.5 inch (90#) JOST Bolt-in Type Interchangeable Pin |
| Landing Gear Support | JOST Two-Speed Manual Operation Heavy Duty 28-Ton Capacity Legs |
| Tire Hardware Array | 12 Units + 1 Spare | 12R22.5 Tubeless Steel Wire Radial Tires |
| Safety Braking Grid | Dual Line Compressed Air Braking Matrix; Genuine WABCO RE6 Relay Valve |

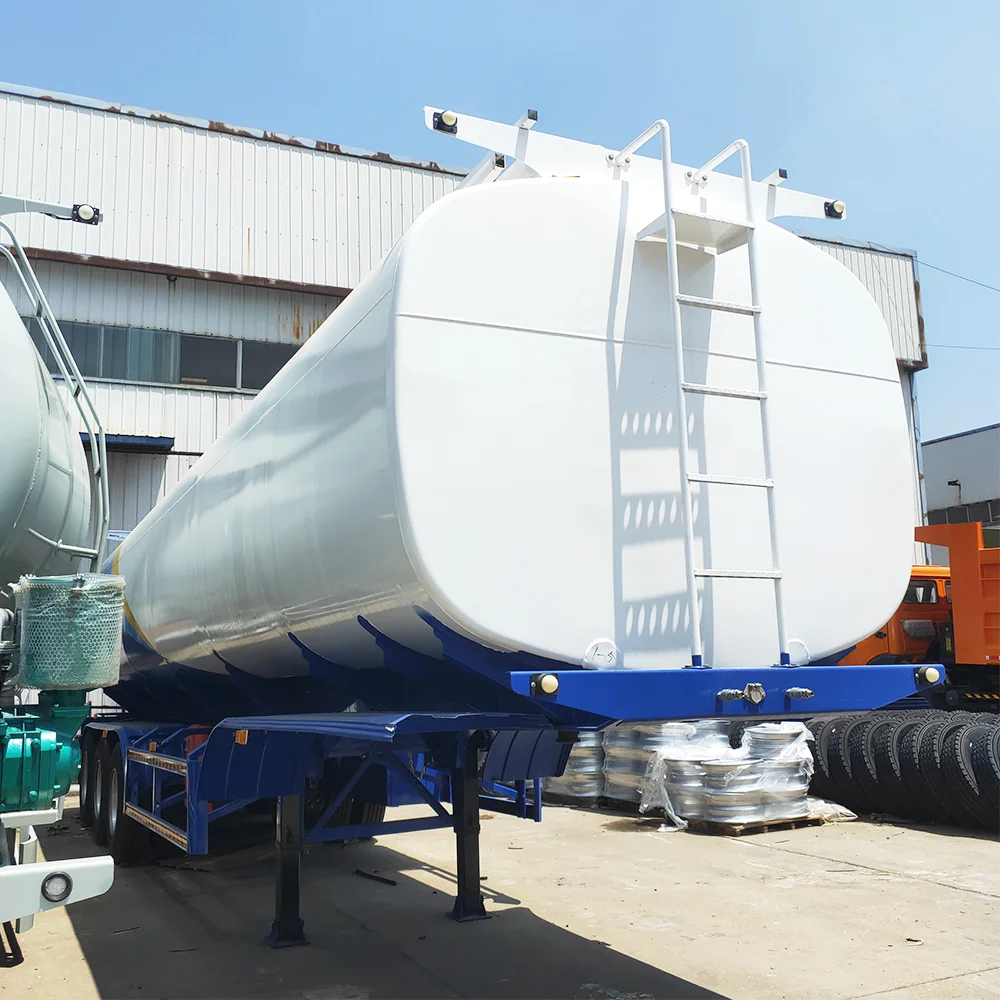

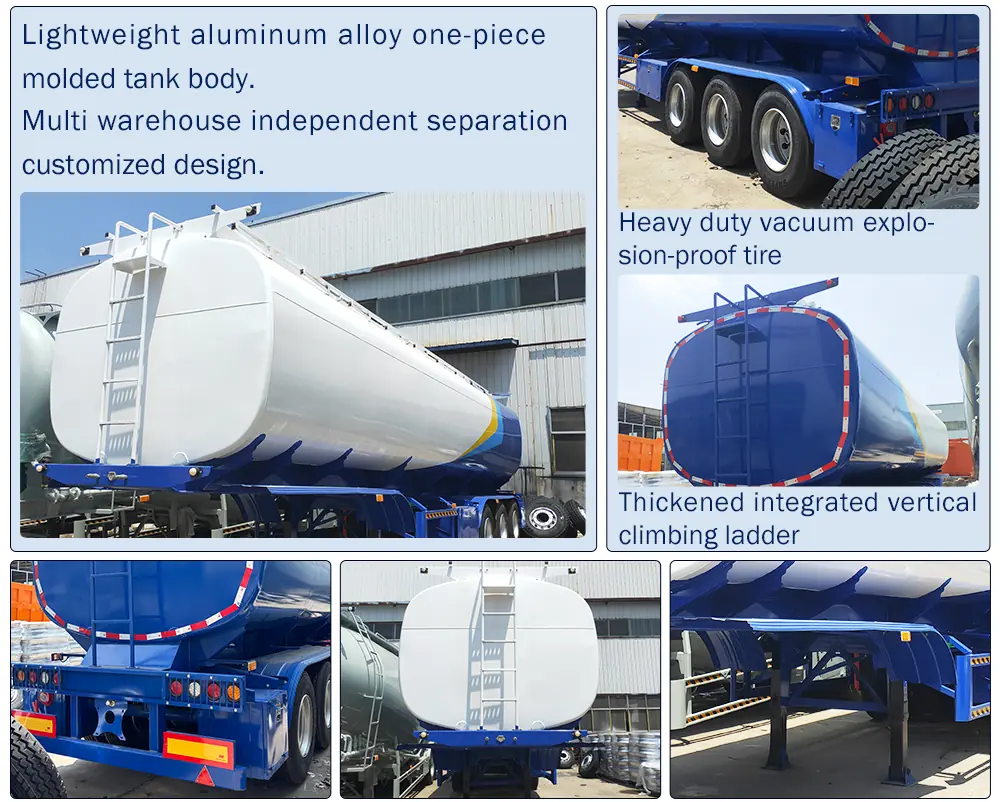

Advantages of 3 axle fuel tank trailer
🔵 Mathematically Optimized Anti-Surge Grid: The interior of the 40,000-liter tank is segmented with precision-engineered, dished anti-surge baffles. These internal structures minimize liquid sloshing and kinetic energy transfers during heavy braking or highway cornering, giving the prime mover supreme handling stability.
🔵 High-Integrity Automated Welding: High-Integrity Automated Welding: The tank body is fabricated utilizing state-of-the-art automated longitudinal and circumferential seam welding technologies. Every welded seam undergoes rigorous X-ray non-destructive flaw detection testing to ensure a flawless, leak-proof seal capable of enduring extreme structural pressures.
🔵 Advanced Fuel Safety Ecosystem: Equipped with premium explosion-proof manhole covers, integrated emergency cut-off valves (foot valves) at the bottom, and static grounding grids. In the event of a severe collision, the bottom emergency valves instantly seal to prevent dangerous fuel spillages and fire hazards.
🔵 Premium Air Braking & Seals: Configured with original WABCO relay valves and a responsive dual-line air brake matrix for reliable stopping power under full load. All discharge manifolds are fitted with heavy-duty fluororubber gaskets to resist chemical corrosion and eliminate fuel weeping.

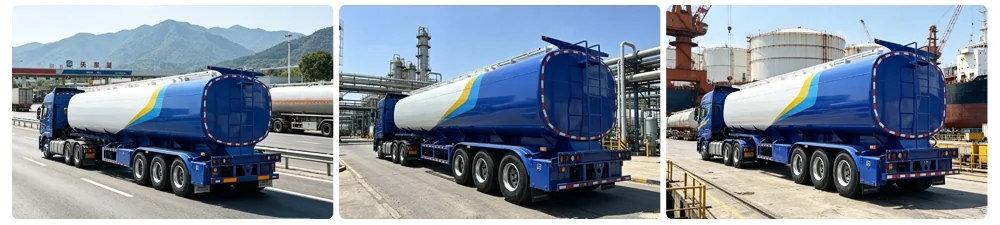

Application of fuel tank trailer
🔵 Refined oil distribution from oil depots to gas stations
🔵 Fuel supply to mines, construction sites, and large-scale engineering projects
🔵 Fuel replenishment for vehicles and machinery at ports and docks
🔵 Cross-border long-distance oil transportation (Middle East, Africa, Southeast Asia)
🔵 Fuel transportation for logistics companies, oil companies, and large enterprises

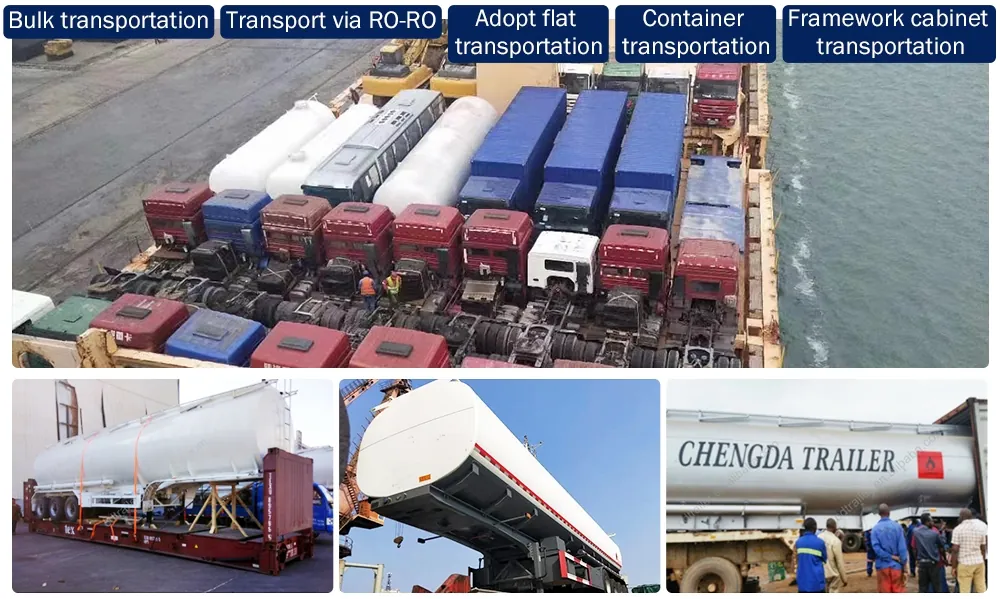

Packaging and Transportation
Our logistics department orchestrates a vast maritime shipping network, utilizing Ro-Ro, bulk carriers, flat-rack setups, and container freight to provide you with the most secure and cost-effective shipping solutions. To protect your investment from harsh maritime conditions, every fuel tanker trailer is thoroughly treated with specialized, marine-grade anti-corrosive wax before departure. Every unit must pass our comprehensive final PDI, ensuring we uphold our long-standing record of 100% customer satisfaction upon delivery.

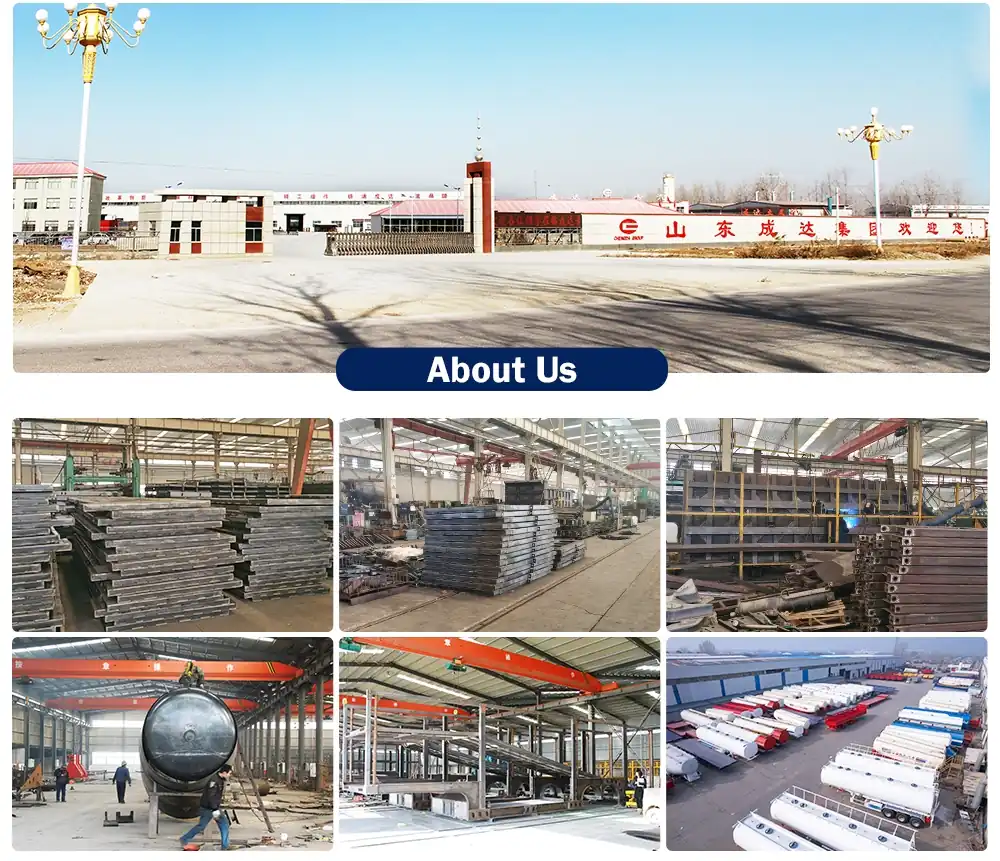

About Us
Shandong Chengda Automobile is an enterprise integrating semi-trailer R&D, production, and sales. As an authorized agent for major heavy-duty truck brands such as Sinotruk, Shaanxi Automobile, and Foton, we provide global customers with one-stop export services for trucks, semi-trailers, and spare parts.
The company focuses on overseas markets such as Africa, the Middle East, and Southeast Asia. Its product range covers a full range of models, including flatbed semi-trailers, low-bed semi-trailers, dump semi-trailers, tanker semi-trailers, and container semi-trailers. Customized solutions can be provided based on the road conditions, regulations, and operational needs of different countries.
Customer Visits
We welcome overseas customers to visit our factory for on-site inspections. They can observe the production processes, welding quality, assembly procedures, and finished product testing.
