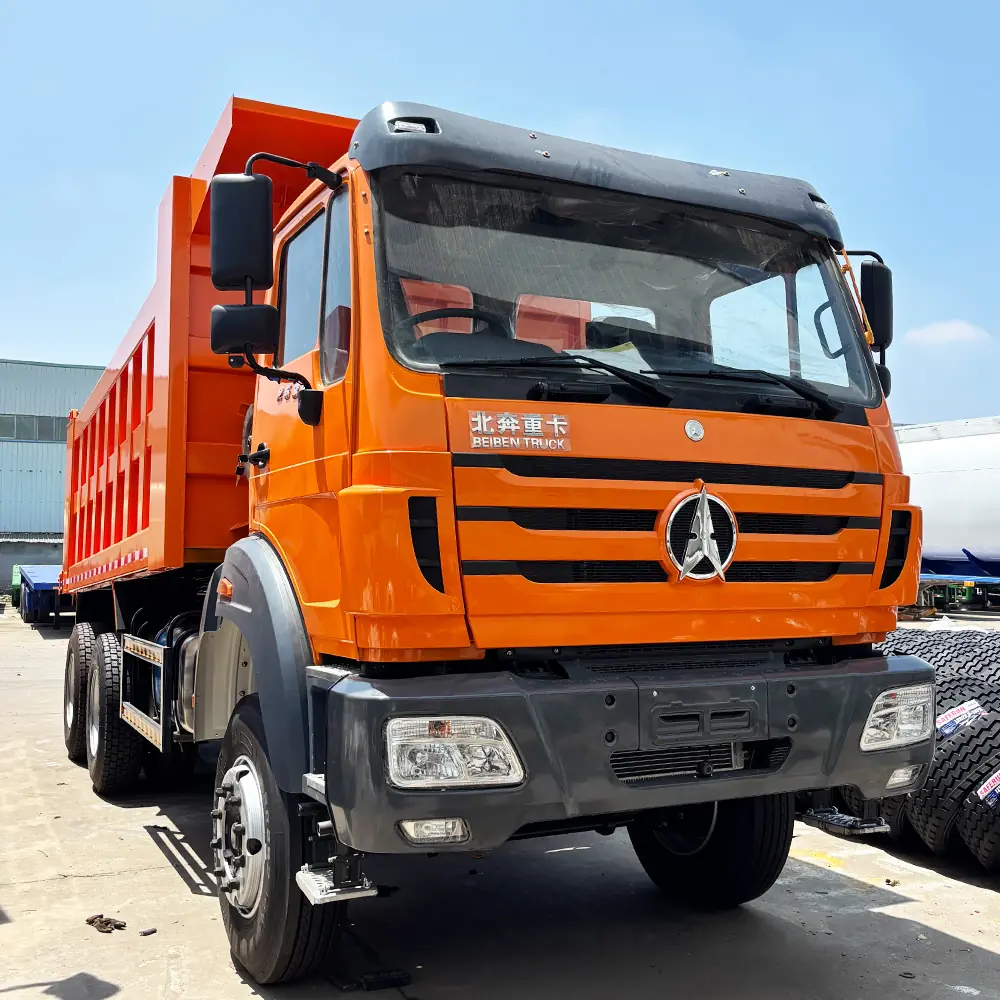

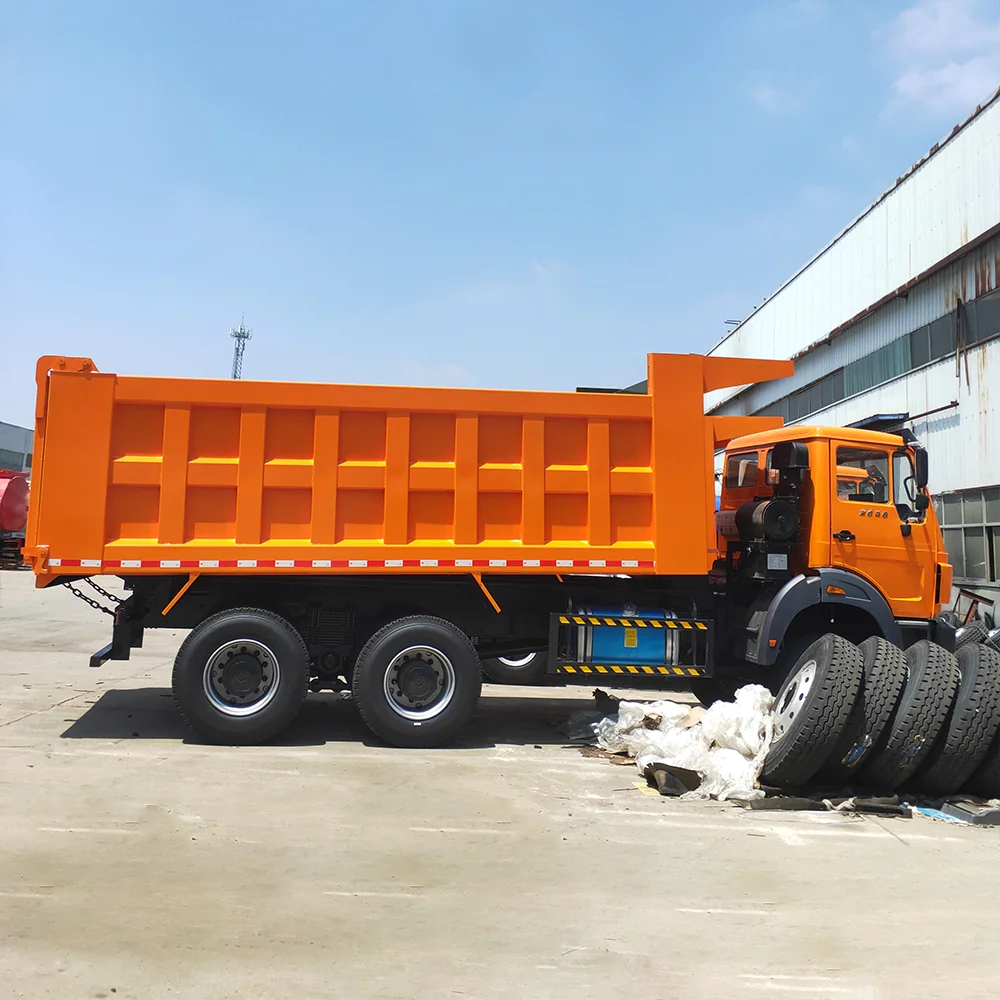

Beiben 6x4 Dump Truck for Sale
Factory direct wholesale on heavy-duty Beiben 6x4 dump trucks. Reliable 30-40 ton capacity North Benz tipper truck with high-tensile steel cargo box for mining and construction.
Minimum order quantity: 1 unit
- Overview
- Recommended Products
Product Details

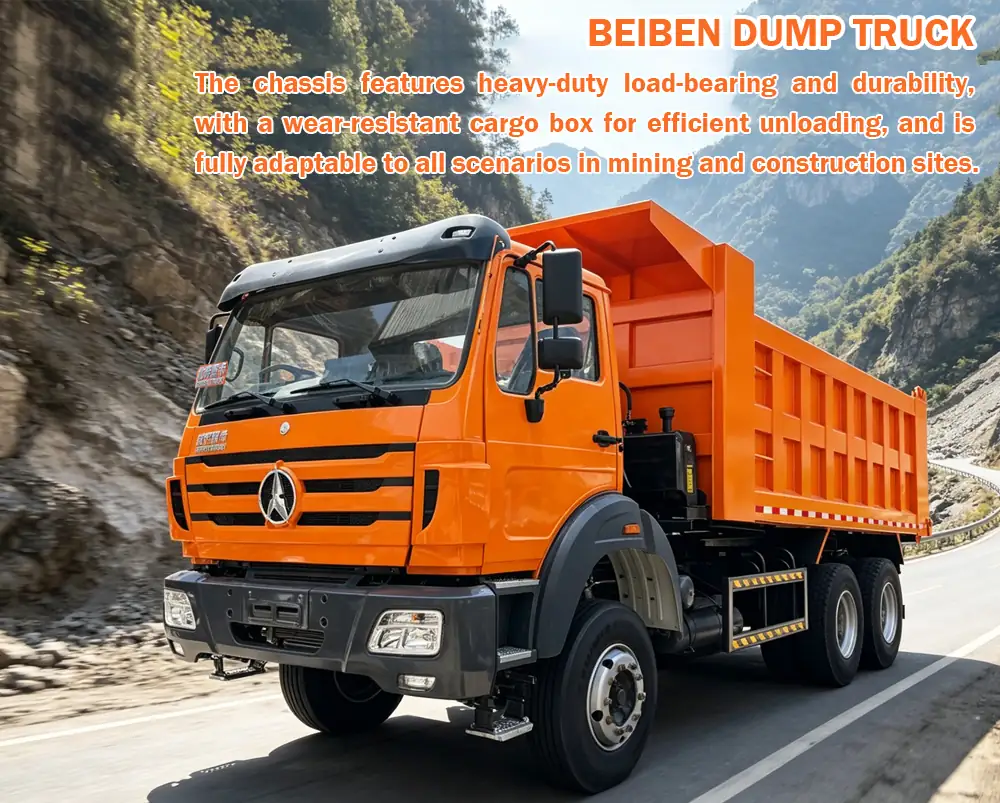

The Beiben 6x4 dump truck (internationally recognized for its robust North Benz premium engineering heritage) stands as an elite, heavy-duty earthmoving and mining asset built to master the absolute harshest operational environments. Engineered with a specialized 6x4 dual-drive chassis layout, this tipper truck delivers uncompromising traction, high ground clearance, and massive gradeability over deeply rutted mud, sand, and loose quarry stones. Benefiting from structural designs authorized by Mercedes-Benz technology, Beiben trucks feature a legendary, highly rigid frame platform that handles localized high-impact loading without stress deformation. Paired with high-performance hydraulic front-lifting tipping cylinders and a heavy-gauge corrugated cargo steel box, this vehicle guarantees optimized cycle times and maximum fleet efficiency for demanding construction, infrastructure, and mineral hauling enterprises.
Product Parameter Table
| Technical Parameter | Industrial Specification Data (Severe Duty Tipper Matrix) |
| Truck Tipper Model | Beiben 6x4 Dump Truck / North Benz Severe Duty Tipper Lorry |
| Drive Wheel Configuration | 6x4 Forward Control (10 Wheels Matrix / 4 Driven Wheels) |
| Rated Payload Capacity | 30,000 kg – 40,000 kg (30-40 Ton Heavy Construction Rating) |
| Engine Hardware Setup | Weichai WP10 / WP12 Series High-Torque Turbocharged Diesel Engine |
| Horsepower Output Range | 340 HP – 420 HP (Heavy Payload & Gradeability Optimized) |
| Transmission Gearbox | FAST Manual Gearbox (9-Speed or 12-Speed Mechanical Matrix) |
| Cargo Box Dimensions | Custom Length (5.2m - 5.8m) × Width (2.3m) × Side Wall Height (1.2m - 1.5m) |
| Cargo Box Lifting System | Premium Front-Lifting Hydraulic Cylinder Array (HYVA System Optional) |
| Cargo Box Steel Thickness | Bottom Plate: 8mm or 10mm | Side Plate: 6mm or 8mm High-Tensile Steel |
| Axle Engineering Architecture | Front Axle: 7.5-Ton Mercedes-Benz Technology Axle | Rear Axle: 13-Ton / 16-Ton Hub Reduction Axles |
| Cabin Configuration | Beiben NG80 / V3 Series All-Steel Welded Cabin with Slepper, AC |
| Tire Specifications | 10 Units + 1 Spare | 12.00R20 Radial Steel Wire Tires for Mining |
| Safety Braking System | Dual Circuit Compressed Air Brakes; Exhaust Valve Braking + ABS |
Features of Beiben tipper truck
🔵 Mercedes-Benz Structural Heritage: The chassis is built upon legendary Mercedes-Benz suspension and axle technology architectures. This brings a uniquely robust double-layer steel frame matrix and optimized wheel-end reduction technology that handles extreme torque, making it virtually immune to axle cracking or structural twisting under heavy dump impacts.

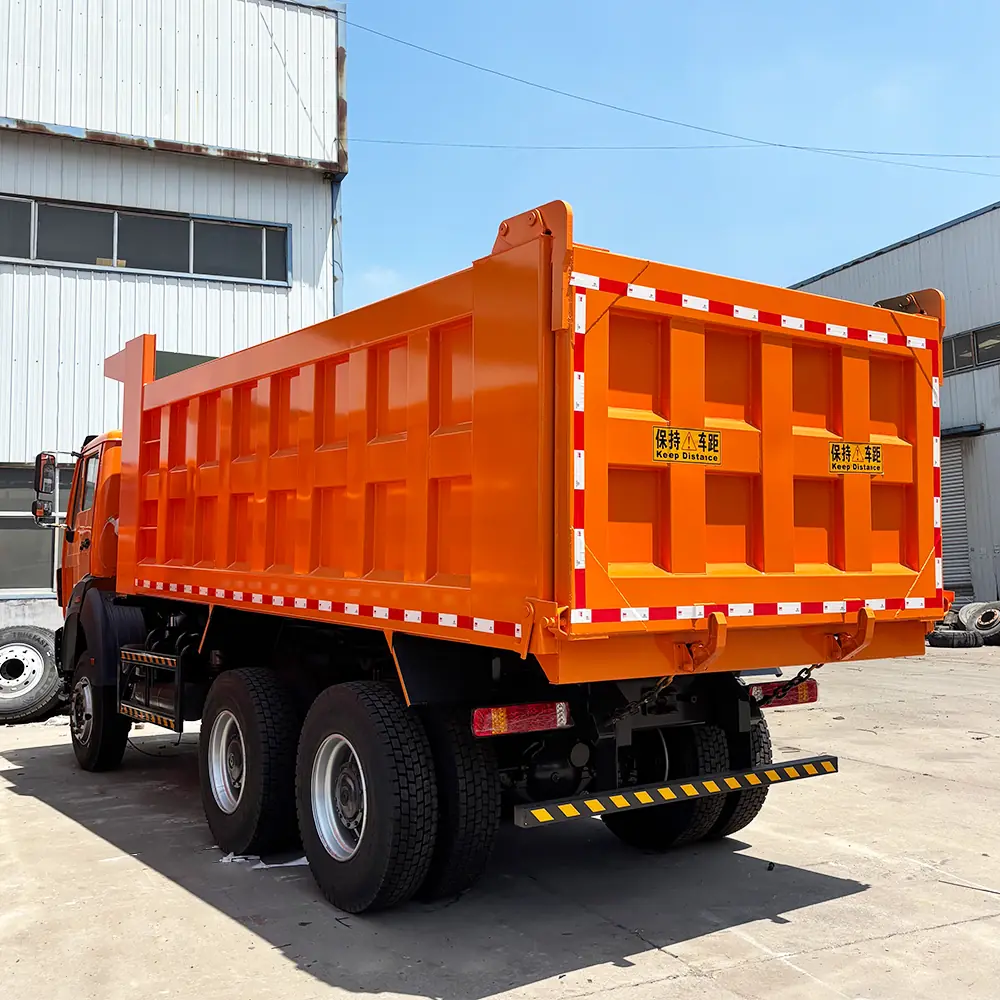

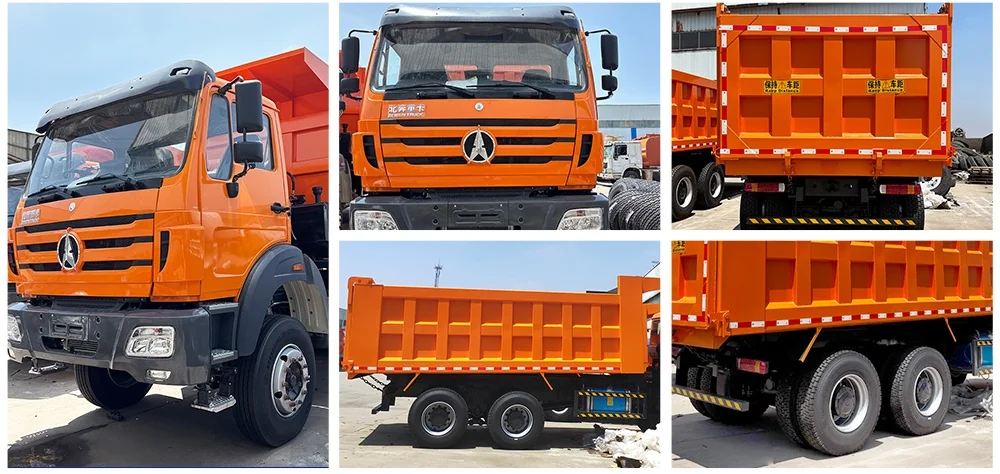

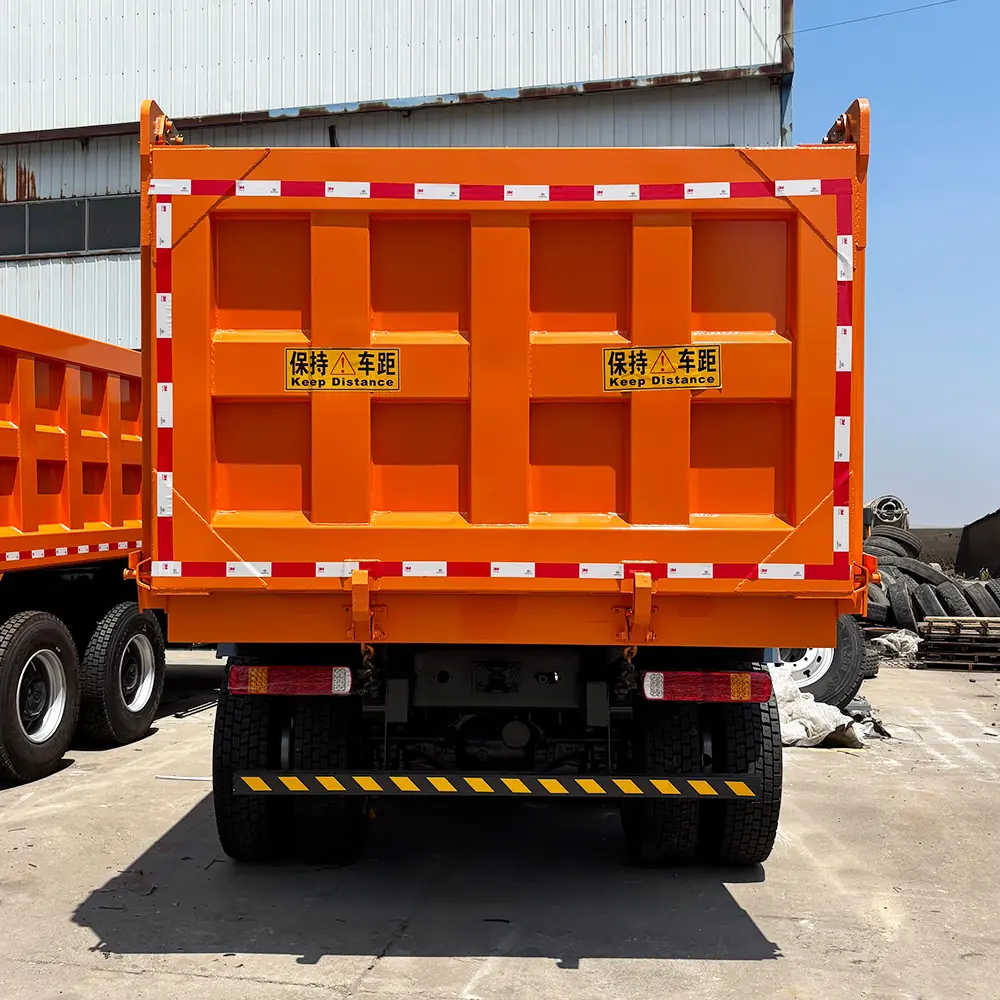

🔵 High-Tensile Wear-Resistant Cargo Box: The dumper body is fabricated from thick, premium high-yield carbon steel or specialized NM450 wear-resistant plates. It features heavily reinforced U-shaped or rectangular corrugated side walls with multi-point hinged tailgate latches to prevent box bulging when hauling large granite chunks or heavy wet soil.
🔵 High-Torque Weichai & FAST Drivetrain: Equipped with a dependable Weichai common-rail diesel engine and a multi-speed FAST transmission gearbox. This matching provides massive low-speed pulling power, allows the truck to crawl smoothly out of steep, unpaved mining pits, and delivers stable highway transport tracking.
🔵 Advanced HYVA Hydraulic Tipping Grid: Configured with a world-class front-mounted multi-stage hydraulic telescopic lifting cylinder matrix. This hydraulic system operates with smooth, rapid extension speeds and highly stable pressure releases, effectively minimizing roll-over risks during off-center unloading cycles.
Applicable Scenarios
🔵 Open-Pit Mining & Quarry Hauling: Seamlessly moves raw metallic ores, crushed limestone, coal, and heavy gravel stone from blast faces directly to processing crushers.
🔵 Infrastructure & Road Construction: The standard fleet workhorse for transporting bulk excavated earth, loose sand, foundation aggregates, and hot-mix asphalt to urban infrastructure job sites.
🔵 Bulk Dry Commodity Transport: Reliably handles high-volume industrial transport cycles, hauling bulk chemical minerals, clinker, bagged cement, and heavy construction debris.
Packaging and Transportation
🔵 Waxing: The Howo tipper truck body is sprayed with wax to prevent corrosion from seawater during transportation.
🔵 Packaging: The Howo dump truck is securely fixed with steel wire to protect it during transportation.
🔵 Transportation: Reputable freight suppliers provide reliable logistics services, ensuring safe and timely transportation.
Why Choose Us?

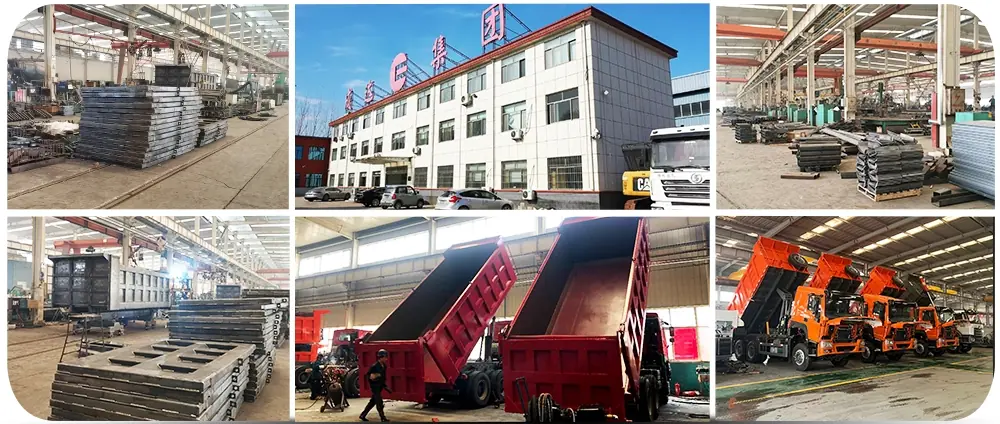

Chengda Group, established in 2005, is a professional manufacturer of semi-trailers and exporter of heavy-duty trucks. We have long-term, in-depth partnerships with brands such as Sinotruk Howo, Shacman, Foton and Dongfeng truck corporation. Our Beiben 6x4 dump trucks are sold to Africa, the Middle East, Southeast Asia, and other regions.
