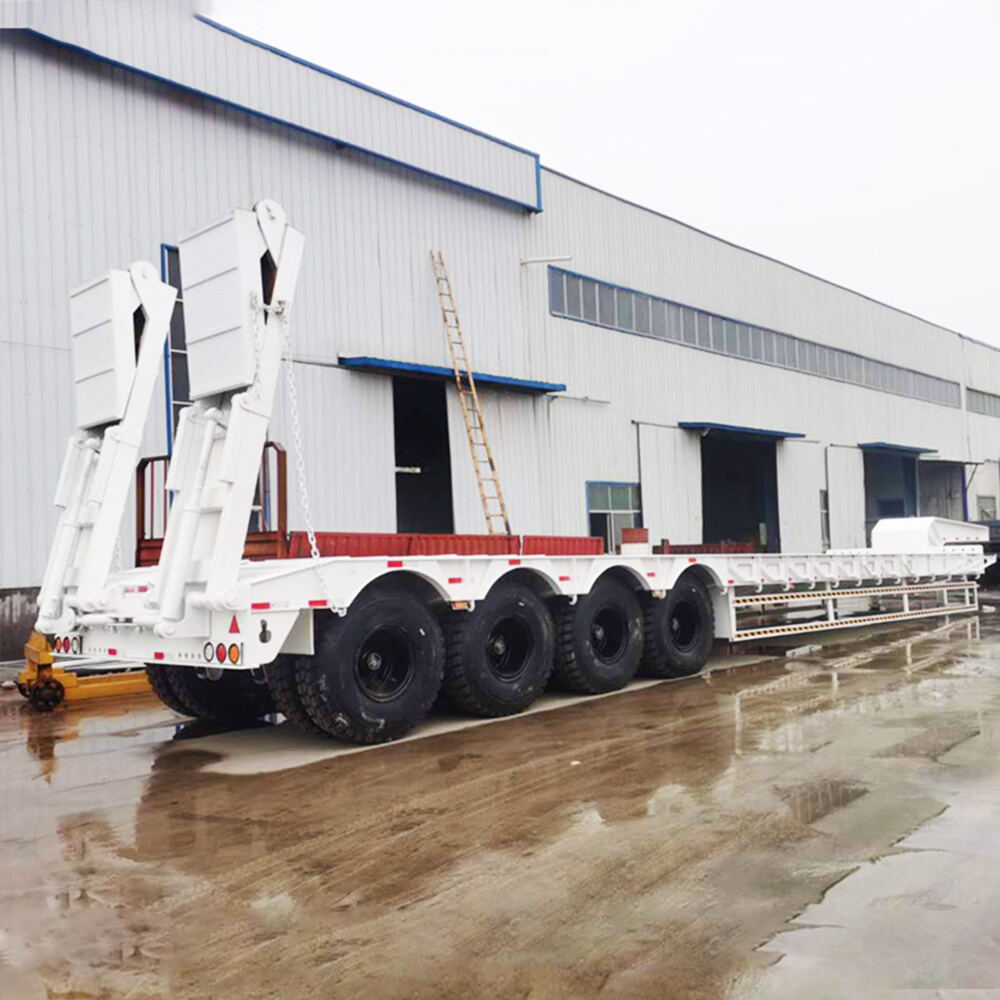

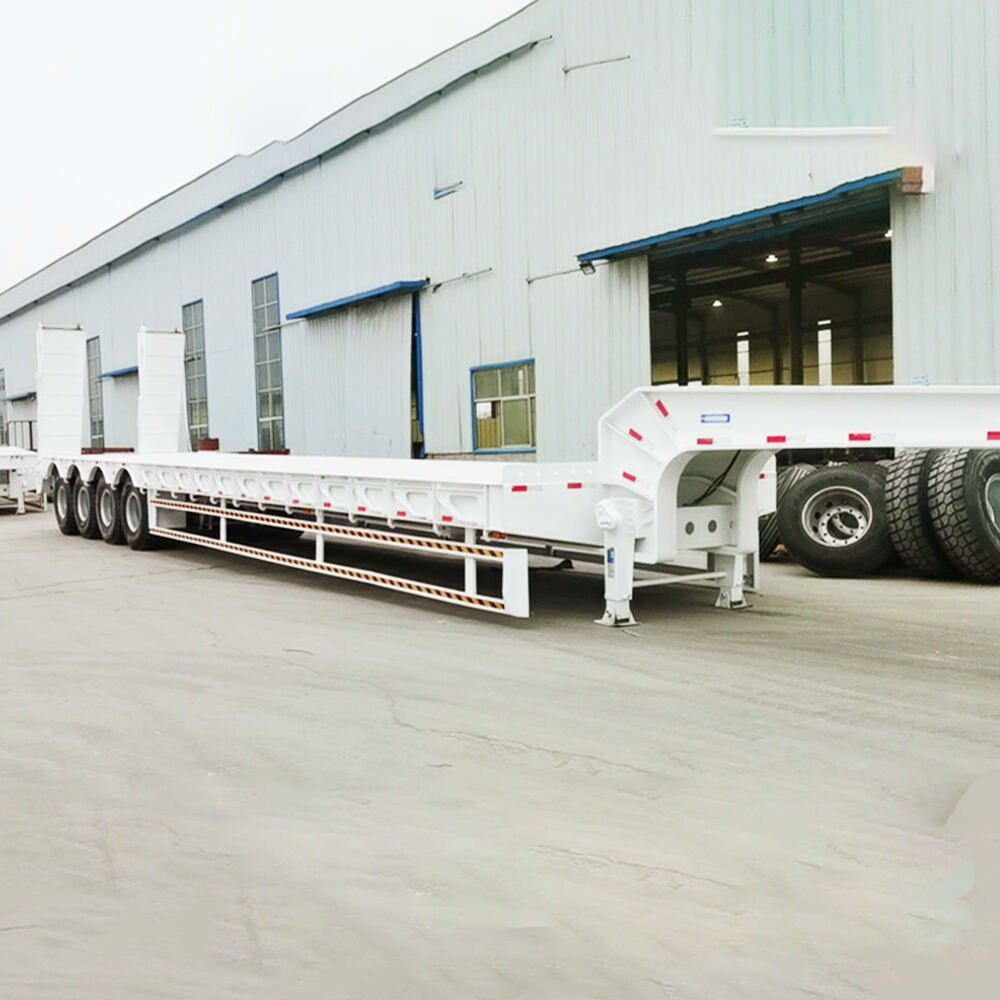

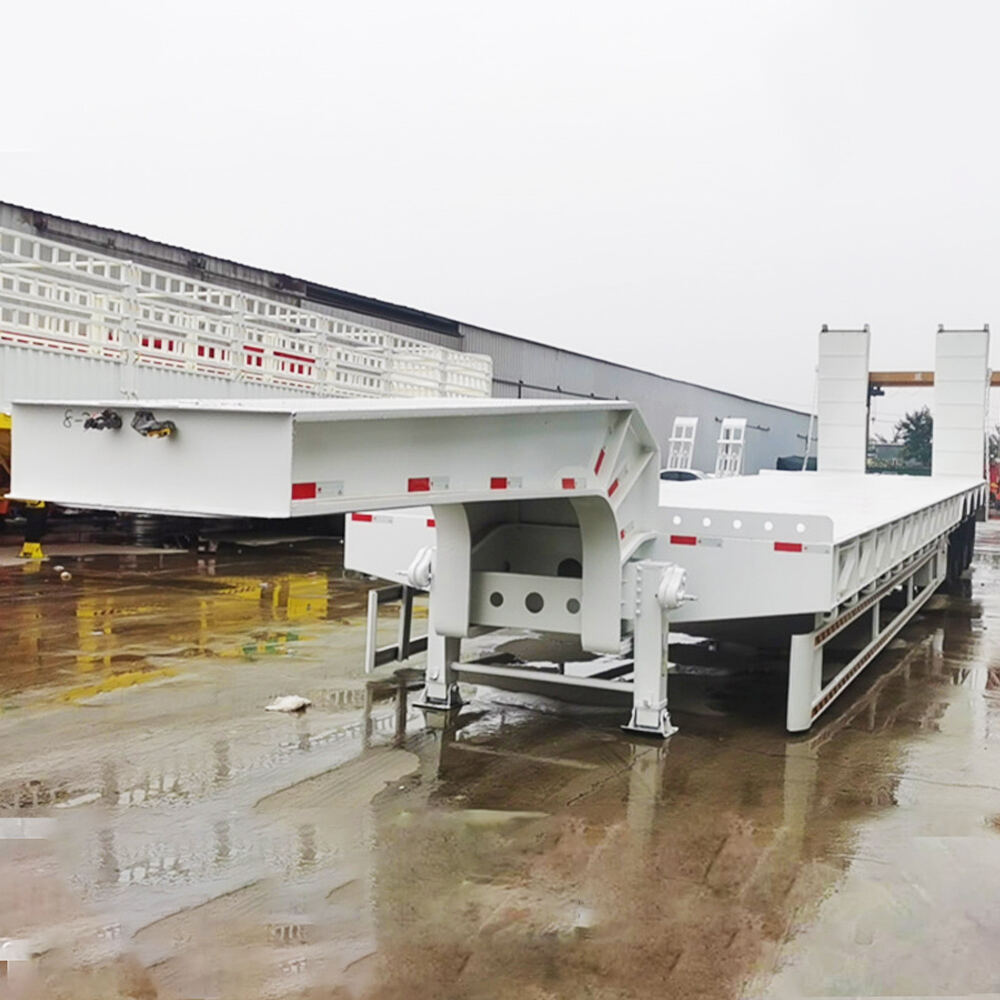

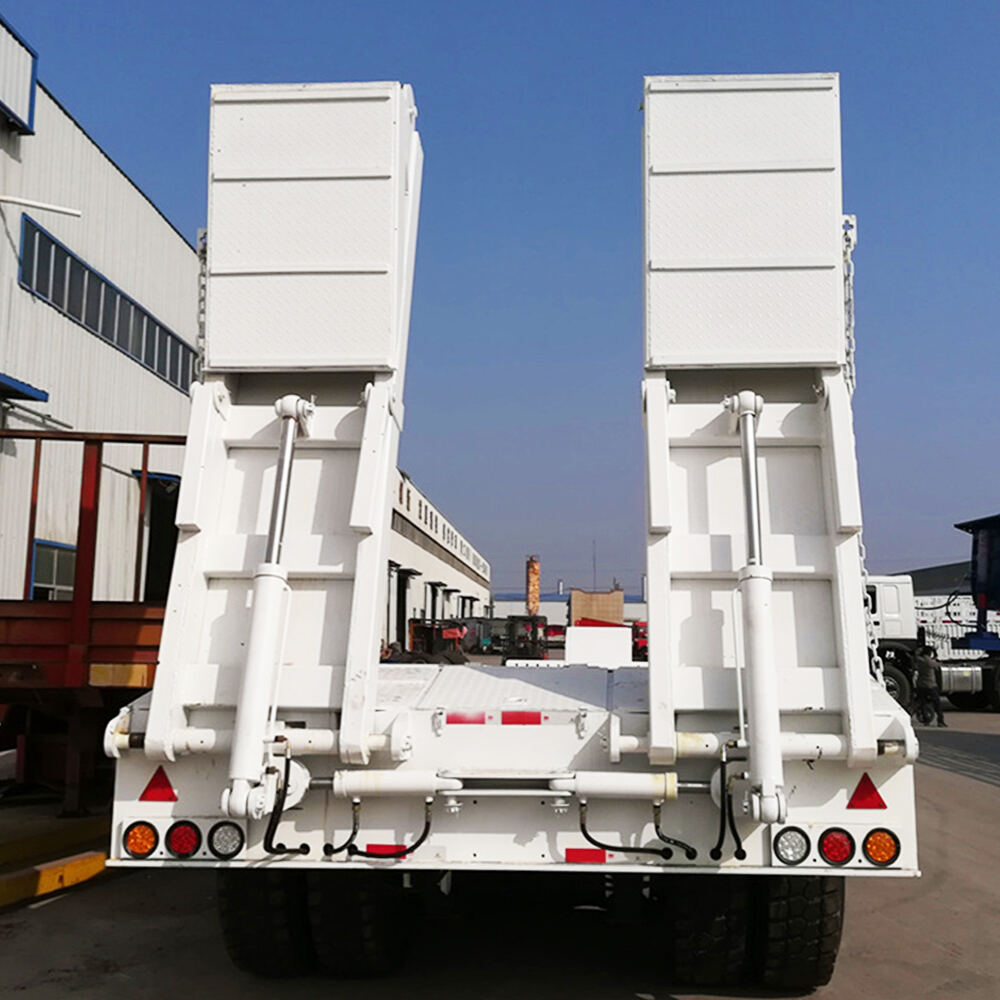

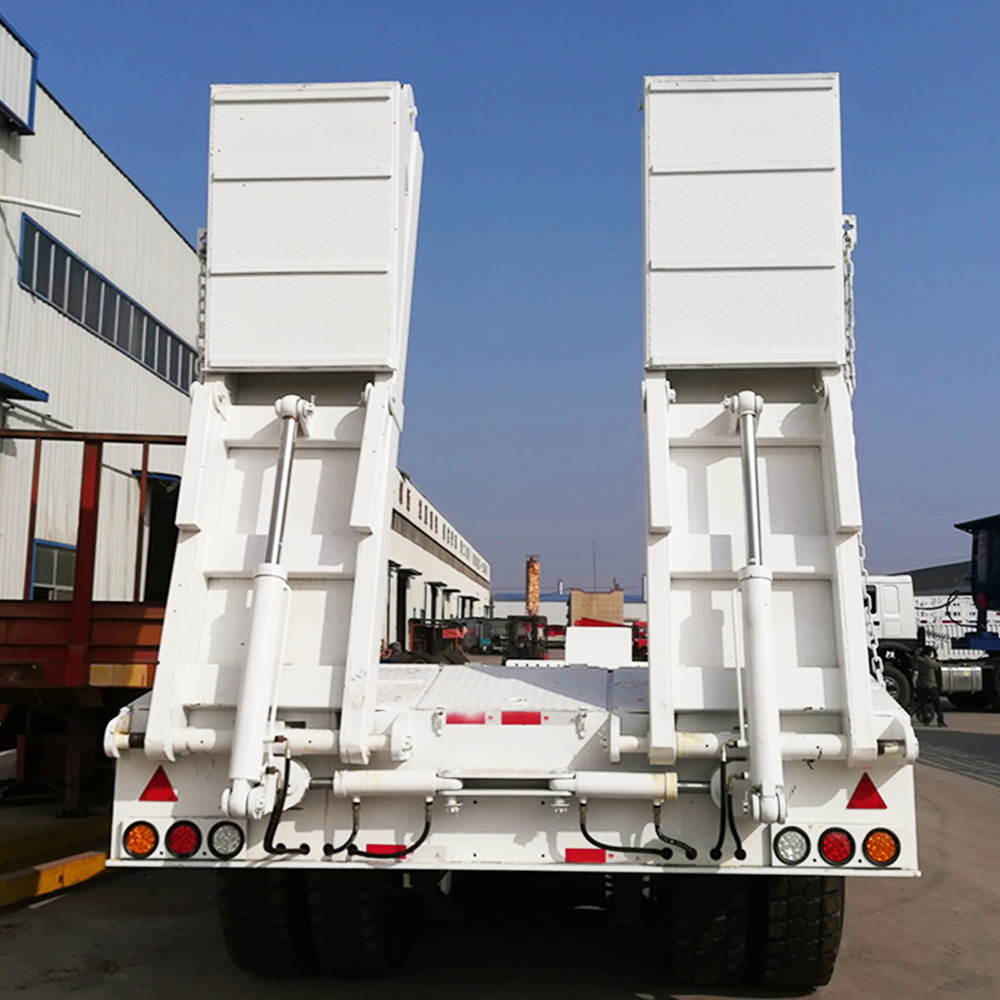

4 Axle Lowbed Semi Trailer
Four axles allow the lowbed trailer to carry heavier loads, while the frame is reinforced, with reinforced upper, lower, and floor panels. Lowbed trailer axles are available in 13/16/20 tons according to the actual situation.
Minimum order quantity: 1 unit
- Overview
- Recommended Products
Product Details
Four axles allow the lowbed trailer to carry heavier loads, while the frame is reinforced, with reinforced upper, lower, and floor panels. Lowbed trailer axles are available in 13/16/20 tons according to the actual situation.
Product Parameter Table
Product name |
Lowboy Semi Trailer |
Material |
Q345B carbon steel |
Color |
Customers Optional |
Usage |
Transport heavy duty equipment |
Main Beam |
Q345B carbon steel “H” beam |
Loading capacity |
200tons |
Tare weight |
12.6tons |
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Dimension |
16000X3000X1750 mm |
Bottom platform |
3-6mm thickness diamond steel plate |
Lighting |
LED Light |
Suspension |
Mechanical Suspension |
Axle |
13/16 Ton Fuwa/BPW |
Tire |
12R22.5 |
Landing Gear |
Standard 28Ton |
King pin |
2"(50mm)or3.5"(90mm) |
Brake System |
WABCO Dual Line Braking System |
Rim |
9.00-22.5 |
Leaf Spring |
90(W)mm*13/16 (Thickness)mm*10(Layer) |
Electric |
24V,7Ways |
tools box |
1pcs |
Brake chamber |
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber（TKL brand）; one piece of 45L air tanks |
Ladder |
Manual or hydraylic type |
Features of 2 axle lowboy trailer
There are two options: a fixed gooseneck and a removable gooseneck. Fixed gooseneck lowbed trailers load and unload from the rear of the trailer; detachable gooseneck lowbed trailers load and unload from the front of the trailer with a lower center of gravity.
There are two options for the suspension system: ordinary suspension and air suspension. Among them, the air suspension is slightly more expensive, but the height of the cargo platform can be adjusted, and the shock absorption effect is obvious. Please contact us for more detailed information on the optional installation of ordinary suspension.
Application
2 axle lowboy semi trailers are suitable for short-distance relocation and long-distance transportation of construction machinery and large equipment such as excavators, loaders, road rollers, pavers, harvesters, transformers, and generator sets. The lowboy trailers are widely used in construction sites, mines, logistics parks, ports, and other scenarios, and can adapt to complex road conditions in various regions worldwide.
Packaging and Transportation
By container shipment: 40HQ can load 2 units 40ft flatbed trailer with a cut of the tail of the trailer. We have a special blueprint of this transportation way. We will design the end of the trailer to be self-mounting. It is easy to assemble it by yourself.
By bulk shipment: The most common way to transport trailers. Usually, this way is the cheapest way, and it can protect the completeness of the trailer. We will wax the surface before shipping.
By ro-ro shipment: It can protect the completeness of the trailer, and it is very time-sensitive. The tractor truck pulls the trailer into the cabin so that it can avoid the trailer from getting rusty.
FAQ
Q: What is the maximum tonnage this 2 axle lowboy semi trailer can carry?
A: The standard design load capacity is around 30 tons. Customization and reinforcement can be made based on the weight of your transported equipment, local regulations, and road conditions to ensure safe load-bearing capacity.
Q: Do you support customization of size, color, and logo?
A: Customization is supported. Flatbed length, width, ground clearance, color, markings, steel plate thickness, axle brand, etc., can be adjusted according to requirements to meet different markets and usage scenarios.
Q: What is the typical delivery time? Do you support small batch orders?
A: Delivery time for standard models is 15-30 days. Minimum order is 1 unit. Small batches and urgent orders can be prioritized for production to meet customers' needs for quick delivery.
Q: Can you match left-hand drive/right-hand drive? Do you support different national regulations?
A: The semi-trailer itself does not have a steering system, so it can be matched with various left-hand drive and right-hand drive tractors. Size, braking, lighting, and other configurations can be adjusted according to the regulations of the target country.
Q: Are you a factory or a trading company?
A: We are a physical manufacturer, producing and selling directly without middlemen. We conduct strict quality control from raw materials to finished products, ensuring stable quality while providing more competitive factory prices.
