2 Axle Bulk Cement Trailer
Factory direct wholesale on highly efficient 2 axle bulk cement trailers. 30cbm-38cbm capacity, V-shaped fluidization tank, powerful air compressor system. Inquire now!
Minimum order quantity: 1 unit
- Overview
- Recommended Products
Product Details

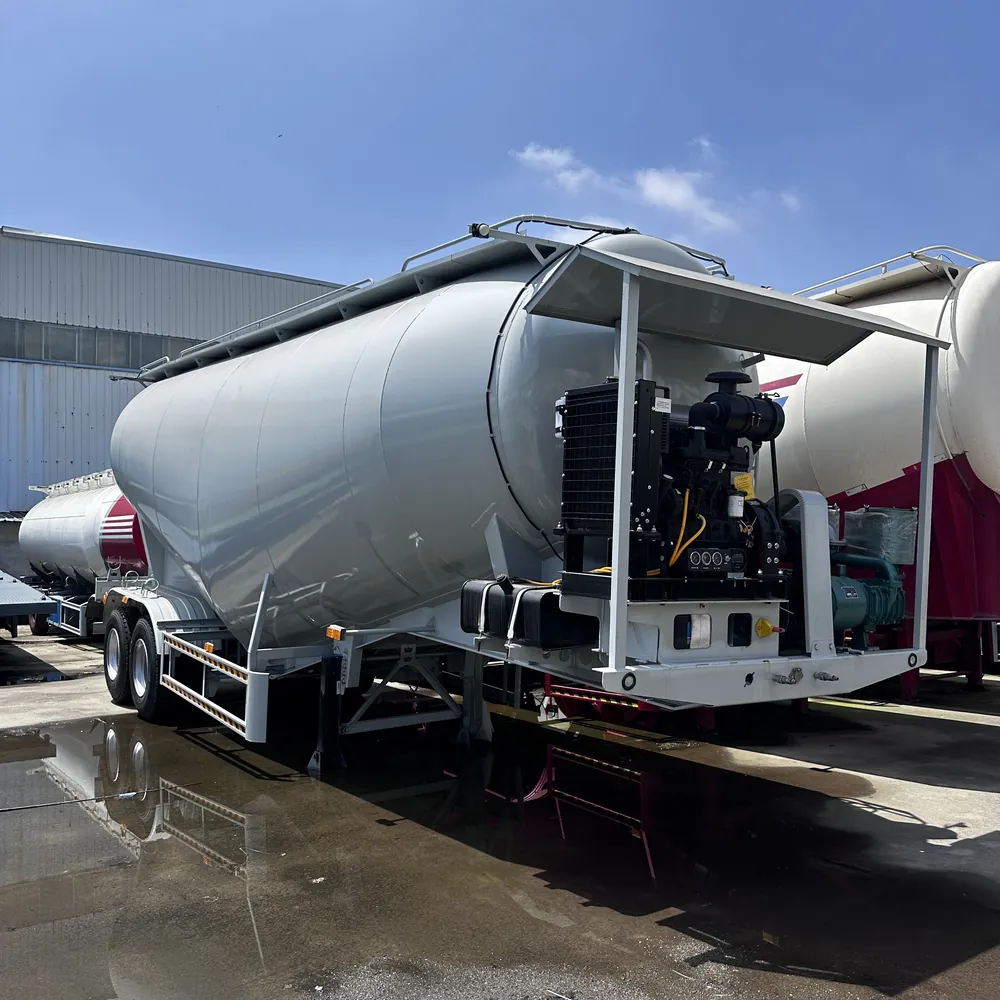

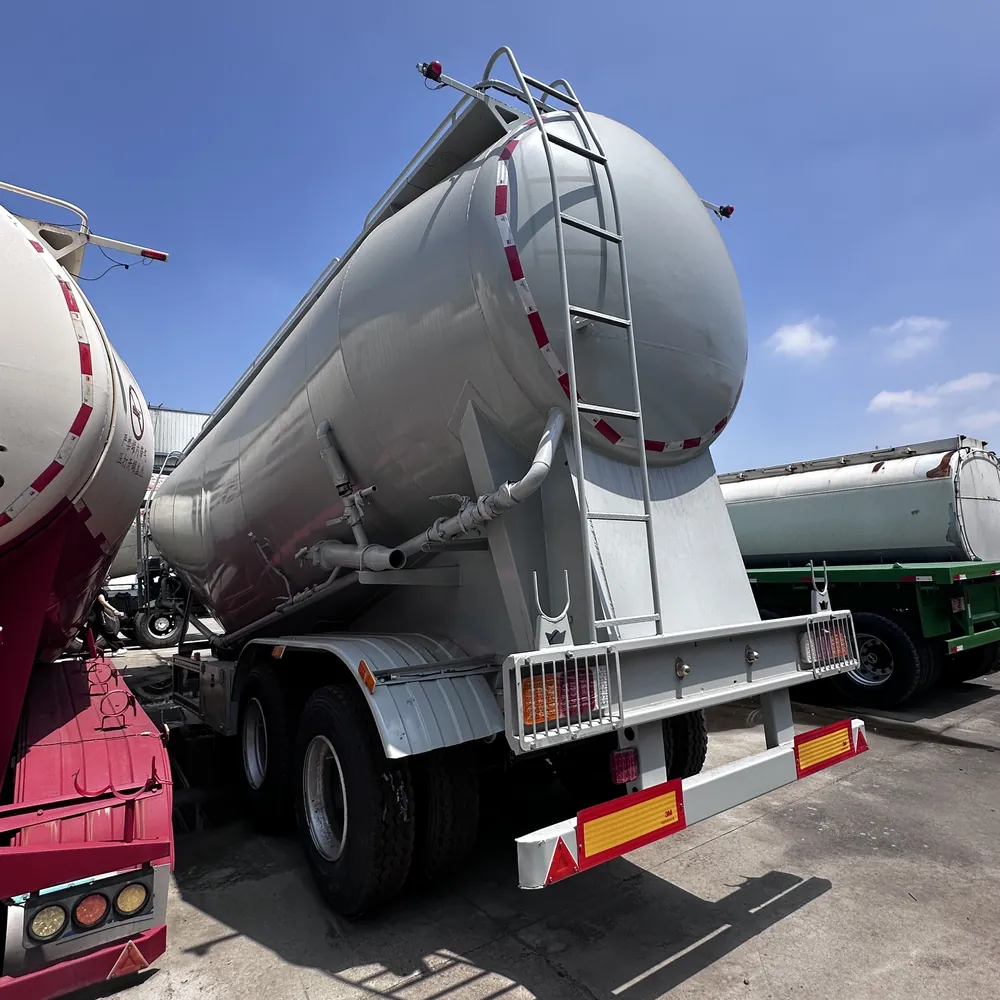

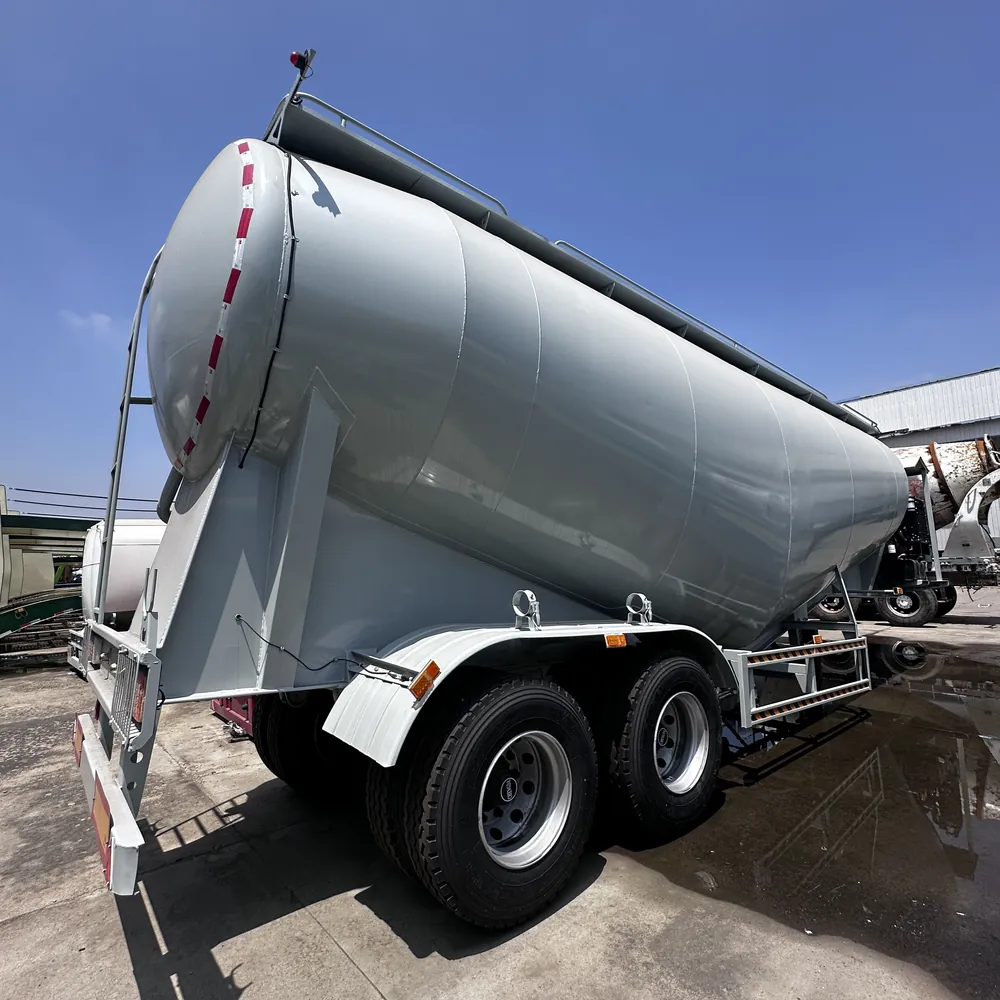

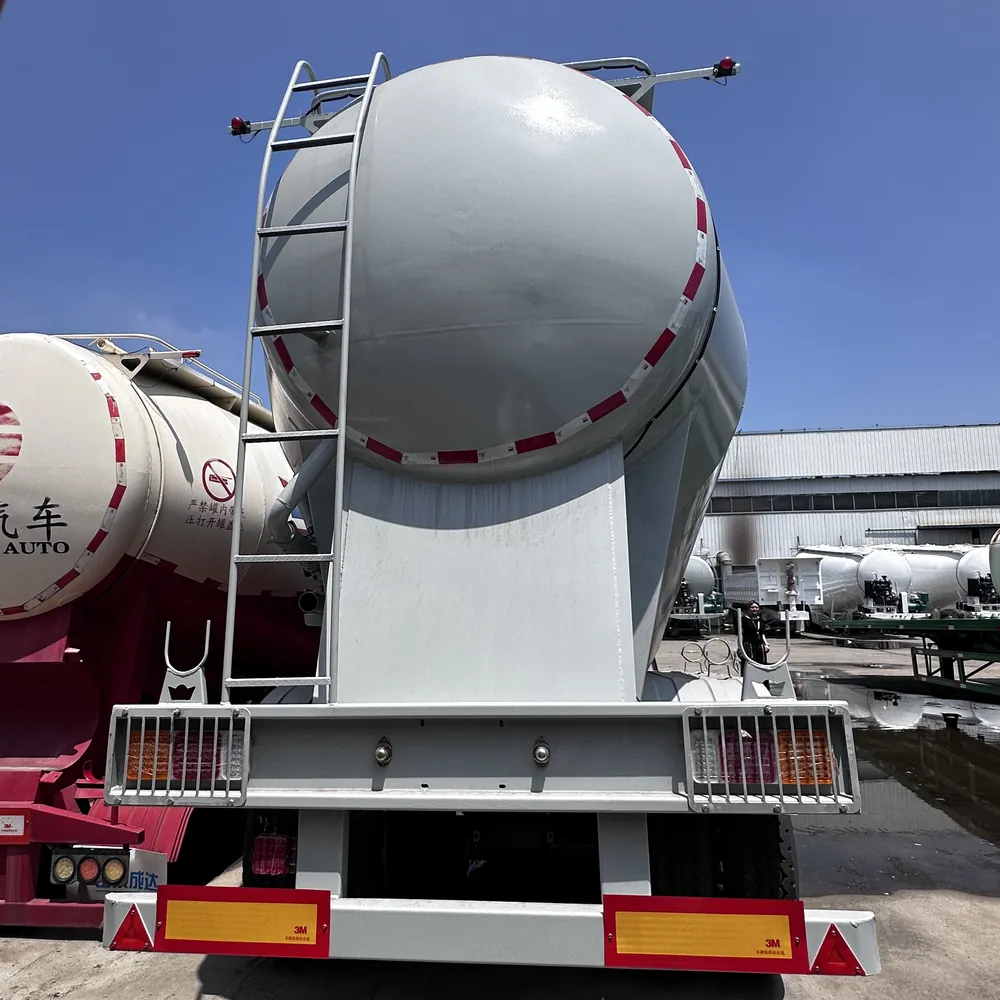

The 2 axle bulk cement trailer (commonly referred to as a pneumatic dry bulk tanker or cement bulker) represents a highly efficient, lightweight engineering solution for transporting large volumes of dry powder materials such as cement, fly ash, lime powder, and mineral dust. Engineered with a dual-axle chassis configuration, this trailer offers exceptional maneuverability in tight urban construction sites, lower highway toll expenses, and reduced tire maintenance costs compared to standard 3-axle models. Utilizing a specialized internal V-shaped fluidization bed design, it achieves rapid pneumatic discharge speeds with near-zero material retention, making it an indispensable asset for ready-mix concrete plants and international construction fleets.
Product Parameter Table
| Technical Parameter | Industrial Specification Data |
| Model Designation | 2 Axle Pneumatic Dry Bulk Cement Trailer |
| Overall Dimensions (L×W×H) | Approx. 9,600 mm × 2,500 mm × 3,850 mm (Customizable) |
| Tank Volumetric Capacity | 30 cbm – 38 cbm (Cubic Meters Available) |
| Rated Loading Payload | 30 Tons – 45 Tons Net Capacity |
| Tank Shell Material | Q345B High-Tensile Wear-Resistant Carbon Steel |
| Shell / Dish End Thickness | 4 mm or 5 mm Body Plate | 6 mm Rigid End Caps |
| Auxiliary Power Unit (APU) | Weichai 4100 / 4102 Series Water-Cooled Diesel Engine |
| Pneumatic Air Compressor | Bohai / Fuda 10 cbm/min or 12 cbm/min Twin-Cylinder |
| Discharge Hose Setup | 4-inch Durable Rubber Discharge Hose (8m length) with Quick Couplers |
| Discharging Speed Rate | ≥ 1.2 – 1.5 Tons per Minute |
| Axle Hardware Setup | 2 Units × FUWA / BPW 13-Ton or 16-Ton Heavy Axles |
| Suspension Framework | 10-Piece Leaf Spring Heavy Duty Mechanical Suspension |
| Landing Support Gear | JOST 28-Ton Two-Speed Manual Landing Leg System |
| Kingpin Specification | 2.0-inch (50#) or 3.5-inch (90#) Bolted Exchangeable Pin |
| Braking System Grid | Dual Line Pneumatic Brake System; WABCO Emergency Relay Valve |
Features of 2 axle bulk cement semi trailer
🔵 Optimized Maneuverability & Cost Savings: The dual-axle layout slashes the overall vehicle curb weight and turning radius. This delivers substantial fuel savings for the tractor head, reduces tire replacement costs, and cuts down on distance-based highway toll fees.
🔵 V-Shaped Tank with Ultra-Low Residue: The steep V-angled interior wall structure works in perfect harmony with a premium multi-layer canvas air-slide fluidization bed. This configuration ensures an incredibly smooth, fast powder flow, keeping the final material residue rate under a strict 0.3%.
🔵 High-Tensile Steel Structural Integrity: The main tank body is precisely rolled from 4mm or 5mm high-strength Q345B carbon steel, while the dished tank heads feature a thickened 6mm reinforced layout to easily withstand continuous pressure changes without structural deformation.

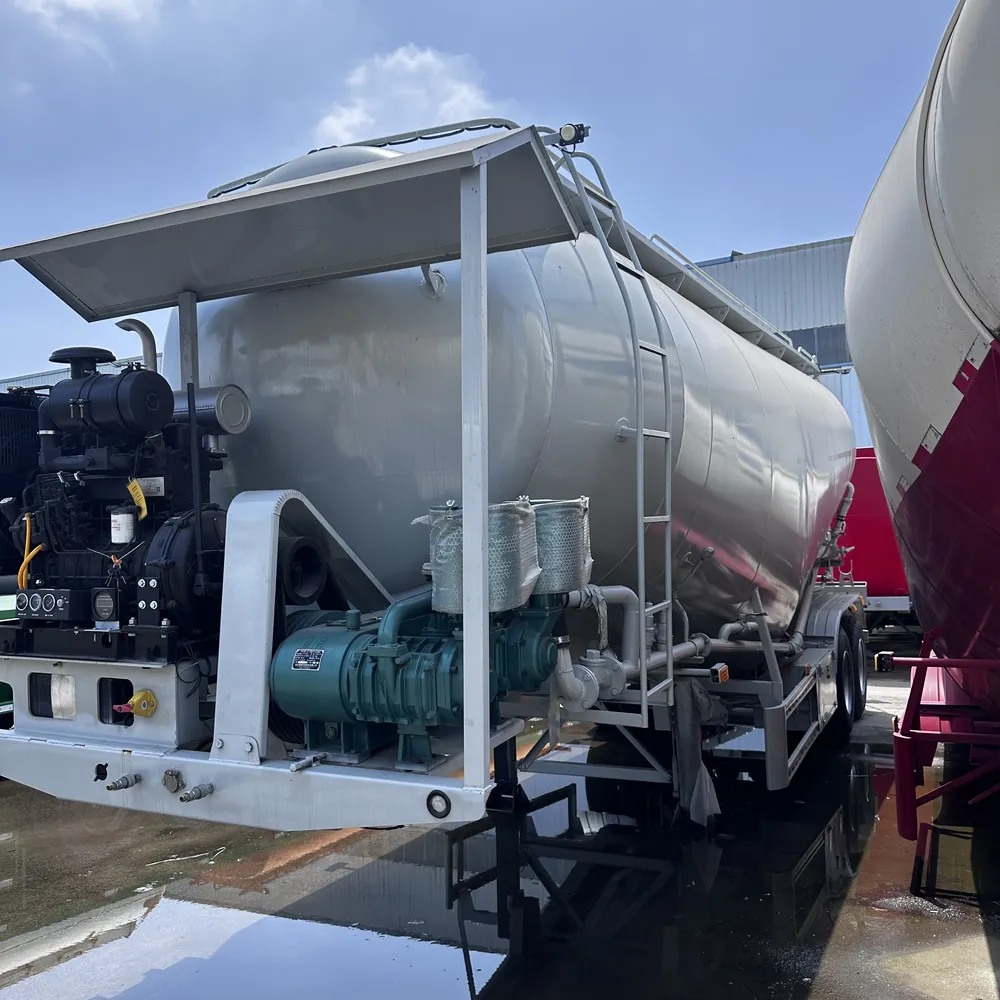

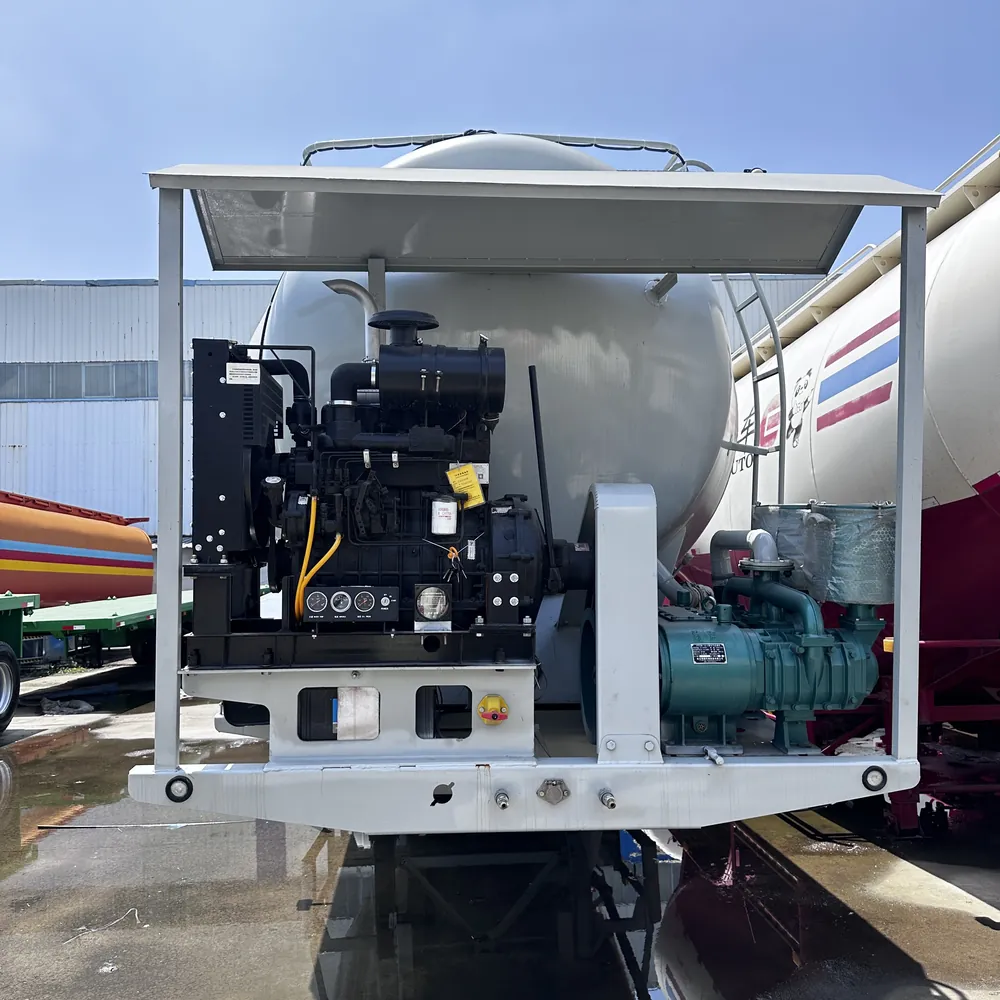

🔵 High-Volume Air Compressor System: Powered by a heavy-duty Weichai diesel auxiliary engine mated to a premium 10m³/min or 12m³/min Bohai air compressor, generating constant pneumatic pressure to discharge up to 1.5 tons of powder material per minute.
🔵 100% Pressure Sealing Guarantee: Every dry bulker unit undergoes rigorous dual-stage hydrostatic and pneumatic sealing pressure audits up to 0.2 MPa to guarantee absolute airtight operation under extreme environmental conditions.
Applications of 2 axle cement semi trailer
Our 2 axle cement trailers are widely used in the transportation of bulk powdery materials across multiple industries, including:
🔵 Bulk cement transportation in cement plants and large construction sites.
🔵 Transportation of fly ash, mineral powder, and silica fume in power plants.
🔵 Logistics transportation of dry mortar, lime powder, and other building materials.
🔵 Infrastructure construction projects such as roads, bridges, and railways.
🔵 Long-distance and inter-regional bulk cargo transportation for logistics companies.
About Us
Chengda group established in 2005, is a professional manufacturer and exporter specializing in the design, production, and sales of semi-trailers, full trailers, tank trucks, construction machinery, and spare parts.
Our main products include low-bed trailers, flatbed trailers, tank trailers, 4 axle cement semi trailers, container chassis, dump trailers, and other customized special vehicles. All products comply with international standards such as ISO9001, CE, and CCC, and are exported to more than 60 countries and regions, including Africa, the Middle East, Southeast Asia, South America, and Central Asia.
Contact Us
If you are looking for a reliable, high-quality, and affordable 2 axle bulk cement trailer, please contact us. We will provide you with detailed product specifications, quotations, and customized transportation solutions.
