5 Axle Tipper Semi Trailer

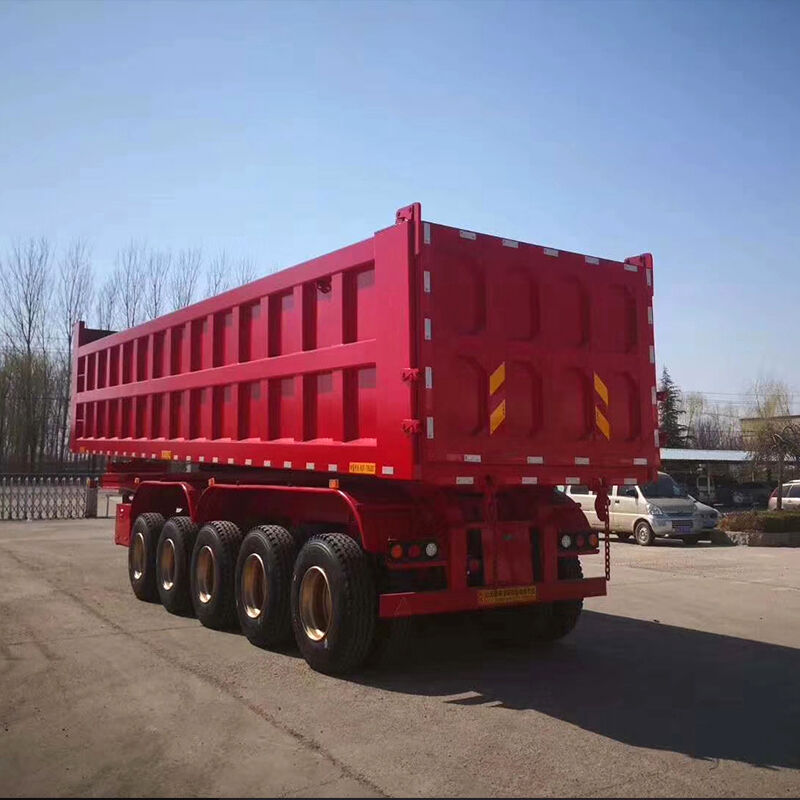

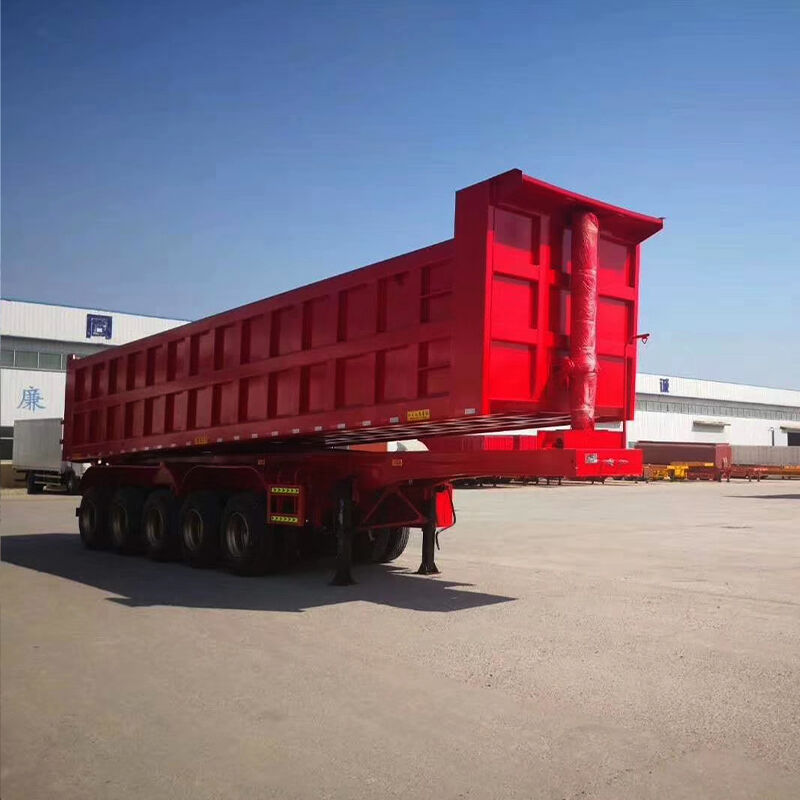

The 5 axle tipper semi trailer is an ultra-heavy-duty end-dump semi-trailer engineered for maximum payload and extreme working conditions, purpose-built for transporting large volumes of bulk materials like sand, gravel, ore, coal, and construction waste.
Minimum order quantity: 1 unit
- Overview
- Recommended Products
Product Details
The 5 axle tipper semi trailer is an ultra-heavy-duty end-dump semi-trailer engineered for maximum payload and extreme working conditions, purpose-built for transporting large volumes of bulk materials like sand, gravel, ore, coal, and construction waste.
Constructed with a reinforced high-strength Q345B steel main beam, thickened cargo box floor and side panels, it delivers an exceptional load capacity of up to 80 tons, ensuring long-term reliability under full-load operations. Equipped with 5 heavy-duty axles, a combination of heavy-duty leaf spring and optional liftable air suspension, and premium 12R22.5 factory tires, it achieves balanced load distribution, superior driving stability, and strong adaptability to complex mining, construction, and highway conditions.
With a durable anti-corrosion paint finish and low maintenance design, this 5-axle tipper semi trailer is the ideal high-efficiency workhorse for large-scale mining, infrastructure, and bulk logistics projects across Africa, the Middle East, Southeast Asia, and other global heavy-duty transport markets.
Product Parameter Table
Name |
5 Axle Dump Trailer |
Dimensions |
9300*2500*3400 |
Inner Dimension |
25 Cubic Meters |
Loading capacity |
30-80 Tons |
Axle brand and number |
13T HJ 3units |
King Pin |
50# JOST |
Steel Spring |
leaf spring suspension |
Main beam |
height beam500mm,upper plate14mm,down plate16mm,middle plate8mm. |
Tyre and quantity |
12R22.5 tubeless tires, 12 pieces |
Landing gear |
JOST, double speed operation |
Thickness |
bottom:8mm, side:4mm |
Brake system |
WABCO braking system with ABS |
Electrical system |
24V Electrical system With LED Light |
Tool box |
1 sets |
Spare tire carrier |
1 Set |
Packing |
Optional for SKD loading |
Function |
Transport Sand and Stone Transport |
Application of 5 axle tipper semi trailer
The dump trailer is suitable for transporting ore and slag in mines, transporting sand and gravel in infrastructure projects, clearing construction waste in cities, and transporting various materials for roads, bridges, and water conservancy projects. It adapts to a variety of complex road conditions and operating environments.
Packaging and Transportation：
🔵 Roll-on/Bulk Cargo Transportation
This is often the preferred method for transporting complete units. The trailer is loaded directly onto a general cargo ship. For multiple items, this is a straightforward and economical option, minimizing handling and assembly costs at the destination.
🔵 Container Transportation
As a flexible alternative, we can professionally disassemble the trailer for safe loading into standard shipping containers. This option is ideal for small orders or when your logistics chain is based at a container terminal.
