4 Axle Tipper Trailer

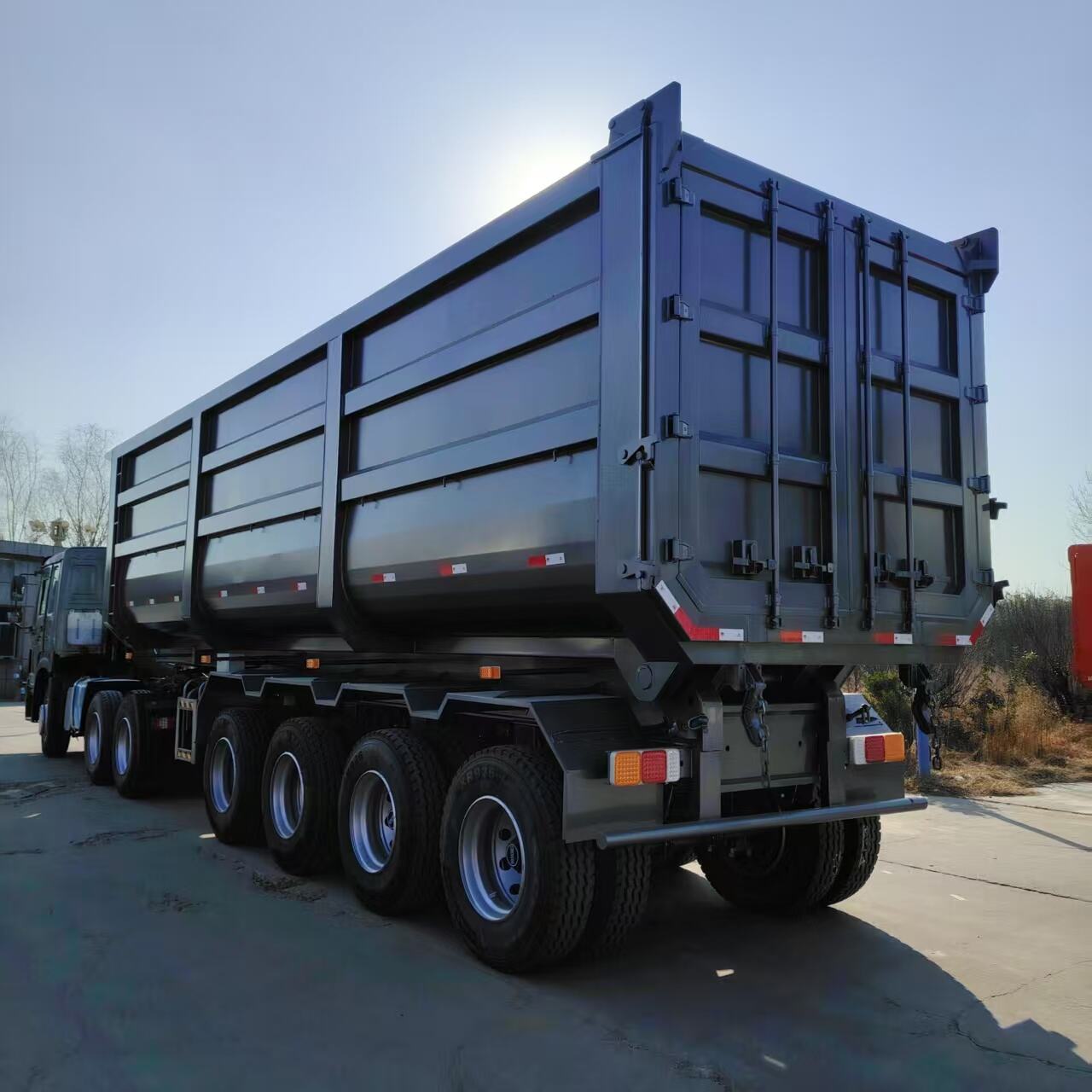

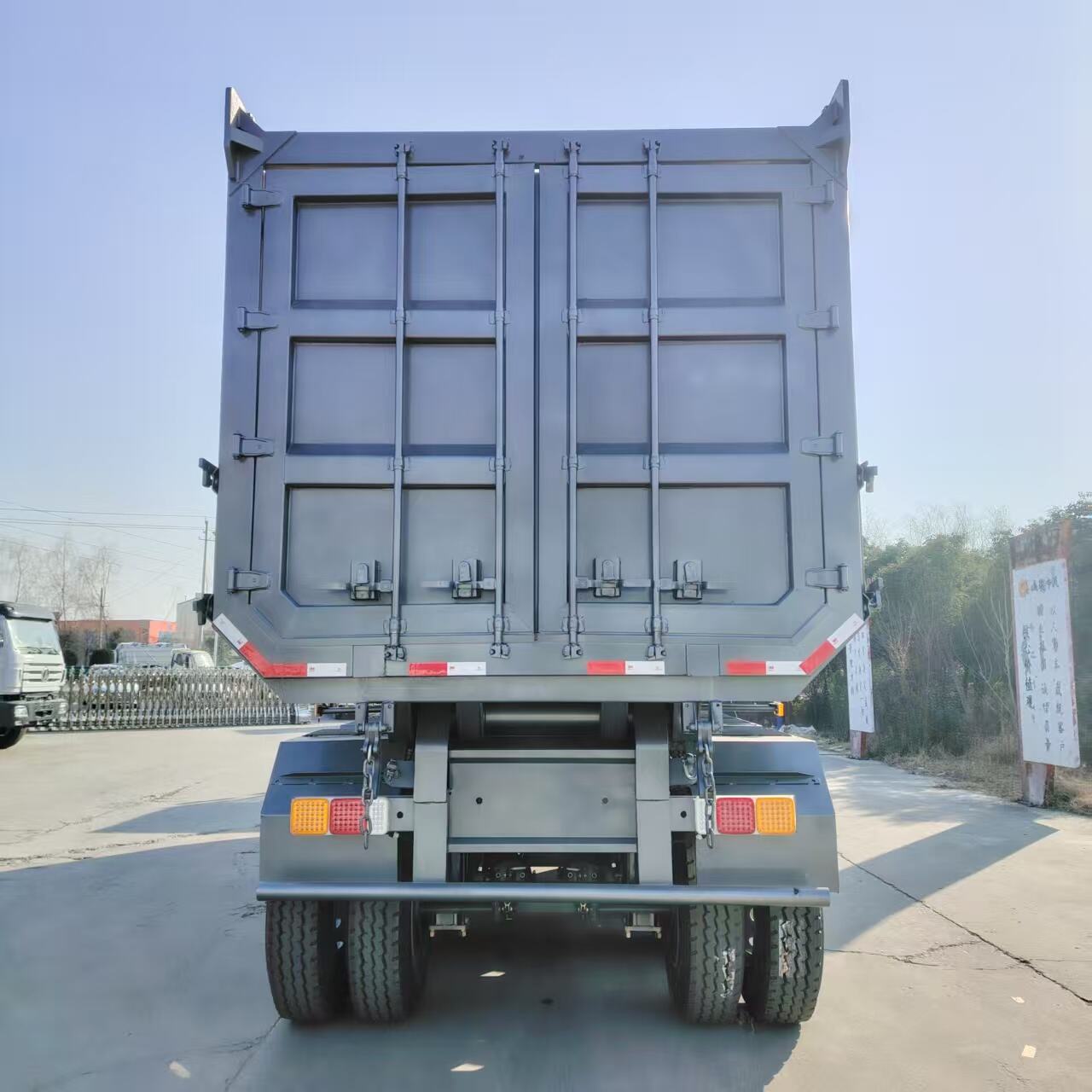

The 4 axle tipper trailer is a heavy-duty, high-capacity end-dump semi-trailer engineered for efficient bulk material transportation.
Minimum order quantity: 1 unit
- Overview
- Recommended Products
Product Details
The 4 axle tipper trailer is a heavy-duty, high-capacity end-dump semi-trailer engineered for efficient bulk material transportation.
Product Parameter Table
| Item | Details |
| Type | 4 Axle End Dump Semi-Trailer |
| Quantity | 1 Unit |
| Dimension | External: 10000×2550×3860 mm (subject to actual design) |
| Internal: 9200×2380×2200 mm | |
| Payload Capacity | 60000 kg (60 Tons) |
| Axle | 4×16 Ton Chengda Axles, Front Axle with Air Suspension & Lifting Function |
| Main Beam | Q345B Carbon Steel, Top Flange 20mm, Bottom Flange 20mm, Web 10+6mm |
| Floor Thickness | 8mm |
| Side Panel Thickness | 6mm |
| Rim | 9.0, 16 Pcs |
| Suspension | 3 Axle Mechanical Leaf Spring Suspension + Front Axle Air Suspension with Lifting |
| Leaf Spring Specification | 120×16×10 mm |
| Kingpin | Factory-Matched 2" & 3.5" Interchangeable Kingpin, including 200L Black Hydraulic Oil Tank, Oil Pump, PTO and Oil Pipes |
| Landing Gear | Standard 28T Yahua Single-Action External Landing Gear |
| Access Ladder | Mounted on the Left Side of the Vehicle |
| Tire Model & Quantity | 12R22.5, 16 Pcs, Factory-Matched |
| Tool Box | 1 Pc |
| Spare Tire Rack | 2 Pcs |
| Brake Air Chamber | 8 Large Double Air Chambers |

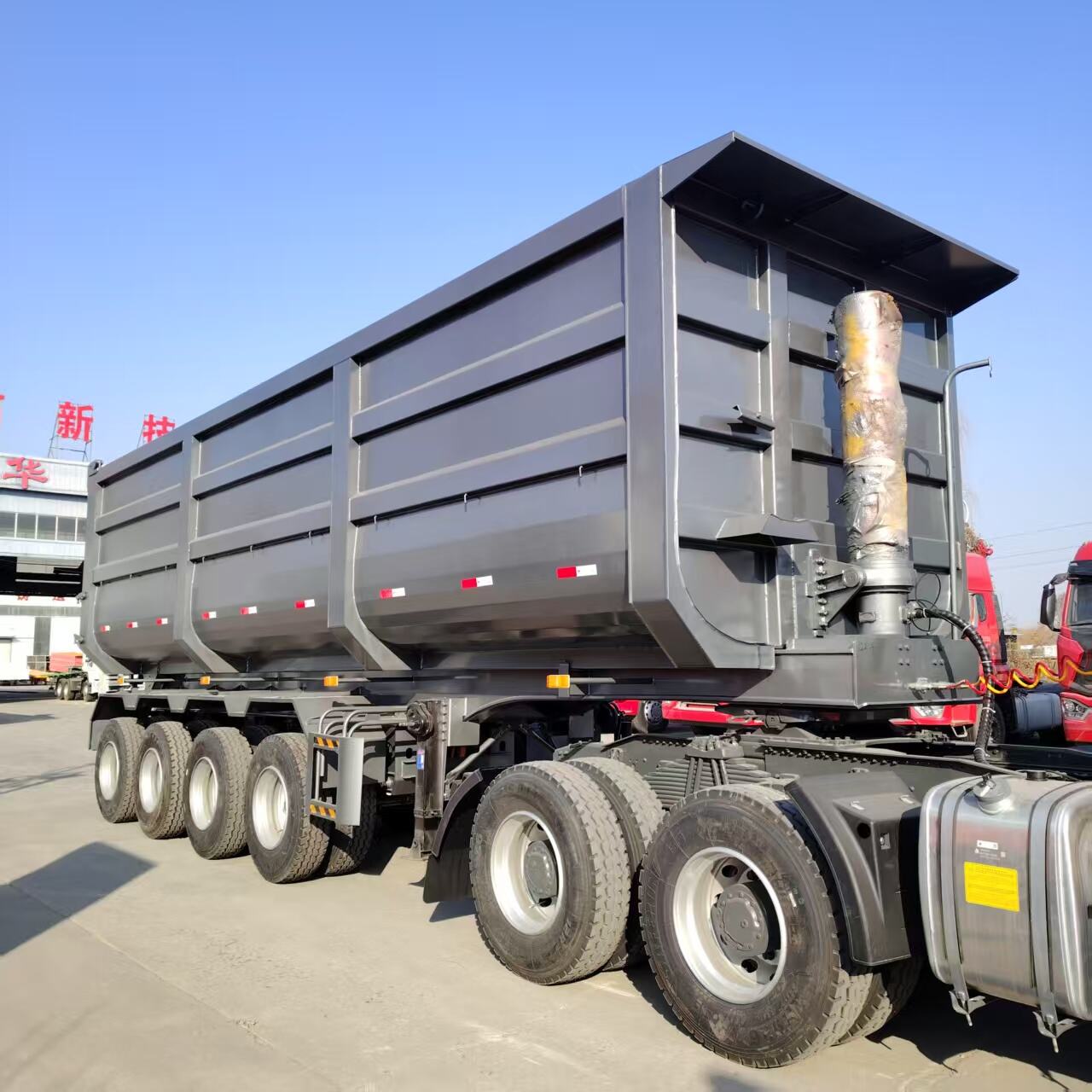

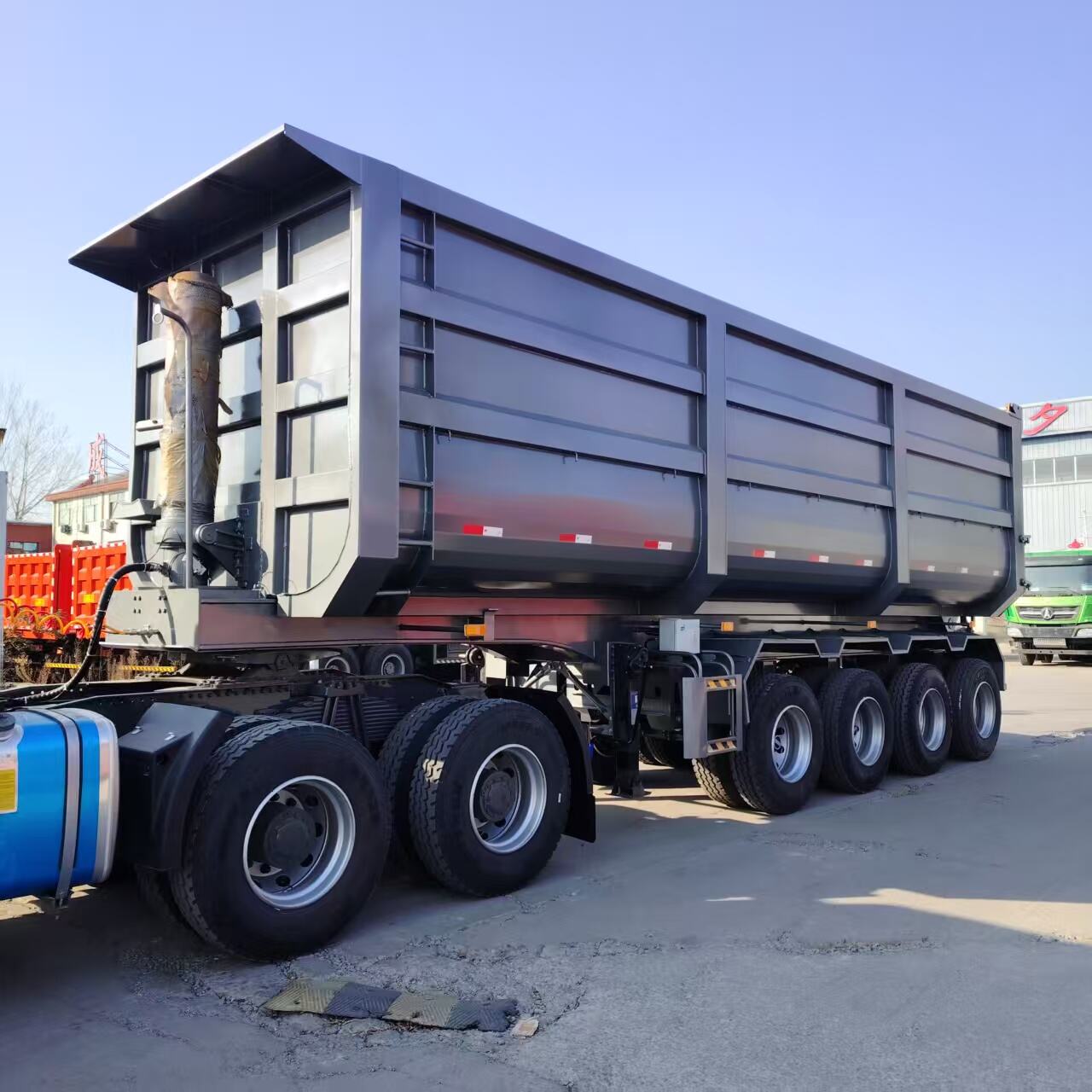

| Lifting System | 214 Hydraulic Cylinder |
Features of 4 axle tipper trailer
🔵 The frame is made of Q355B high-strength manganese steel, offering strong load-bearing capacity and torsional resistance, suitable for heavy-duty conditions.
🔵 Equipped with three 13-ton axles, with options for internationally recognized brands such as BPW and Fuhua, ensuring high stability and readily available spare parts.
🔵 The cargo box is made of wear-resistant steel plate with a thickened floor, providing impact and wear resistance. The volume can be customized to meet specific needs.
🔵 The hydraulic lifting system is stable and reliable, enabling rear-tipping unloading for clean and efficient lifting and unloading.
🔵 The braking system is safe and comprehensive, equipped with air brakes and ABS for enhanced driving and operation safety.
🔵 The entire vehicle undergoes rust and corrosion protection treatment, adapting to complex environments such as high temperatures, dust storms, and humidity.
Application of 4 axle tipper trailer
The dump trailer is suitable for transporting ore and slag in mines, transporting sand and gravel in infrastructure projects, clearing construction waste in cities, and transporting various materials for roads, bridges, and water conservancy projects. It adapts to a variety of complex road conditions and operating environments.
Packaging and Transportation：
🔵 Roll-on/Bulk Cargo Transportation
This is often the preferred method for transporting complete units. The trailer is loaded directly onto a general cargo ship. For multiple items, this is a straightforward and economical option, minimizing handling and assembly costs at the destination.
🔵 Container Transportation
As a flexible alternative, we can professionally disassemble the trailer for safe loading into standard shipping containers. This option is ideal for small orders or when your logistics chain is based at a container terminal.
About Us
Chengda Group, established in 2005, is a professional semi-trailer manufacturer and heavy-duty truck exporter. Our products are exported to Africa, the Middle East, Southeast Asia, and Central and South America, covering dozens of countries including Zambia, Nigeria, Brazil, Chile, and Peru, and are adapted to the road conditions, climates, and regulatory requirements of various regions. With years of experience in overseas markets, we are a trusted long-term partner for clients in various regions.
