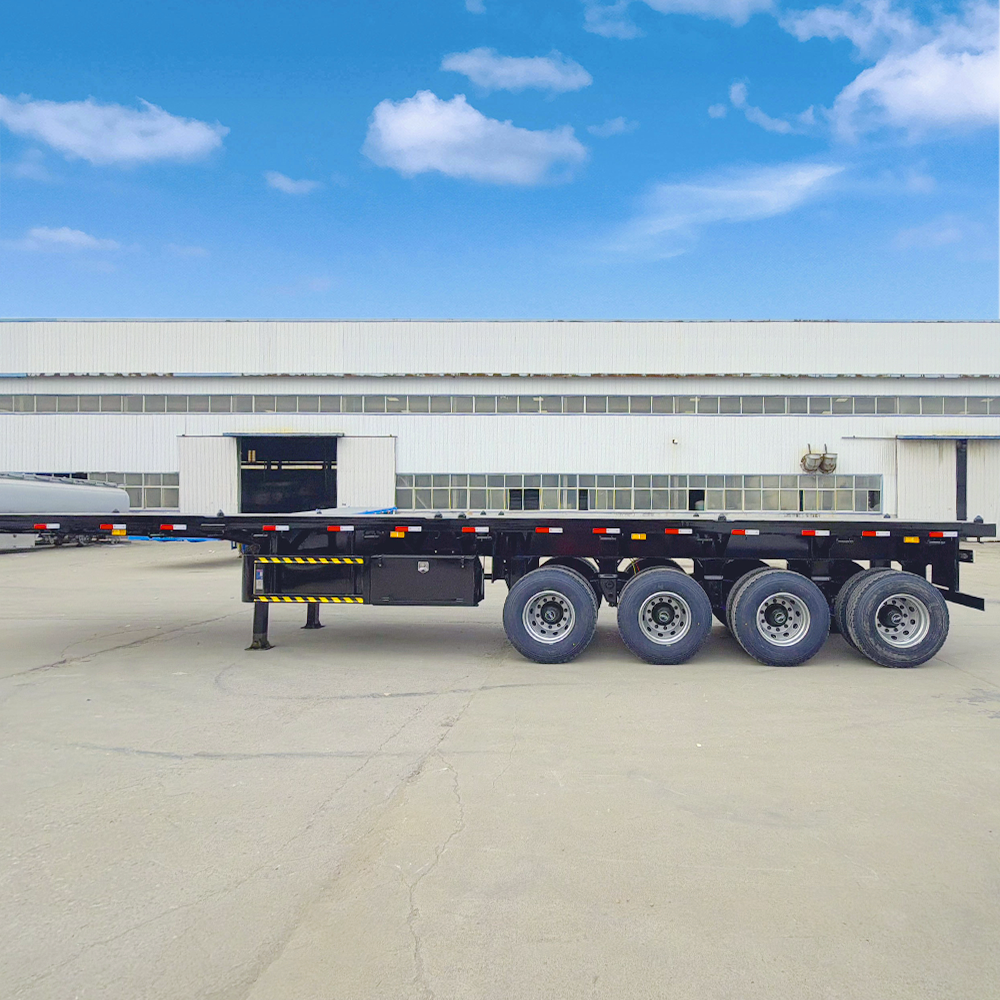

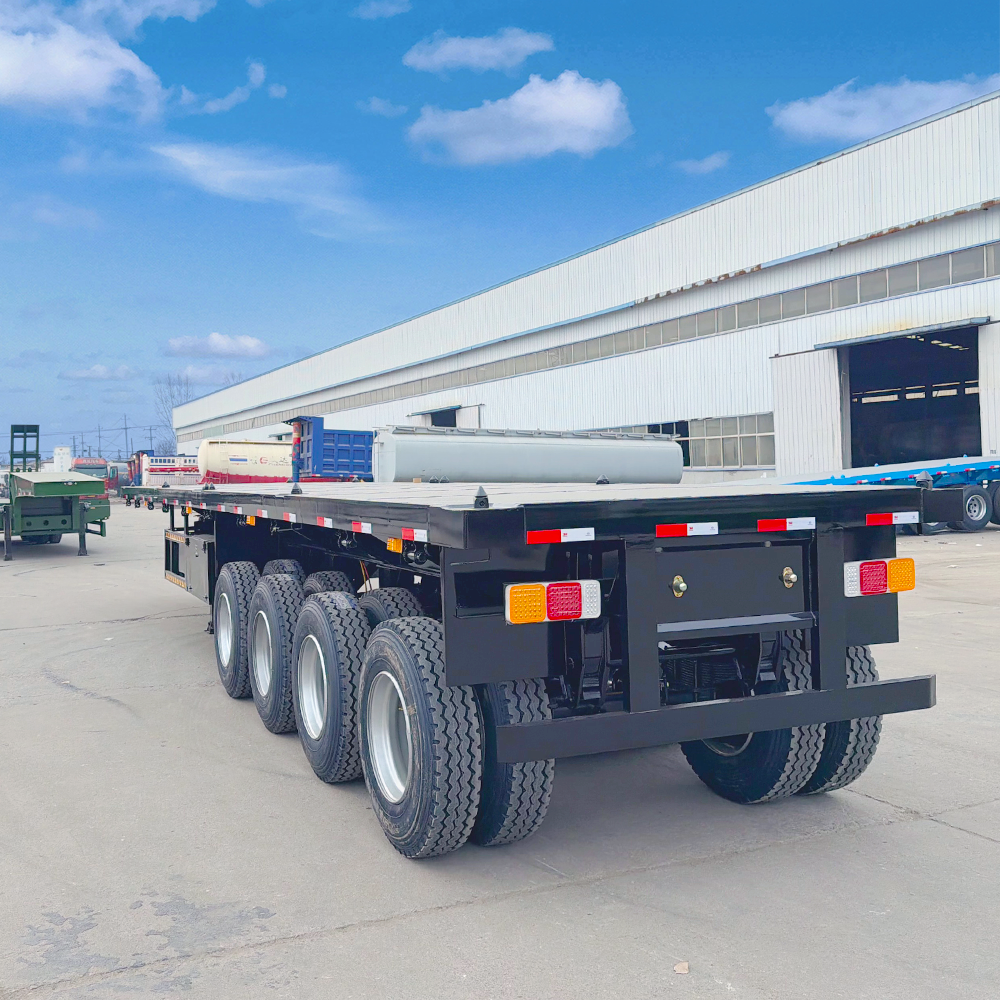

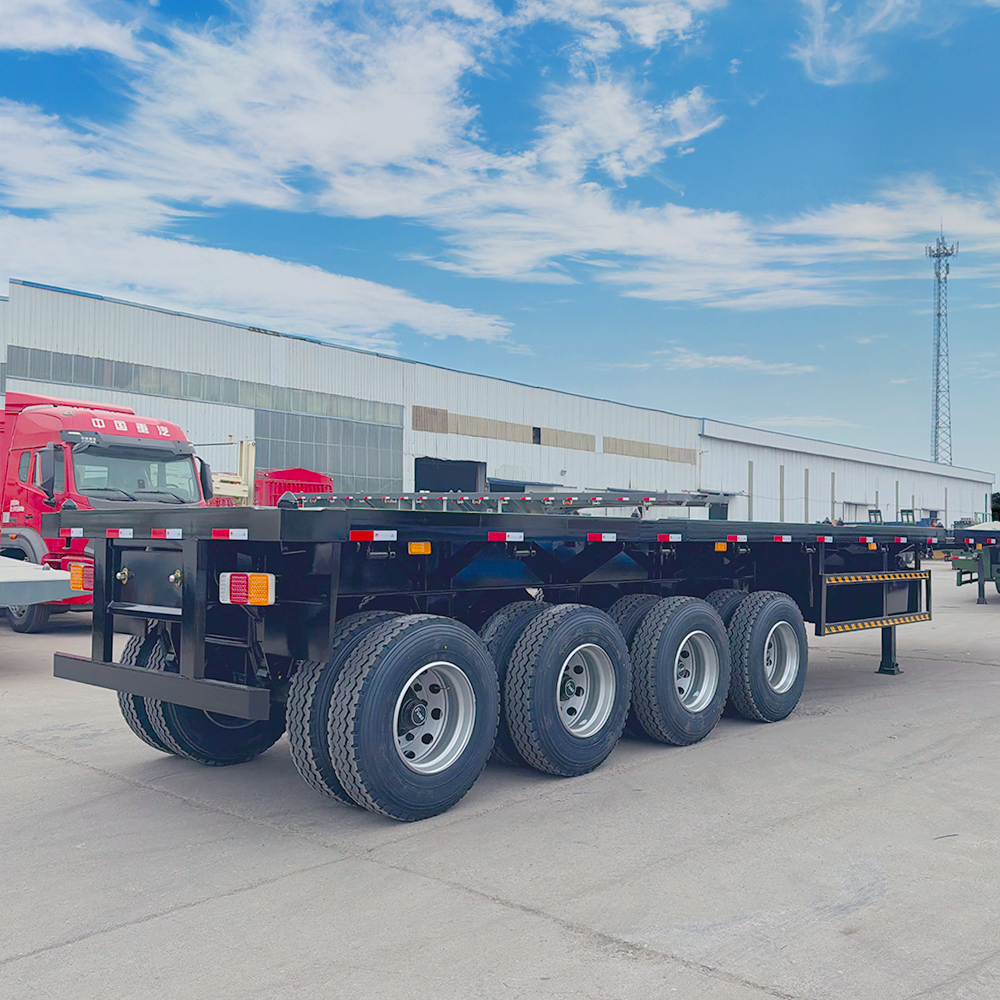

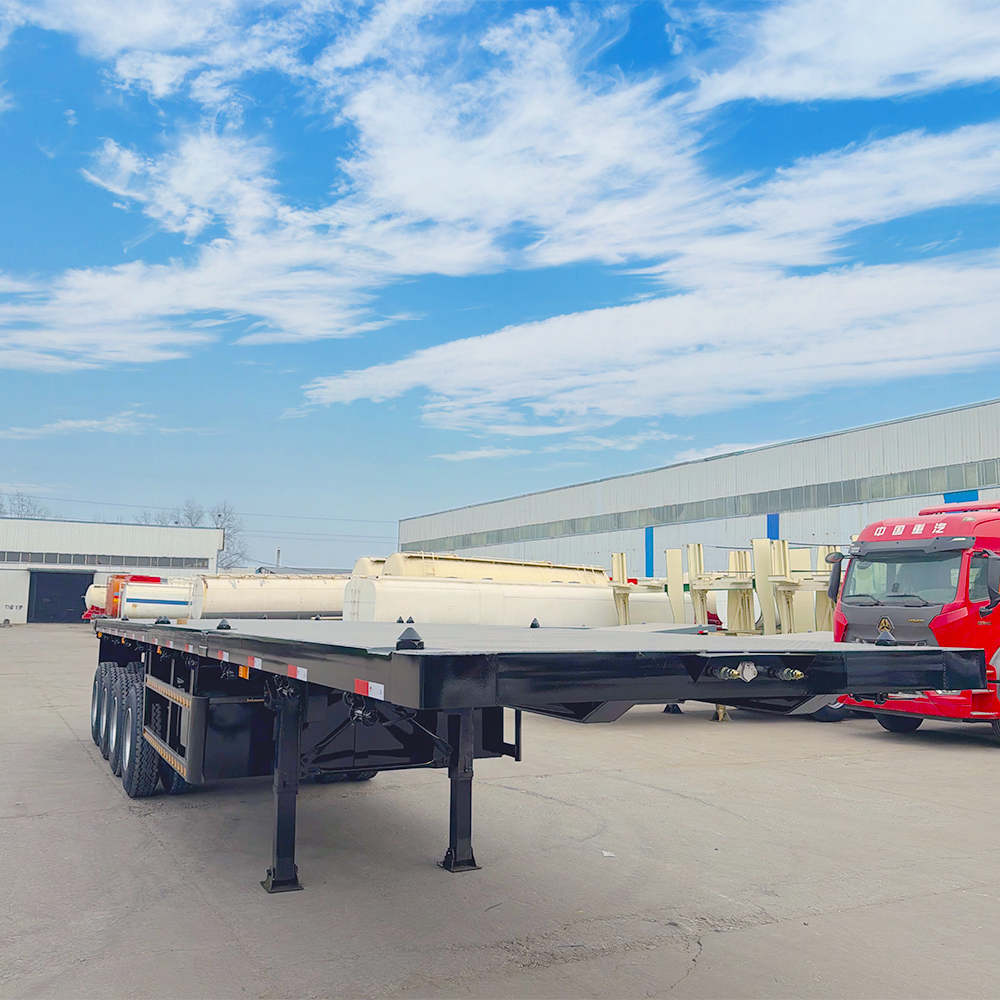

53ft Flatbed Semi Trailer
53ft flatbed semi trailer is one of the most advanced and economical flatbed semi-trailers of Chengda Group. This flatbed semi-trailer is manufactured with high-strength steel and advanced production technology, so it can withstand various weights and loads.
- Overview
- Recommended Products
53ft flatbed trailer is one of the most advanced and economical flatbed semi-trailers of Chengda Group. This flatbed semi-trailer is manufactured with high-strength steel and advanced production technology, so it can withstand various weights and loads.
Features of 53ft flatbed semi trailer
1. Efficient transportation capacity
The 3 axle 53ft flatbed trailer has a very strong load capacity and can carry many different types of goods. The flatbed semi-trailer is 53 feet (16.15 meters) long and 102.36 inches (2.6 meters) wide, allowing it to carry large volumes of cargo. Its flatbed design enables fast loading and unloading of cargo, so it is very efficient in cargo transportation.
2. Excellent rigidity and stability
The 3 axle 53ft flatbed semi trailer is made of high-strength steel to ensure its good rigidity and stability. The suspension system and axle group of the flatbed semi-trailer have been optimized to increase the reliability of the entire vehicle system. In addition, its unique wheel design can also make driving smooth and comfortable, thus protecting the safety of the cargo.
3. Multifunctional design
The 3 axle 53ft flatbed trailer is designed to be very flexible. According to different transportation needs, different accessories can be selected for assembly. For example, we can match partitions, container locks, lashing locks, or solar panels for flatbed semi-trailers according to customer requirements; this can increase the diversity and customization of the flatbed semi-trailer's transportation functions. In addition, the color of the flatbed semi-trailer can also be customized according to customer requirements.
4. Quality Assurance
We insist on providing customers with high-quality flatbed semi-trailers. Only high-strength steel is used and must be pressure tested and welded to ensure that the structural strength of the flatbed semi-trailer maintains strict stability under high load conditions. Our flatbed semi-trailers have passed national certification, CE, ISO, and many other certifications, and are widely used all over the world.
Specification of 53ft flatbed trailers
| Trailer Model | 3 Axle Flatbed Trailer |
| Overall Dimension(L x W x H)(mm) | 12500 * 2500 * 1600 |
| Loading Weight | 40000kg |
| Axle | 3*13Ton Axle |
| Main Beam | Q345 carbon steel, the height of the main beam is 500mm, the upper plate is 14mm, the down plate is 16mm, the middle plate is 8mm |
| Platform Plate | 3mm Diamond plate |
| Side Beam | Q235 16# channel steel |
| Suspension System | Mechanical Leaf Spring Suspension |
| Leaf Spring | 90(W)mm*13(Thick)mm*10Layer |
| Container Twist Locker | 12pcs container locker |
| Tire Type and Quantity | 12R22.5 12units |
| King Pin | 50#/90# |
| Spare Wheel Bracket | 2pieces |
| Tool Box | 1 standard |
| Landing Gear | Standard 28ton single action supporting legs |
| Brake System | Dual line braking system |
| Brake air chamber | six double chamber |
Summarize
After an overall analysis of the function and design of the 3 axle 53ft flatbed trailer, Chengda Group believes that you have a full understanding of the advantages of this product. We are always committed to providing the best quality service and the most reliable semi-trailer products to global customers. If you need to know more about 53ft flatbed semi trailer, please feel free to contact us. We look forward to your consultation.
