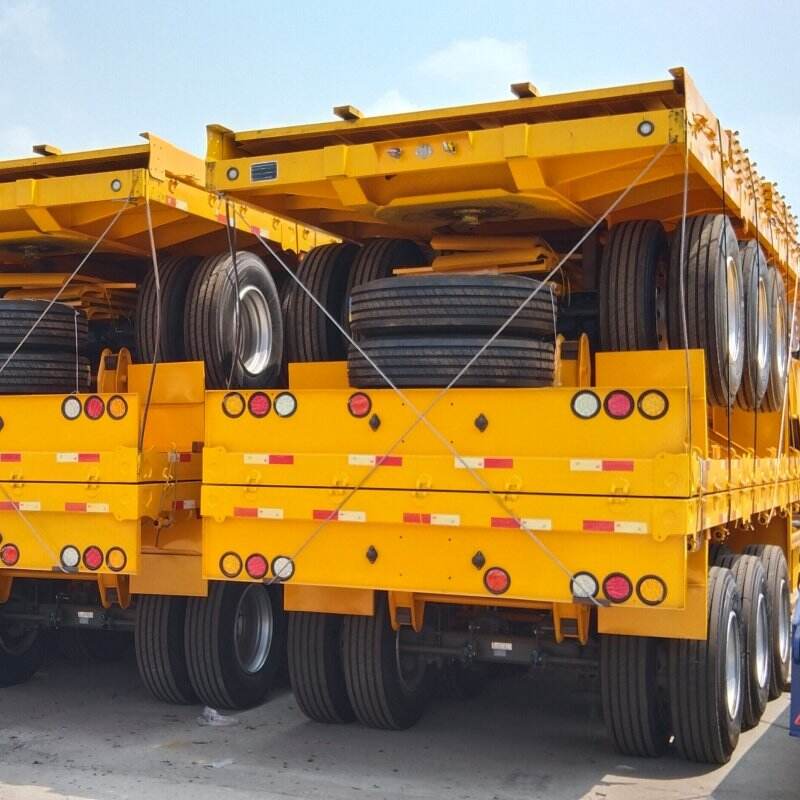

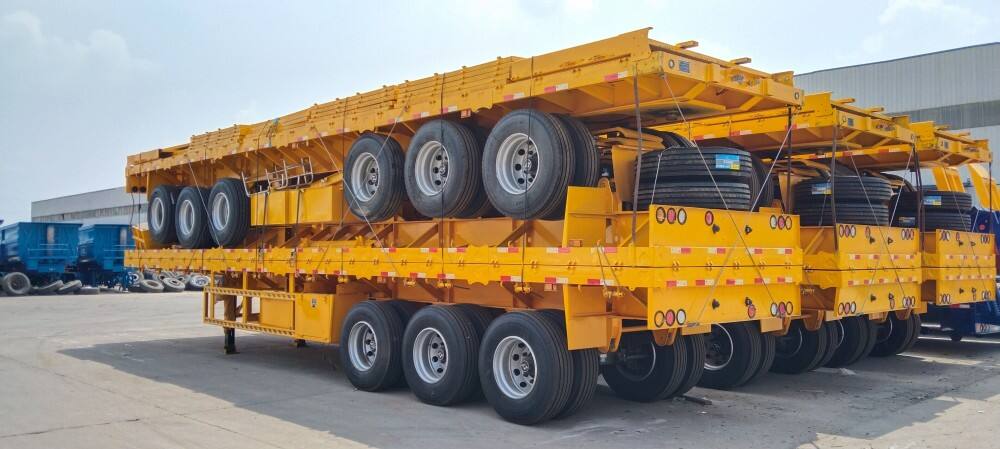

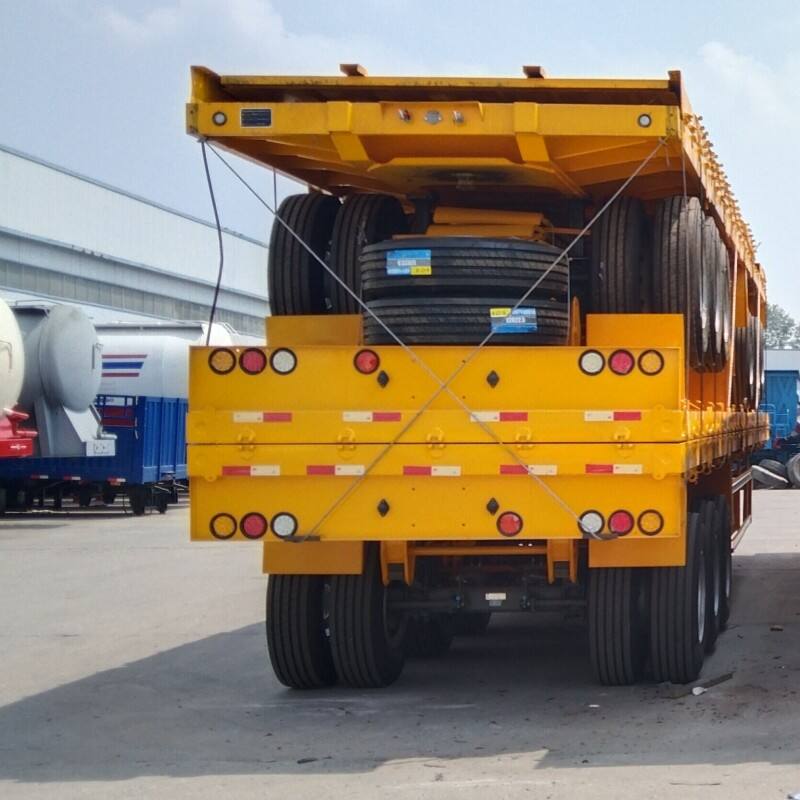

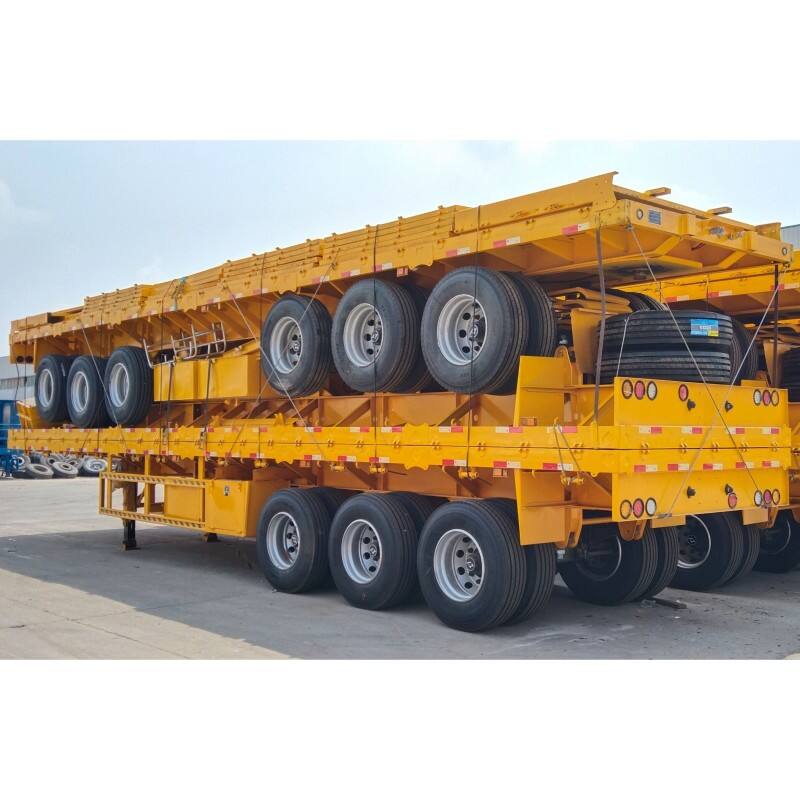

Brand New 3 Axle Fence Trailer
The brand new 3 axle fence trailer is a newly manufactured heavy-duty cargo semi-trailer designed for safe, stable and high-volume freight transportation. This brand new 3 axle fence trailer adopts an optimized three-axle load distribution structure and high-strength steel fence design, providing strong bearing capacity and excellent road stability.
Minimum order quantity: 1 unit
- Overview
- Recommended Products
Product Details
The brand new 3 axle fence trailer is a newly manufactured heavy-duty cargo semi-trailer designed for safe, stable and high-volume freight transportation. This brand new 3 axle fence trailer adopts an optimized three-axle load distribution structure and high-strength steel fence design, providing strong bearing capacity and excellent road stability. Built with brand-new raw materials and international standard components, the brand new 3 axle fence trailer has no usage records, no wear and no damage.
It is widely used for bulk cargo, palletized goods, agricultural products and construction materials transportation. With durable structure, flexible loading space and affordable cost, the brand new 3 axle fence trailer has become one of the most popular logistics transportation equipment for global freight companies.
Product Parameter Table
Overall Dimensions（L x W x H）(mm) |
12500x2500x2550 |
Cargo box dimension (L x W x H)(mm) |
12000X2300X600 |
Main beam |
The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8 mm |
Side beam |
Q235 16# channel steel |
Axle |
13Ton, Fuwa brand option one hundred fifty thousand Kilometers no need maintenance |
Tires |
12R22.5, 12 pcs. Taitong brand |
Rim |
9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs |
King pin |
2” and 3.5” removable Kingpin, bolted in type 500mm from the front face of the front bolster |
Landing gear |
28 ton single action supporting legs |
Steel spring |
10/10/10 leaf spring suspension |
Air chamber |
Six double air chamber |
Advantages of 3 axle fence trailer
🔵 Brand new overall condition: Every brand new 3 axle fence trailer is 100% newly produced without any working hours. All steel parts, axles, tires, and brake systems are original brand-new accessories, ensuring stable performance and longer service life.
🔵 High-strength fence and frame: The brand new 3 axle fence trailer is made of Q355 high tensile manganese steel. The welded fence structure is firm and not easy to deform. Removable fence posts make loading and unloading convenient while preventing cargo from falling during transportation.
🔵 Reliable 3 axle configuration: Equipped with three heavy-duty axles (optional BPW or Fuhua brand), the brand new 3 axle fence trailer achieves uniform load dispersion. It reduces tire pressure and improves driving safety on rough roads.
🔵 Complete safety system: The brand new 3 axle fence trailer is fitted with an air brake system and ABS. Anti-slip floor plate, reinforced side support, and standard lamp system ensure all-weather transportation safety.
🔵 Customizable design: We provide customized fence height, trailer length, suspension type, and painting color. The brand new 3-axle fence trailer can be modified to meet different transportation scenarios and customer requirements.
Applications of fence semi trailer
This 3 axle fence trailer is widely used for transporting agricultural products such as grains, vegetables, and fruits, livestock and poultry, as well as various goods such as building materials, bagged goods, and boxed goods. It is widely used in logistics, agriculture, animal husbandry, and rural transportation.
Packaging and Transportation
The trailer is treated with anti-rust wax before shipment. We can arrange roll-on/roll-off, bulk carrier, or container transport according to customer requirements. Professional securing and protection measures ensure safe delivery to your destination port.
FAQ
Q: What is the load capacity of the three-axle fenced trailer?
A: The load capacity can be designed from 40 tons to 60 tons, depending on customer needs.
Q: Can the fence height be customized?
A: Yes, the fence height can be customized according to your cargo type.
Q: Does it support unloading from both sides?
A: Yes, we can design a side-opening structure for convenient loading and unloading.
