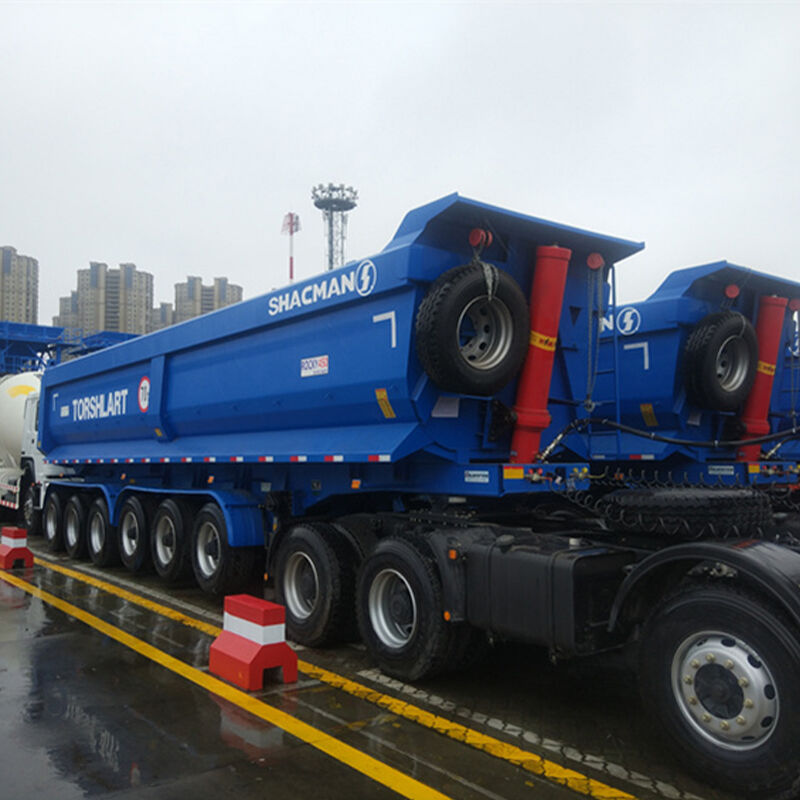

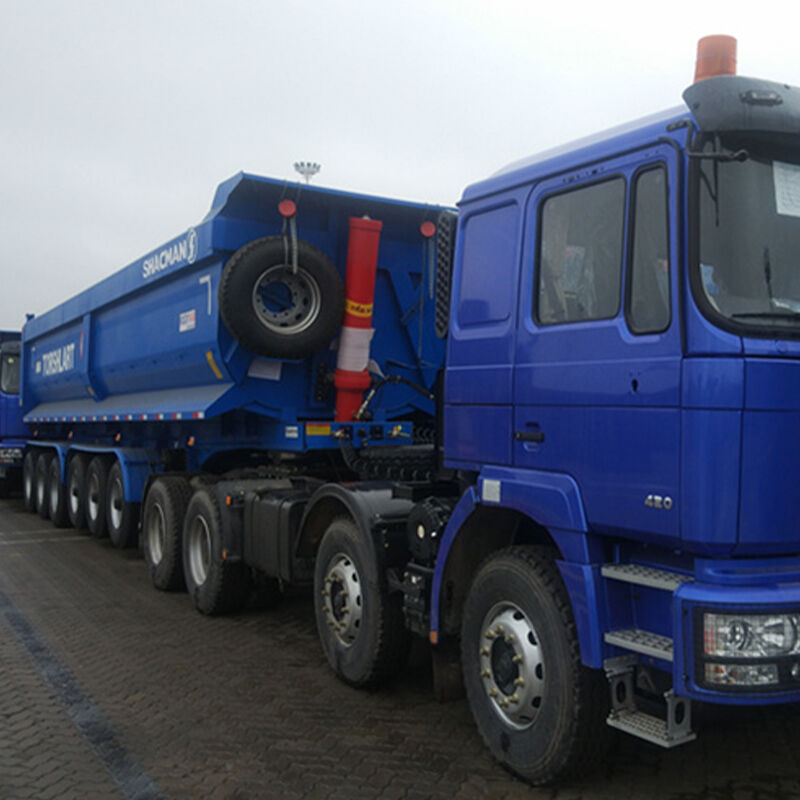

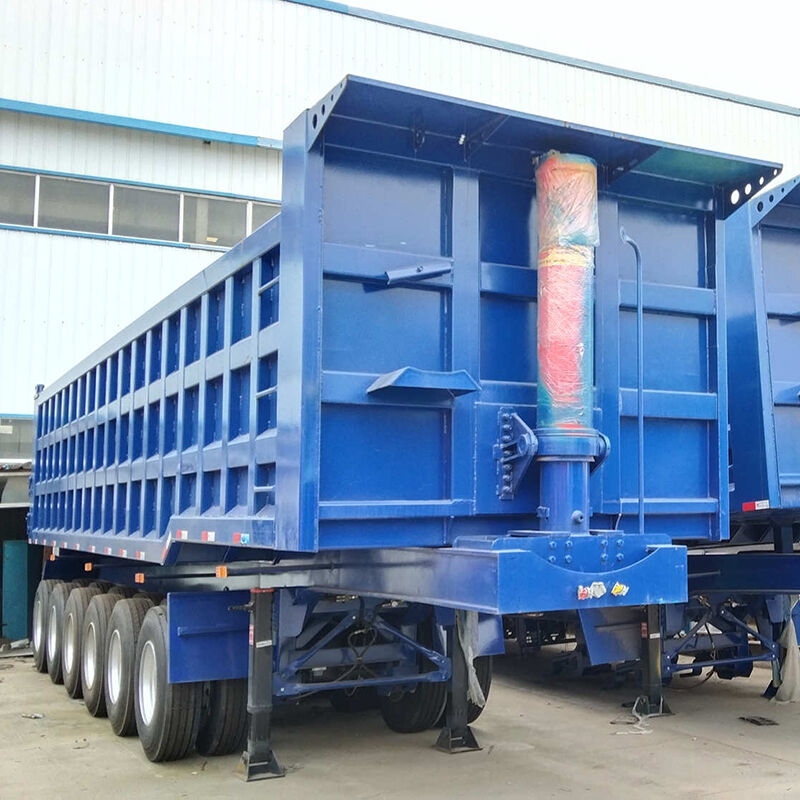

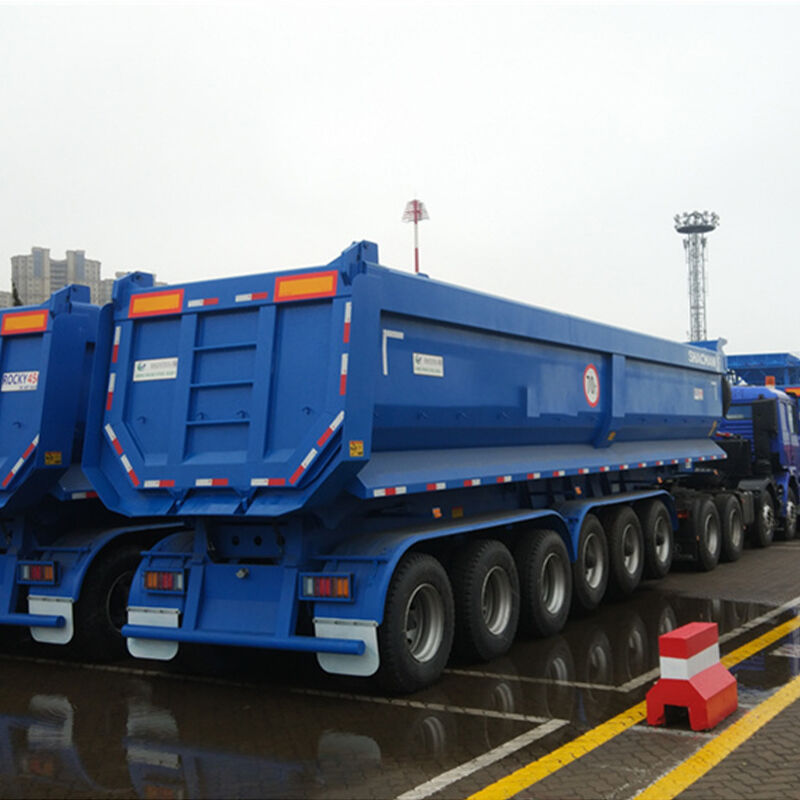

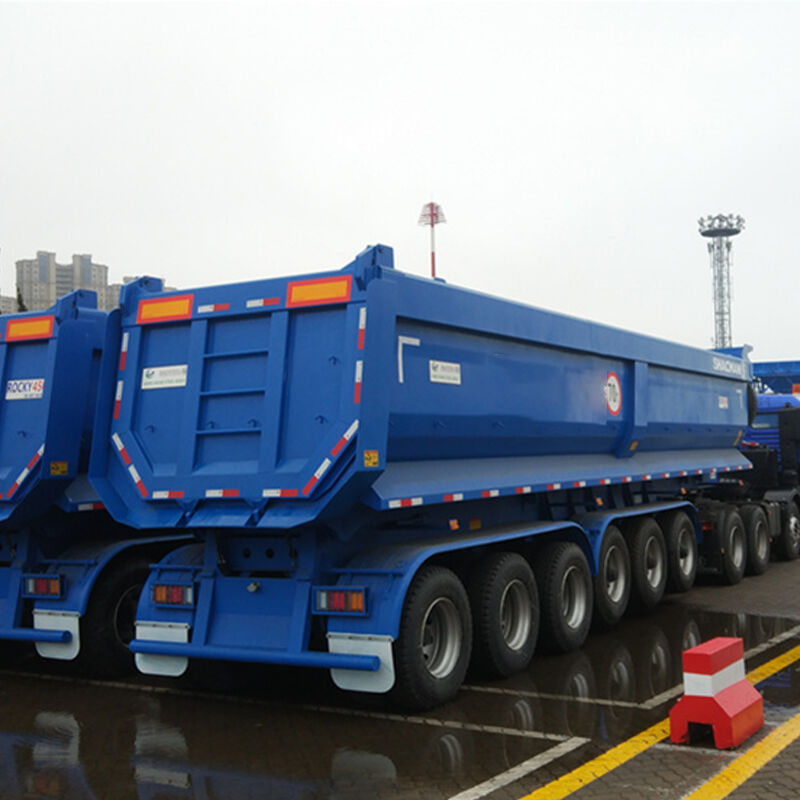

6 Axle Dump Trailer
The 6 axle dump trailer is a heavy‑duty rear tipper semi‑trailer designed for extreme‑load bulk transportation, widely used in mining, quarrying, large construction sites and long‑haul infrastructure projects.
Minimum order quantity: 1 unit
- Overview
- Recommended Products
Product Details
The 6 axle dump trailer is a heavy‑duty rear tipper semi‑trailer designed for extreme‑load bulk transportation, widely used in mining, quarrying, large construction sites and long‑haul infrastructure projects.
The six‑axle layout ensures balanced weight distribution, stable running and strong adaptability to rough roads, while the powerful hydraulic lifting system enables fast, safe and efficient unloading of sand, gravel, ore, coal and construction waste. Equipped with reliable pneumatic braking, heavy‑duty leaf spring suspension, durable tires and standard safety accessories, it delivers stable performance, low maintenance cost and high operational efficiency.
Product Parameter Table
Name |
6 Axle Dump Trailer |
Dimensions |
9300*2500*3400 |
Inner Dimension |
25 Cubic Meters |
Loading capacity |
30-80 Tons |
Axle brand and number |
13T HJ 3units |
King Pin |
50# JOST |
Steel Spring |
leaf spring suspension |
Main beam |
height beam500mm,upper plate14mm,down plate16mm,middle plate8mm. |
Tyre and quantity |
12R22.5 tubeless tires, 12 pieces |
Landing gear |
JOST, double speed operation |
Thickness |
bottom:8mm, side:4mm |
Brake system |
WABCO braking system with ABS |
Electrical system |
24V Electrical system With LED Light |
Tool box |
1 sets |
Spare tire carrier |
1 Set |
Packing |
Optional for SKD loading |
Function |
Transport Sand and Stone Transport |
Features of 6 axle dump trailer
🔵 The frame is made of Q355B high-strength manganese steel, offering strong load-bearing capacity and torsional resistance, suitable for heavy-duty conditions.
🔵 Equipped with three 13-ton axles, with options for internationally recognized brands such as BPW and Fuhua, ensuring high stability and readily available spare parts.
🔵 The cargo box is made of wear-resistant steel plate with a thickened floor, providing impact and wear resistance. The volume can be customized to meet specific needs.
🔵 The hydraulic lifting system is stable and reliable, enabling rear-tipping unloading for clean and efficient lifting and unloading.
🔵 The braking system is safe and comprehensive, equipped with air brakes and ABS for enhanced driving and operation safety.
🔵 The entire vehicle undergoes rust and corrosion protection treatment, adapting to complex environments such as high temperatures, dust storms, and humidity.
Application of 6 axle dump trailer
The dump trailer is suitable for transporting ore and slag in mines, transporting sand and gravel in infrastructure projects, clearing construction waste in cities, and transporting various materials for roads, bridges, and water conservancy projects. It adapts to a variety of complex road conditions and operating environments.
Packaging and Transportation：
🔵 Roll-on/Bulk Cargo Transportation
This is often the preferred method for transporting complete units. The trailer is loaded directly onto a general cargo ship. For multiple items, this is a straightforward and economical option, minimizing handling and assembly costs at the destination.
🔵 Container Transportation
As a flexible alternative, we can professionally disassemble the trailer for safe loading into standard shipping containers. This option is ideal for small orders or when your logistics chain is based at a container terminal.
