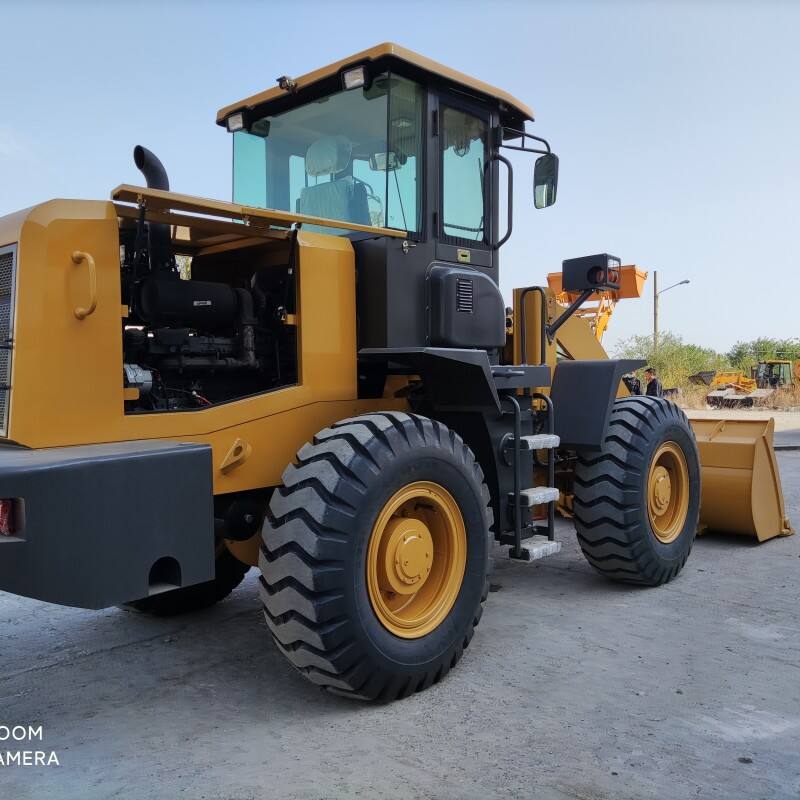

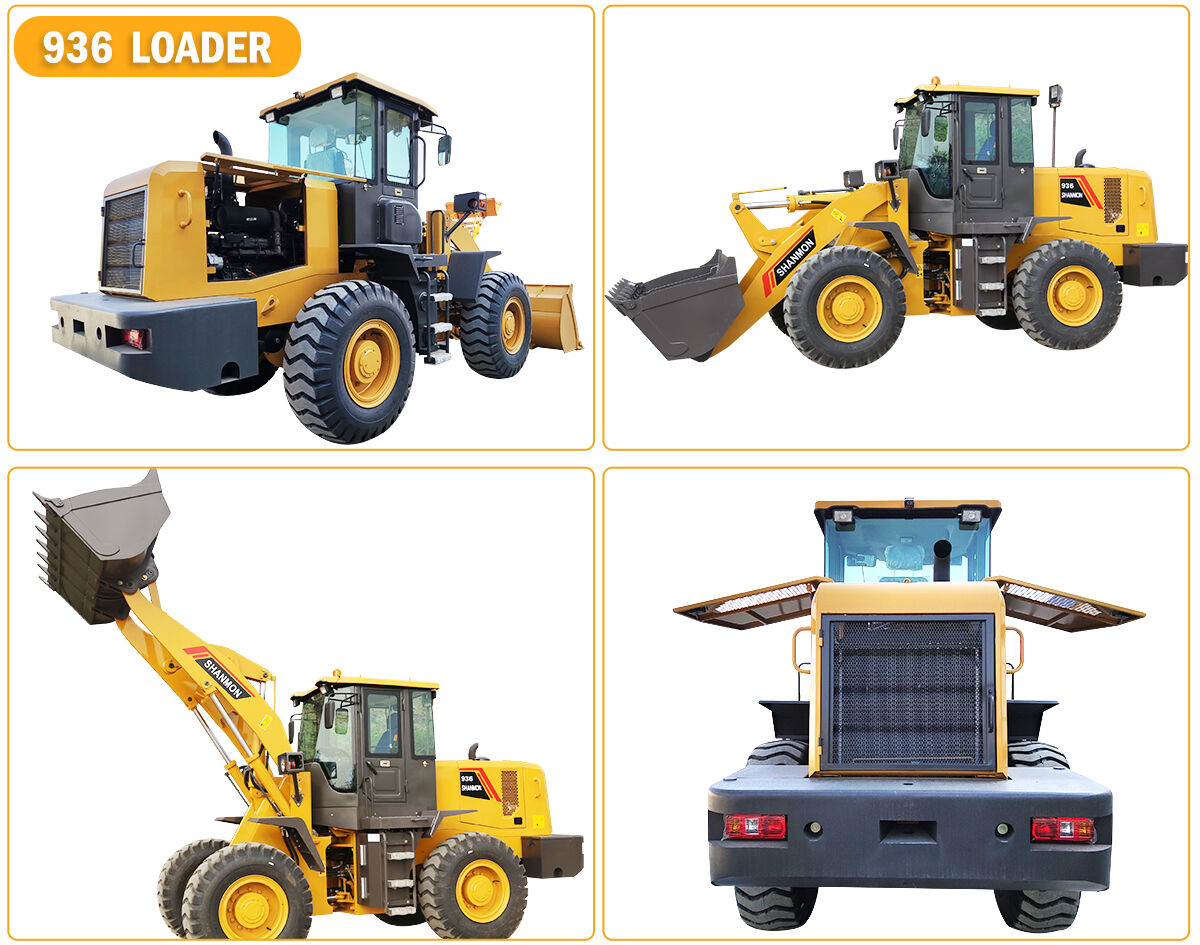

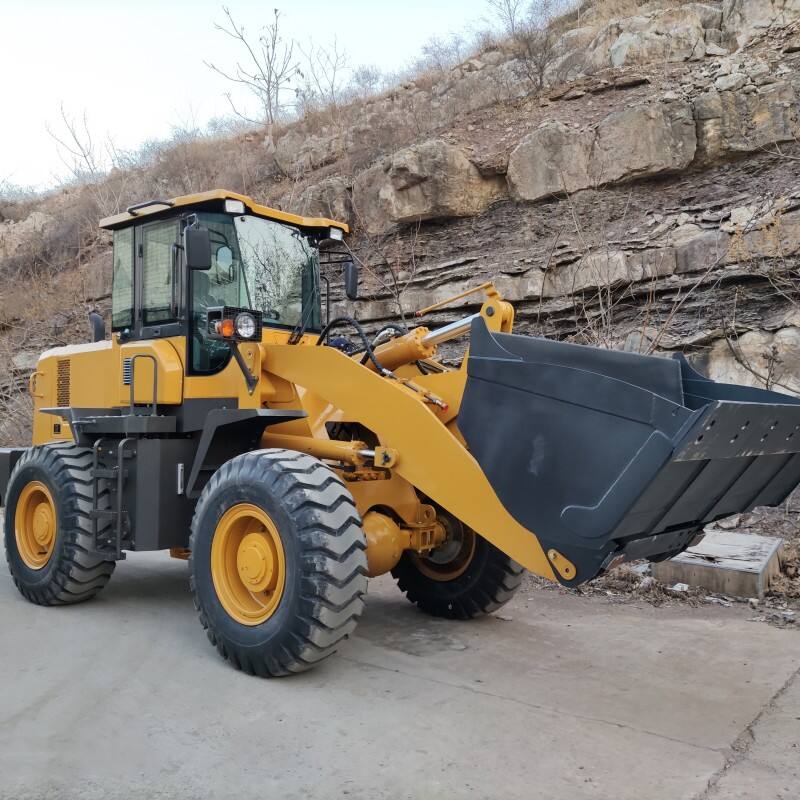

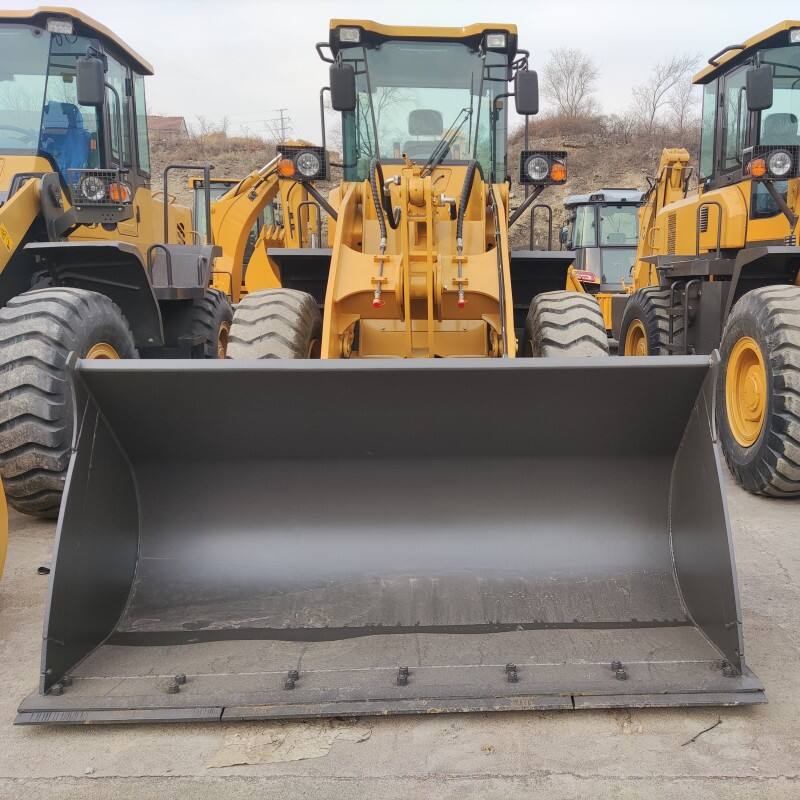

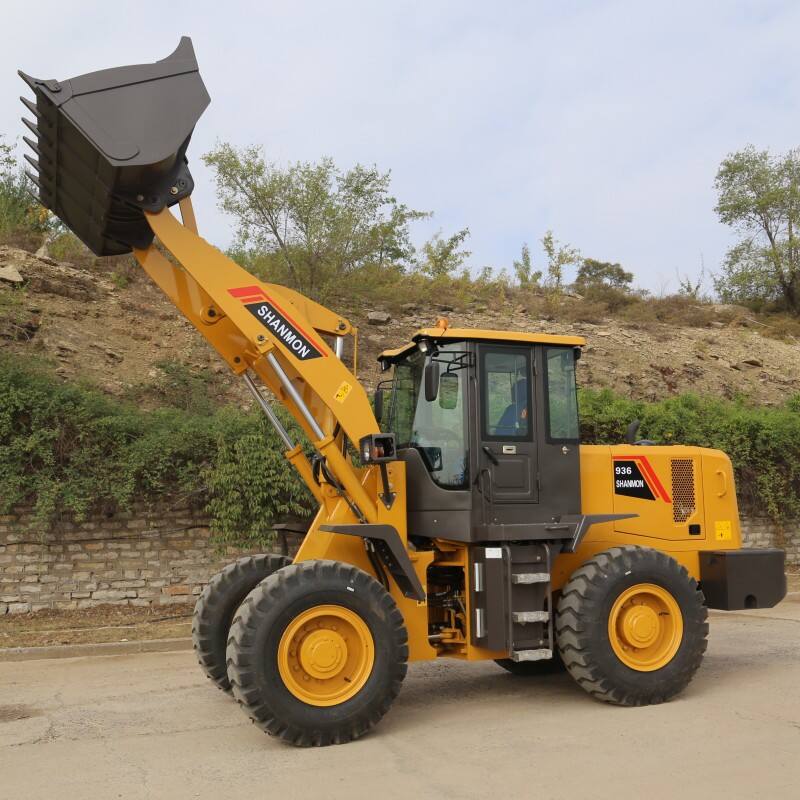

Shanmon 936 Loader
The Shanmon 936 loader is constructed with the highest quality materials and components, enabling it to perform exceptionally well in the harshest conditions.
Minimum order quantity: 1 unit
- Overview
- Recommended Products
Product Details
The Shanmon 936 loader is constructed with the highest quality materials and components, enabling it to perform exceptionally well in the harshest conditions. The Shanmon 936 loader is equipped with a high-performance Weichai diesel engine and an optimally matched mechanical or electronically controlled transmission system. The operator can shift gears according to load changes, resulting in significant traction and powerful digging force. This leads to improved operational efficiency and fuel economy.
Product Parameter Table
Performance |
Loader lifting capacity |
3000KG |
Operating weight |
10000KG |
|
Rated bucket capacity |
1.8m³ |
|
Max. tractive force |
97KN |
|
Max. breakout force |
127KN |
|
Max. grade ability |
30° |
|
Max. dump height |
3100mm |
|
Max. dump reach |
1130mm |
|
Overall dimension(LxWxH) |
7180×2350×3230mm |
|
Min. turning radius |
6250mm |
|
Max. tipping load |
6000KG |
|
Engine |
Model |
Weichai WP6G125E22 |
Type |
Inline, water-cooled, four stroke |
|
Cylinder-Inner diameterxstroke |
6-108x130mm |
|
Rated power |
92KW |
|
Maximum torque |
500N.m |
|
Min fuel-consumption ratio |
<213g/kw.h |
Advantages of 936 loader

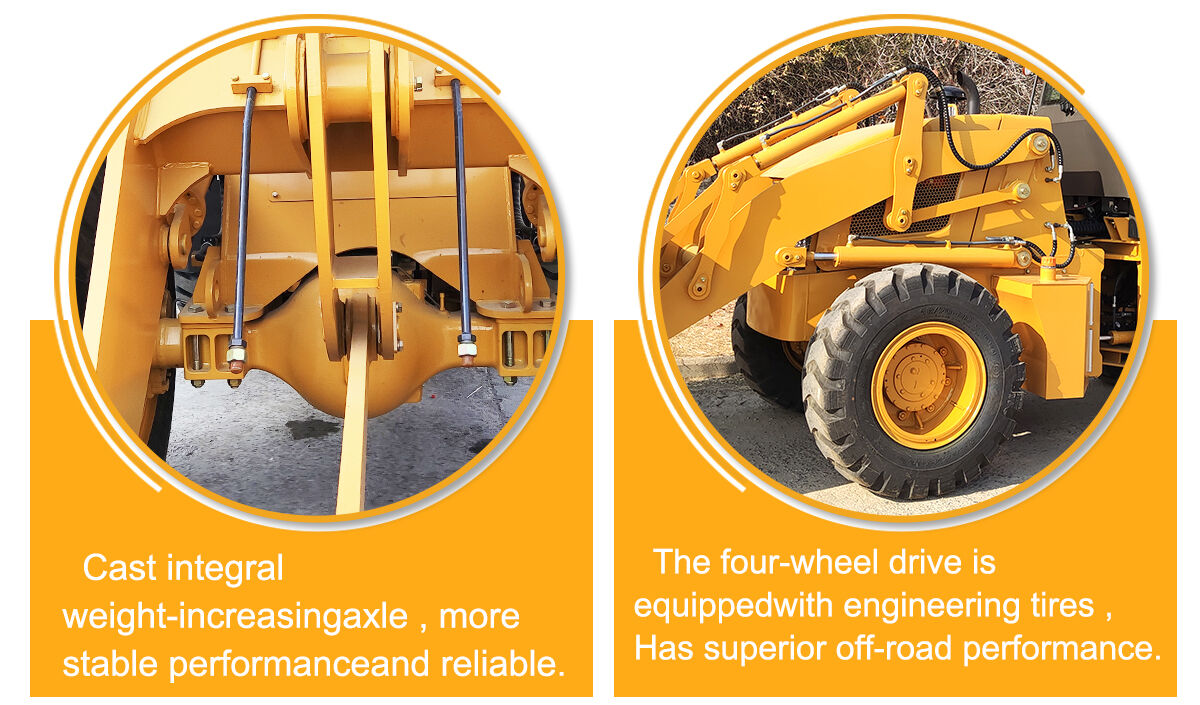

🔵 The Shanmon 936 loader is equipped with well-known domestic and international engines such as Weichai, Yuchai, and Cummins, ensuring stable and reliable quality. Reinforced axles provide stronger driving force, lower fuel consumption, and high reliability.
🔵 To ensure superior performance, this 10-ton compact wheel loader is equipped with a fixed-axle gearbox. This simple structure reduces maintenance costs and avoids issues such as neutral shifting and slippage when the vehicle speed changes.
🔵 The Shanmon 936 loader also features an efficient loading design, powerful lifting capacity, optimized bucket design, and a robust and durable structure.
🔵 The Shanmon loader's independent cooling system effectively dissipates heat, utilizing large-diameter orifices to increase the heat dissipation area and improve overall cooling efficiency.

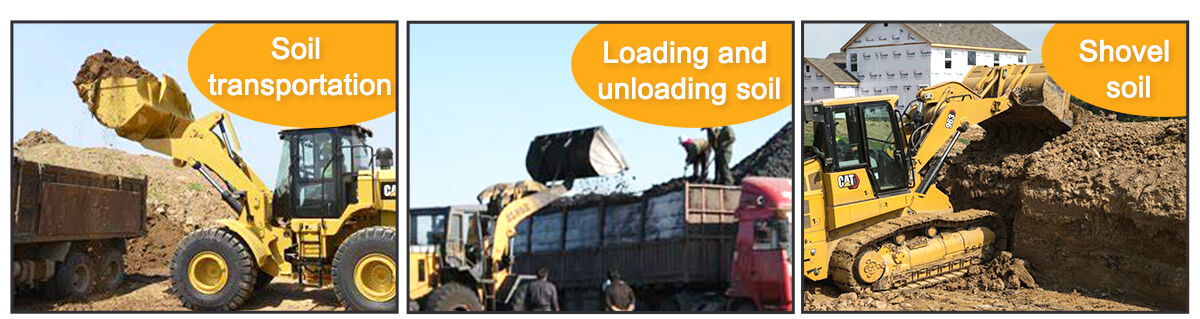

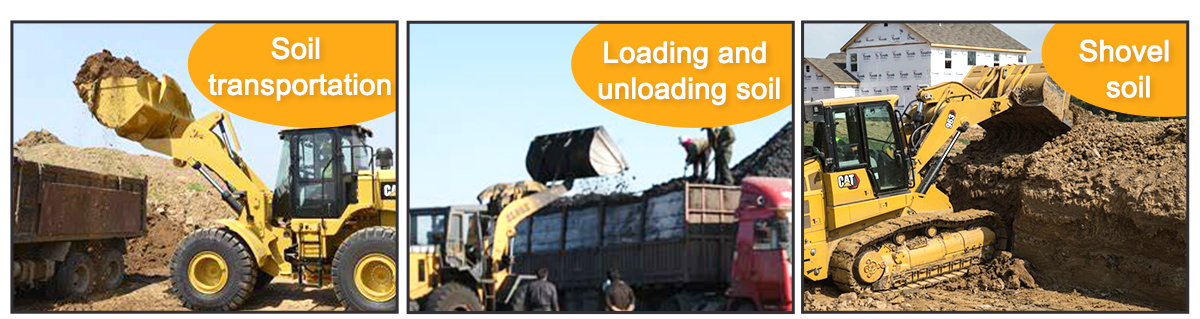

Applications of Shanmon loader
The Shanmon 936 loader is designed for use in construction, agriculture, forestry, and other fields. It is capable of digging, transporting, and loading materials.
Packaging and Transportation
Shanmon 936 loaders undergo professional rust and impact protection treatment before shipment. All critical components are securely fixed and waxed to prevent damage during long-distance transportation.
We offer flexible transportation options, including roll-on/roll-off ships, bulk carriers, and flatbed containers, to meet different order quantity requirements.
FAQ
Q: Who are you?

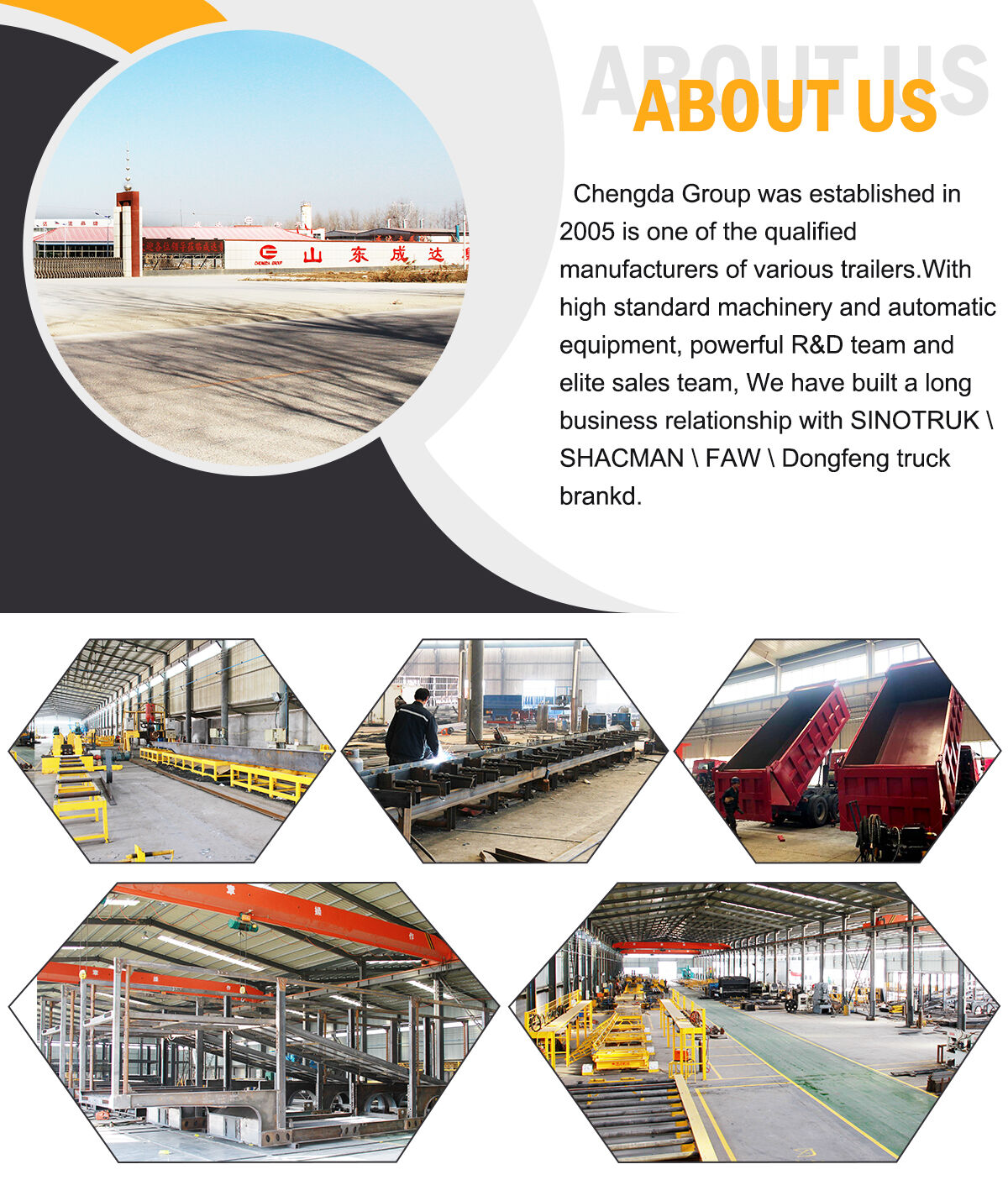

A: Shandong Chengda Automobile Sales Co., Ltd., established in 2005, is one of the qualified manufacturers of various types of trailers. Integrating production, R&D, and a professional sales team, we provide comprehensive services for semi-trailers, trucks, construction machinery, and trailer accessories. As a leading supplier in the industry, we generate over US$50 million in export revenue and nearly RMB 600 million in revenue annually.
Q: What is your delivery time?
A: For standard machines, delivery time is 25-35 days after receiving the deposit.
Q: Can you customize products?
A: Yes, Shanmen Machinery can provide customized products according to your needs. OEM and ODM are both acceptable.
Q: What services will you provide if I purchase from you?
A: Our well-trained and professional service team will provide excellent service in a friendly and timely manner. To ensure a good customer experience, pre-sales service includes recommending suitable products based on your specific needs. You only need to tell us your requirements.
