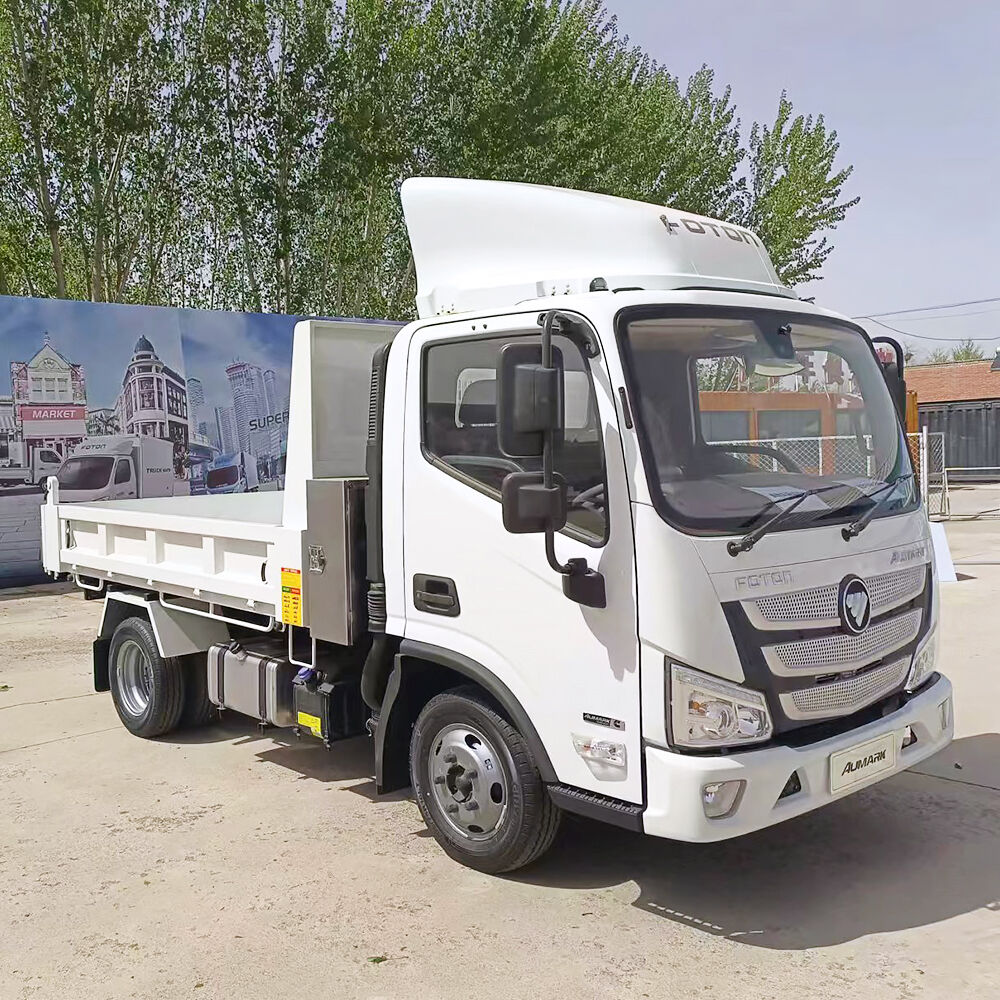

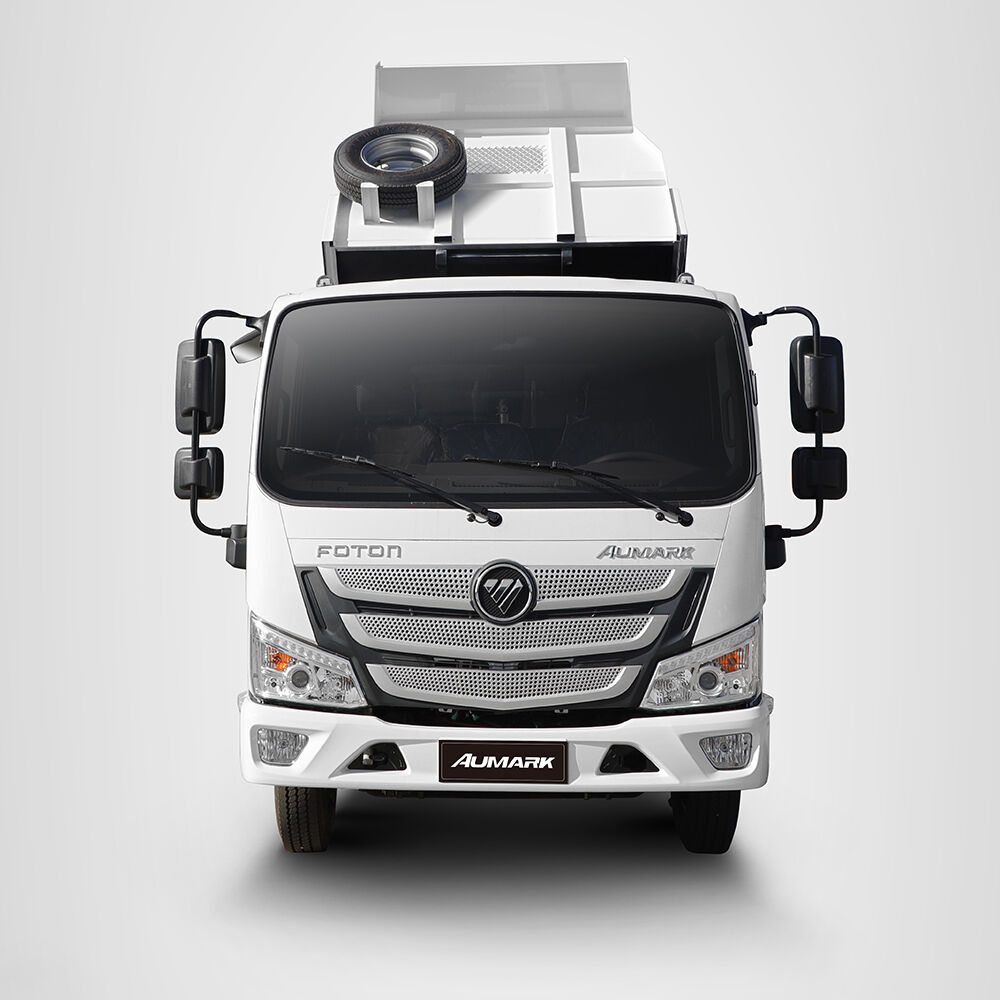

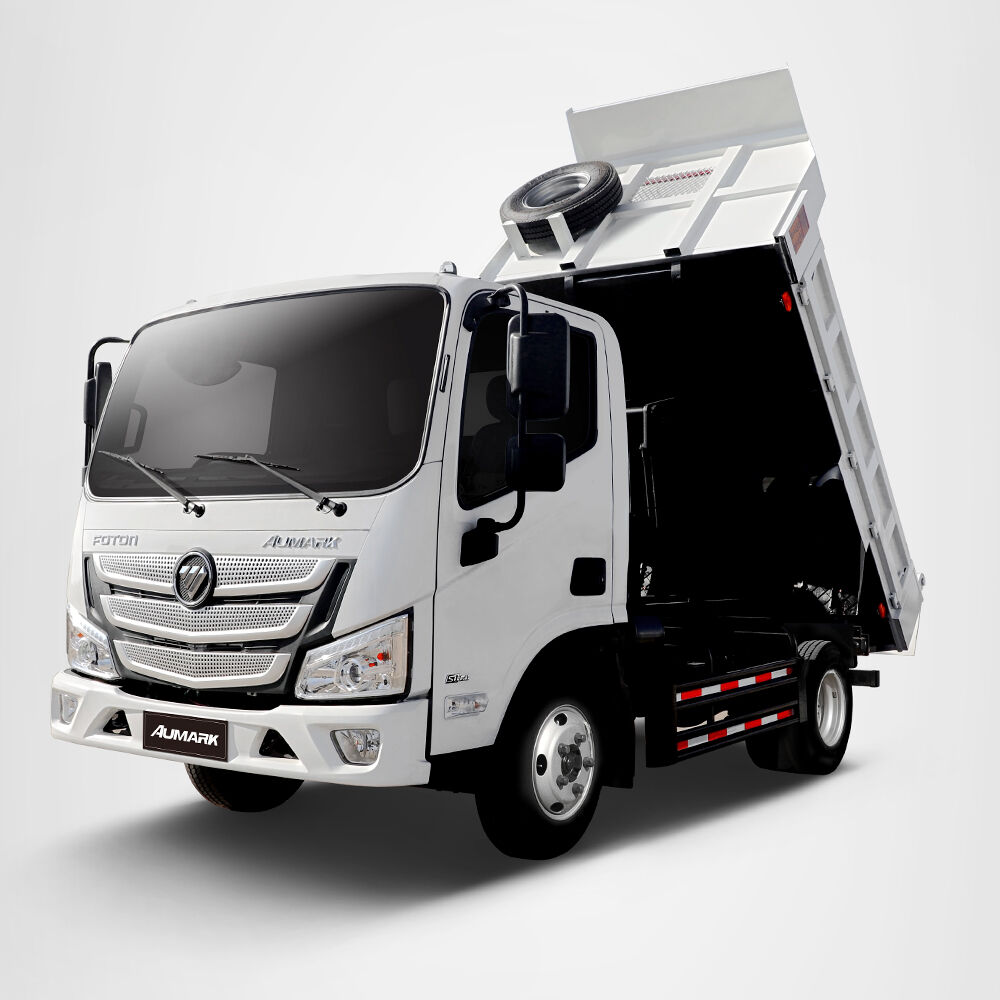

Foton Aumark S Dump Truck
The Foton Aumark S dump truck is a dump truck integrating high-efficiency power, excellent economy, high reliability, and advanced technology, playing an important role in urban construction, logistics transportation, and other fields.
Minimum order quantity: 1 unit
- Overview
- Recommended Products
Product Details
The Foton Aumark S dump truck is a dump truck integrating high-efficiency power, excellent economy, high reliability, and advanced technology, playing an important role in urban construction, logistics transportation, and other fields.
Product Parameter Table
Parameter Category |
Specifications |
Drive Form |
4×2 (Rear-Wheel Drive) |
Powertrain |
Cummins ISF2.8s4/3.8s4, 150-180HP, Euro VI |
Transmission |
WLY/ZF 6-speed; Optional Fast 8-speed (Heavy-Duty) |
Chassis |
3-ayer reinforced frame; 5.5-9T rear axle; 4.33/4.875 ratio |
Dump System |

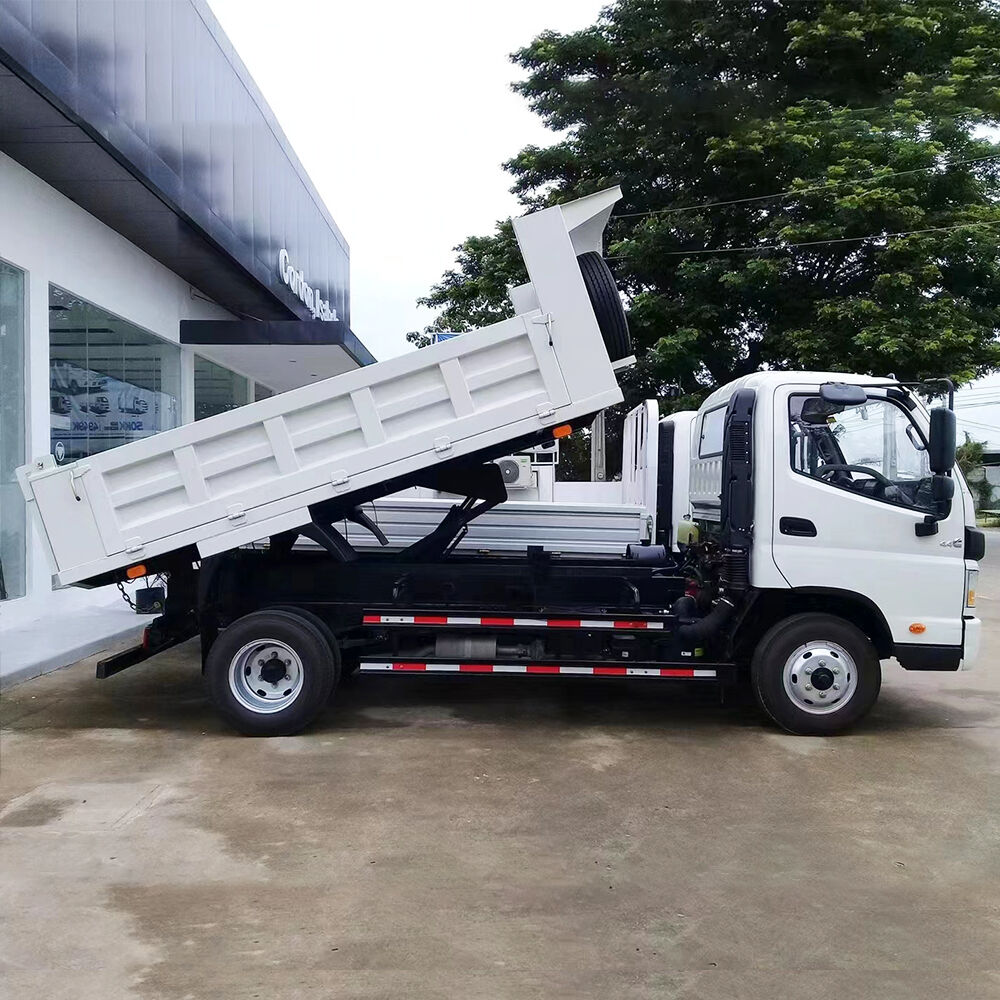

Hydraulic rear-tipping (optional side-tipping); 15-18T lifting capacity; 45°-50° angle |
Dimensions |
Overall: 5995-6500x2100-2500x2800-2900mm; Cargo box: 4000-4500×2100-2450×800-1000mm |
Tire |
7.00R16/7.50R16 (Std); 8.25R16 (Heavy-Duty) |
GVW & Payload |
GVW: <4495kg (Blue Plate)/8-10T; Payload: 1.2-1.8T/4-6T |
Certification |
ISO, CE, Euro VI; Optional LHD/RHD |
Features of Foton Aumark S dump truck
🔵 Frame: The frame is made of high-strength steel, possessing high strength and rigidity, capable of withstanding the weight and impact forces of a fully loaded dump truck.
🔵 Suspension System: The front suspension uses an independent suspension system, and the rear suspension uses a leaf spring suspension system. This suspension system not only provides good comfort and stability but also ensures the Foton dump truck's load-bearing capacity.
🔵 Axles: The front axle is equipped with disc brakes, and the rear axle is equipped with drum brakes. This braking system provides good braking performance, ensuring vehicle driving safety.
🔵 Tires: Equipped with 8.25R16 tires. These tires have good wear resistance and puncture resistance, adapting to various road conditions.
Applications of Foton Aumark S dump truck
Foton light trucks are widely used in small construction sites for transporting sand, gravel, earthwork, urban construction waste, and slag, as well as for short-distance bulk material transport in rural and regional areas and auxiliary operations in municipal engineering. They are also suitable for small mines, farms, and logistics yards, capable of handling both highway and light off-road conditions.
Packaging and Transportation
The Foton dump truck is waxed before shipment to prevent rust. We can arrange roll-on/roll-off, bulk carrier, or flatbed container transport according to your quantity and requirements.
