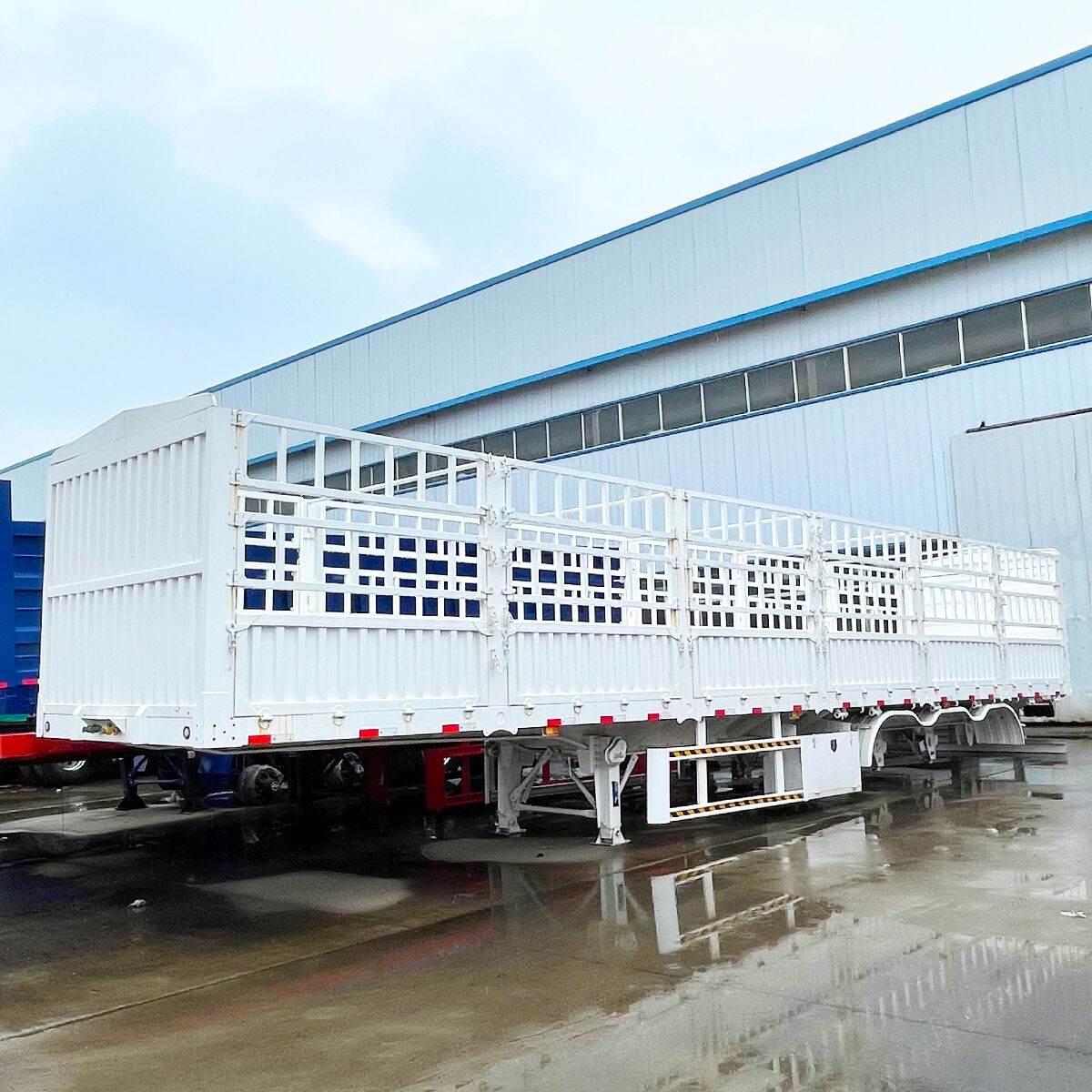

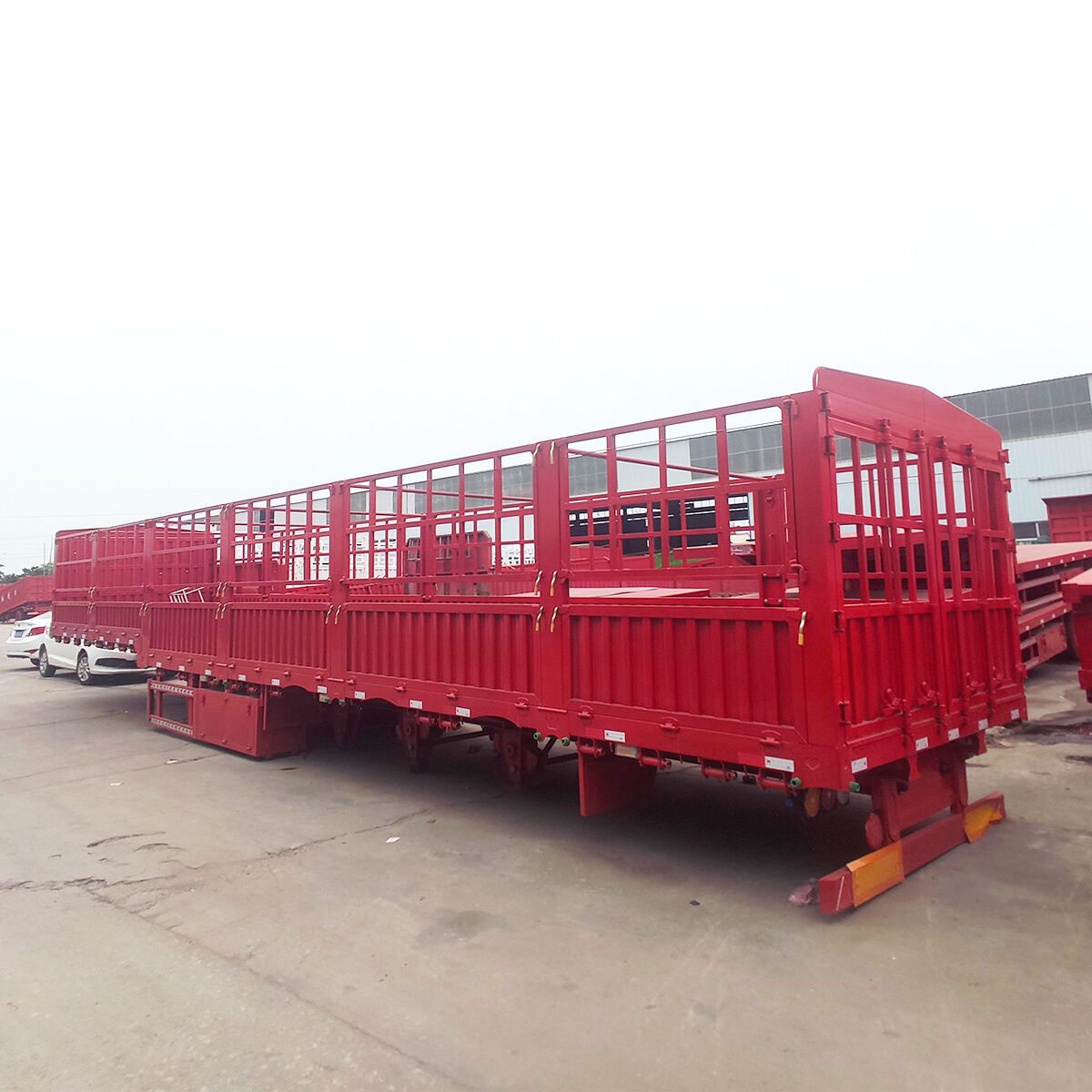

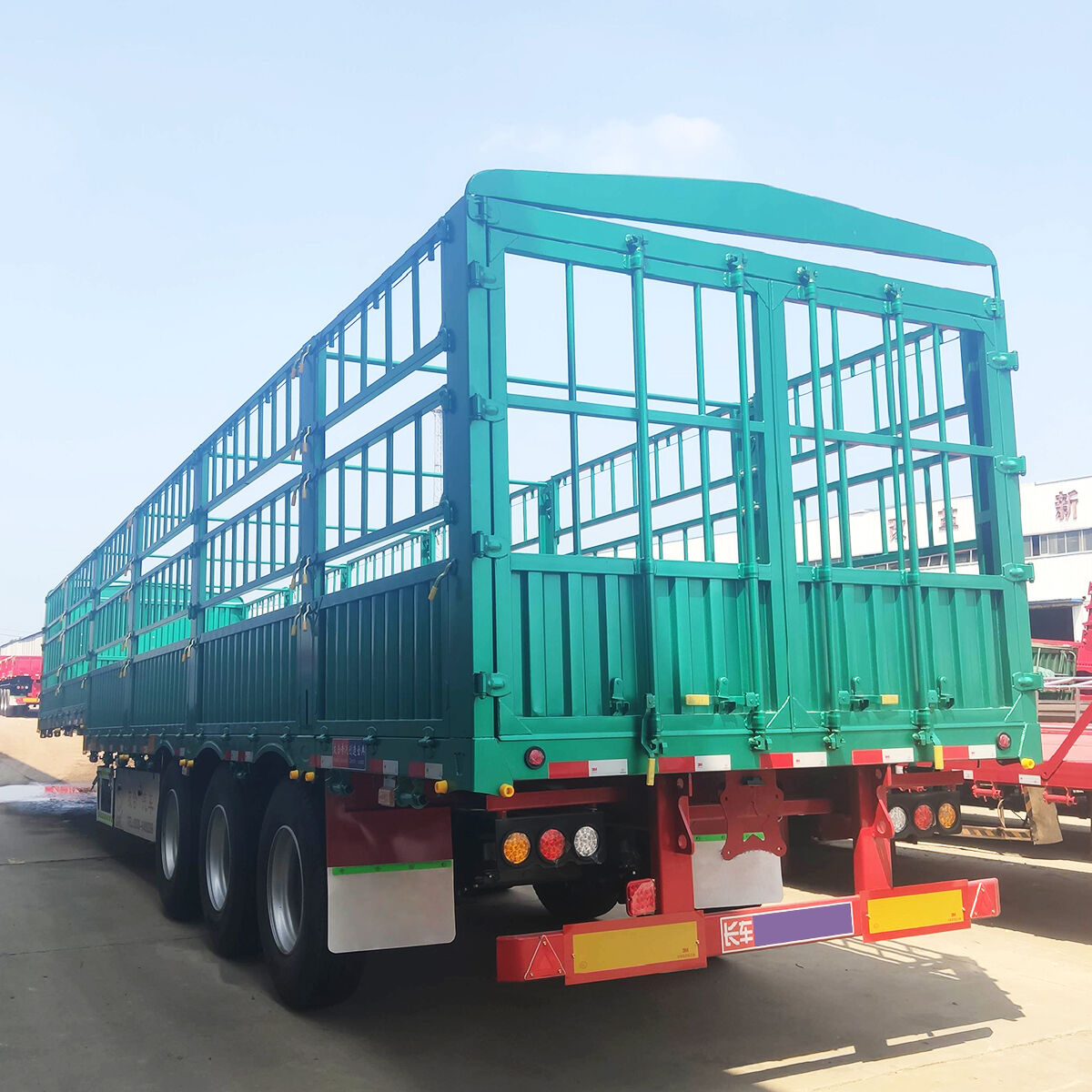

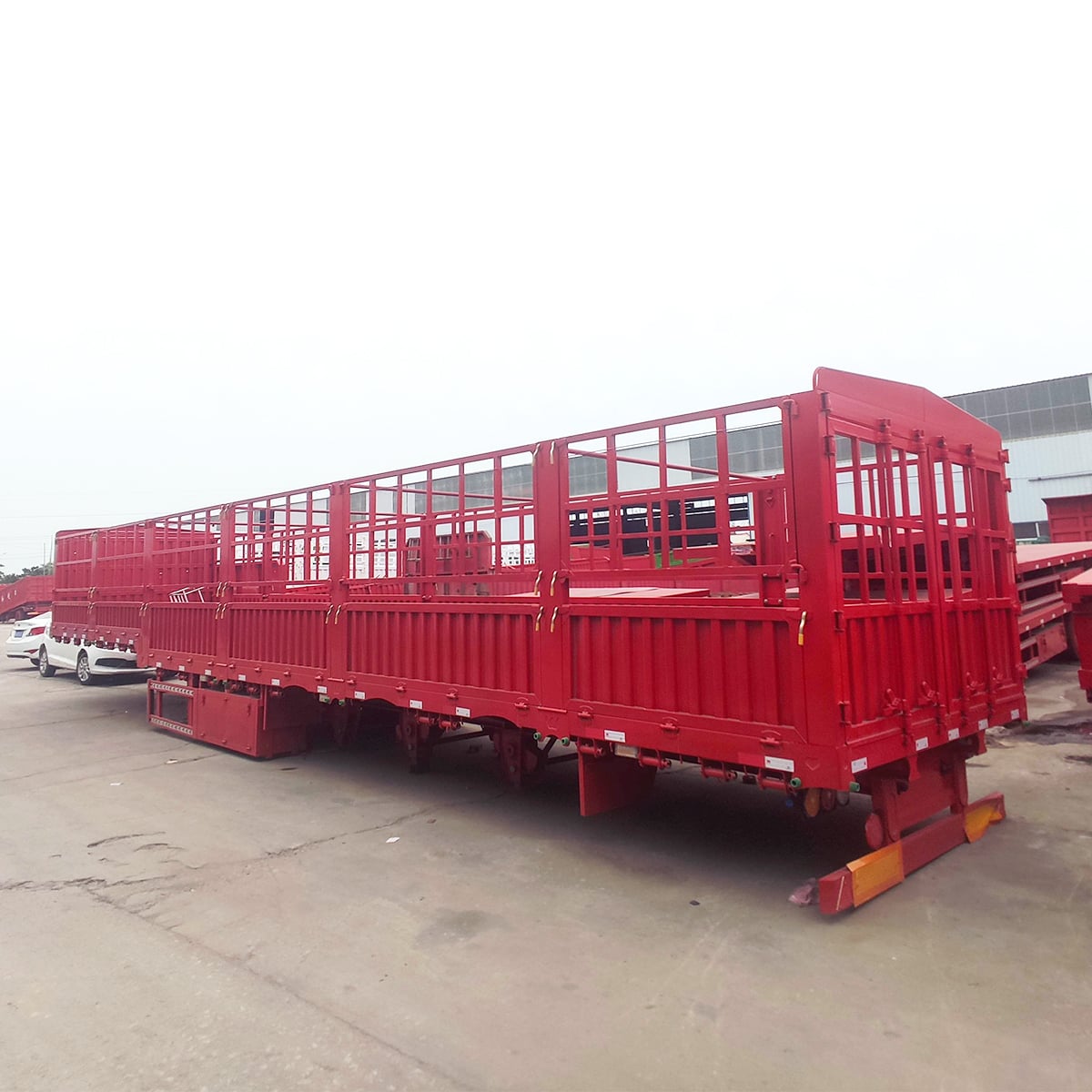

3 Axle Fence Trailer
The 3 axle fence trailer is a heavy-duty freight trailer designed specifically for transporting bulk and palletized goods.
Minimum order quantity: 1 unit
- Overview
- Recommended Products
Product Details
The 3 axle fence trailer is a heavy-duty freight trailer designed specifically for transporting bulk and palletized goods. It features a stable structure, high load-bearing capacity, and high flexibility, and is widely used for transporting agricultural products, livestock, building materials, vegetables, fruits, and general cargo.
Product Parameter Table
Overall Dimensions（L x W x H）(mm) |
12500x2500x2550 |
Cargo box dimension (L x W x H)(mm) |
12000X2300X600 |
Main beam |
The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8 mm |
Side beam |
Q235 16# channel steel |
Axle |
13Ton, Fuwa brand option one hundred fifty thousand Kilometers no need maintenance |
Tires |
12R22.5, 12 pcs. Taitong brand |
Rim |
9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs |
King pin |
2” and 3.5” removable Kingpin, bolted in type 500mm from the front face of the front bolster |
Landing gear |
28 ton single action supporting legs |
Steel spring |
10/10/10 leaf spring suspension |
Air chamber |
Six double air chamber |
Advantages of 3 axle fence trailer
🔵 Versatile application, suitable for transporting various bulk goods
🔵 Removable fences can be adjusted or disassembled according to actual needs
🔵 Robust structure, long service life, and low failure rate
🔵 Good maneuverability, adaptable to different road conditions
🔵 Easy maintenance, low operating costs
🔵 Strong compatibility with various tractor units
Applications of fence semi trailer
This 3 axle fence trailer is widely used for transporting agricultural products such as grains, vegetables, and fruits, livestock and poultry, as well as various goods such as building materials, bagged goods, and boxed goods. It is widely used in logistics, agriculture, animal husbandry, and rural transportation.
Packaging and Transportation
The trailer is treated with anti-rust wax before shipment. We can arrange roll-on/roll-off, bulk carrier, or container transport according to customer requirements. Professional securing and protection measures ensure safe delivery to your destination port.
FAQ
Q: What is the load capacity of the three-axle fenced trailer?
A: The load capacity can be designed from 40 tons to 60 tons, depending on customer needs.
Q: Can the fence height be customized?
A: Yes, the fence height can be customized according to your cargo type.
Q: Does it support unloading from both sides?
A: Yes, we can design a side-opening structure for convenient loading and unloading.
